SmallRig Portable Charger Case for NP-FZ100 Camera Batteries 5106

Keep your Sony NP-FZ100 camera batteries powered up on the go with the SmallRig Portable Charger Case 5106. This compact and durable case not only protects your batteries but also functions as a charger, ensuring you never miss a shot. Perfect for photographers and videographers needing reliable power for their Alpha cameras.

Product Overview

The SmallRig Portable Charger Case is engineered specifically for Sony NP-FZ100 camera batteries. It is a compact, lightweight charger case designed to facilitate efficient and convenient charging of up to two NP-FZ100 lithium-ion batteries simultaneously. The product integrates dual-channel fast charging capabilities and clear power indicators, making it an ideal accessory for professional photographers and videographers who require reliable and portable power management for their camera equipment.

Design and Build

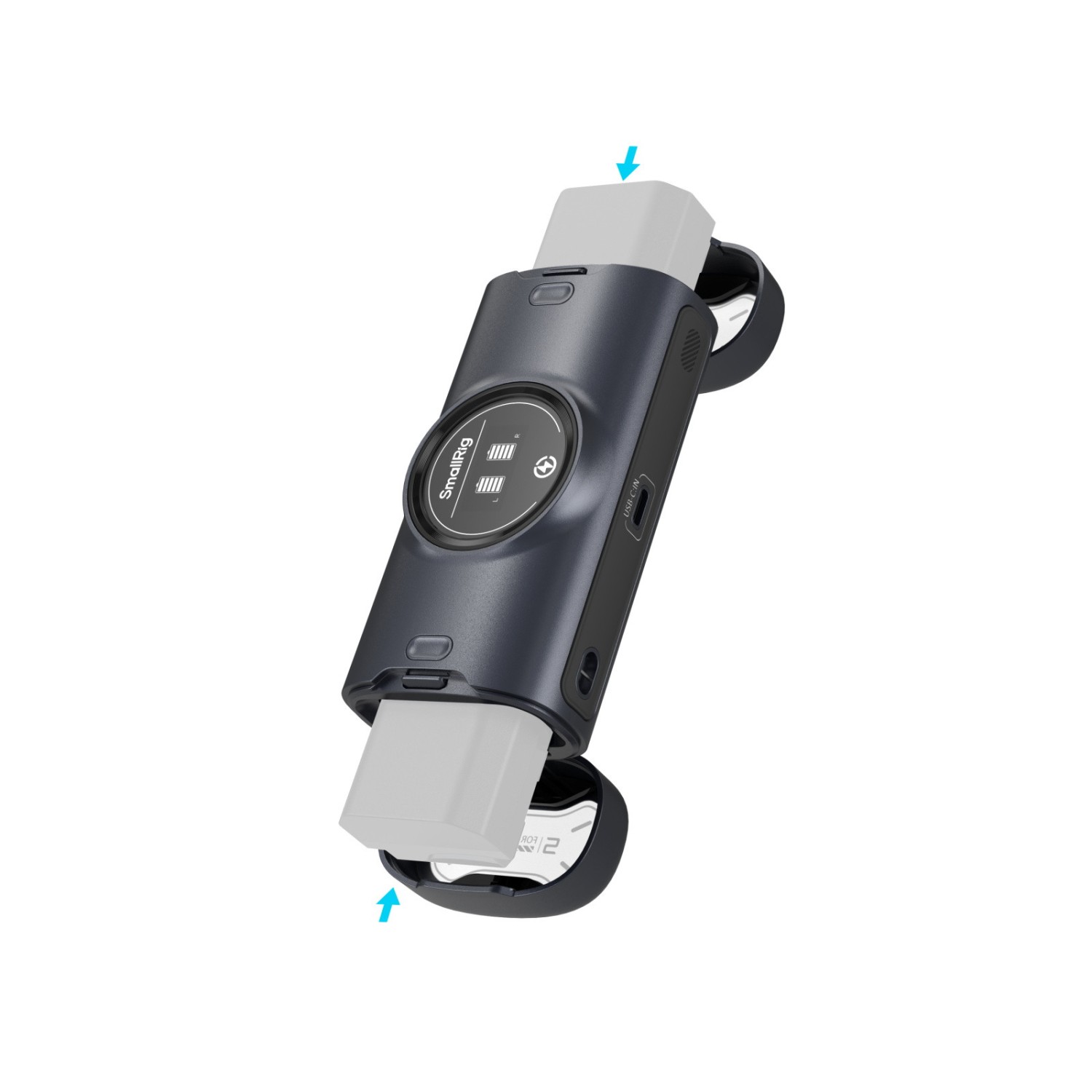

The charger case features a robust construction made from high-quality PC and ABS materials that ensure durability and heat resistance. Its dimensions are approximately 135.5 mm in length, 57.2 mm in width, and 37.5 mm in height, and it weighs around 274 grams, optimizing portability without sacrificing structural integrity. The charger case is designed with precise compartments to securely hold two NP-FZ100 batteries, alongside individual protective battery covers to prevent damage during transport.

Charging Technology

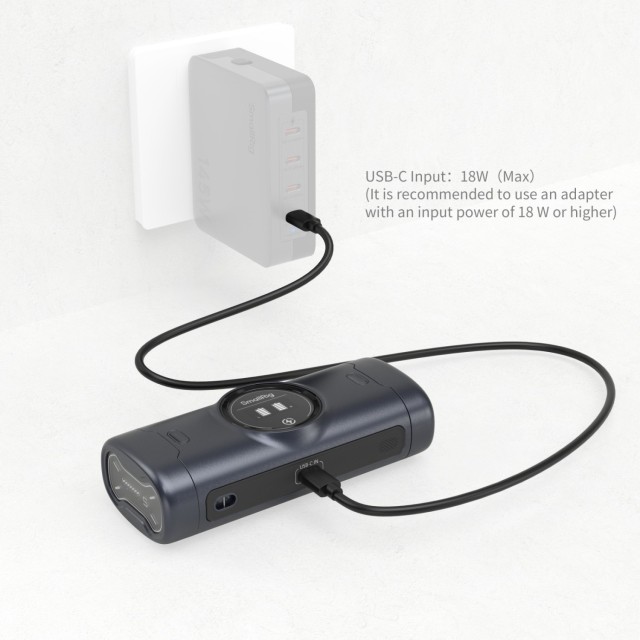

This charging case supports an 18-watt maximum power input through a USB-C interface with PD3.0 and QC2.0 charging protocols. It delivers a rated output of 8.4 volts at 1 amp per battery channel, allowing both batteries to be charged concurrently and efficiently. The device achieves a full charge in approximately 2.5 hours, significantly reducing downtime on set compared to conventional chargers.

Battery Specifications

• Battery Type: Lithium-ion
• Nominal Voltage: 7.2 volts
• Cell Capacity: 2520 to 2400 mAh depending on battery model
• Rated Energy: Approximately 17.28 to 18.14 Wh
• Charging Voltage Limit: 8.4 volts
• Charging Current: Standard charge at 0.2C (around 520 mA), fast charge up to 0.7C (approximately 1820 mA)
• Maximum Discharge Current: 4 A
• Discharge Cut-off Voltage: 5.0 volts

Operational Features

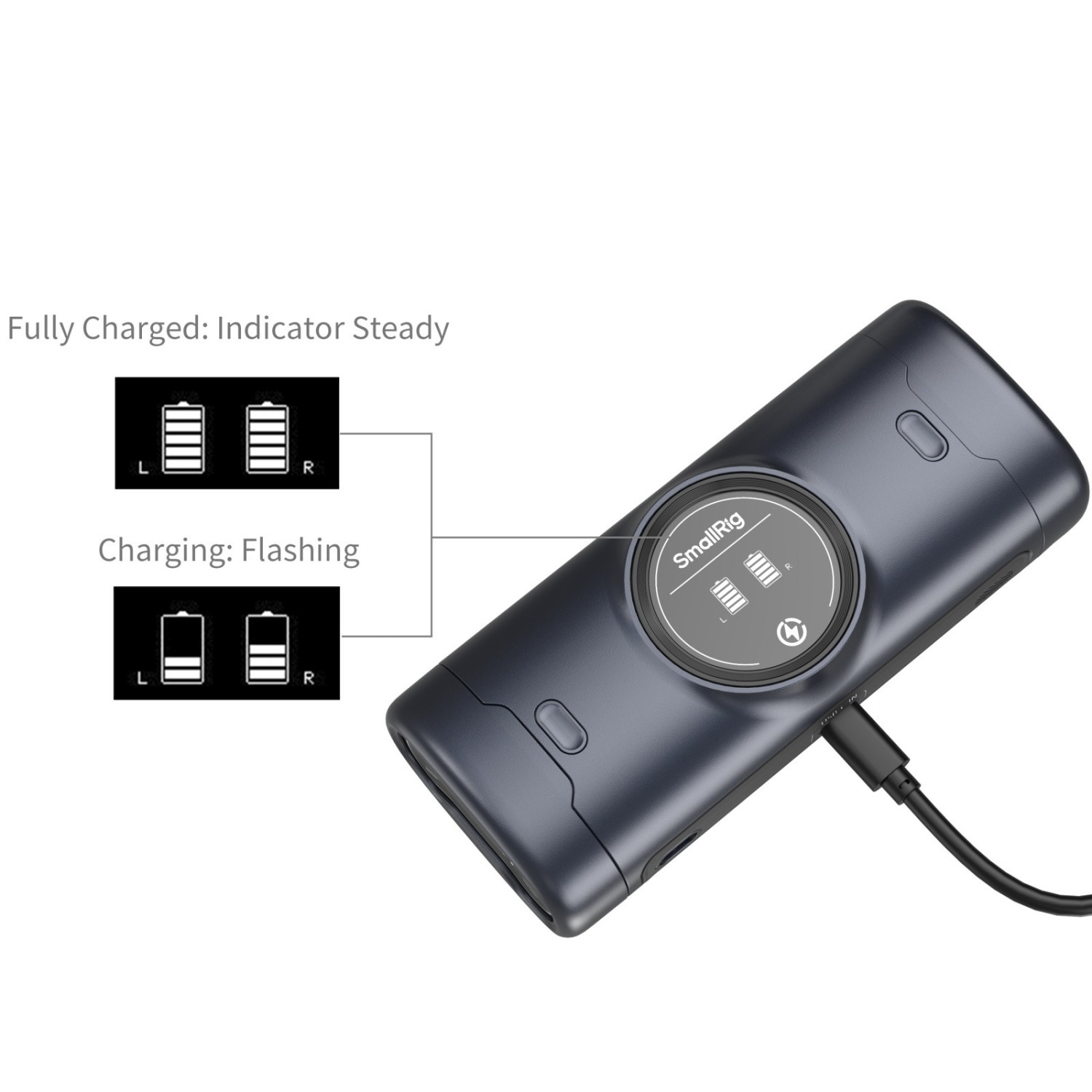

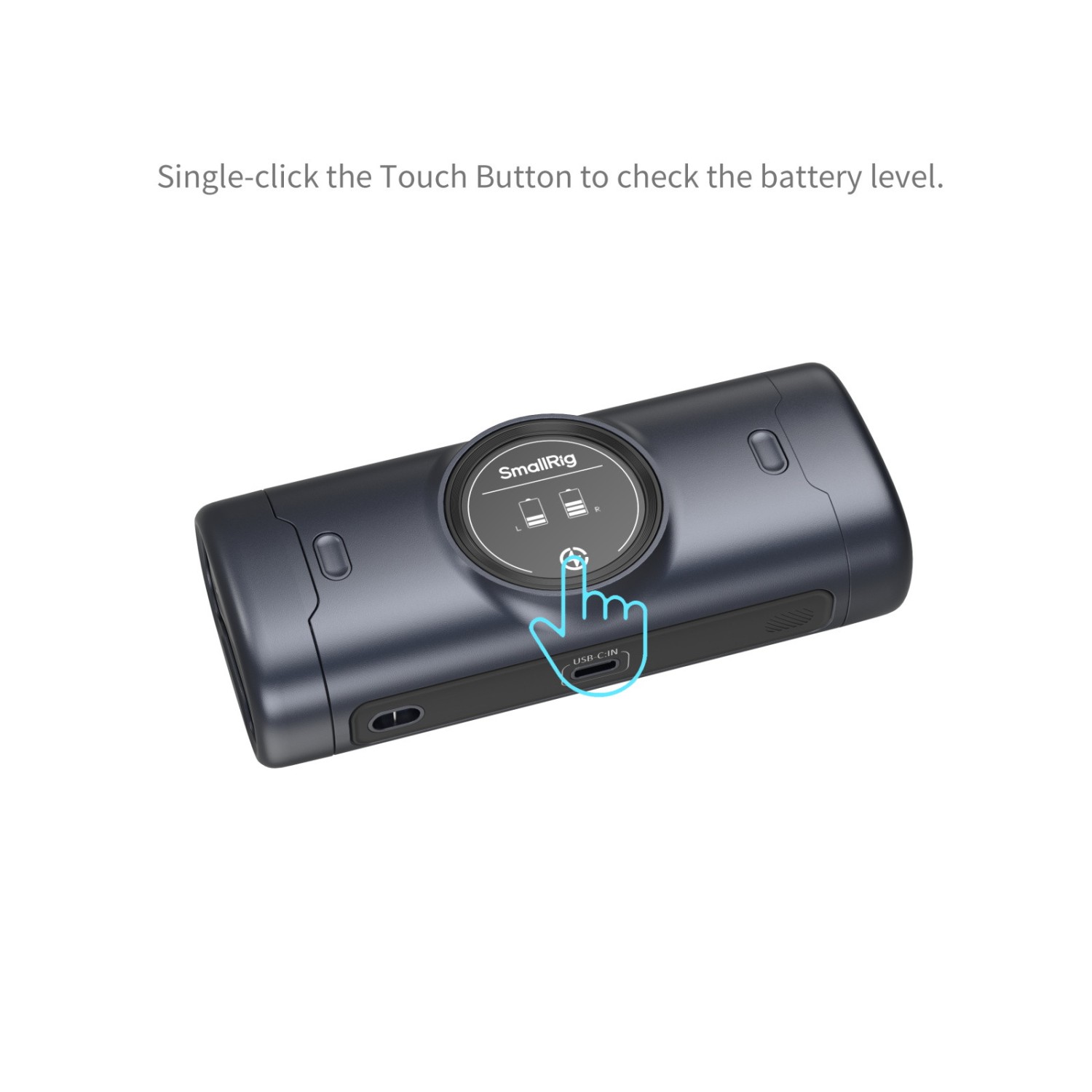

The charger case operates efficiently within an ambient temperature range of 0°C to 45°C, suitable for most working environments. It includes an integrated digital display that provides real-time information about charging current, voltage, progress, and capacity for both batteries. This clear HD power display enables users to monitor charging status accurately at a glance.

Connectivity and Compatibility

The unit is equipped with a USB-C port for input power delivery, allowing connection to power banks, wall adapters, car chargers, and other USB-C power sources. Its compatibility not only covers various SmallRig NP-FZ100 batteries but also ensures seamless performance with original Sony NP-FZ100 batteries and chargers. The case includes a high-quality 60W USB-C to USB-C charging cable measuring one meter in length, facilitating flexible charging arrangements.

Safety and Reliability

Safety is paramount, and the charger case incorporates multiple protections including overcharge, overcurrent, and temperature safeguards to prevent damage to batteries and ensure stable, safe charging. The fire-resistant casing and stable circuitry guarantee reliable voltage and current output, minimizing risks during operation. The battery cells themselves are designed without memory effect, supporting longer overall battery life even after repeated charging cycles.

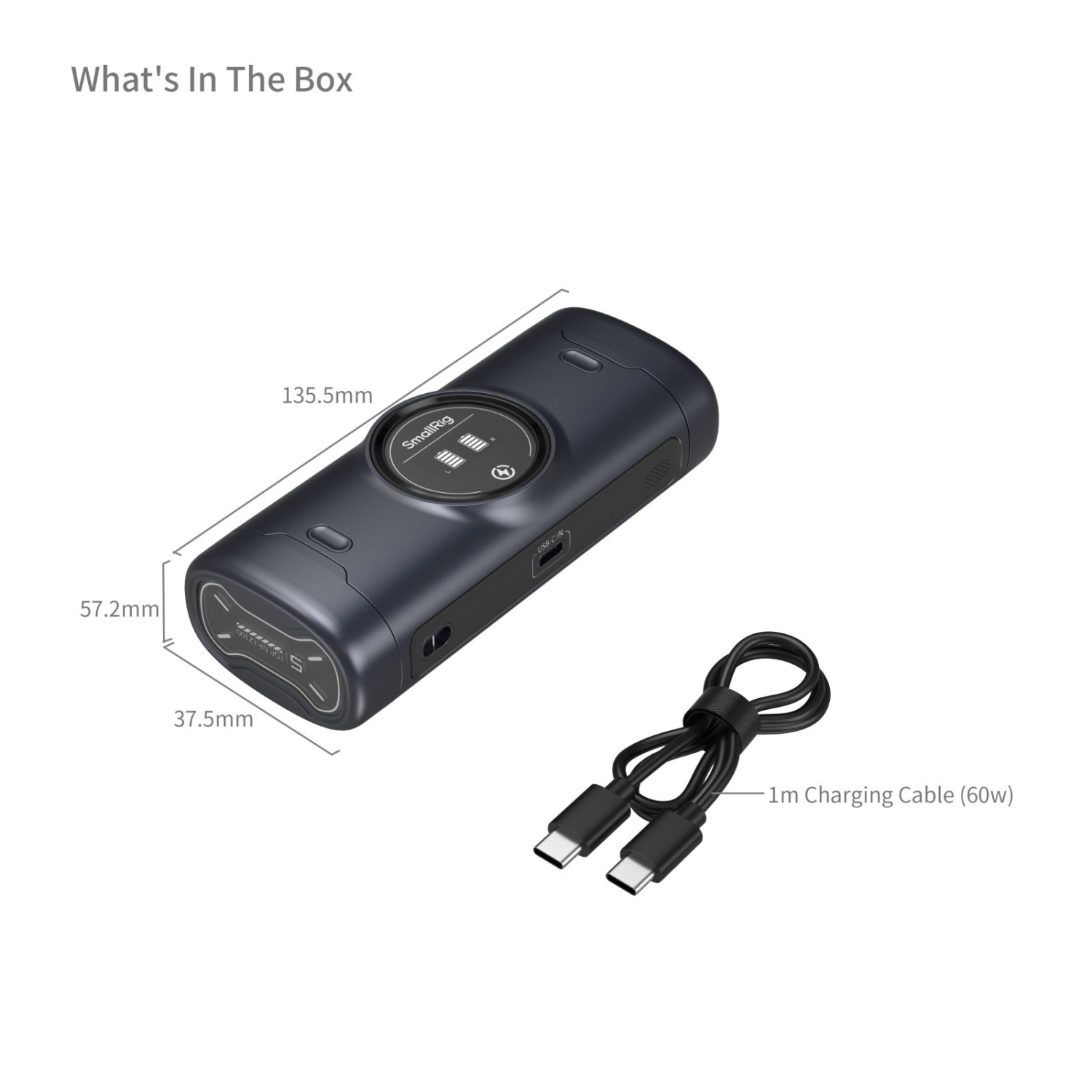

Package Contents and Usage

• Portable charger case designed for NP-FZ100 batteries
• Two lithium-ion NP-FZ100 camera batteries
• Two protective battery covers
• One 1-meter 60W USB-C to USB-C charging cable

This complete kit is aimed at users requiring a mobile and efficient power solution for Sony mirrorless cameras equipped with the NP-FZ100 battery type, enhancing workflow by enabling fast charging on the go and secure battery storage in one compact device.
