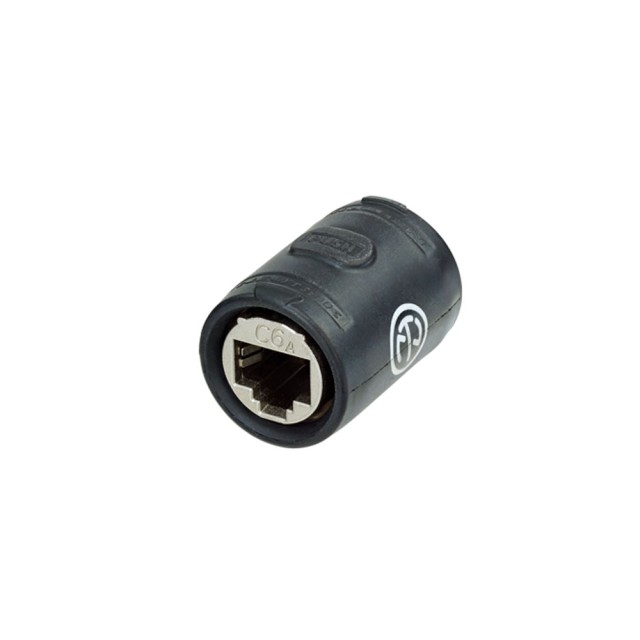

Neutrik NE8FFX6-W

Neutrik NE8FFX6-W etherCON CAT6A feedthrough coupler for cable extensions.

Features & Benefits

• Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2IP65 protected when mated with NE8MX6*
• Accommodates standard RJ45 plug
• Revolutionary small form factor
• The adapter offers the million-fold proven robust latch lock system
• The adapters are problem solvers for various intermating problems for professional and semi-professional applications

Technical Information

Product
Title - NE8FFX6-W
Connection Type - Adapter
Gender - female

Electrical
Contact resistance - < 200 mΩ
Dielectric strength - > 1.5 kVdc
Insulation resistance - > 0.5 GΩ
Rated current per contact - 1.5 A
Transmission performance - CAT6A, acc. TIA/EIA rating, Class EA, acc. IEC/ISO/EN rating
Power over Ethernet - PoE+ acc. IEEE 802.3at

Mechanical
Insertion force - ≤ 50 N
Withdrawal force - ≤ 50 N
Lifetime - > 1000 mating cycles

Wiresize
Wiring - Feedthrough
Locking device - Latch lock

Material
Contact plating - Au
Shell - Rubber (EPDM)
Strain relief - CuZn35Pb2, Tin plated
Shell coating - Black KTL

Environmental
Temperature range - - 30 °C to + 80 °C
Protection class - IP65 (in combination with NE8MX*)
