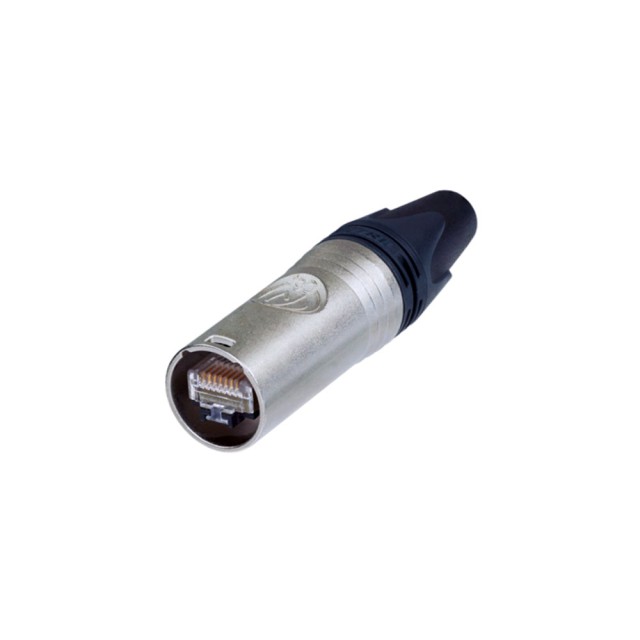

Neutrik etherCON CAT6A connector NE8MX6

• Features & Benefits
  Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• PoE++ compliant according to 802.3bt Type4
• IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
• Rugged latch lock system million fold provenIntermateable with the existing etherCON CAT5 range
• Unique Neutrik chuck-type strain relief

Technical Information

Title - NE8MX6
Gender - male
Dielectric strength - 1 kVdc
Insulation resistance - > 0.5 GΩ
Rated current per contact - 1.5 A
Transmission performance - CAT6A, acc. TIA/EIA rating
                                             CAT6A, acc. IEC/ISO/EN rating
Power over - Ethernet PoE++ acc. IEEE 802.3bt
Cable O.D. - 7.0 - 9.5 mm
Lifetime - > 1000 mating cycles
Wiresize - AWG 24/1 - AWG 22/1 (solid)
                 AWG 24/7 - AWG 22/7 (stranded)
Locking device - Latch lock
Insulation diameter - 1.1 - 1.6 mm
Bushing - PA / PU
Contact plating - Au
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - POM
Protection class - IP 65 (in combination with NE8FDX-*6-W)
Temperature range - -40 °C to +70 °C
