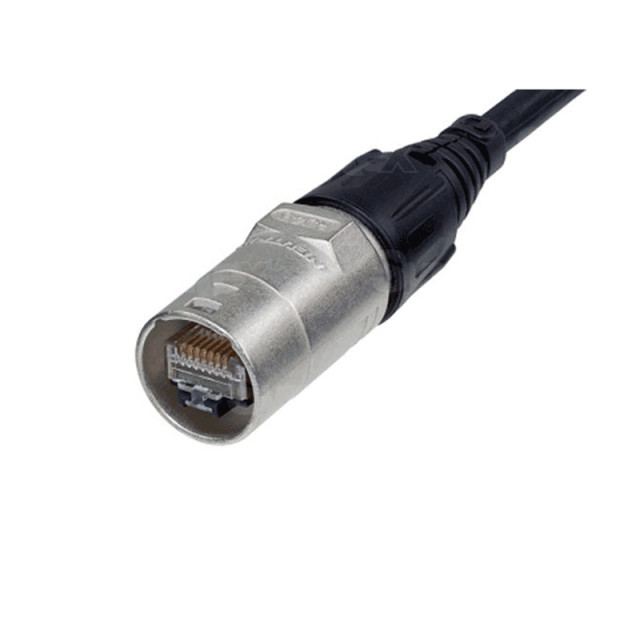

Neutrik NE8MX RJ45 cable connector carrier

Neutrik NE8MX - RJ45 cable connector carrier for preassembled RJ45 plugs consists of shell, fixing disk, chuck, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug.

More information

4.04 € 3.96 € with VAT 3.27 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs
Product description

Product description

Neutrik NE8MX - RJ45 cable connector carrier for preassembled RJ45 plugs consists of shell, fixing disk, chuck, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
Attention! Does not intermate with CAT6 chassis connectors.



Features & Benefits
  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
  • Allows assembly of preassembled conventional RJ45 cables
  • Accessories include color coded boots in 9 standard colors



Technical Information

  • Product
  • Title - NE8MX
  • Gender - male



Mechanical
  • Cable O.D. - max. 8 mm 0.315'
  • Insertion force - ? 20 N
  • Withdrawal force - ? 20 N
  • Lifetime - > 1000 mating cycles



Material
  • Boot - Polyamide (PA 6)
  • Shell - Zinc diecast (ZnAl4Cu1)
  • Shell plating - Nickel
  • Strain relief - Polyacetal (POM)

Environmental
  • Temperature range - -30 °C to +80 °C

Product specific
IMPORTANT!
Cable connectors do not include RJ 45 plug. RJ 45 cable assembly must be provided by end-user!
Parameters

Parameters

Manufacturer: Neutrik
Category: Data connectors

Main parameters

TypeRJ45

Other parameters

VersionOn the cable
VersionMale
