Canare RJC5ES-4P-BS
SKU: CNRRJC5ES4PBS

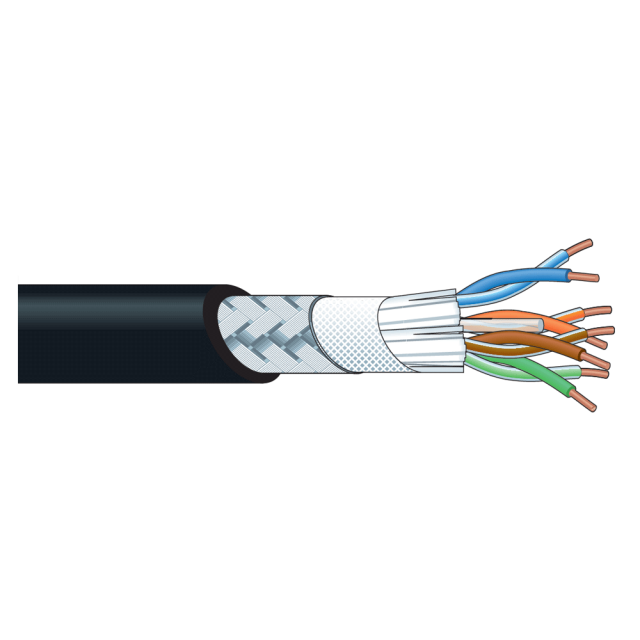

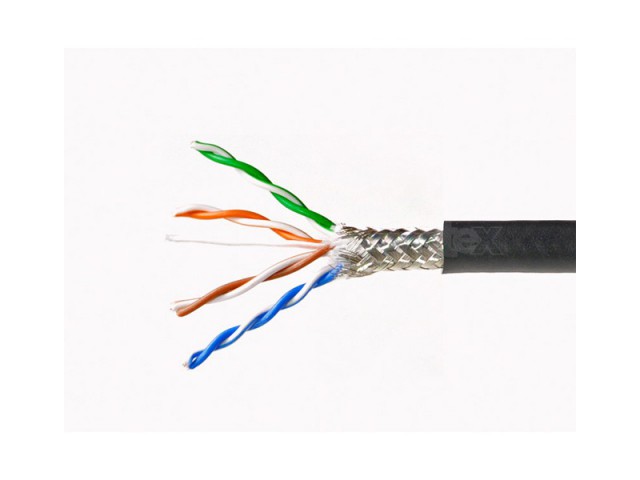

Canare RJC5ES-4P-BS Flexible and durable CAT5e STP cable for short distance
4.48 € with VAT
3.7 € without VAT
Personal pickup within 90 minutes
Shipment day: 29. 04.
Shipment day: 29. 04.
In stock 131 m
Praha 131 m, Bratislava 23 m
Praha 131 m, Bratislava 23 m
Top accessories for Canare RJC5ES-4P-BS
Neutrik NE8MX RJ45 cable connector carrier
Neutrik NE8MX - RJ45 cable connector carrier for preassembled RJ45 plugs consists
3.98 €
In stock > 5 pcs
Schill GT 310.S0
Schill GT 310.S0 Cable drum made of speciality rubber with blank cover for self-
68.82 €
In stock > 5 pcs
Blackmagic Design ATEM 2 M/E Production Studio 4K
he new ATEM 2 M/E Production Studio 4K lets you produce broadcast quality live multi
4 296.04 €
14-30 days
Datavideo PTC-300NDI (Dark Blue)
The PTC-300NDI is an NDI 4K50/60p PTZ camera. PTC-300NDI can be easily controlled
3 394.05 €
on request
Datavideo PTC-300NDI (White)
The PTC-300NDI is an NDI 4K50/60p PTZ camera. PTC-300NDI can be easily controlled
3 394.05 €
on request
Schill IT 380.RM
Schill IT 380.RM je plastový káblový bubon s kovovými nohami a s držiakom kábla na
126.26 €
on request
Product description
Product description
Canare RJC5ES-4P-BS Flexible and durable CAT5e STP cable for short distance
Canare RJC5ES-4P-BS Flexible and durable CAT5e STP cable for short distance
Ethernet cables are being used not only for computer networking, but also recently for digital audio networking, network camera, HDBaseT transmission, and so on.
Newly - developed Flex and Rugged CAT5e Cables will meet the wide range of needs such as for temporary cabling.
Insulation: polyethylene (RJC5ES-4P-BS: Cross-linked polyethylene). Jacket: PVC. Dielectric strength: 350V AC/min. Jacket color orange and white are production by order> Please ask us for ordering lot.
RJC5ES-4P-BS
?Flexible and durable CAT5e STP cable.
?Stranded conductor and a overall braided shield.
?Superior flexibility for easy routing and repeated bending.
?Recommended maximum length for CAT5e is 50m.
| Model | Characteristic Impendence ohm |
Attenuation (Insertion Loss) |
||||
| RJC5ES-4P-BS | 100 |
2.2.0 dB/50m |
||||
| Model | Std. Lng. ft. (m) |
Nom. O.D. in. (mm) |
Wt Std. Lng. lbs (kgs)/100m |
Unit Composition Cross Sec. Area Conductor Comp. mm2/(AWG) Q'ty/mm |
Unit Composition Shield Coverage & Comp. mm/ends/carriers |
Electrical characteristics Cond. D.C.R. ohm/100m |
|
| RJC5ES-4P-BS |
656 (200) | 0.26 (6.7) |
13.45 (6.1) |
0.22(24) 7/0.20A |
0.10TA/10/16 (90% or more) |
9.5 | |
Abbreviations
CAT5e: Enhanced Category 5.
UTP: Unshielded Twisted Pair.
STP: Shielded Twisted Pair.
