RGBlink mini-mx-4S

The RGBlink mini-mx-4S is a compact 10-channel HDMI/SDI production switcher in a durable case, ideal for live streaming, events, and broadcast workflows. Featuring 4K HDMI and SDI inputs, PTZ camera control, onboard recording, USB-C streaming, a 14″ HD monitor, and a 5.5″ touchscreen, it delivers a portable, all-in-one solution for professional multi-camera productions.

The mini-mx-4S is the mini-mx SDI switcher built into a rugged case with a 14″ monitor, cooling and connectors routed to the side. Open the lid, plug in the cables and the broadcast can start – whether it is an open-air concert, a garden wedding, a sports match or a corporate event.

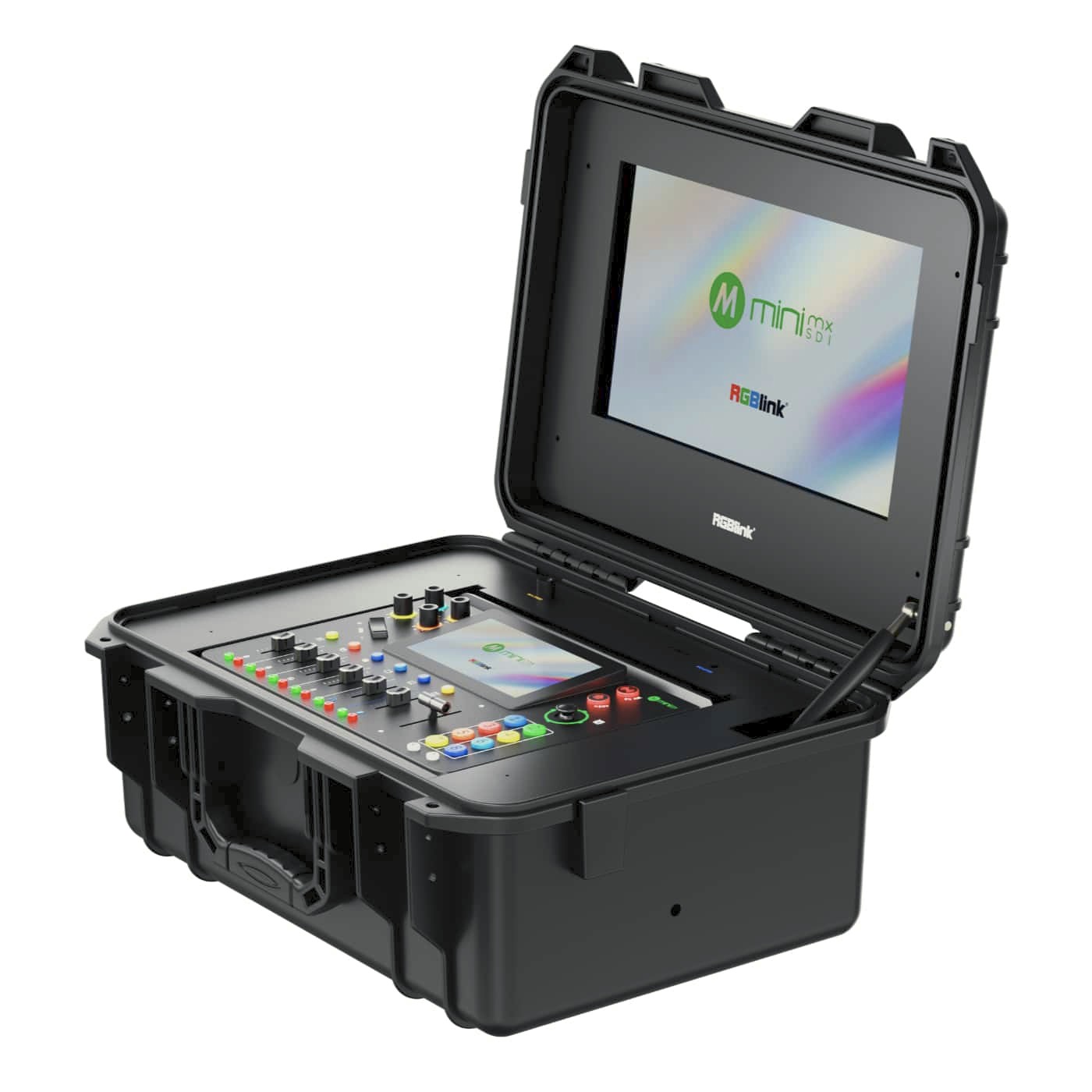

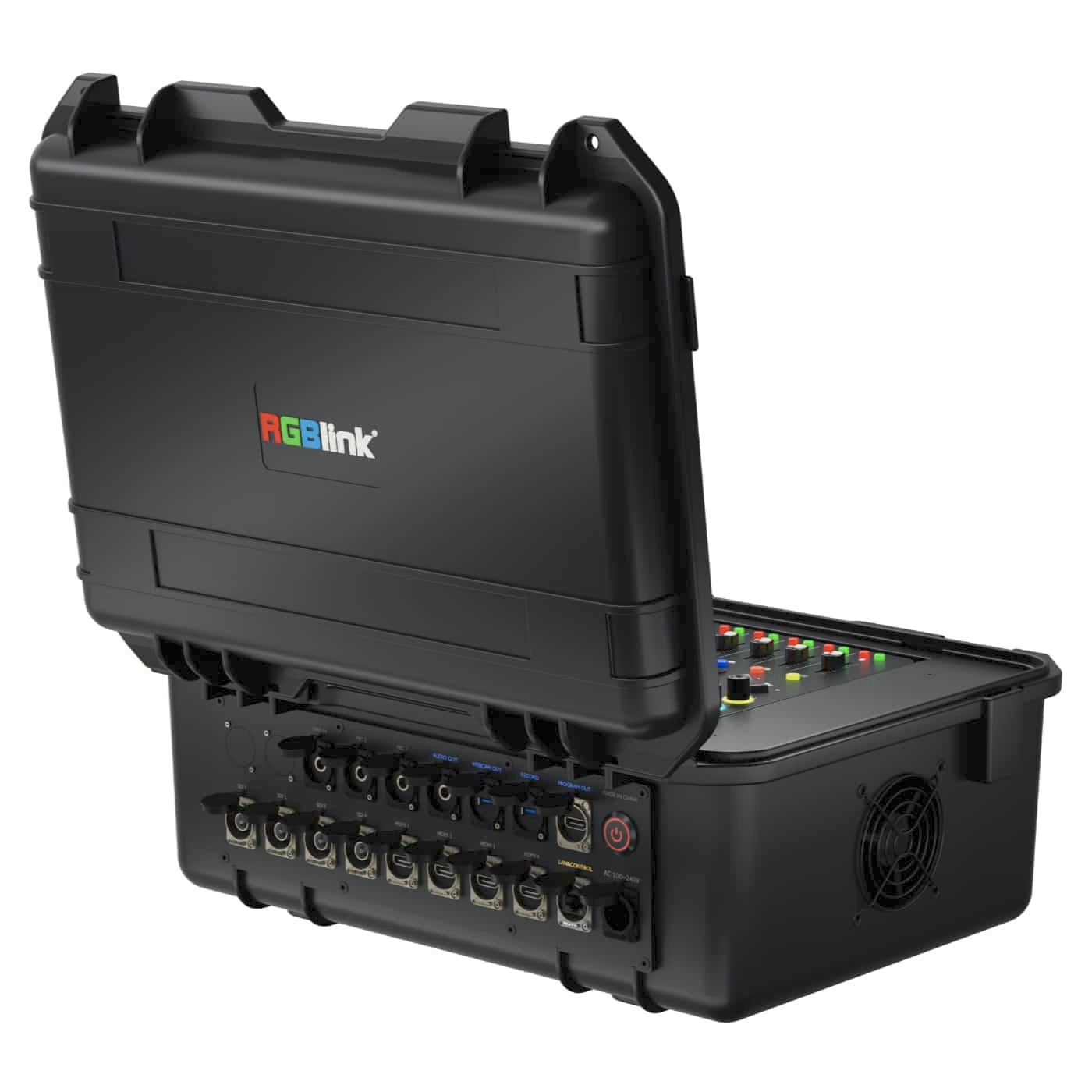

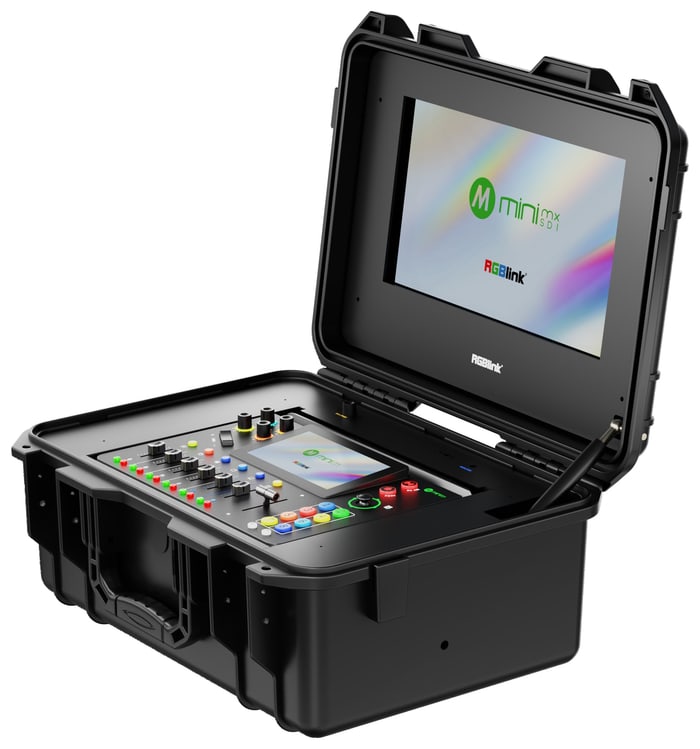

A complete control room in a carry case

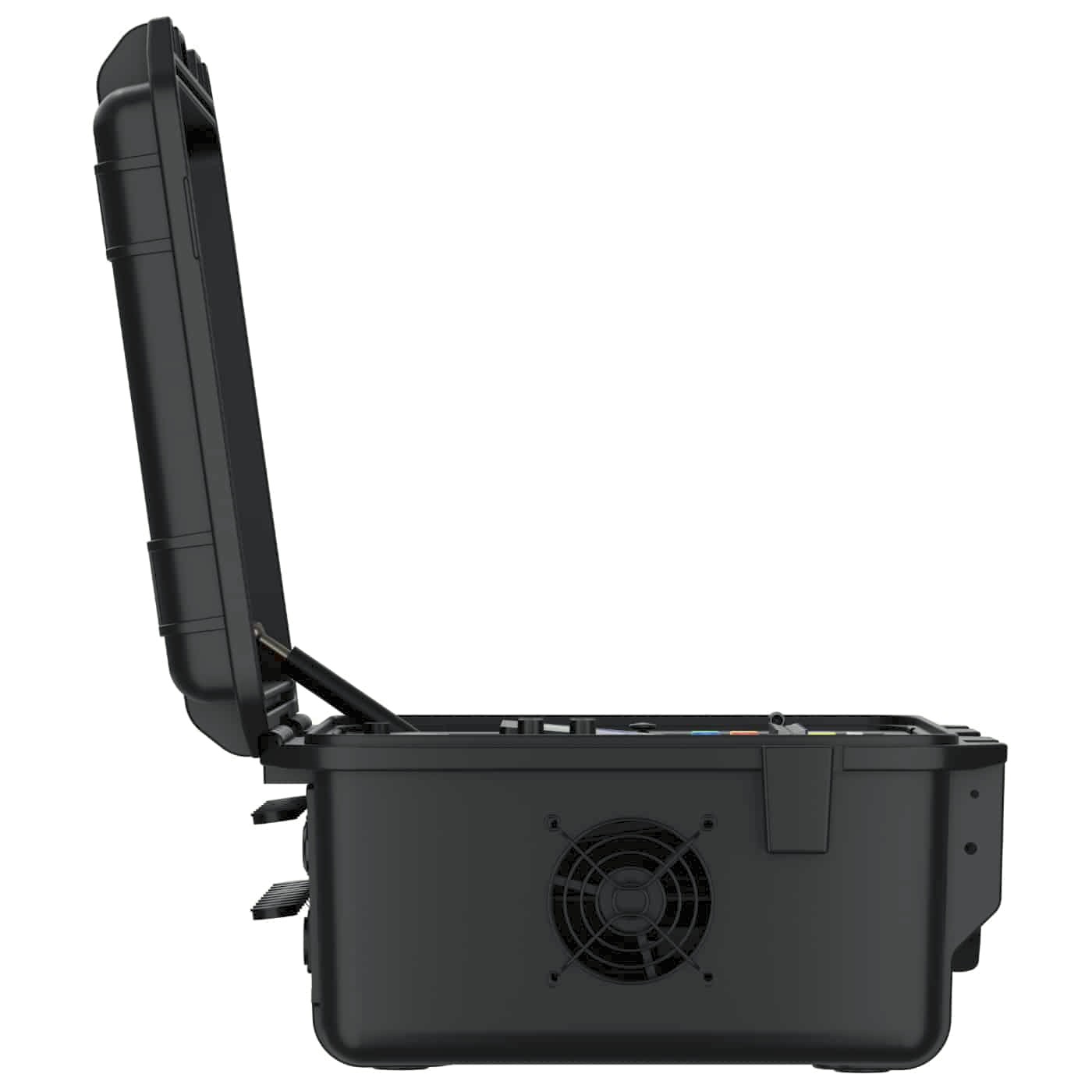

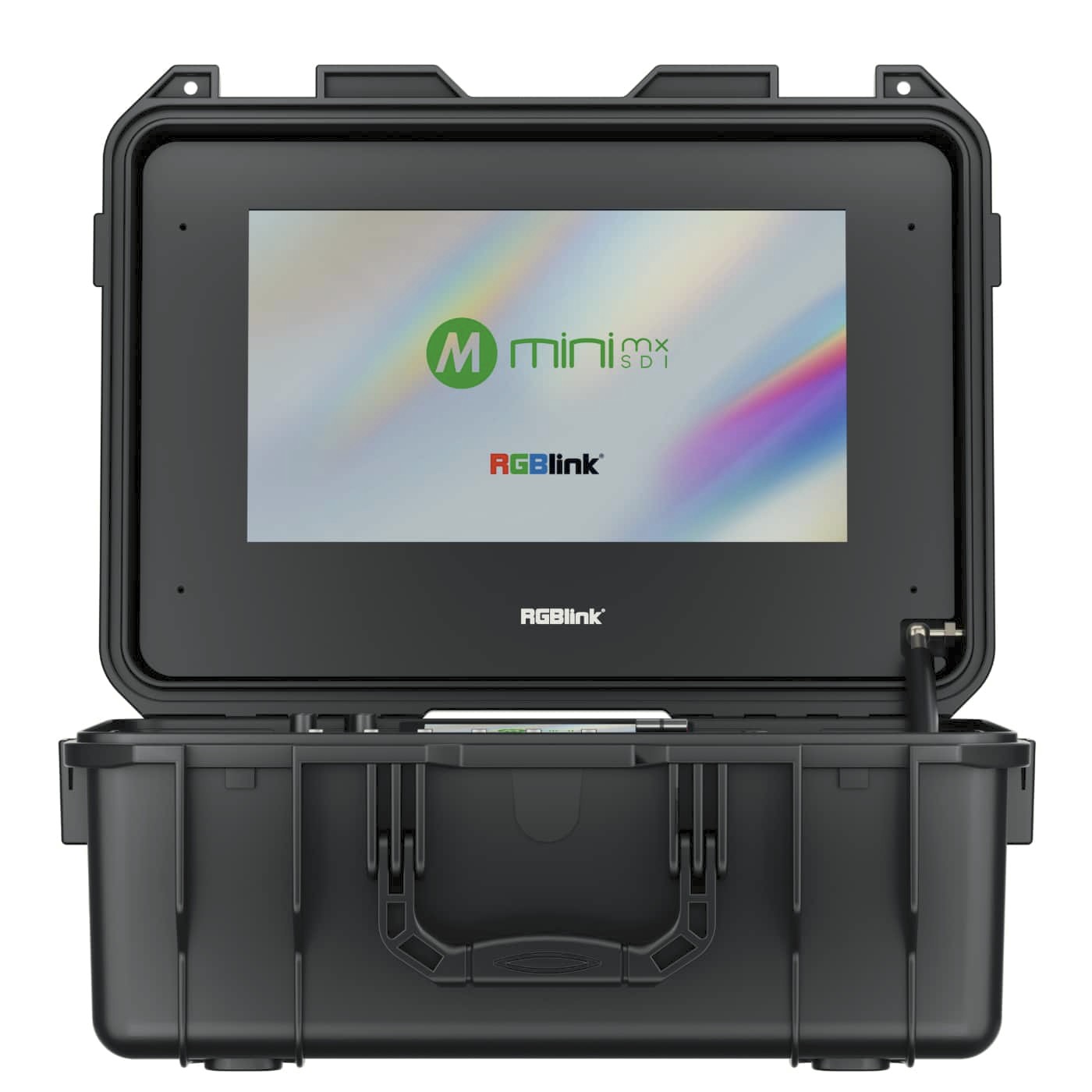

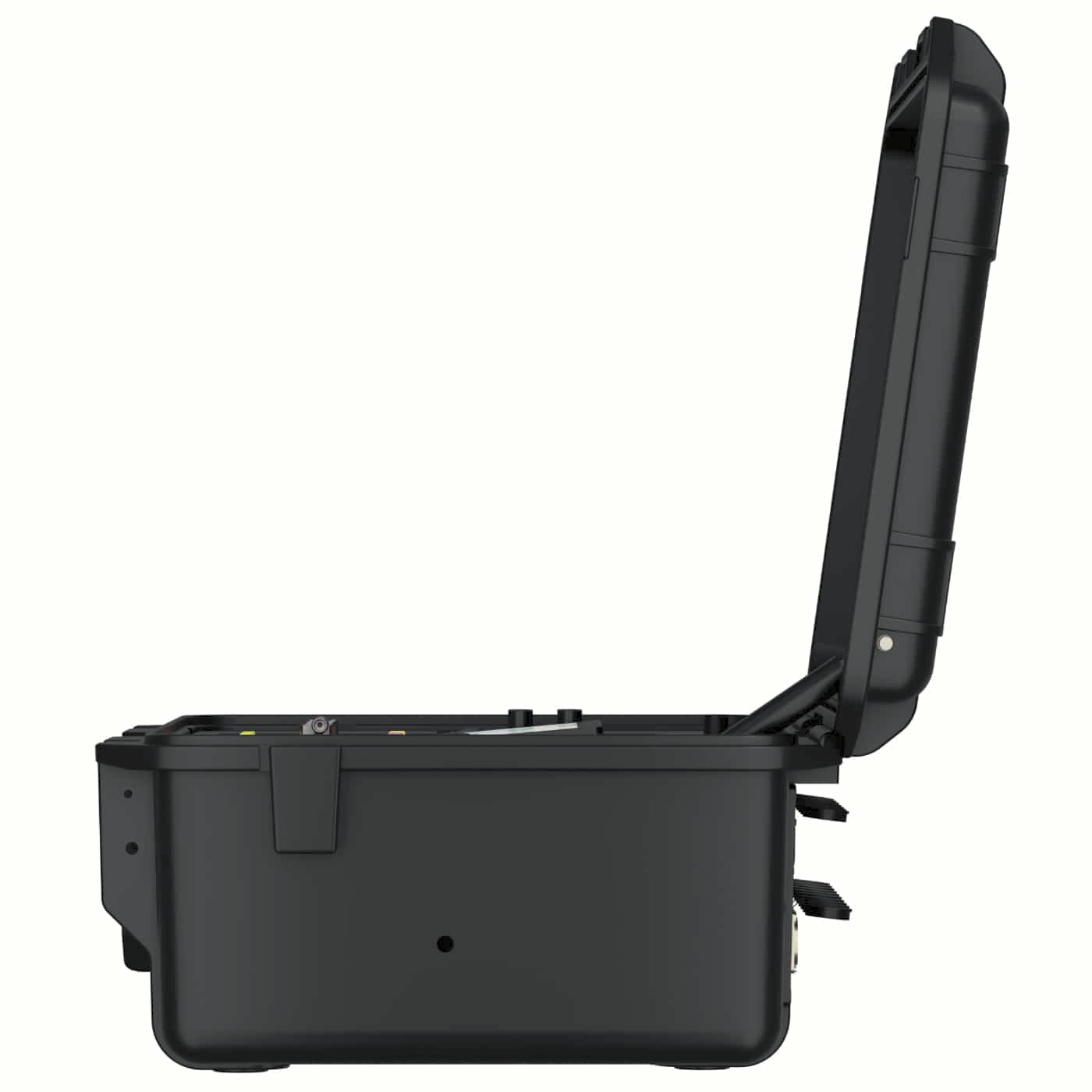

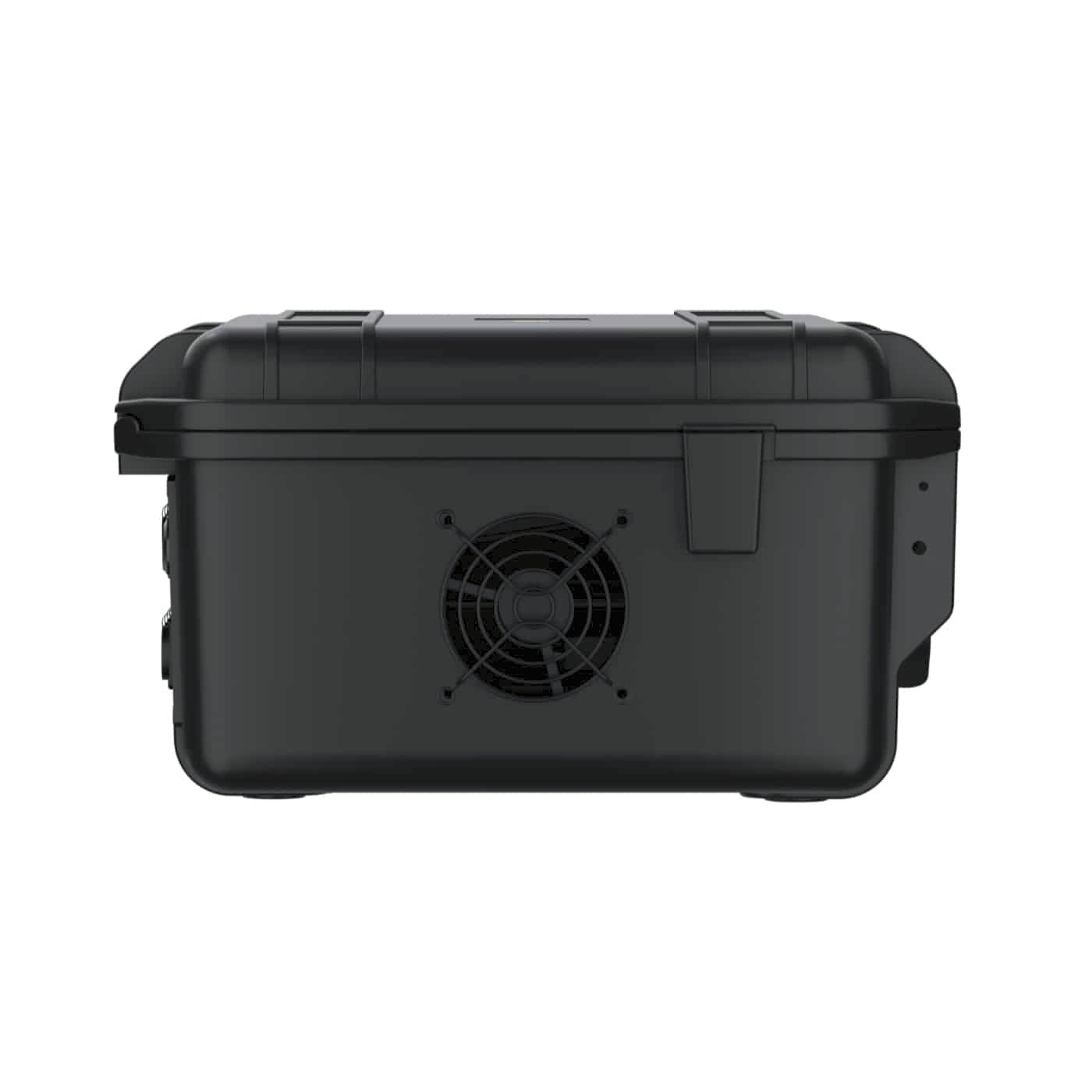

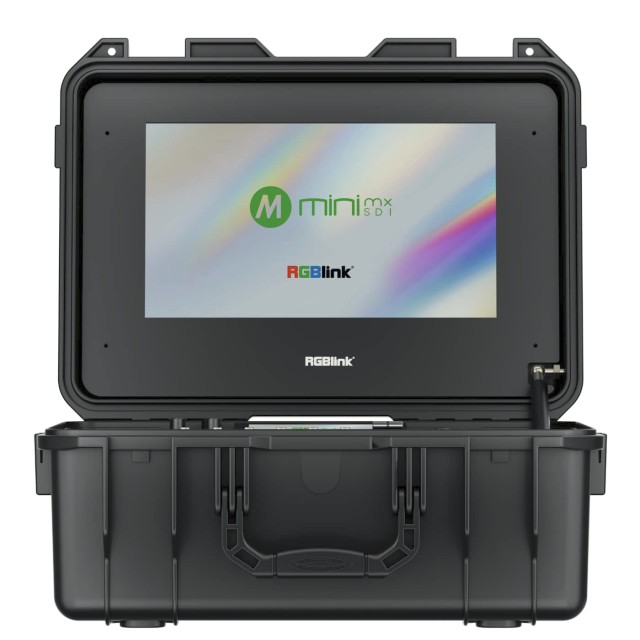

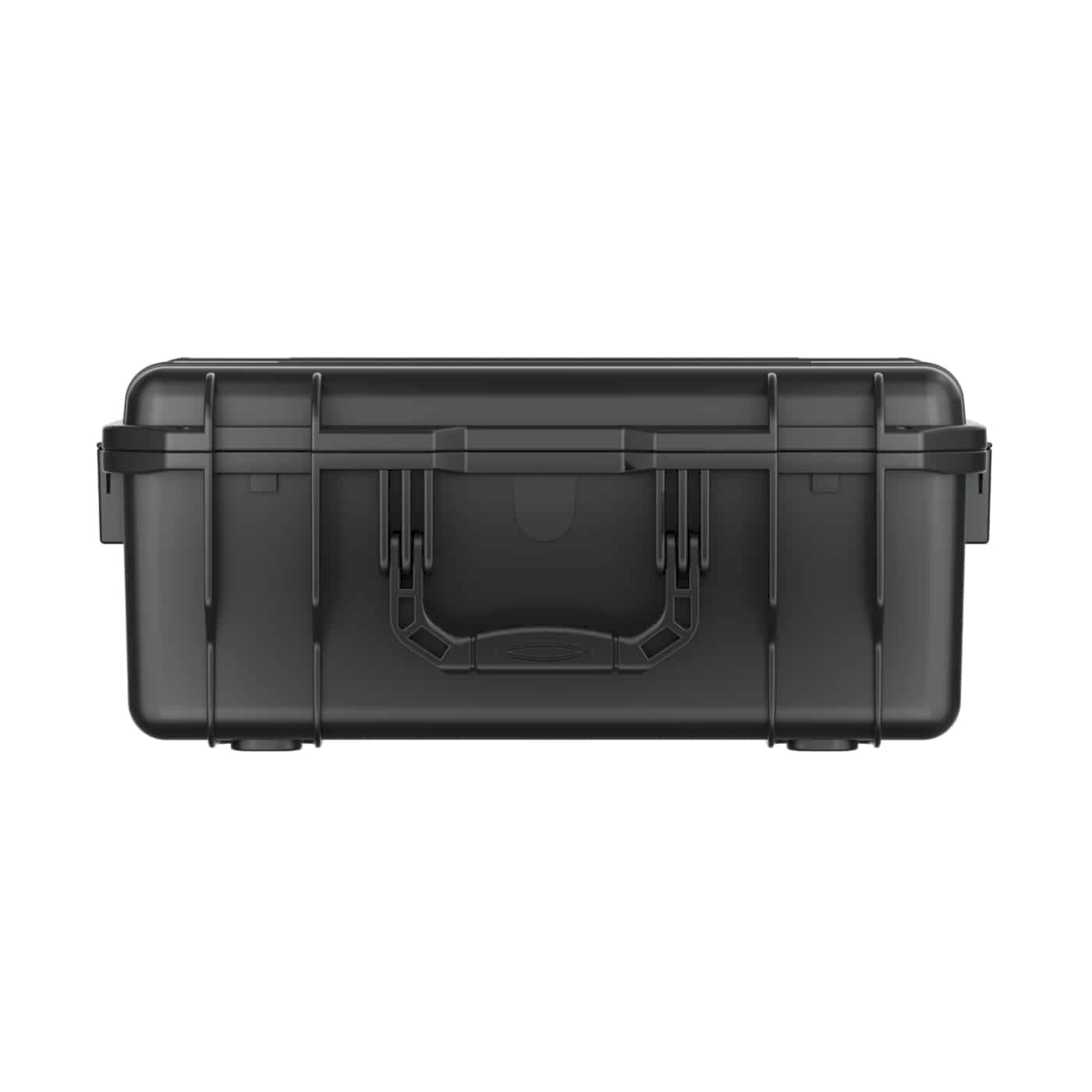

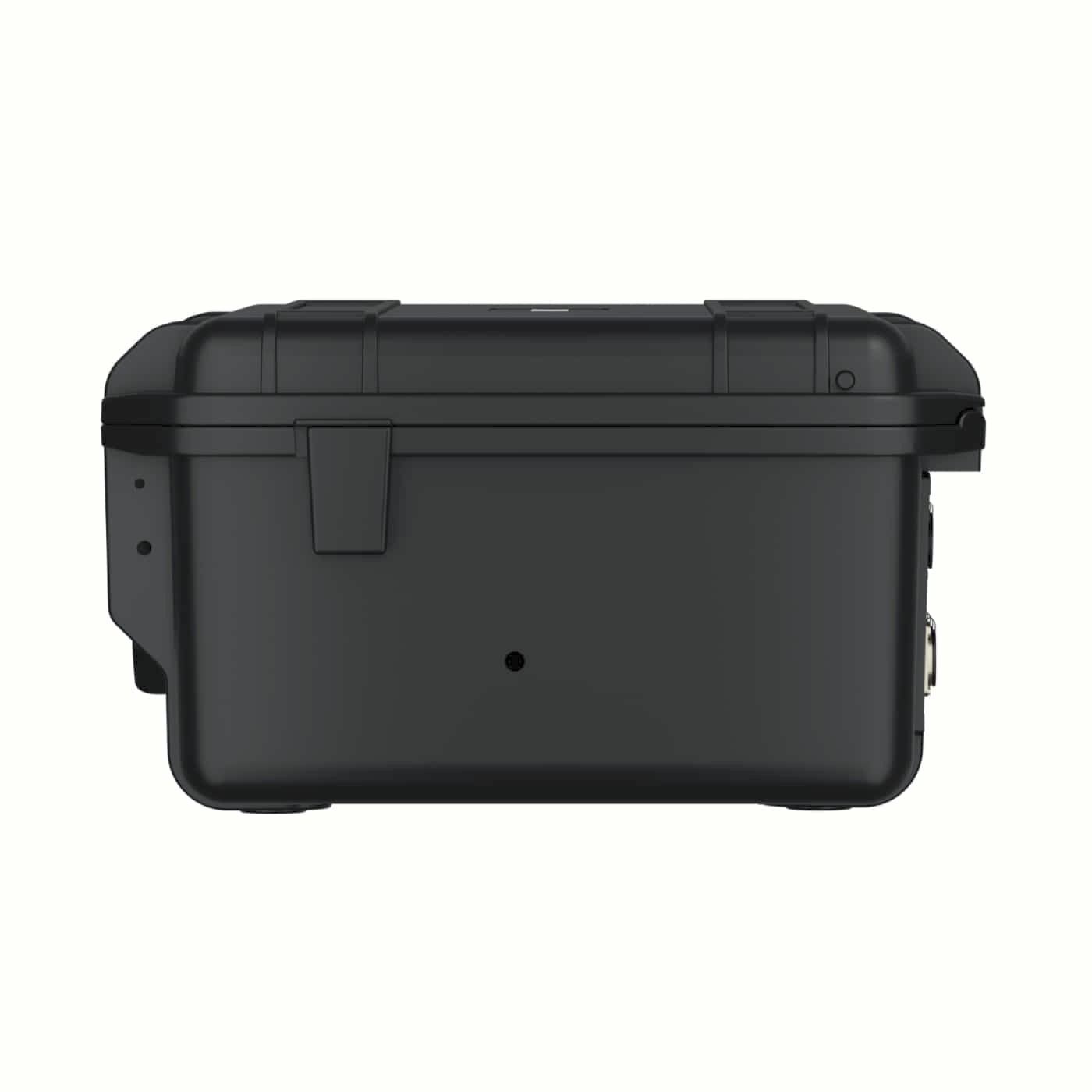

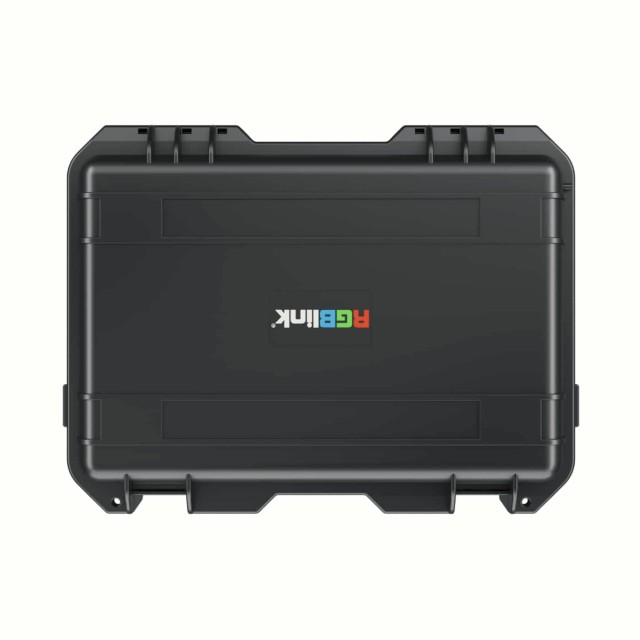

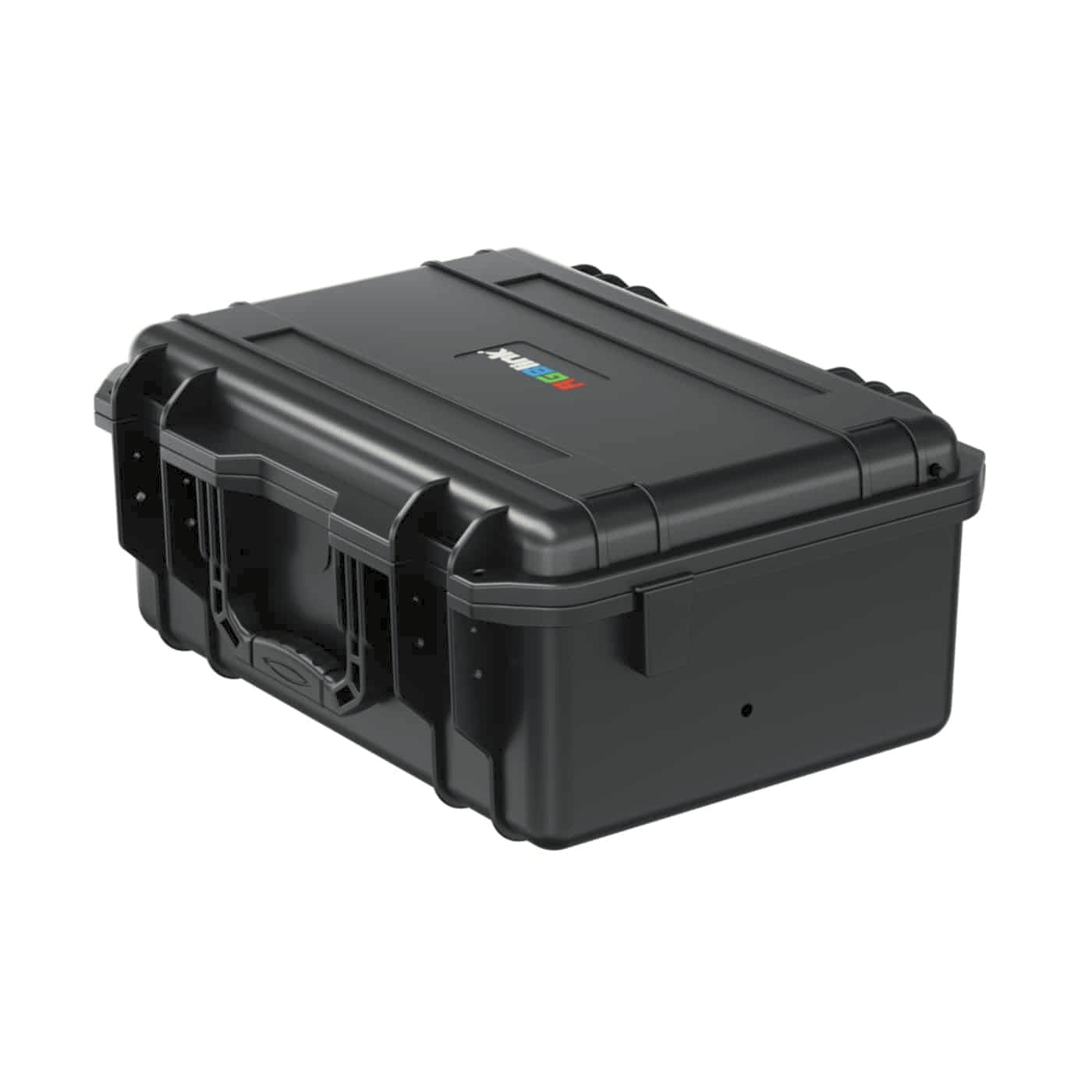

A rugged case of high-strength PP houses the mini-mx SDI switcher, a 14″ IPS monitor with 1920 × 1080 resolution and 220 cd/m² brightness in the lid, and a hydraulic rod that holds the lid open. Powerful air cooling is designed for outdoor use; power comes from 100–240 V mains via an IP65 connector. The case measures 360 × 308 × 177 mm.

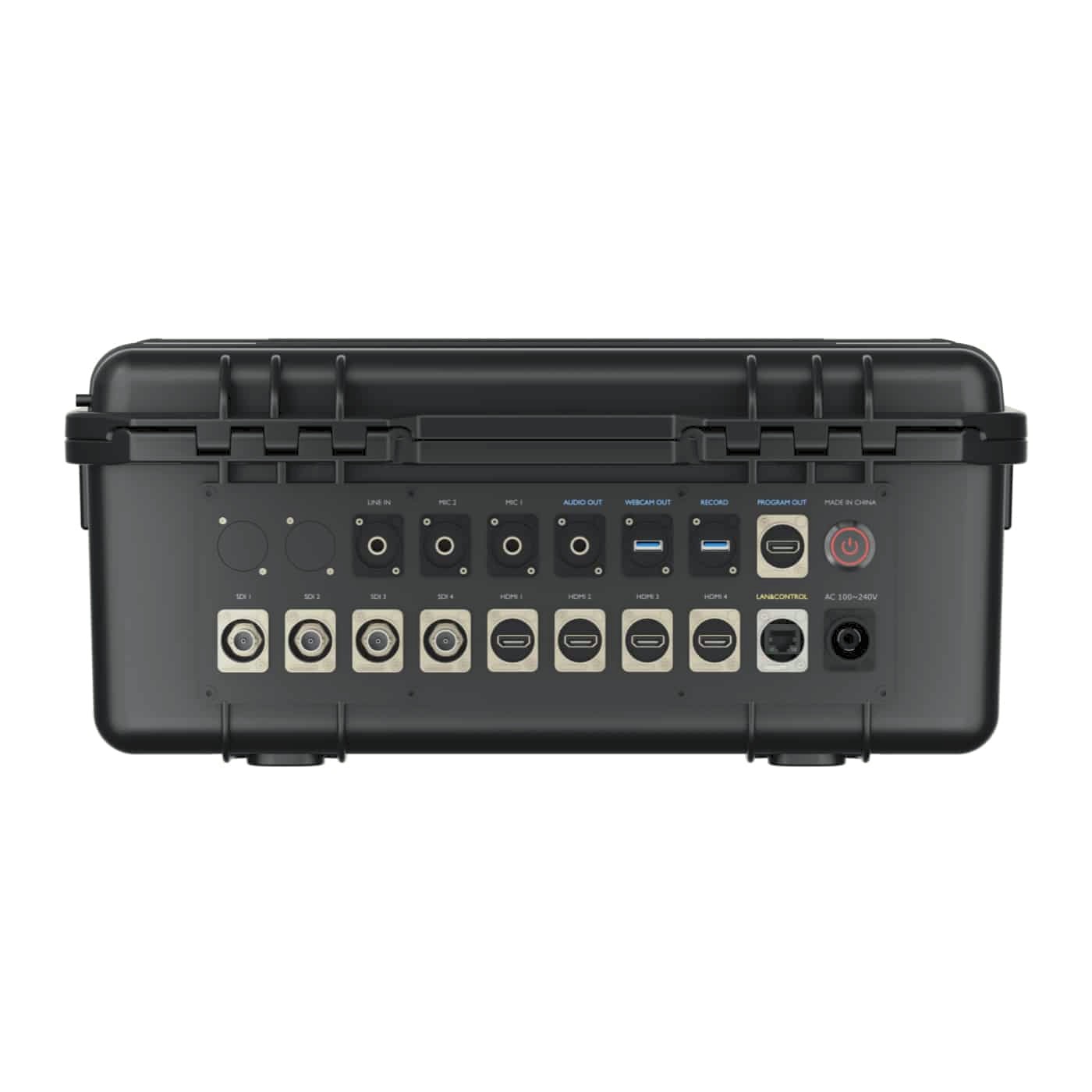

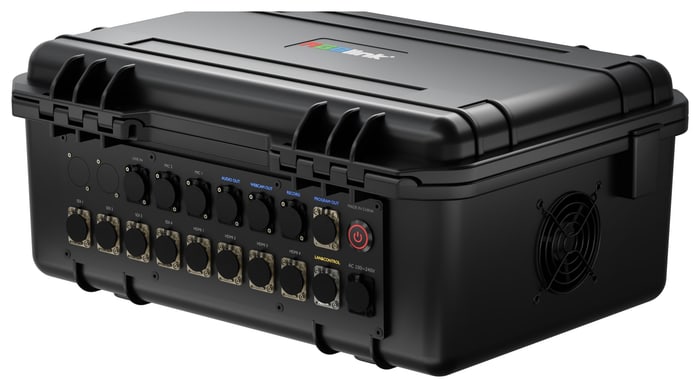

Connectors on the side of the case

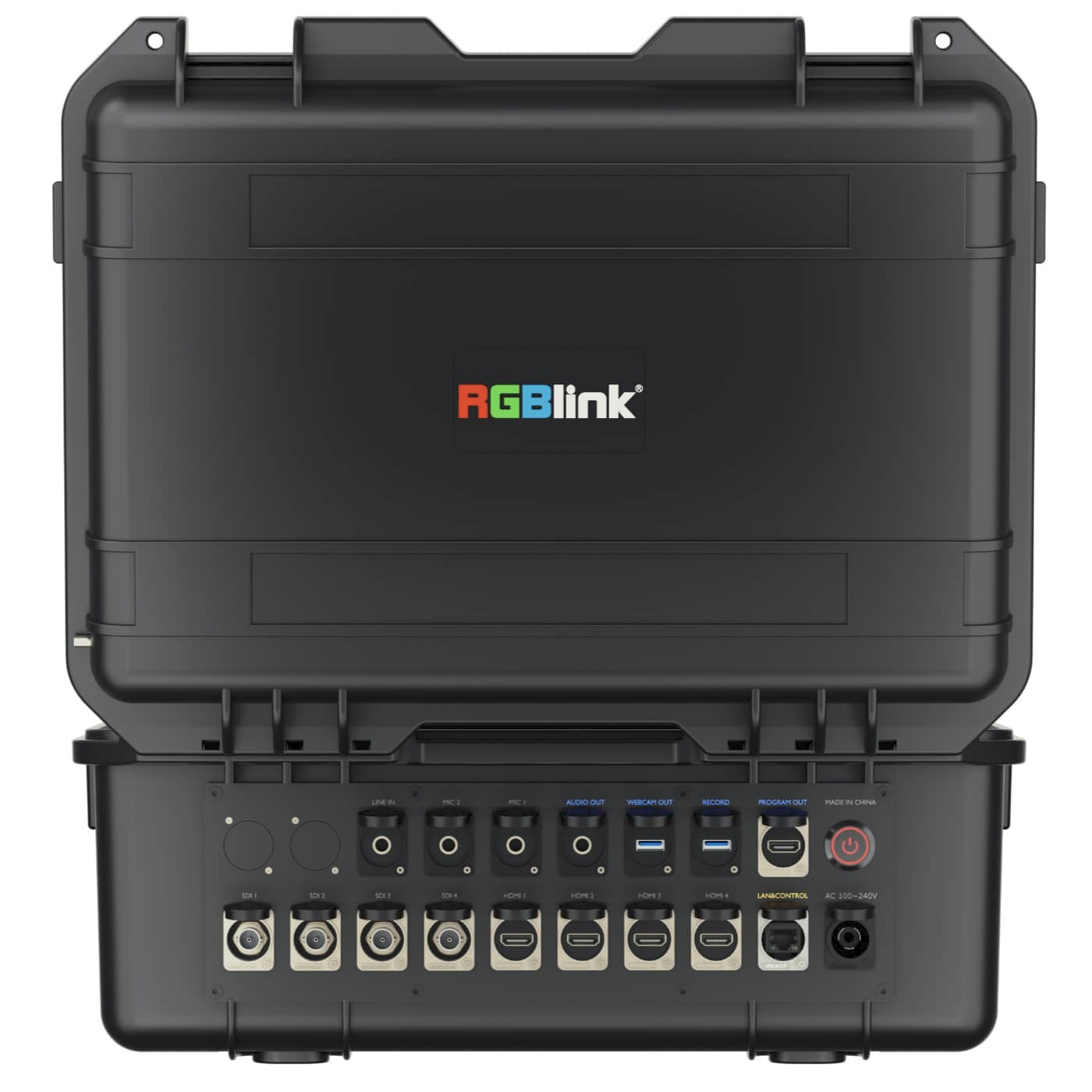

The switcher inputs and outputs are routed to a panel of rugged aviation connectors – four SDI, four HDMI, network, HDMI program output, recording, webcam output and audio inputs and output. Cables plug into the case without touching the switcher itself.

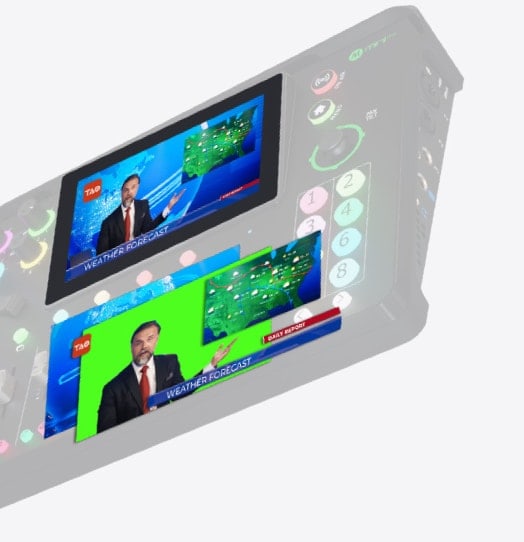

Layers, graphics and scoreboard

Build a scene from two video layers, a background image and graphics from the media library – logos, titles or pictures. Dynamic text overlays and a scoreboard show names, scores or time right in the broadcast, and picture-in-picture or split screen are set up without a computer.

One-touch chroma key

Key out a presenter in front of a green or blue background right on the switcher and place them in a virtual studio or in front of graphics. Keying settings are saved in the preset scenes together with the other parameters.

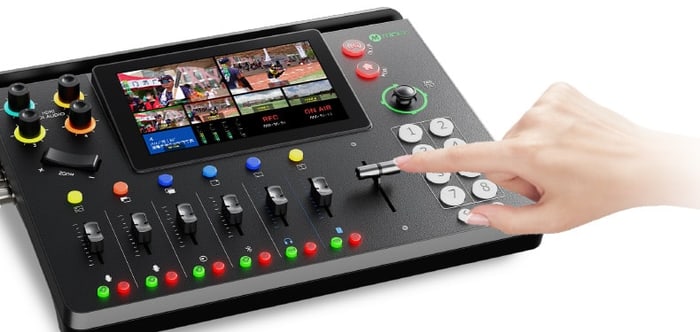

16 scenes and 15 transitions

Up to 16 preset scenes store the layer layout, sources, keying and PTZ camera presets; recall them with the panel buttons or let them rotate automatically. Switch between preview and program with a cut, the T-bar or automatically with one of 15 transition effects. VFA (video follows audio) switches the picture according to the active audio input.

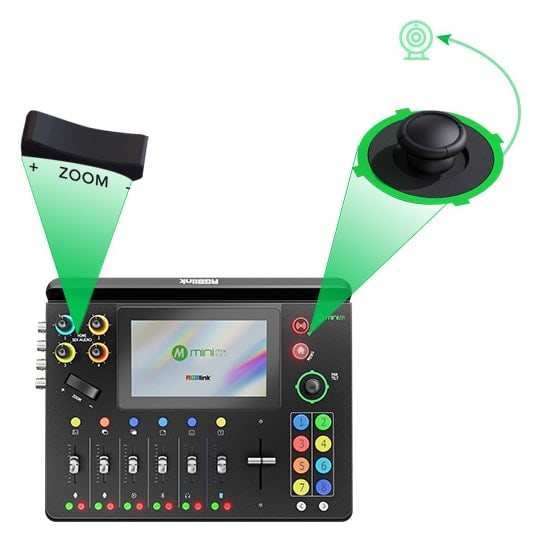

PTZ camera control from the panel

The joystick and zoom toggle control PTZ cameras via VISCA or NDI – pan, tilt, zoom and focus, including movement speed. A camera preset also remembers the input, so recalling it switches straight to that camera. An NDI camera connects with a single Ethernet cable for both picture and control.

Streaming, NDI and recording at once

Over Ethernet the mini-mx SDI streams via RTMP(S) to at least four platforms at once while sending NDI at the same time. With RGBlink TAO Cloud you stream to up to 32 platforms and manage the switcher remotely. Meanwhile the program is recorded as MP4 to a USB drive or SSD of up to 2 TB.

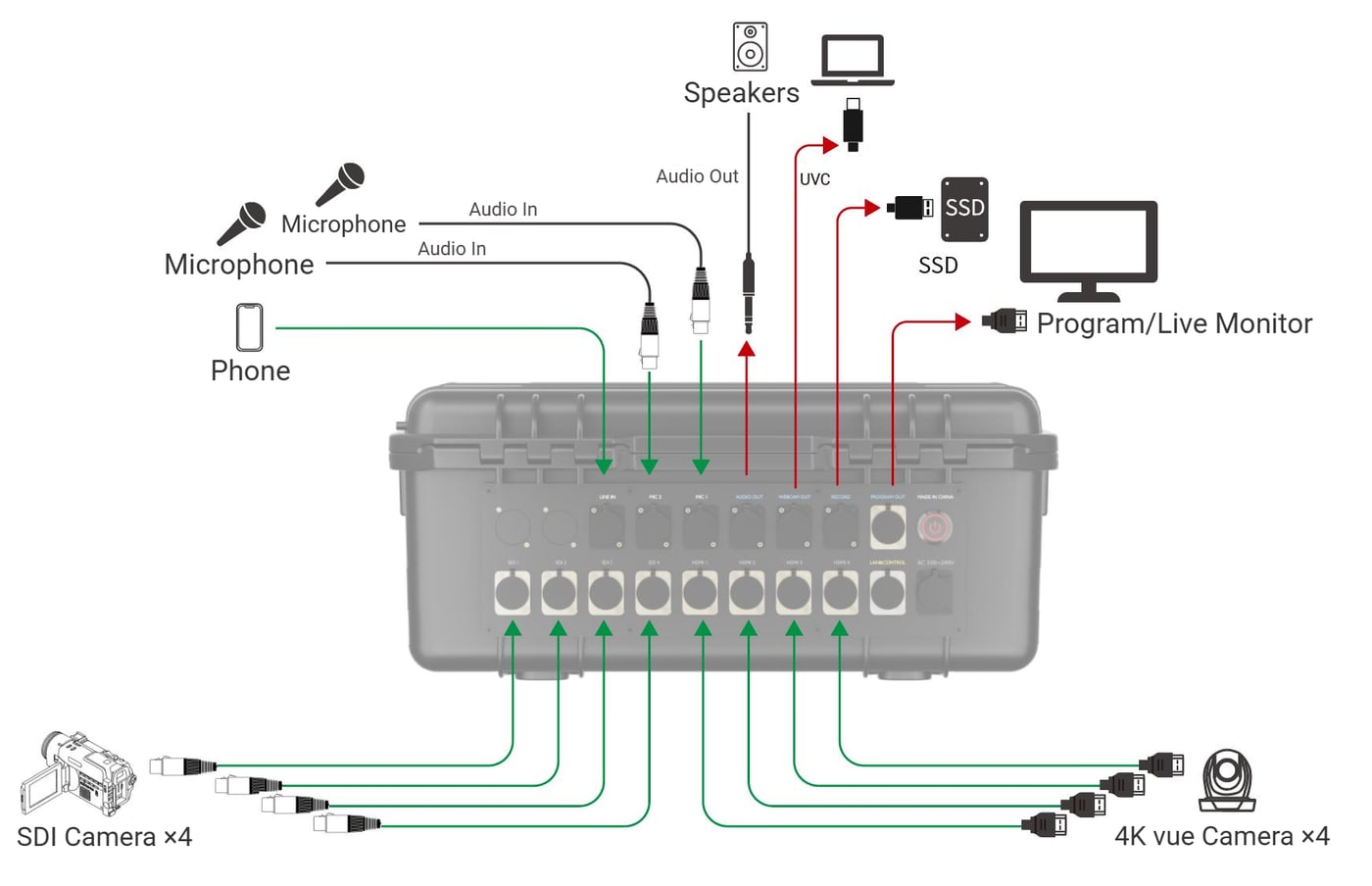

Case connection example

Below, four SDI cameras and four 4K cameras via HDMI; above, microphones on MIC 1 and MIC 2, a phone on the line input and speakers on the audio output. The webcam output goes to a laptop, recording to an SSD and the program output to a monitor.

More information

The RGBlink mini MX 4S is a versatile all-in-one video production switcher designed for live streaming, broadcast, and hybrid event production. Housed in a high-strength PP case with a hydraulic lid support and a built-in 14″ HD IPS monitor, it combines portability with robust durability. The unit features 10 total video inputs, including 4 × HDMI 2.0, 4 × SDI, 1 × USB-C, and 1 × NDI|HX2 bi-directional input, allowing flexible integration with cameras, computers, and IP sources.

The switcher supports PTZ camera control via VISCA (IP) or NDI, giving operators precise control over multiple cameras. A 5.5″ touchscreen provides intuitive visual control, while the USB-C output enables direct streaming in UVC webcam format. Onboard USB-C recording supports MP4 format for local capture.

Professional audio integration includes LINE IN, dual MIC IN, and audio OUT jacks, with a built-in audio mixer and effects engine for live mixing and synchronization. The mini-mx-4S also offers chroma keying, multi-layer video composition, picture-in-picture layouts, and up to 16 preset scenes for seamless production workflows. RTMP(s) streaming allows up to four simultaneous platform outputs, with TAO Cloud and Web App support for remote management.

Additional features include air cooling for reliable outdoor operation and professional aviation connectors for high-quality signal integrity. The portable mini-mx-4S provides a complete, professional production solution in a single case.

Key Features:

• 10-channel video switching: 4 × HDMI 2.0, 4 × SDI, 1 × USB-C, 1 × NDI|HX2
• HDMI program output, multiview on the built-in 14″ monitor
• USB-C UVC output for direct streaming and webcam use
• Onboard MP4 recording via USB-C (FAT32 / exFAT)
• Integrated PTZ camera control (VISCA over IP, NDI)
• 5.5″ touchscreen
• 14″ built-in HD IPS monitor
• RTMP(s) streaming to up to 4 platforms simultaneously
• Audio mixer with LINE/MIC inputs and output
• Multi-layer video composition, PIP, chroma key, 15 transitions, presets
• PP case with air cooling and hydraulic lid support
