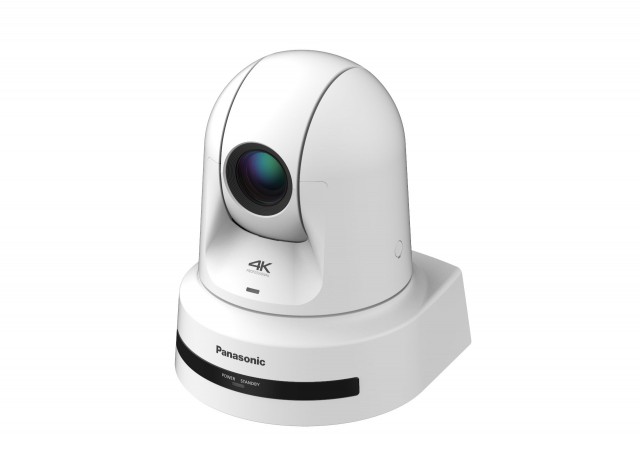

Panasonic AW-UE80W (White)

A 2022 refresh of Panasonic’s market-leading PTZ camera range with five new models to address market needs. The 4K integrated cameras AW-UE80W/K, AW-UE50W/K, AW-UE40W/K, AW-UE20W/K and the HD integrated camera AW-HE20W/K, released sequentially from the first quarter of 2022, have a new proprietary direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal directions.

More information

5 988 € with VAT 4 990 € without VAT
-+
Availability
new product, yet unavailable
Manufacturer
Free transport when purchasing this product
SKU:
AW-UE80W
Add to Compare
Product description

Product description

A 2022 refresh of Panasonic’s market-leading PTZ camera range with five new models to address market needs. The 4K integrated cameras AW-UE80W/K, AW-UE50W/K, AW-UE40W/K, AW-UE20W/K and the HD integrated camera AW-HE20W/K, released sequentially from the first quarter of 2022, have a new proprietary direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal directions.



As organisations have had to adapt to an accelerated digital environment, the quality of video transmission has become particularly critical to the education, corporate, live events and broadcast industries. With clear images and dynamic image production that can only be obtained with Panasonic’s pan, tilt and zoom movement, it is possible to improve the quality of online communication and enhance the sense of presence even when not face-to-face.

The AW-UE40, AW-UE50 and AW-UE80 will have a 24x optical zoom and up to a 36x intelligent zoom, as well as a 74.1 degree viewing angle to support usage in both indoor and outdoor environments. The latest generation of optical image stabilisation (OIS) ensures excellent stability. All cameras will support PoE, enabling a single-cable solution whereby video and audio, control, and power can be provided to and from the camera via a single ethernet connection.

The latest IP-based video protocols will be supported, including NDI|HX version 2 and, in the case of the AW-UE80, full-bandwidth NDI. The SRT protocol will also be supported alongside RTMP and RTMPS. The AW-UE80 will also support the FreeD protocol to ensure integration with AR and VR systems alongside 4K/50p video capabilities. The 4K-capable AW-UE20W/K and the HD integrated camera AW-HE20W/K are entry-level PTZ cameras produced specifically for the corporate and higher education markets. Both models will feature a wide-angle lens, the latest IP protocol certifications, and connectivity for SDI, HDMI, USB and IP.

Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software, and its automatic tracking software for presentations and lectures, enabled by face recognition and human body detection.



Parameters

Parameters

Manufacturer: Panasonic
Category: PTZ

Main parameters

Camera Sensor size1/2.5"
Resolution4K UHD
Zoom24x
Type of bayonetintegrated lens
OutputHDMI
OutputNDI
Output3G SDI
OutputIP

Other parameters

VersionPTZ
FPS4K 60fps
Min. focal length4.1mm
Max. focal length98.9mm
Other featuresPTZ
Other featuresStreaming
Other featuresPoE
Other featuresNDI / NDI HX
Other featuresFreeD
Other featuresSRT
Control protocolNDI
Control protocolRS-422
PACKAGE CONTENT

1 PTZ Camera

SPECIFICATIONS

Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode")
Output Format -
Color separation optical system 1MOS
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Gamma HD / Normal / Cinema1 / Cinema2 / Still Like
Scene File -
Synchronization System Internal/External synchronization (BBS/Tri-level sync)
Pan/Tilt Operation Speed Speed range: 0.08°/s to 60°/s (Normal mode)*8
• 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness NC25 or less
Electronic Shutter Speed -
Tilting Range -30°to 90°*9
Imaging Sensors 1/2.5-type MOS×1
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability OFF, -99 % to 99 %
Ambient Operating Humidity 20 % to 90 % (no condensation)
Finish AW-UE80W: WhiteAW-UE80K: Black
Image Resolution 1920×1080, 1280×720, 640×360, 320×180
Panning range ±175°
Camera Unit -
Mass Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
INPUT -
OUTPUT -
INPUT/OUTPUT -
Installation Method Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control -
Controller Supported AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm) 170.0 mm x 211.0 mm x 171.0 mm
Dimensions (W x H x D) (inch) 6.693 inches x 8.307 inches x 6.732inches
PoE++ IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Syncro Scan -
Supported operating systems and web browsers -
IP Streaming -
Image Streaming Mode JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI®
Image Transmission setting (JPEG) Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264) Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission  Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265) Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission  Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type AAC-LC, 48 kHz, 16 bit, 2 ch
Pan Tilt Head Unit -
Supported protocol -
Note *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:Use Category 6 or higher when transmitting 4K video.*7:To ensure safety, the unit must be secured using the mount bracket supplied.*8:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*9:The main unit may appear in the video depending on the pan/tilt position.*10:Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.*11:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*12:NDI® is a registered trademark of NewTek, Inc. in the United States.*13:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.*14:Simultaneous operation with the AW protocol is not possible.*15:Non-synchronous with SDI-OUT
Other Function -
Tally LED display color red / green
NDI Support NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14
Mic/line input AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP)
IP connecting cable • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Image Stabilization OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT)
Electronic Shutter Speed | 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Input/Output Connector | LAN LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422 CONTROL IN RS422A(RJ-45)
Windows Windows 10
Windows® Internet Explorer® 11(32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Video Output | HDMI HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported
Supported protocol | IPv4 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT
Output Formats High Bandwidth NDI®  : 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p
New Functions -
Electronic Shutter Speed | 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i 60.0 Hz to 7200 Hz
Synchro Scan | 29.97p 30.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p 24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i 50.0 Hz to 7200 Hz
Synchro Scan | 25p 25.0 Hz to 7200 Hz
Output Format | SDI | HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Output Format | HDMI | 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Video Output | 3G-SDI OUT SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported
Image Resolution | NDI®|HX version 2 1920x1080, 1280x720
Audio Compression Type | High Bandwidth NDI® AAC-LC, 48 kHz, 2 ch
Audio Compression Type | NDI®|HX version 2 AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video Supported*15
Power LED ON/OFF control
Tripod Screw Penetration Measures Possible
Pan/Tilt Mechanical Method New Direct Drive System
