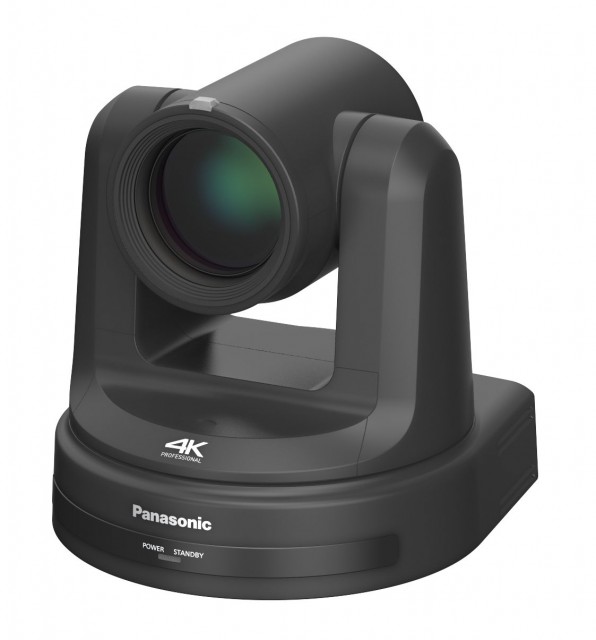

Panasonic AW-UE20K (Black)

A 2022 refresh of Panasonic’s market-leading PTZ camera range with five new models to address market needs. The 4K integrated cameras AW-UE80W/K, AW-UE50W/K, AW-UE40W/K, AW-UE20W/K and the HD integrated camera AW-HE20W/K, released sequentially from the first quarter of 2022, have a new proprietary direct drive system based on Panasonic’s own technology for…

More information

2 541 € with VAT 2 100 € without VAT
-+
Availability
on request

Show all accessories

Product description

Product description

A 2022 refresh of Panasonic’s market-leading PTZ camera range with five new models to address market needs. The 4K integrated cameras AW-UE80W/K, AW-UE50W/K, AW-UE40W/K, AW-UE20W/K and the HD integrated camera AW-HE20W/K, released sequentially from the first quarter of 2022, have a new proprietary direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal directions.

As organisations have had to adapt to an accelerated digital environment, the quality of video transmission has become particularly critical to the education, corporate, live events and broadcast industries. With clear images and dynamic image production that can only be obtained with Panasonic’s pan, tilt and zoom movement, it is possible to improve the quality of online communication and enhance the sense of presence even when not face-to-face.

The AW-UE40, AW-UE50 and AW-UE80 will have a 24x optical zoom and up to a 36x intelligent zoom, as well as a 74.1 degree viewing angle to support usage in both indoor and outdoor environments. The latest generation of optical image stabilisation (OIS) ensures excellent stability. All cameras will support PoE, enabling a single-cable solution whereby video and audio, control, and power can be provided to and from the camera via a single ethernet connection.

The latest IP-based video protocols will be supported, including NDI|HX version 2 and, in the case of the AW-UE80, full-bandwidth NDI. The SRT protocol will also be supported alongside RTMP and RTMPS. The AW-UE80 will also support the FreeD protocol to ensure integration with AR and VR systems alongside 4K/50p video capabilities. The 4K-capable AW-UE20W/K and the HD integrated camera AW-HE20W/K are entry-level PTZ cameras produced specifically for the corporate and higher education markets. Both models will feature a wide-angle lens, the latest IP protocol certifications, and connectivity for SDI, HDMI, USB and IP.

Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software, and its automatic tracking software for presentations and lectures, enabled by face recognition and human body detection.

Parameters

Parameters

Manufacturer: Panasonic
Category: PTZ

Main parameters

Camera Sensor size1/2,8"
Resolution4K UHD
Zoom12x
Type of bayonetintegrated lens
OutputHDMI
Output3G SDI
OutputIP

Other parameters

VersionPTZ
FPS4K 30fps
Min. focal length3.9mm
Max. focal length46.8mm
Other featuresPTZ
Other featuresStreaming
Other featuresPoE
Control protocolRS-422
