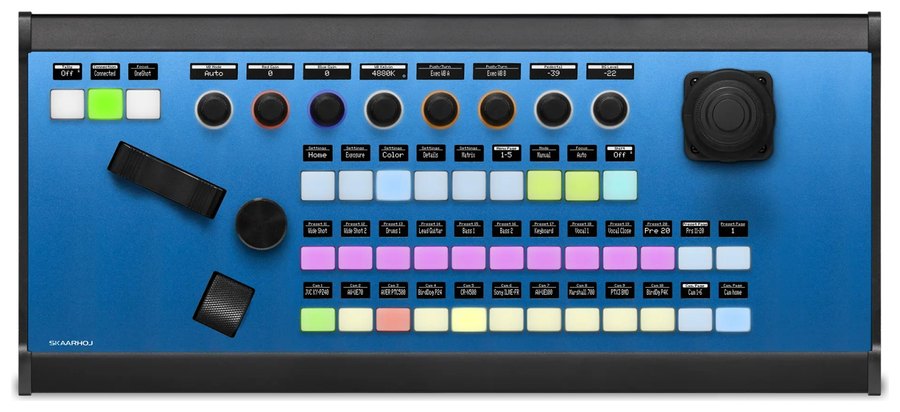

Skaarhoj PTZ Extreme w/Blue Pill Inside

PTZ Extreme w/Blue Pill Inside is the ultimate controller for multi axis robotic systems. It is our flagship PTZ controller that was created with absolute freedom in mind: OLED labeled knobs and buttons, Fine-tuned ergonomics, Hall Effect joystick, custom zoom rocker and focus wheel.

More information

4 657.29 € with VAT 3 849 € without VAT
-+
Availability
14-30 days

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

PTZ Extreme w/Blue Pill Inside is the ultimate controller for multi axis robotic systems. It is our flagship PTZ controller that was created with absolute freedom in mind: OLED labeled knobs and buttons, Fine-tuned ergonomics, Hall Effect joystick, custom zoom rocker and focus wheel.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

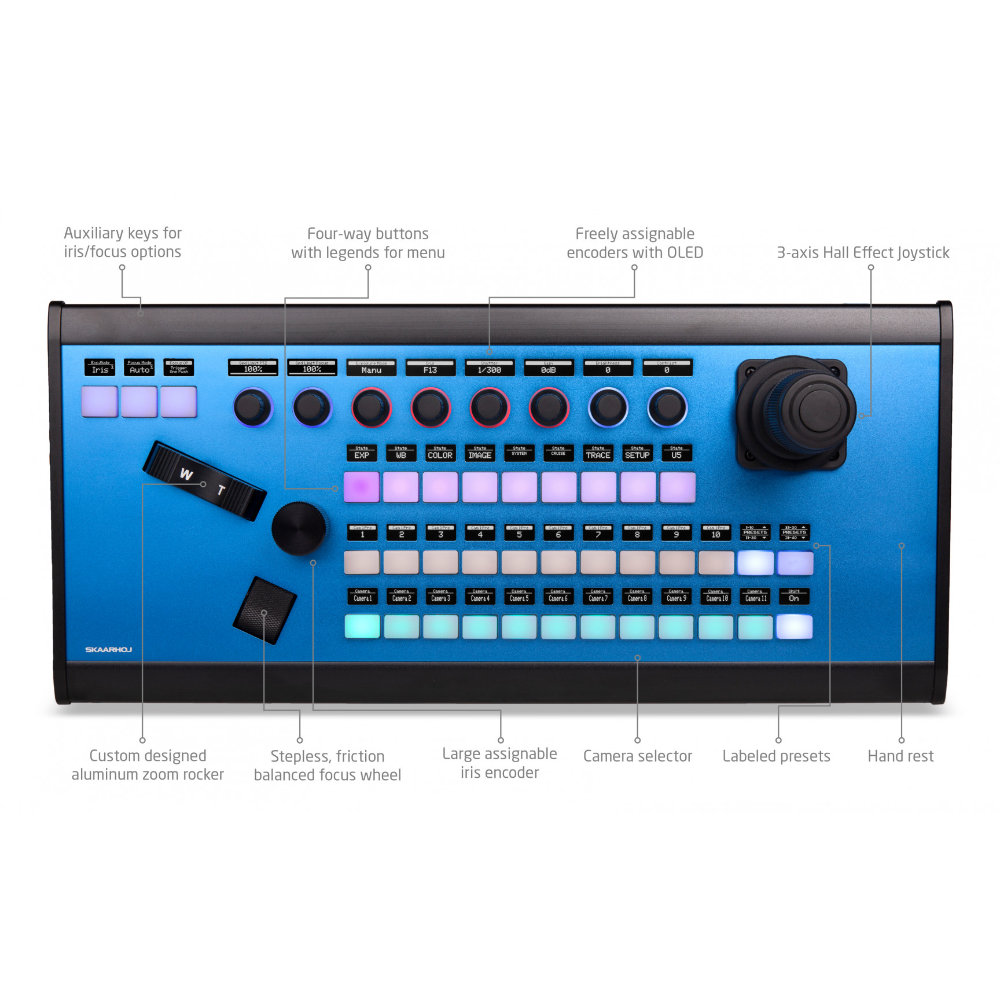

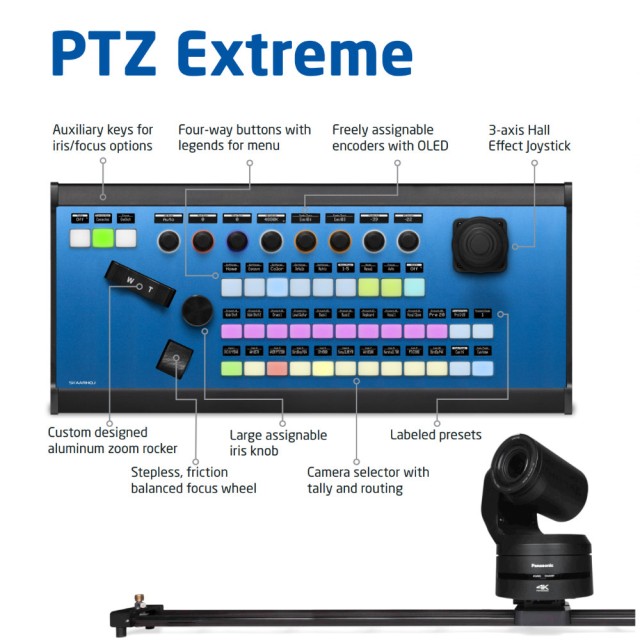

Features:

  • Blue Pill Inside
  • Universal control of multiple 3rd party devices
  • Flexible user configuration
  • IP-based remote control, can be powered with PoE
  • Auxiliary keys for iris/focus options
  • Four-way buttons with legends for menu
  • Freely assignable encoders with OLED
  • 3-axis Hall Effect Joystick
  • Custom designed aluminum zoom rocker
  • Labeled presets Camera selector
  • Stepless, friction balanced focus wheel
  • Large assignable iris knob
  • Ethernet with PoE (IEEE802.3af/t)
  • Designed and built in Denmark



PACKAGE CONTENT

  • 1x PTZ Extreme w/Blue Pill Inside
  • 12V power supply



SPECIFICATIONS

PTZ Extreme w/Blue Pill Inside

Hardware specs :
4-way Buttons:  36
Encoders:  8
Analog components: Zoom rocker, Focus wheel, Iris encoder, 3-axis hall effect joystick
Customizable OLED screens: 44

Programming Port: Ethernet (or Micro USB for setting manual IP)
Networking Port: RJ45 Ethernet
Power Supply: 12V
Recommended cables (not in the box): LAN Cat 6 S/FTP or better
Power Consumption 6.9 Watt
Operating System skaarOS (Blue Pill)

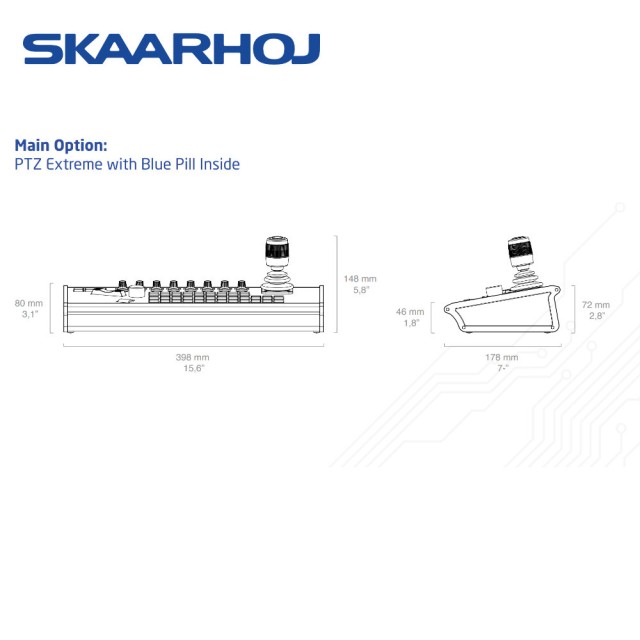

Dimensions:

  • Length: 398  mm
  • Width: 178 mm
  • Height: 72 mm
  • Total weights: 1.868 kg.





Parameters

Parameters

Manufacturer: Skaarhoj
Category: Control panels
