Datavideo HS-2200 HD 6-Channel Portable Video Studio

Datavideo HS-2200 is a portable six-channel production switcher for live events, conferences, houses of worship and television production. Its protective case combines a 17.3-inch multiview monitor, HD/SD switching, an eight-channel intercom with four belt packs and a built-in TC-200 character-generator interface. It provides six switchable input channels and assignable outputs for program, preview and additional displays.

A portable studio for live production

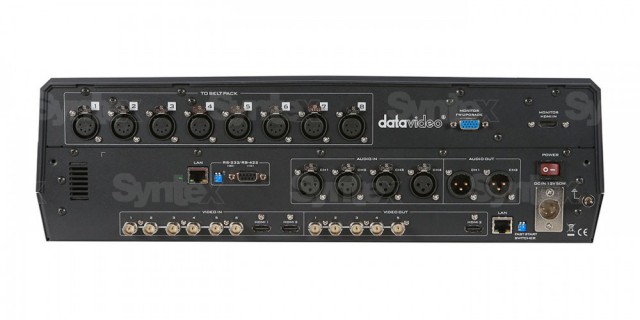

HS-2200 brings video switching, monitoring and crew communication together in one carry case. Connect camera and computer sources to six switchable channels, then assign outputs for program, preview, AUX feeds or multiview displays.

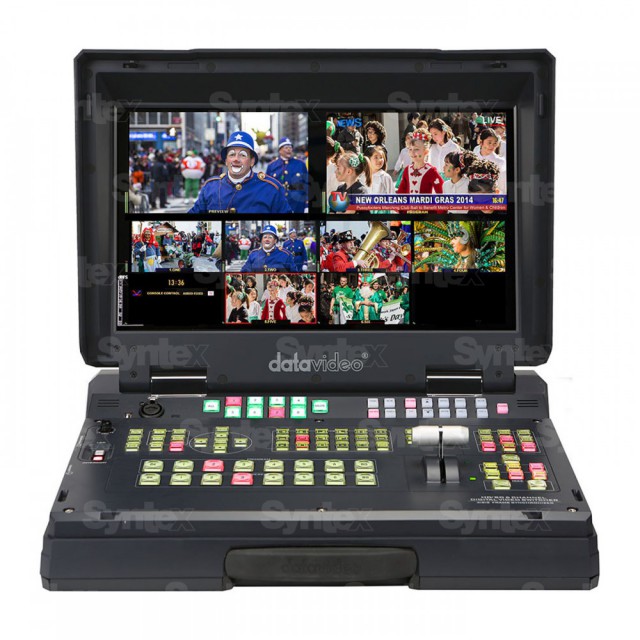

Built-in 17.3-inch multiview monitor

The integrated HD TFT LCD monitor has a 1600 × 900 resolution and displays connected sources and video outputs. Multiview helps the operator check signals directly on the switcher without building a separate monitoring rack.

Intercom and tally for four camera positions

The eight-channel intercom includes four belt packs. The package also contains four headset microphones, four ITC-100SL belt units and a tally light for communication with the camera crew and on-camera status indication.
