BeachTek DXA-Micro Pro+

The Beachtek DXA-MICRO-PRO PLUS is an active audio adapter designed to deliver versatile connectivity and easy setup for videographers

More information

238.8 € with VAT 199 € without VAT
-+
Availability
Praha 1 pcs, Bratislava in stock within 2 days
Manufacturer
Free transport when purchasing this product
SKU:
BTDXA14
Add to Compare
Product description

Product description

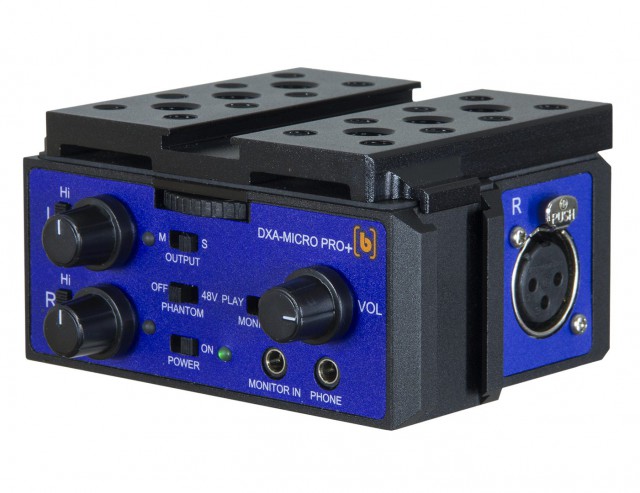

The Beachtek DXA-MICRO-PRO PLUS is an active audio adapter designed to deliver versatile connectivity and easy setup for videographers and camera operators using DSLRs or camcorders in television and film production. It allows simultaneous hook-up of external microphones and headphones for streamlined interfacing with your camera. Also, the included removable cheese plate grants stable and simple attachment of accessories. The internal LiPo battery keeps the DXA-MICRO-PRO PLUS running for up to ten hours; charging and external power is possible via a micro-USB connection.

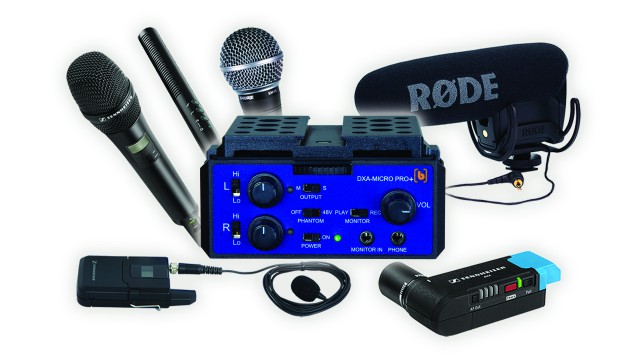

  • Easily connect wireless systems, camera-mounted microphones or professional handheld and boom microphones
  • Record one or two audio channels via universal inputs including one XLR input, two 3.5mm mono mini jack inputs and a 3.5mm stereo mini jack input
  • A 48V phantom power supply is supplied to the XLR input, while a plug-in power supply is supplied to the mini-jack microphone inputs
  • Two clean, low-noise microphone preamps offer two gain settings for optimized levels, reduced camera gain and increased signal-to-noise ratio
  • Adjustable controls for headphone volume and left and right output levels
  • Choice of mono or stereo output mode
  • LED level and power indicators
  • Optional REC or PLAY mode allows monitoring of microphones during recording or camera output during playback

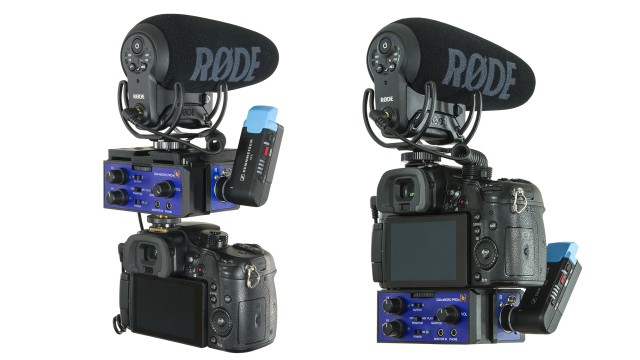

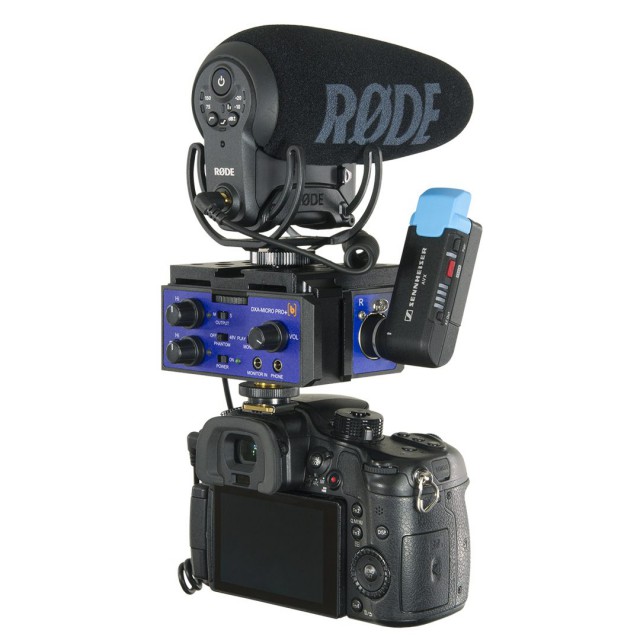

  • Adapter easily attaches under the camera for secure attachment to a tripod base or attaches above the camera on a hot shoe
  • Built-in sturdy mounting feet on each side for attaching accessories
  • Removable cheeseplate has a built-in socket slot and 1/4" and 3/8" threaded mounting holes
  • Includes two 3.5mm TRS cables and a micro-USB cable

Parameters

Parameters

Manufacturer: Beachtek
Category: Accessories
PACKAGE CONTENT

Package Contents:

  • Beachtek DXA-MICRO-PRO PLUS active audio adapter for digital SLR cameras and camcorders
  • Removable cheeseplate
  • Micro-USB cable
  • 2 x 3.5mm to 3.5mm TRS cables
  • Brass mounting foot with knurled wheel and fixing screw
  • allen key

SPECIFICATIONS

  • Inputs 1 x XLR 3-pin microphone input, 1 x 1/8" / 3.5mm female stereo microphone input, 2 x 1/8" / 3.5mm female mono microphone inputs, 1 x 1/8" / 3.5mm monitor input
  • Outputs 1 x 1/8" / 3.5 mm female Stereo main output, 1 x 1/8" / 3.5 mm female Stereo headphone output, USB 1 x Micro-USB
  • Lo Gain Gain: +15 dB, +30 dB
  • Maximum Input Lo Gain: -14 dBu
  • Hi Gain: -29 dBu
  • Output level -26 dBu when level indicators change to red
  • Frequency response 20 Hz to 20 kHz (±0.5 dB)
  • THD+N <0.03% at 1 kHz, -30 dBu Input
  • S/N ratio 85 dB at 1 kHz, -30 dBu Input
  • 48 V phantom regulated power supply
  • Current up to 14 mA (direct short circuit)
  • Plug-in 3.5 V power supply on all microphone inputs with mini jack
  • Built-in 3.7 V, 2400 mAh LiPo battery
  • Battery life typically up to 10 hours (phantom power off)
  • Dimensions (L x W x H) 102 x 76 x 38 mm
    Weight 396.9 g
