Sony URX-P40

Sony's new Hybrid Digital Processing UWP-D series of wireless micro-ports has delivered the perfect solution for newsrooms, outdoor events and DSLR owners in a compact and professional design. The Sony URX-P03 receiver is compatible with the UWP and UWP-D series transmitters.The distance shown is a guide only.

More information

367.84 € 358.14 € with VAT 295.98 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sony's new Hybrid Digital Processing UWP-D series of wireless micro-ports has delivered the perfect solution for newsrooms, outdoor events and DSLR owners in a compact and professional design. The Sony URX-P03 receiver is compatible with the UWP and UWP-D series transmitters.The distance shown is a guide only.

  • High quality sound with Sony digital audio processing
  • NFC SYNC
  • function for quick and easy secure channel setting
  • True double tuner diversity for stable signal reception
  • Channel memory for fast switching between two receiver frequencies
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Compatibility with Sony WL-800/UWP series
  • Output level control for receiver
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply
  • Digital audio interface support with SMAD-P5

Multi Interface (MI) Shoe Adaptor (option)*

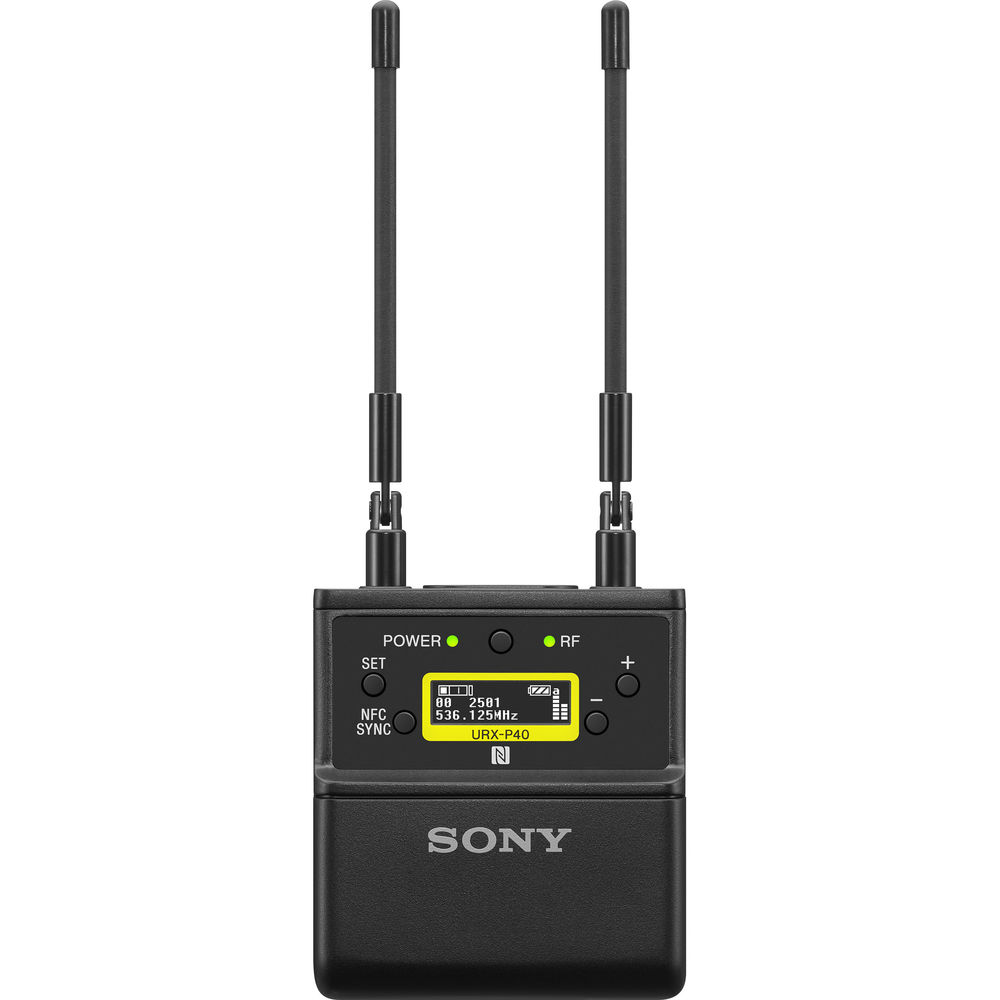

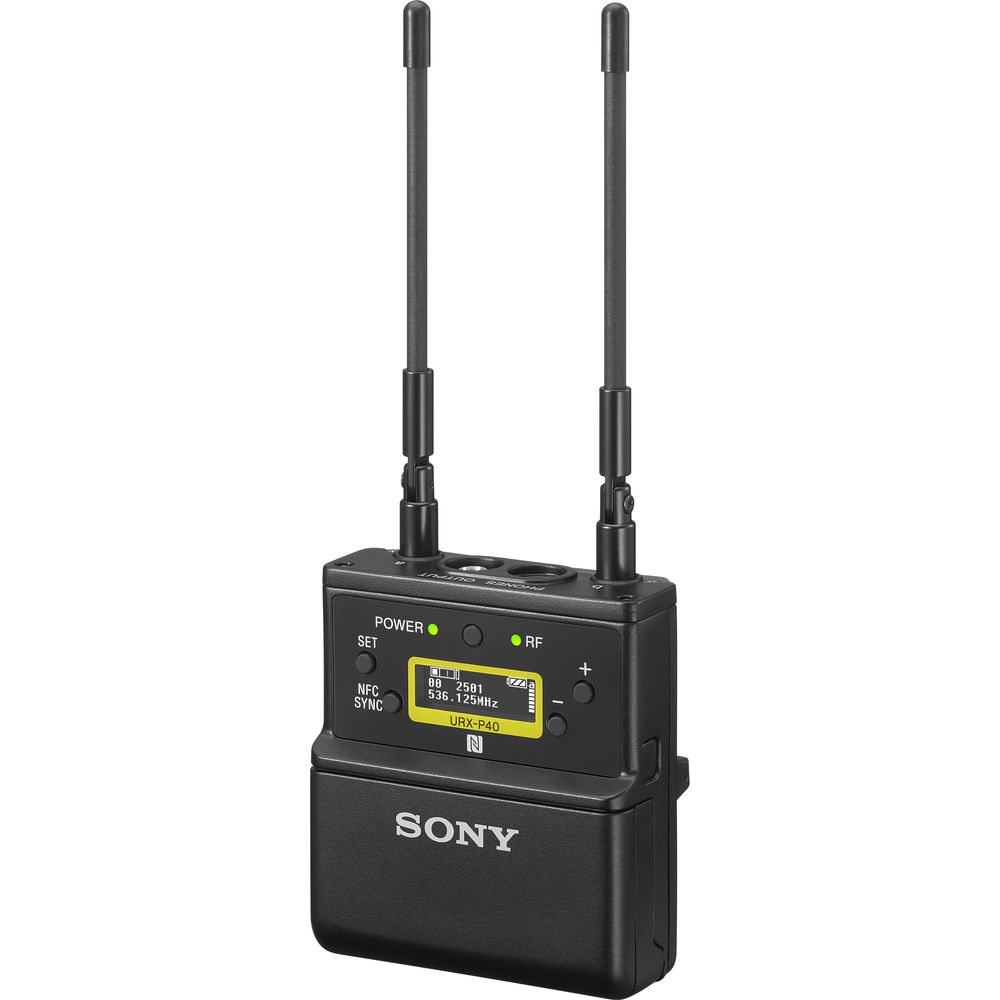

Sony URX-P40

is a camera-mount wireless receiver that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The receiver is packed with professional features including NFC Sync and Channel Memory functions, which handle time-consuming setup and adjustments for you, so you're ready to shoot within seconds.

The URX-P40 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. This low-profile camera-mount receiver is designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with adigital

Multi Interface Shoe.

The URX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.

Reliable Reception with True Diversity

To achieve stable audio, the UWP-D receiver employs true-diversity technology with two antennas and two independent receiver sections within the unit. Both RF signals are compared and the stronger signal is automatically selected for output-reducing dropouts to a minimum.

The angle of the two antennas can also be adjusted, which helps to further prevent signal dropouts.

The system offers a 72 MHz bandwidth with 2772 UHF frequencies.

Professional Features to Speed Up Your Workflow

NFC Automatic Channel-Setting Mode
Press and hold the NFC/Sync button, and the receiver scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you're good to go!

Unlike purely digital systems, the URX-P40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

High-Visibility OLED Display for Indoor/Outdoor Use
Both transmitter and receiver feature an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.

Channel Memory Function
The channel memory function lets you quickly switch between the groom's lav mic and the wedding guest's interview mic with the press of a button. It also allows for a fast change between mics in corporate presentations or quickly swapping to a back-up mic.

High-Quality Sound with Digital Audio Processing

Unlike traditional analog wireless systems, the UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that's intelligible and nuanced.

A Compact Build, Ready for the Camera

The URX-P40 features a robust, all-metal construction well suited for tough operating conditions.

Using the included shoemount adapter, the receiver easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio input.

Direct Digital Audio via SMAD-P5 MI Shoe Adapter

The SMAD-P5 digital MI Shoe adapter allows you to integrate the receiver with XDCAM camcorders and select Sony cameras equipped with adigital

Multi Interface Shoe.

  • This setup provides a direct digital connection, skipping the receiver's D/A and camera's A/D converters for superior audio quality and low noise.
  • Audio information such as RF level meter, audio-mute status, and low-battery alert for the transmitters is displayed on the camera's viewfinder.
  • This cable-free configuration allows for fast setup in the field.
  • Compatible models include the a7R IV mirrorless camera, the PXW-Z280 and PXW-Z190 XDCAM camcorders, and more.

Multiple Powering Options

Two AA batteries (alkaline or NiMH rechargeable type) power the receiver for up to 6 hours.

A battery count-up timer allows for accurate reading of battery running time to minute accuracy.

The receiver can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.

With the SMAD-P5 Digital MI Shoe adapter, the receiver can get power directly from Sony cameras equipped with an MI Shoe.

Cartridge-type battery case allows for quick battery replacement on set.

Headphone Monitoring for Location Sound

If your camera doesn't have a headphone jack, Phone mode lets you monitor your sound via the receiver's headphone output while recording.

When the receiver is used as a personal monitoring device by a director or crew on set, Monitor mode lets you adjust the headphone volume on the fly with the +/- buttons.

Other Features

  • The receiver provides a variable output level control of ±12 dB, useful when working with cameras without manual input level control.
  • Simple menus make navigation easy. Advanced menus for in-depth control are also available.
  • You can operate up to 16 mics in one location.

Compatibility with Other Sony Wireless Systems

The URX-P40 can be used with a UWP Series or WL-800 Series transmitter.

PACKAGE CONTENT

  • Sony URX-P40
  • Camera-Mount Wireless Receiver
  • Sony SMAD-P4 Shoemount Adapter for URX-P40
  • Receiver
  • Belt Clip
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable

SPECIFICATIONS

Oscillator Type
Crystal-controlled PLL synthesizer

Reception Type
True diversity method

Antenna Type
1/4 ? wavelength wire antenna (angle-adjustable)

Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio
60dB (1kHz sine wave, 5kHz modulation)

Distortion (T.H.D)
0.9% or less (1kHz sine wave, 5kHz modulation)

Audio Delay
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)

Audio Output Connector
3.5mm diameter 3-pole locking mini jack, external connection

Audio Output Level
-60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
-20 dBFS (external connection, digital output, 0dB audio output level)
-50 dBFS (external connection, analog output, 0dB audio output level)

Analog Audio Output Adjustment Range
-12dB - +12dB (3dB step)

Headphone Output Connector
3.5mm diameter mini jack

Headphone Output Level
Max. 10mW (16-ohm)

Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life*
Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
-20 °C to +55 °C (-4 °F to +131 °F)

Dimensions
63 × 70 × 31 mm (2 1/2 × 2 7/8 × 1 1/4 in.) (W / H / D) (excluding antenna)

Mass
Approx. 131 g (4.6 oz) (excluding batteries)
