Sony UWP-D22

Sony's new Hybrid Digital Processing UWP-D series of wireless microphones provides the perfect solution for news, outdoor events and DSLR owners in a compact design. The new solution from SONY brings reliable signal transmission thanks to a dual diversity system, Kit UWP-D22 contains: UTX-M40 (hand), URX-P40 (receiver) and accessories.

More information

590.48 € 574.91 € with VAT 475.13 € without VAT
-+
Availability
Shipment day: Tomorrow
To be sent 2 pcs
Bratislava 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sony's new Hybrid Digital Processing UWP-D series of wireless microphones provides the perfect solution for news, outdoor events and DSLR owners in a compact design. The new solution from SONY brings reliable signal transmission thanks to a dual diversity system, Kit UWP-D22 contains: UTX-M40 (hand), URX-P40 (receiver) and accessories.

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-M40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Interchangeable head for wide choice of microphone capsules
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Channel memory for fast switching between receiver frequencies for two transmitter operation
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply (URX-P40 only)
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)*

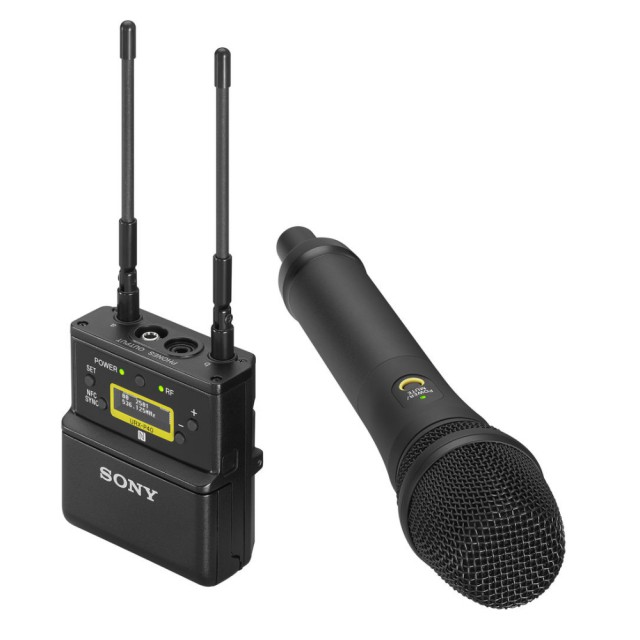

TheSony UWP-D22

is a dependable camera-mount wireless handheld microphone system that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The system is packed with professional features including NFC Sync and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you, so you're ready to shoot within seconds.

The UWP-D22 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. Rugged and lightweight, this system includes a handheld mic transmitter equipped with a cardioid capsule optimized for speech. The mic is ideal in situations when it's not convenient to position a lavalier mic or you need to quickly move the mic between several people. The system also comes with a low-profile camera-mount receiver designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with adigital

Multi Interface Shoe. With the UWP-D22, you can focus on the other critical elements competing for your attention during a shoot and confidently record crisp, clear speech or dialog for projects ranging from documentaries to wedding videos, YouTube content, corporate spots, and hands-free interviews.

The UWP-D22 is backward-compatible with Sony WL-800 and UWP Series systems.

Professional Features to Speed Up Your Workflow

NFC Automatic Channel-Setting Mode
Press and hold the NFC/Sync button, and the receiver scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you're good to go!

Unlike purely digital systems, the UWP-D22 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

Auto-Gain Mode to Prevent Mic Distortion
Auto-Gain mode saves you the time and aggravation of setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, great when the loudness of the presenter's voice is unknown.

The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter's mouth and the audio level is insufficient.

Manual input-level setting is also available.

High-Visibility OLED Display for Indoor/Outdoor Use
Both transmitter and receiver feature an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.

Channel Memory Function
The channel memory function lets you quickly switch between the groom's lav mic and the wedding guest's interview mic with the press of a button. It also allows for a fast change between mics in corporate presentations or quickly swapping to a back-up mic.

DSP Filter Removes Occupancy Sensors Artifacts
Two levels of DSP filtering help remove the artifacts caused by occupancy sensors used in modern "green" buildings to turn off lights when people leave a room.

Reliable Reception with True Diversity

To achieve stable audio, the UWP-D receiver employs true-diversity technology with two antennas and two independent receiver sections within the unit. Both RF signals are compared and the stronger signal is automatically selected for output-reducing dropouts to a minimum.

The angle of the two antennas can also be adjusted, which helps to further prevent signal dropouts.

The system offers an 18 MHz bandwidth with 654 UHF frequencies.

High-Quality Sound with Digital Audio Processing

Unlike traditional analog wireless systems, The UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that's intelligible and nuanced.

The handheld mic features a dynamic mic capsule with a directional cardioid polar pattern that helps to reject unwanted background sound, making it ideal in noisy environments such as trade-show floors or busy public areas.

The transmitter uses an interchangeable mic capsule design compatible with over 40 different capsules from various manufacturers.

A Compact Build, Ready for the Camera

The UWP-D22 features robust, all-metal construction and a lightweight handheld transmitter mic well suited for tough operating conditions.

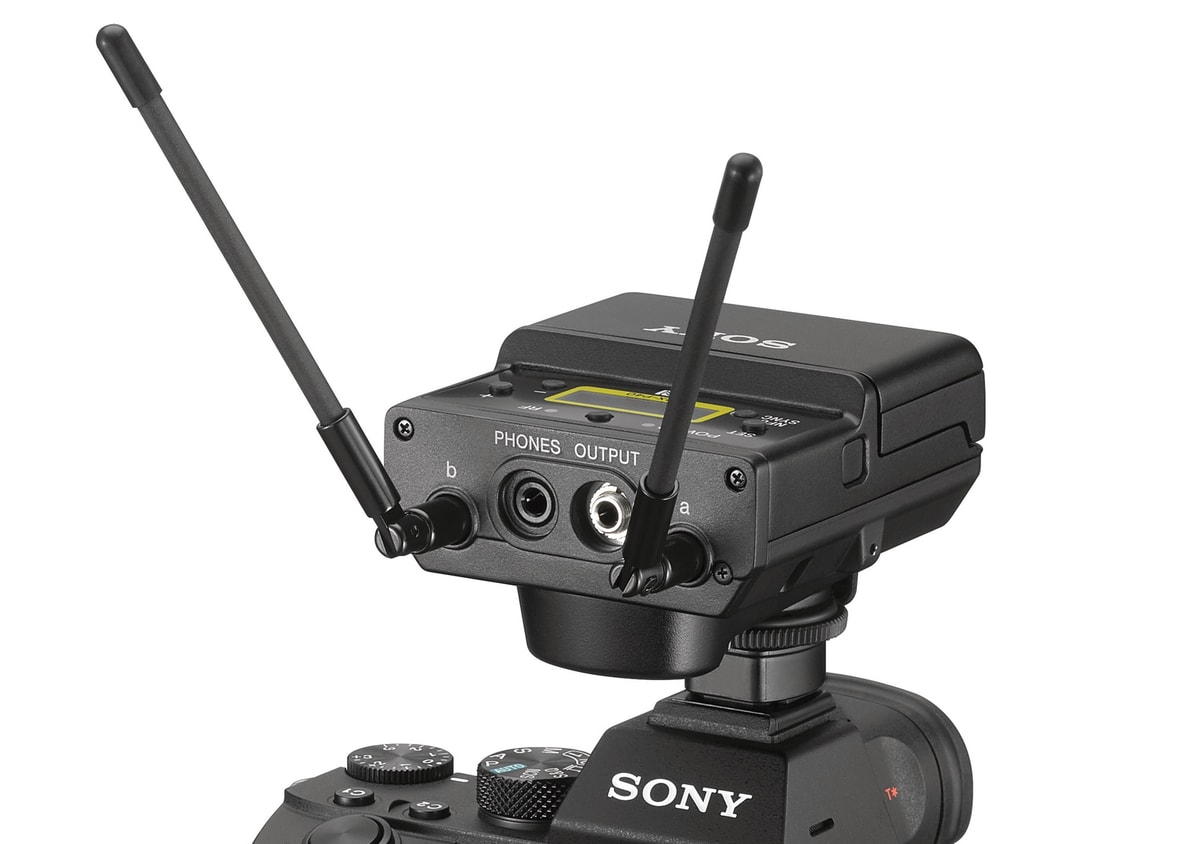

Using the included shoemount adapter, the receiver easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio input.

Direct Digital Audio via SMAD-P5 MI Shoe Adapter

The SMAD-P5 digital MI Shoe adapter allows you to integrate the receiver with XDCAM camcorders and select Sony cameras equipped with adigital

Multi Interface Shoe.
  • This setup provides a direct digital connection, skipping the receiver's D/A and camera's A/D converters for superior audio quality and low noise.
  • Audio information such as RF level meter, audio-mute status, and low-battery alert for the transmitters is displayed on the camera's viewfinder.
  • This cable-free configuration allows for fast setup in the field.
  • Compatible models include the a7R IV mirrorless camera, the PXW-Z280 and PXW-Z190 XDCAM camcorders, and more.

Multiple Powering Options

Two AA batteries (alkaline or NiMH rechargeable type) power the transmitter for up to 8 hours and the receiver for up to 6 hours.

A battery count-up timer allows for accurate reading of battery running time to minute accuracy.

The transmitter and receiver can also be powered through their USB ports, allowing them to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.

With the SMAD-P5 Digital MI Shoe adapter, the receiver can get power directly from Sony cameras equipped with an MI Shoe.

Cartridge-type battery cases allow for quick battery replacement on set.

Headphone Monitoring for Location Sound

If your camera doesn't have a headphone jack, Phone mode lets you monitor your sound via the receiver's headphone output while recording.

When the receiver is used as a personal monitoring device by director or crew on set, Monitor mode lets you adjust the headphone volume on the fly with the +/- buttons.

Other Features

  • The RF output level on the transmitter has two settings: the 5mW option allows you to conserve battery life, while the 30mW setting gives you more power to overcome interference, great in busy RF environments.
  • Low-cut filter reduces noise caused by wind or machinery-Off/Low (100 Hz)/Mid (150 Hz)/High (200 Hz).
  • The receiver provides a variable output level control of ±12 dB, useful when working with cameras without manual input level control.
  • Simple menus make navigation easy. Advanced menus for in-depth control are also available.
  • The variable mute button on the transmitter can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
  • You can operate up to 14 mics in one location.

Configure Your System to Do More

With this set, you can add the UTX-B40 bodypack transmitter with an omnidirectional lavalier mic, ideal for hands-free interviews.

For clearer speech in noisy environments, you can use an ECM-322BMP headset mic with the bodypack transmitter.

Adding the UTX-P40 plug-on transmitter with 48V phantom allows you to connect any handheld microphone of your choice for man-on-the-street-style interviews, or a shotgun mic for wireless booming.

Compatibility with Other Sony Wireless Systems

The UWP-D transmitter can be used with a UWP Series or WL-800 Series receiver. A UWP Series or WL-800 Series transmitter can be used with a UWP-D receiver.

PACKAGE CONTENT

  • Sony UWP-D22
  • Camera-Mount Wireless Cardioid Handheld Microphone System
  • URX-P40
  • Camera-Mount Receiver
  • UTX-M40
  • Handheld Wireless Microphone with Cardioid Capsule
  • Mic Holder
  • Belt Clip
  • Sony SMAD-P4 Shoemount Adapter for URX-P40
  • Receiver
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable

SPECIFICATIONS

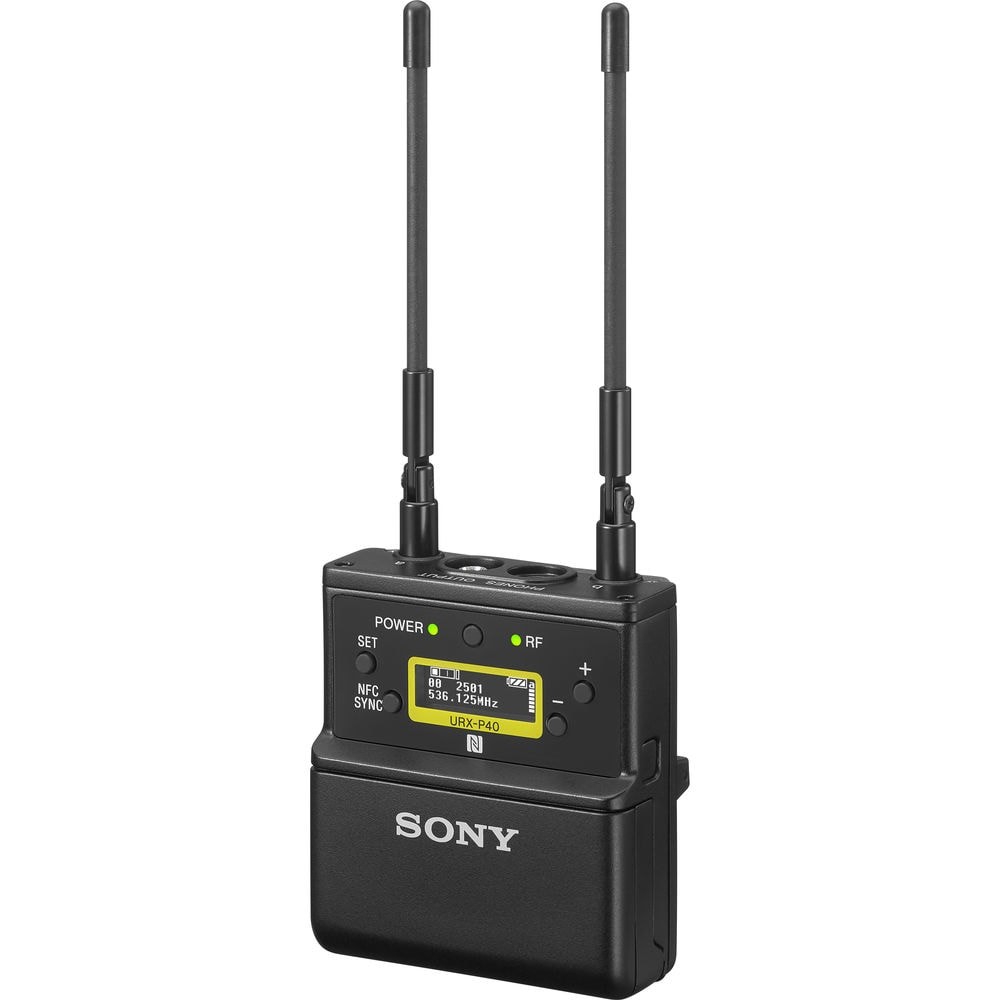

URX-P40 portable receiver

Oscillator type
Crystal-controlled PLL synthesizer

Reception Type
True diversity method

Antenna Type
1/4 ? wavelength wire antenna (angle-adjustable)

Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

Frequency Response
23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (typical) (J model)

Signal-to-Noise Ratio
60 dB (1 kHz sine wave, 5 kHz modulation)

Distortion (T.H.D)
0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)

Audio Output Connector
3.5 mm diameter 3-pole locking mini jack, external connection

Audio Output Level
-60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
-20 dBFS (external connection, digital output, 0 dB audio output level)
-50 dBFS (external connection, analog output, 0 dB audio output level)

Analog Audio Output Adjustment Range
-12dB - +12dB (3dB step)

Headphone Output Connector
3.5 mm diameter mini jack

Headphone Output Level
Max. 10mW (16-ohm)

Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life*
Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
-20 °C to +55 °C (-4 °F to +131 °F)

Dimensions
63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)

Mass
Approx. 131 g (4.6 oz) (excluding batteries)

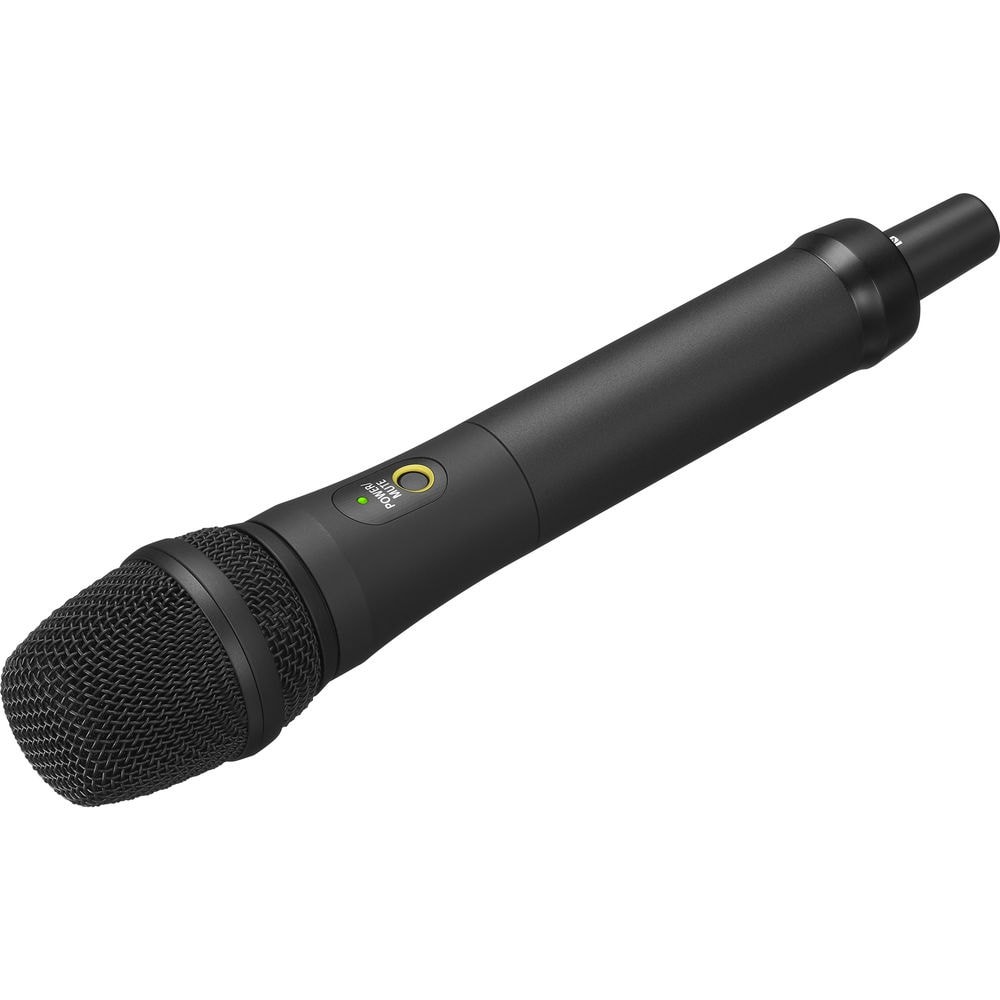

UTX-M40 Handheld microphone with unidirectional capsule

Oscillator Type
Crystal-controlled PLL synthesizer

Antenna Type
1/4 ? wavelength wire antenna

Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz(UHF-TV channels 42 to 48)

RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type
Dynamic

Directivity
Uni-directional

Reference Audio Input level
-55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

Maximum Audio Input Level
151 dB SPL (21 dB attenuation, using supplied microphone unit )

Audio Attenuator Adjustment Range
0 dB to 21 dB (3 dB steps)

Frequency Response
70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio
60 dB (-60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

Distortion
0.9% or less (-60 dBV, 1 kHz input )

Audio Delay
Approx. 0.35 ms

Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery life*
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)

* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
-20 °C to +55 °C (-4 °F to +131 °F)

Dimensions
o48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)

Mass
Approx. 255 g (9.0 oz) (excluding batteries)

Parameters

Parameters

Manufacturer: SONY
Category: Wireless systems
