Sony SMAD-P5

SKU: SMAD-P5

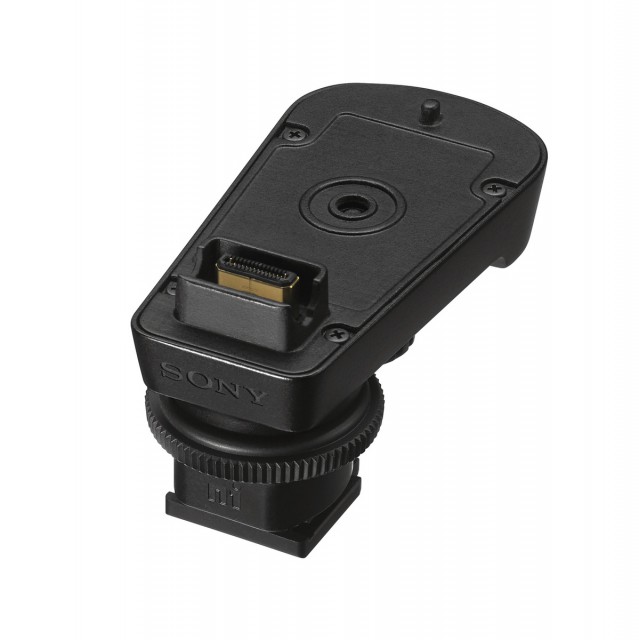

The SMAD-P5 Multi Interface Shoe (MI Shoe) Adapter connects the URX-P40 receiver of the UWP-D wireless system to compatible SONY camcorders and cameras without a cable. Through the digital MI Shoe it passes audio directly in digital form at 24-bit quality, powers the receiver from the camera and shows RF level, mute status and a low transmitter battery in…

More information

54 € with VAT 44.63 € without VAT
Add to Compare Price history
Availability
Shipment day: 09. 10.
To be sent 3 pcs
Bratislava 1 pcs, Budapest 2 pcs
SKU:
SMAD-P5
Add to Compare Price history

Top accessories for Sony SMAD-P5

Sony UWP-D27 K33

  • -19 %
  • Free transport
  • Top product
Promotion: -19%
Sony UWP-D27 wireless kit in the K33 band (566.025–630.000 MHz) for two speakers:
1 490.88 €
1 833.15 €
To be sent 1 pcs

Sony UWP-D27 K21

  • Free transport
Wireless bodypack microphone package with bodypack transmitter, 2-channel portable
1 839 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The SMAD-P5 Multi Interface Shoe (MI Shoe) Adapter connects the URX-P40 receiver of the UWP-D wireless system to compatible SONY camcorders and cameras without a cable. Through the digital MI Shoe it passes audio directly in digital form at 24-bit quality, powers the receiver from the camera and shows RF level, mute status and a low transmitter battery in the viewfinder. On cameras with an analogue MI Shoe it can be switched to an analogue connection.

The compactSony SMAD-P5 is a digital Multi Interface (MI) Shoe adapter that allows you to mount the UWP-D Series URX-P40 receiver on select Sony camcorders and cameras equipped with a digital Multi Interface Shoe. The adapter eliminates the need for connecting cables, speeding your setup in the field.

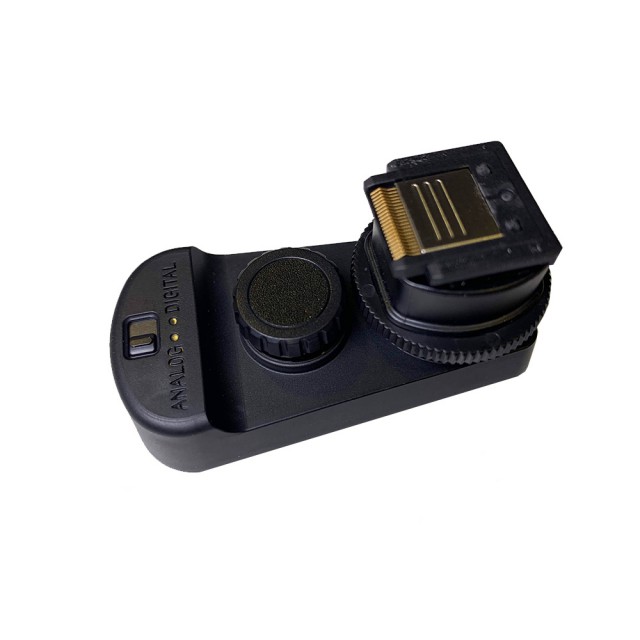

The SMAD-P5 provides a direct digital audio connection between the URX-P40 receiver and the camera, skipping the receiver's D/A and camera's A/D conversion stages for superior 24-bit audio quality and low noise. If your camera is equipped with an analog MI Shoe, the adapter can be switched to provide an analog audio connection.

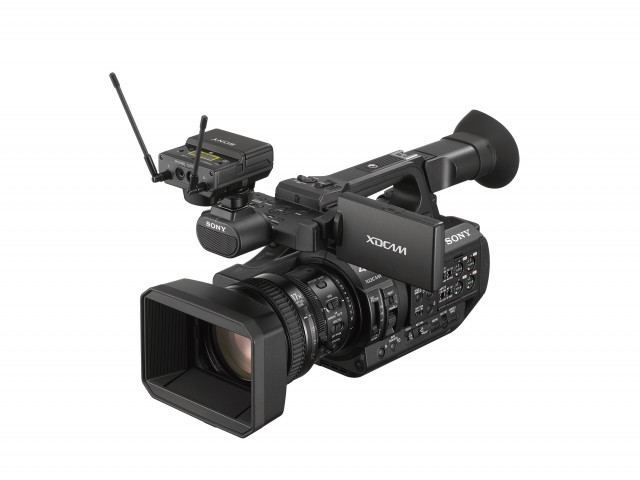

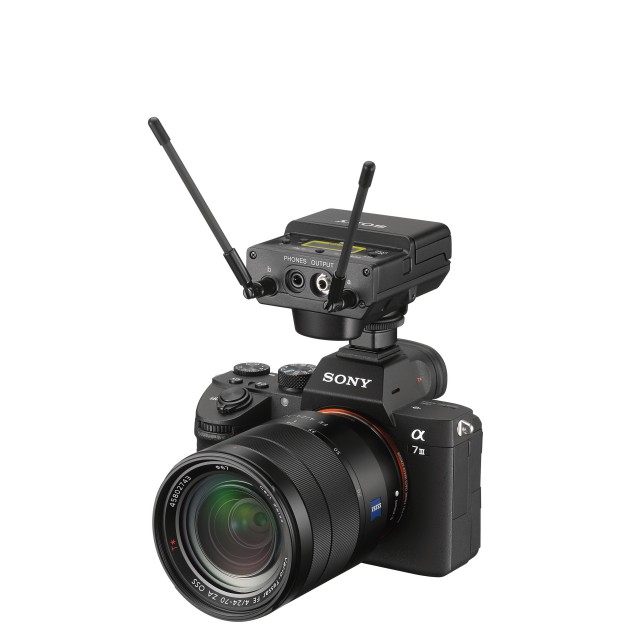

The adapter also offers seamless integration with the Sony a7R IV mirrorless camera and PXW-Z280/PXW-Z190 XDCAM camcorders, displaying mic information in your camera's viewfinder, including RF levels, audio mute status, and the transmitter's low-battery alert.

Additionally, the SMAD-P5 enables the receiver to get power from the camera, while the camera can synchronize power on/off with the receiver, unifying power management

Kompatibilné produkty:

  • Sony PXW-X160
  • Sony PXW-X180
  • Sony PXW-X200
  • Sony PXW-Z90
  • Sony PXW-Z150
  • Sony PXW-Z190 (Digital connection)
  • Sony PXW-Z280 (Digital connection)
  • Sony NEX-VG900/ PRO
  • Sony PXW-X70
  • Sony HXR-MC2500
  • Sony HXR-NX80
  • Sony HXR-NX5R
  • Sony PXW-FS5
  • Sony PXW-FS7
  • Sony PXW-FX9 (Digital connection)

PACKAGE CONTENT

  • Sony SMAD-P5 Digital MI Shoe Adapter for UWP-D Series

SPECIFICATIONS

  • Output impedance1 kΩ or less
  • Voice delay1.16 ms (Digital)
  • Operating temperature0 °C to 50 °C (32 °F to 122 °F)
  • Storage temperature–20 °C to +55 °C (–4 °F to +131 °F)
  • Dimensions (W/H/D)Approx. 34 mm × 35 mm × 65 mm (1 3/8 in. × 1 7/16 in. × 2 5/8 in.)
  • MassApprox. 27 g (1.0 oz.) (excluding terminal cap
