Sony PXW-X400 (body)

The X400 is an affordable, professional ENG camera with a 2/3" sensor and B4 bayonet. It offers a perfect balance of performance and ease of use, as well as a very ergonomic and perfectly balanced body for comfortable all-day shoulder shooting. The camera boasts advanced features for wireless connectivity, recording to both modern and classic codecs, 1080p60…

More information

19 481 € 18 182.43 € with VAT 15 026.8 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The X400 is an affordable, professional ENG camera with a 2/3" sensor and B4 bayonet. It offers a perfect balance of performance and ease of use, as well as a very ergonomic and perfectly balanced body for comfortable all-day shoulder shooting. The camera boasts advanced features for wireless connectivity, recording to both modern and classic codecs, 1080p60 format support and 10-bit sign

Sony PXW-X400

Better ergonomics
The camera body is perfectly balanced for maximum comfort when shooting from the shoulder, even when working all day. Sony designed the body based on testing of popular ENG lenses and balanced it so that the weight of the device rests on the shoulder, not the cameraman's wrist. Of course, the balance can be changed by moving the shoulder rest

Great image quality
With three powerful 2/3" Sony CMOS sensors, the PXW-X400 delivers high image quality in Full HD resolution, a good signal-to-noise ratio (62 dB) and high sensitivity (F12 @ 1080/60i). With the B4 bayonet - which is standard in the news and sports industry - you can choose from a plethora of servo transfocals..

Sony PXW-X400

Format support
Many conventional ENG cameras support a maximum resolution of 1080/60i; the PXW-X400 is also capable of 1080/60p recording. The same goes for bit depth, unlike the still commonly used 8-bit technology and 4:1:1 or 4:2:0 sampling, the X400 offers 10-bit colour at 4:2:2 sampling. Recording is done to the highly efficient XAVC Intra and XAVC Long codecs, which record high quality video even at lower bitrates (min. 25 Mbps), saving SxS card space. It also supports recording to MPEG-2 HD 422, MPEG-2 HD 420, MPEG IMX and DVCAM formats (in MXF wrapper) for greater compatibility with older equipment

Sony PXW-X400
The newest addition to the Sony PXW family - the PXW-X400 - offers advanced features for wireless connectivity, XAVC-Long 60P codec support, a perfectly balanced body, recording to reliable SxS cards, and Pool Feed for distributed signal. The camera is available in three configurations (body only or KC and KF variants with viewfinder, stereo rifle and 20x zoom with manual focus or 16x transfocus with autofocus). It meets all the requirements of modern TV production - connectivity, ergonomics and high performance!

Advanced network functions
The camera is equipped with features for wireless video streaming, proprietary Quality of Service (QoS) protocol, MPEG TS video streaming, transfer to FTP servers, or remote control via Wi-Fi/NFC-enabled mobile devices (this function is implemented as a firmware update). In case of unavailability or low stability of wireless network connections, a standard Ethernet (RJ-45) network interface can be used -- both for connection to an FTP server and for live video streaming or remote control of the camera using a web browser. The Content Browser Mobile app (Android/iOS) makes it easy to remotely set the device's parameters. The ONLINE button is used to quickly connect/disconnect networks, start/stop streaming video, etc

Sony PXW-X400
Better ergonomics
The camera body is perfectly balanced for maximum comfort when shooting from the shoulder, even when working all day. Sony designed the body based on testing of popular ENG lenses and balanced it so that the weight of the device rests on the shoulder, not the cameraman's wrist. Of course, the balance can be changed by moving the shoulder rest

Great image quality
With three powerful 2/3" Sony CMOS sensors, the PXW-X400 delivers high image quality in Full HD resolution, a good signal-to-noise ratio (62 dB) and high sensitivity (F12 @ 1080/60i). With the B4 bayonet - which is standard in the news and sports industry - you can choose from a plethora of servo transfocals..
Sony PXW-X400
Join in!
To record external signal sources - for example, if a location is allowed to be filmed with one camera - the X400 is equipped with Pool Feed. This allows external signals to be recorded on SxS cards. Of course, there is a slot for a wireless microphone receiver, AES/EBU digital inputs and an output on a 5-pin XLR connector. A special 50-pin interface allows the camera to be connected to Triax adapters or optics (sold separately)



PACKAGE CONTENT

*PXW-X400KF/PXW-X400KC Only : Viewfinder (1)
PXW-X400KF/PXW-X400KC Only : stereo microphone (1)
PXW-X400KF/PXW-X400KC Only : wind protection (1)
PXW-X400KF/PXW-X400KC Only : Lens Hood (1)
PXW-X400KF/PXW-X400KC Only :"Back Focus" setting diagram (1)
PXW-X400KF/PXW-X400KC Only : Lens with "Auto Focus" function (1)
PXW-X400KF/PXW-X400KC Only : Lens with Manual Focus (1)
shoulder strap (1)
accessory attachment clip (1)
operating Instructions (1)
USB Wireless LAN Module (IFU-WLM3

) (1)

SPECIFICATIONS

General

Mass Approx. 3.6 kg (body only without lens, VF, Mic)
Approx. 7 lb 15 oz (body only without lens, VF, Mic)
Dimensions (W x H x D) *1 150 x 269 x 332 mm (excluding protrusions, body only)
6 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)
Power Requirements DC 12 V (11 V to 17.0 V)
Power Consumption Approx. 22 W (while XAVC recording, color LCD on)
Approx. 24 W (while XAVC recording, CBK-VF02 viewfinder and color LCD on)
Operating Temperature 0° C to 40° C
32° F to 104° F
Storage Temperature -20°C to +60°C
-4°F to +140°F
Continuous Operating Time Approx. 200 min with BP-L80S,
Approx. 240 min with BP-GL95A
Recording Format (Video) XAVC Intra
XAVC-I mode
MPEG-4 AVC/H.264, CBG, Max.112 Mbps
XAVC Long
XAVC-L 50 Mode
MPEG-4 AVC/H.264, VBR, Max. 50 Mbps
XAVC-L 35 Mode
MPEG-4 AVC/H.264, VBR, Max. 35 Mbps
XAVC-L 25 Mode
MPEG-4 AVC/H.264, VBR, Max. 25 Mbps
MPEG HD422
HD422 Mode: MPEG-2 422P@HL, CBR, Max.50 Mbps
MPEG HD
HQ mode: MPEG-2 MP@HL, VBR, Max.35 Mbps
MPEG IMX: *2
MPEG-2 422@ML, CBR, 50 Mbps
DVCAM
CBR, 25 Mbps
Recording Format (Audio) XAVC Intra: LPCM 24 bits, 48 kHz, 4 channels
XAVC Long: LPCM 24 bits, 48 kHz, 4 channels
MPEG HD422: LPCM 24 bits, 48 kHz, 4 channels
MPEG HD: LPCM 16 bits, 48 kHz, 4 channels
MPEG IMX: LPCM 16/24 bits, 48 kHz, 4 channels *2
DVCAM: LPCM 16 bits, 48 kHz, 4 channels
Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1280 × 720, 9 Mbps (Target Rate)
1280 × 720, 6 Mbps (Target Rate)
640 × 360, 3 Mbps (Target Rate)
480 × 270, 1 Mbps, 500 kbps (Target Rate)
Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording/Playback Time (XAVC Intra, XAVC Long) *2 XAVC-I mode
Approx. 120 min. with 128 GB SxS card*5
Approx. 60 min. with 64 GB SxS card*5
Approx. 30 min. with 32 GB SxS card*5
XAVC-L 50 mode
Approx. 240 min. with 128 GB SxS card*5
Approx. 120 min. with 64 GB SxS card*5
Approx. 60 min. with 32 GB SxS card*5
XAVC-L 35 mode
Approx. 340 min. with 128 GB SxS card*5
Approx. 170 min. with 64 GB SxS card*5
Approx. 85 min. with 32 GB SxS card*5
XAVC-L 25 mode
Approx. 440 min. with 128 GB SxS card*5
Approx. 220 min. with 64 GB SxS card*5
Approx. 110 min. with 32 GB SxS card*5
Recording/Playback Time (MPEG-2 HD422/HD420) *2 MPEG HD422 mode
Approx. 240 min. with 128 GB SxS card*5
Approx. 120 min. with 64 GB SxS card*5
Approx. 60 min. with 32 GB SxS card*5
MPEG HD420 HQ mode
Approx. 360 min. with 128 GB SxS card*5
Approx. 180 min. with 64 GB SxS card*5
Approx. 90 min. with 32 GB SxS card*5
Recording/Playback Time (MPEG IMX 50M) *2 Approx. 240 min. with 128 GB SxS card*2 , *5
Approx. 120 min. with 64 GB SxS card*5
Approx. 60 min. with 32 GB SxS card*5
Recording/Playback Time (DVCAM) *2 Approx. 440 min. with 128 GB SxS card*5
Approx. 220 min. with 64 GB SxS card*5
Approx. 110 min. with 32 GB SxS card*5
Recording Frame Rate XAVC Intra (XAVC-I mode)
1920 × 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
1280 × 720: 59.94p, 50p
XAVC Long (XAVC-L 50 mode)
1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
1280 × 720: 59.94p, 50p
XAVC Long (XAVC-L 35 mode)
1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
Recording Frame Rate XAVC Long (XAVC-L 25 mode)
1920 × 1080: 59.94i, 50i
MPEG HD422
1920 × 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
1280 × 720: 59.94p, 50p, 29.97p, 25p, 23.98p
MPEG HD420
1920 × 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
1440 × 1080: 59.94i, 50i
1280 × 720: 59.94p, 50p
MPEG IMX: *2
720 × 486: 59.94i
720 × 576: 50i
DVCAM
720 × 480: 59.94i
720 × 576: 50i

Lens

20x (optical), servo/manualF1.9 to F16 and Close, Auto/Manual selectable10 mm to ? (MACRO ON, Wide)
Lens Mount Sony 2/3-inch type bayonet mount
Zoom Ratio PXW-X400KF Only: 16x (optical), servo/manual
PXW-X400KC Only:
Focal Length PXW-X400KF Only: f = 8 - 128 mm
(35mm equivalent: f=31.5 - 503 mm)
PXW-X400KC Only: f = 8.2 - 164 mm
(35mm equivalent: f=32.3 - 645.1 mm)
Iris PXW-X400KF/PXW-X400KC Only:
Focus PXW-X400KF Only: AF/MF/Full MF selectable *3
PXW-X400KF Only: 800 mm to ? (MACRO OFF)
PXW-X400KF Only: 50 mm to ? (MACRO ON, Wide)
PXW-X400KC Only: Full manual focus
PXW-X400KC Only: 900 mm to ? (MACRO OFF)
PXW-X400KC Only:
Filter Diameter M82 mm, pitch 0.75 mm (on lens)

Input/Output

Genlock Input BNC (x1), 1.0 Vp-p, 75 ?, unbalanced
Timecode Input BNC (x1), 0.5 V to 18 Vp-p, 10 k?
SDI Input SMPTE ST292/ST259 standard compliant, 4-channel audio
1.5G
Poolfeed Recording (upto 1080 59.94i)
Audio Input CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable
LINE: +4, 0, -3 dBu
AES/EBU: AES3 compliant
MIC: -70 dBu to -30 dBu
Mic Input XLR-type 5-pin, female: -70 dBu to -30 dBu
WRR (Wireless Microphone Receiver) D-sub 15-pin
Analog CH1: -40 dBu
Digital CH1/CH2: -40 dBFS
SDI Output Output 1/2: BNC (x2), 0.8 Vp-p,
unbalanced, 3G HD/1.5G HD/SD selectable,
SMPTE ST424/ST425 Level-A/B, ST292/ST259 standard compliant,
4-channel audio
Video Output BNC, SD analog composite/HD-Y selectable
Audio Output XLR-type 5-pin, male, +4/0/-3 dBu (balanced)
Timecode Output BNC, 1.0 Vp-p, 75 ?
Earphone Output Stereo mini jack (x1)
-11 dBu reference level output, maximum monitor volume, 16 ? load
Speaker Output Monaural, 300 mW output
DC Input XLR-type 4-pin, male, 11 V to 17 V DC
DC Output Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
Lens 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current)
Remote 8-pin
Light 2-pin
Camera Adaptor D-sub, 50-pin (x1)
Ethernet RJ-45 (x1), 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3
USB USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)
HDMI A type, 19-pin (x1)
Viewfinder 20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750

Audio Performance

Frequency Response 20 Hz to 20 kHz (±3 dB or less)
Dynamic Range 90 dB (typical)
Distortion 0.08% or lower (-40 dBu input level)
Headroom 20 dB (factory default) (20, 18, 16, 12 dB), EBUL

Camera Section

23.94p: 1/32 sec. to 1/2000 sec. + ECS *3
Imager 3-chip 2/3-type "Exmor" Full HD CMOS
Effective Picture Elements 1920 (H) x 1080 (V)
Optical System F1.4 prism system
Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Shutter Speed (Time) PXW-X400KF Only: 59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS *4
PXW-X400KF Only: 29.97p: 1/40 sec. to 1/2000 sec. + ECS *4
PXW-X400KF Only: 25p: 1/33 sec. to 1/2000 sec. + ECS *4
PXW-X400KF Only: 23.94p: 1/32 sec. to 1/2000 sec. + ECS *4
PXW-X400/PXW-X400KC Only: 59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS *3
PXW-X400/PXW-X400KC Only: 29.97p: 1/40 sec. to 1/2000 sec. + ECS *3
PXW-X400/PXW-X400KC Only: 25p: 1/33 sec. to 1/2000 sec. + ECS *3
PXW-X400/PXW-X400KC Only:
Shutter Speed (Slow Shutter (SLS)) 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
Slow & Quick Motion Function 720p: Frame rate selectable from 1 fps to 60 fps
1080p: Frame rate selectable from 1 fps to 60 fps
Sensitivity (2000 lx, 89.9% reflectance) F12 (typical) (1920 x 1080/59.94i mode)
F13 (typical) (1920 x 1080/50i mode)
Minimum Illumination 0.013 lx (F1.4, +42 dB, 16-frame accumulation)
White Balance Preset (3200K), Memory A, Memory B/ATW
Gain Selection -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB
S/N Ratio 62 dB (Y) (Noise Suppression On)
Horizontal Resolution 1,000 TV lines or higher (1920 x 1080i mode)
Digital Extender x2, x3, x4

Viewfinder

Viewfinder PXW-X400KF/PXW-X400KC Only:

3.5-inch *18 type color LCD monitor: 960 (H) x 540 (V), Quarter HD Size

Other Equipment

Built-in LCD Monitor Color LCD, Screen size: 8.8 cm (3.5 inch) diagonal*18 , Aspect ratio: 16:9, Number of pixels: 960 (H) × 540 (V)
for Video display, Audio level, TC, battery and media remaining capacity
Built-in Speaker (x1)
Media SxS Card Slots Form factor: Express Card/34, Number of slots: 2, Connector: PCMCIA Express Card compliant,
Write rate: 50 Mbps or higher, Read rate: 50 Mbps or higher
Media SD Card Slots Proxy (1), Utility (1)
GPS Yes
Built-in Network Module Yes
NFC *5 Yes

Supported Media

High Resolution Video/Audio SxS card
XQD card (with XQD ExpressCard Adapter, QDA-EX1)
SDXC card (with XQD ExpressCard Adapter, MEAD-SD02)
Proxy Video/Audio and Utility SDXC/SDHC
Parameters

Parameters

Manufacturer: SONY
Category: Broadcast

Main parameters

Camera Sensor size2/3"
ResolutionFull HD
ResolutionHDV (720p)
ResolutionSD PAL
Type of bayonetB4 2/3"
OutputHDMI
OutputSDI
Output3G SDI
OutputAnalog

Other parameters

Versionon the shoulder
Record formatXAVC-Intra
Record formatXAVC-Long
Record formatMPEG IMX
Record formatMPEG HD
Record formatDVCAM
FPSHD 60fps
FPSHD 50fps
FPSSD PAL 50i
FPSHDV 50/60fps
Media typeSxS
Battery typeV-mount
Colour depth8 bit
Colour depth10 bit
Other featuresStreaming
Other featuresTally
Other featuresProxy recording
Other featuresWRR (Slot In Audio)
Other featuresGPS
Other featuresNFC
Other featuresTimecode
Other featuresWiFi
ACCESSORIES (12)

ACCESSORIES (12)

MxM Express MxM Card (adapter only)

Samotný adaptér MxM na SDHC karty.
67.72 €
In stock 4 pcs

Sony SBAC-US30 SxS Card Reader/Writer

The SBAC-US30 USB 3.0 SxS memory card reader from Sony allows you to transfer files
297.03 €
In stock 3 pcs

Sony UWP-D22

Sony's new Hybrid Digital Processing UWP-D series of wireless microphones provides
667.42 €
To be sent 2 pcs

Sony UWP-D27 K21

  • -12 %
  • Free transport
Wireless bodypack microphone package with bodypack transmitter, 2-channel portable
1 604.46 €
To be sent 1 pcs

Sony UWP-D21

Sony's new Hybrid Digital Processing UWP-D series of wireless microphones provides
667.41 €
To be sent 1 pcs

2-pack Sony SxS 64GB

The Sony SxS-1 G1C 2-pack of cards is designed for stable and reliable 4k video recording
753.29 €
In stock 1 pcs

Sony ECM-674

ECM-674 electret condenser directional (super-cardioid) microphone with dual power
527.92 €
on request

Sony 64 GB SxS-1 C

High read speeds up to 440MB/s (3.5 Gbps) Support for XAVC 2K Intra422 and many other
431.73 €
on request

Sony BC-L70A

TheSony BC-L70A is a compact and lightweight 2-channel charger for BP-GL/IL/L series
828.55 €
on request

Sony ECM-680S

  • -10 %
  • Free transport
The Sony ECM-680S is an electret-condenser directional microphone (stereo/mono).
1 269.29 €
on request

Sony URX-S03D (K42)

  • Free transport
The Sony URX-S03D is a 2-channel diversity wireless receiver compatible with Sony's
1 196.54 €
on request

Sony BC-L90

The Sony BC-L90 is a fast charger for Sony BP-FL75 batteries. Sony's innovative BP-FL75
833.64 €
on request
Alternative (2)
  • Show all

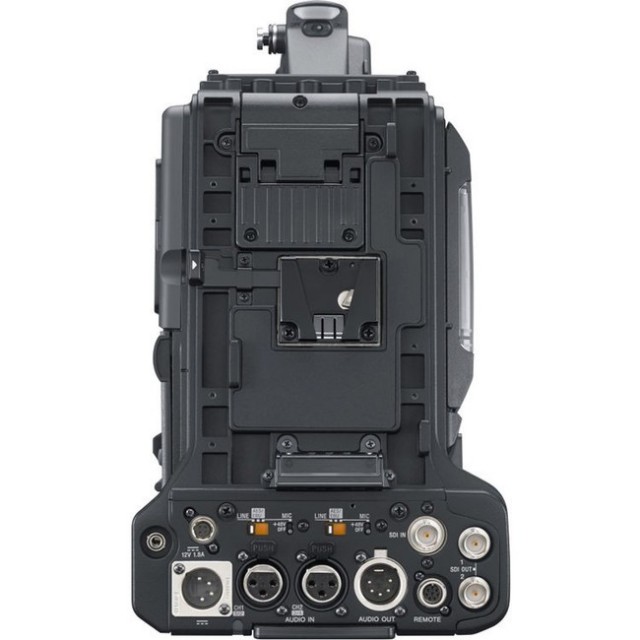

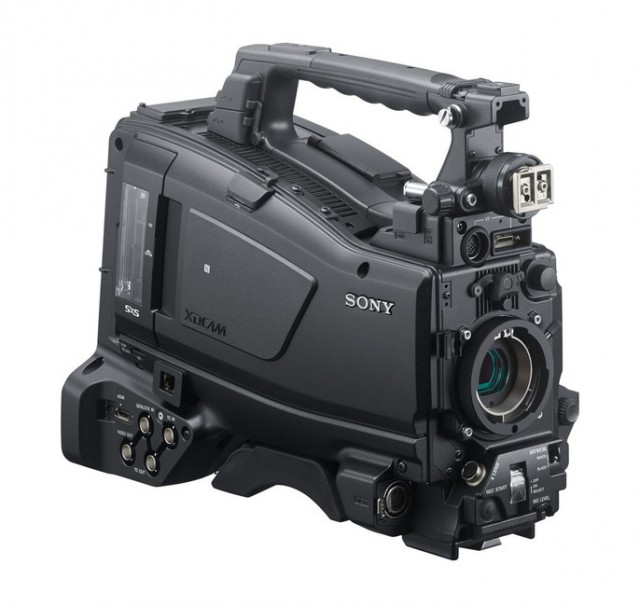

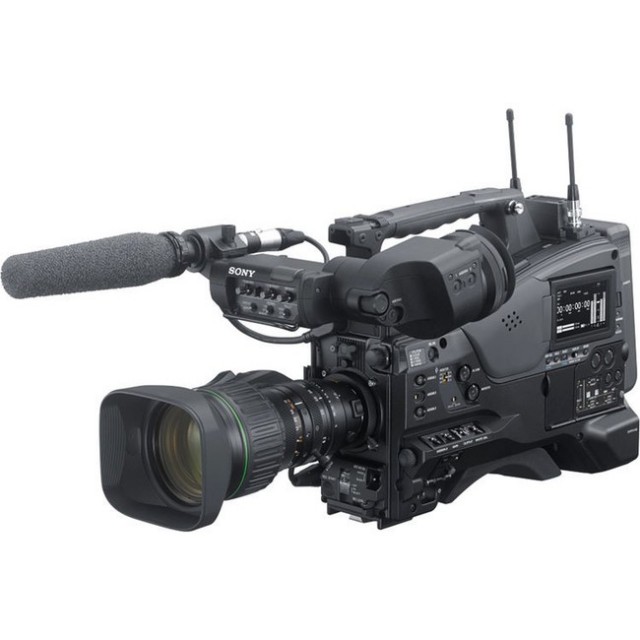

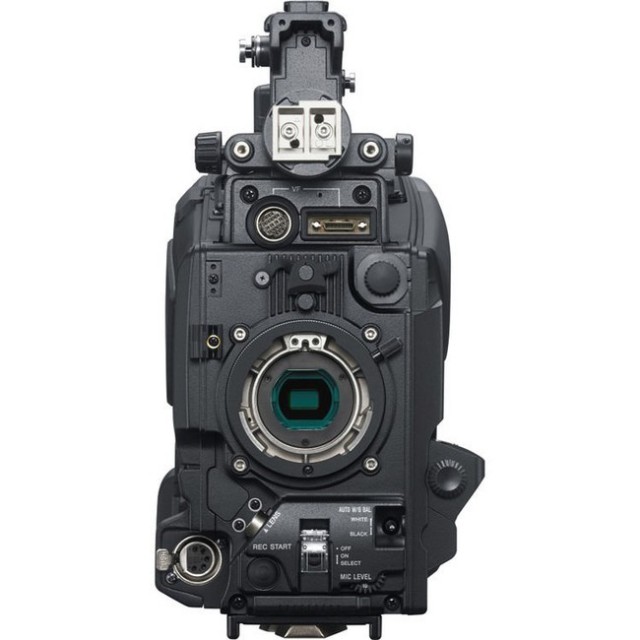

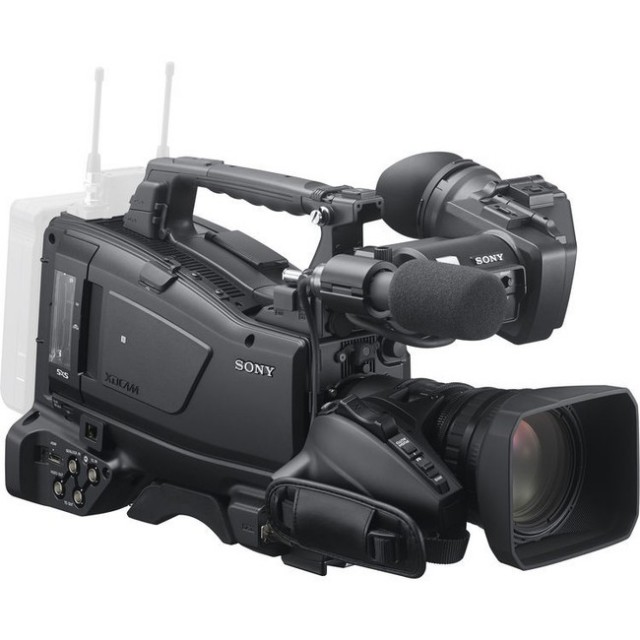

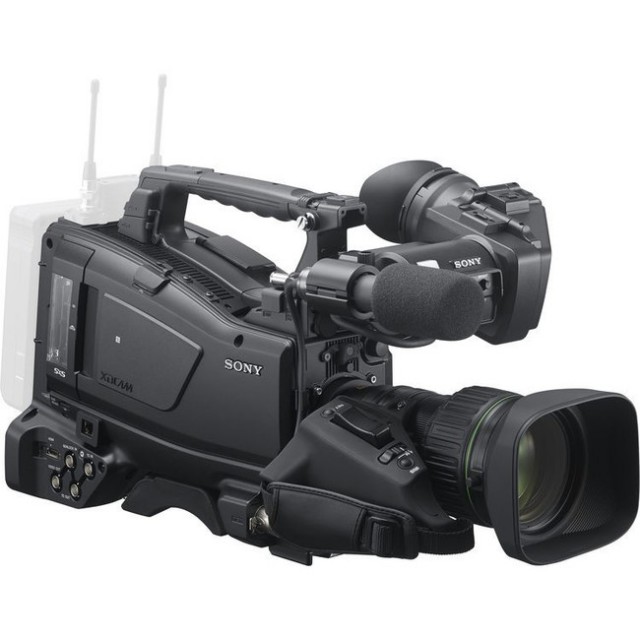

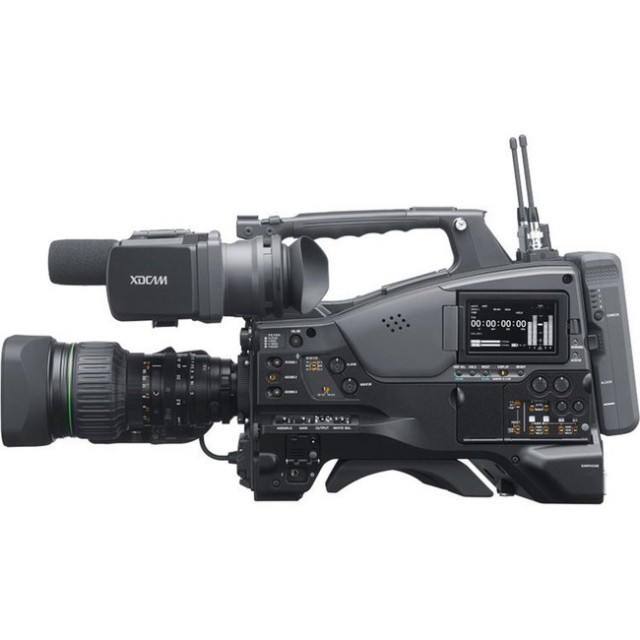

  • Sony PXW-X400 (body)

    • Free transport
    The X400 is an affordable, professional ENG camera with a 2/3" sensor and B4 bayonet.
    18 182.43 €
    on request
