Blackmagic Design Videohub Mini 6x2 12G

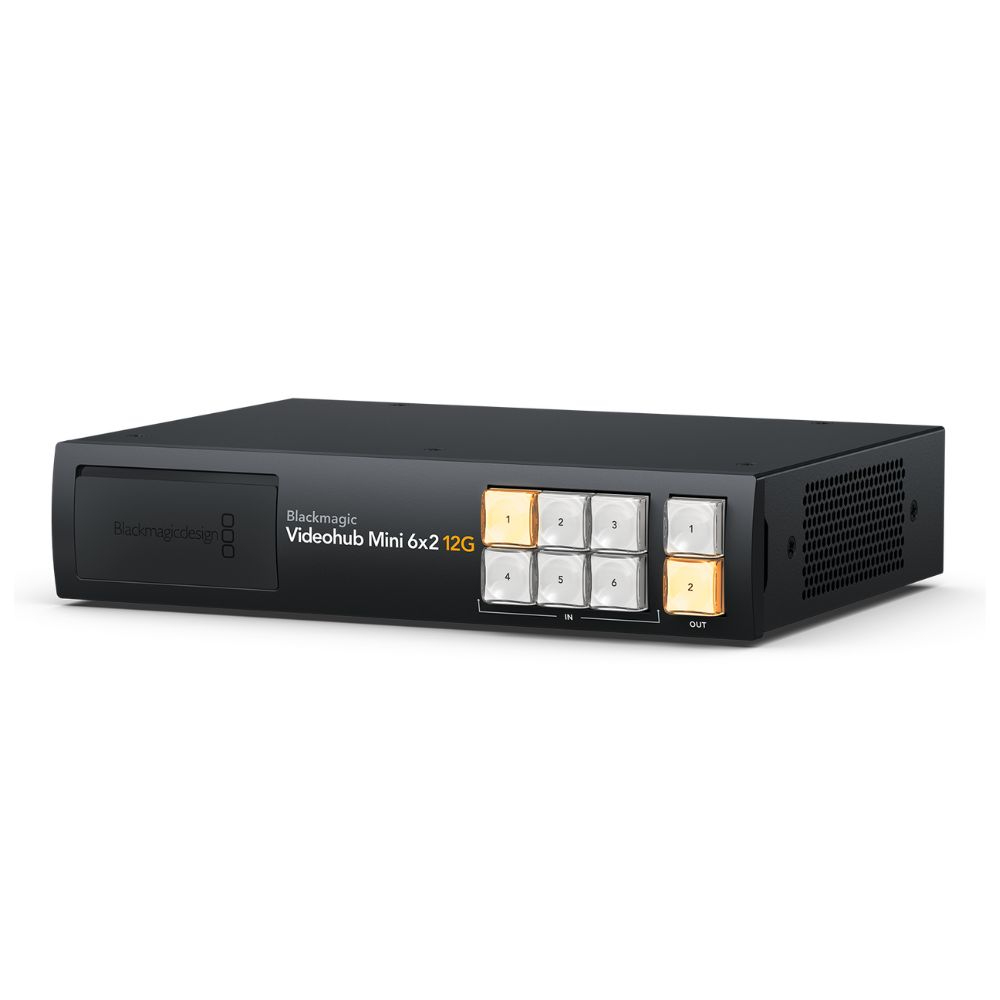

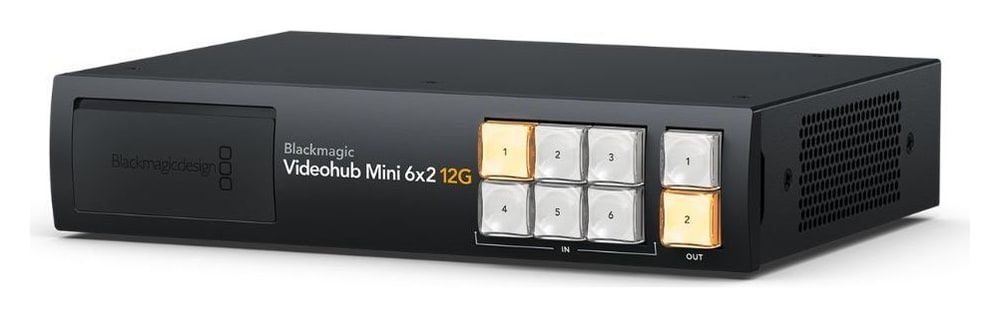

The Blackmagic Videohub Mini 6x2 12G is a compact, zero-latency video router that supports any combination of SD, HD and Ultra HD signals simultaneously.

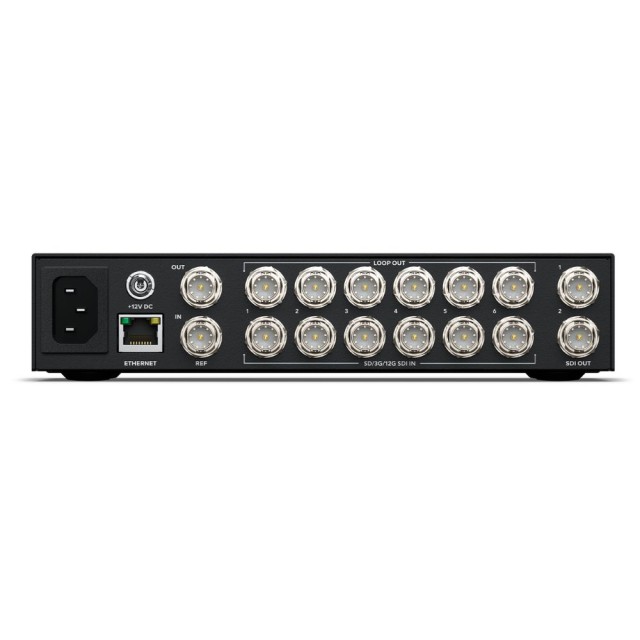

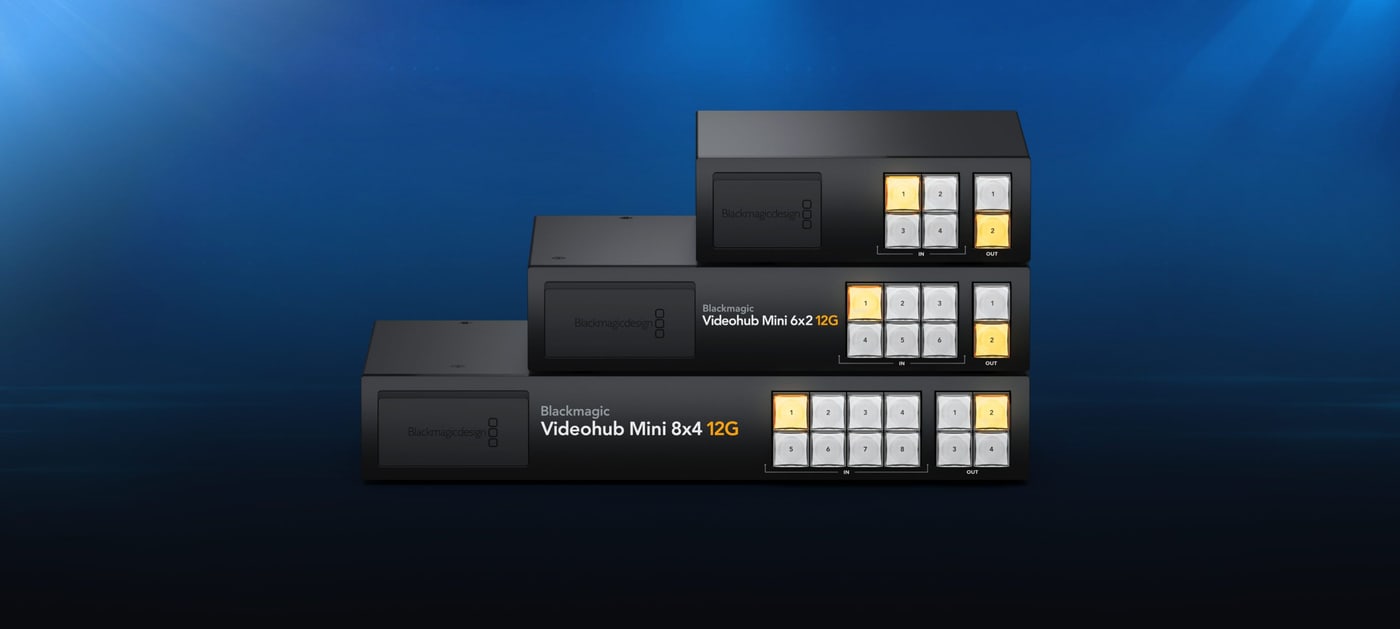

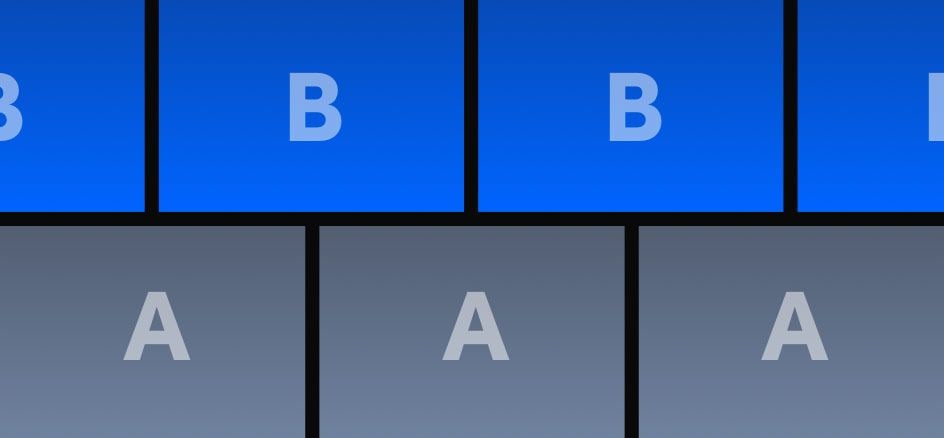

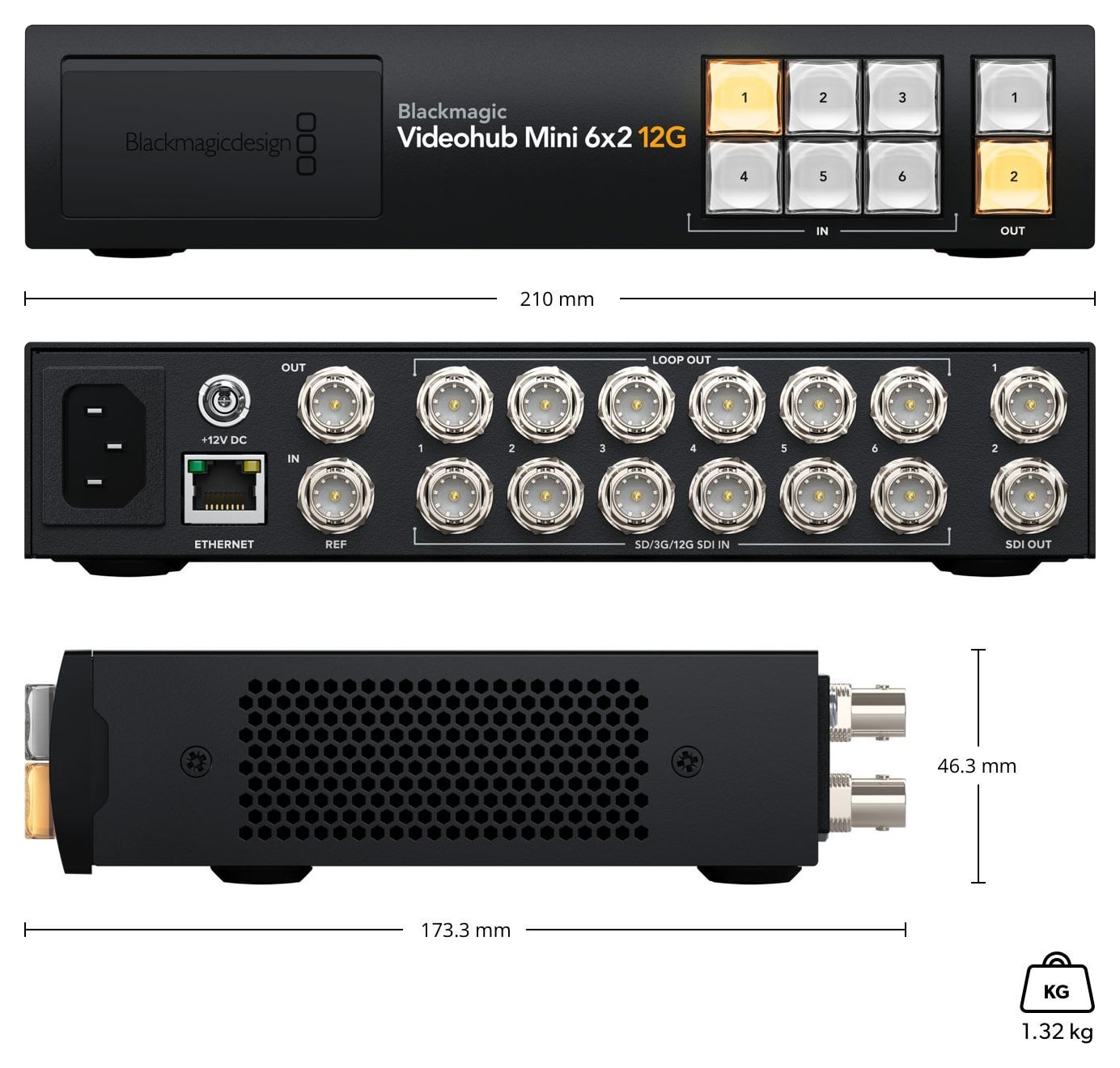

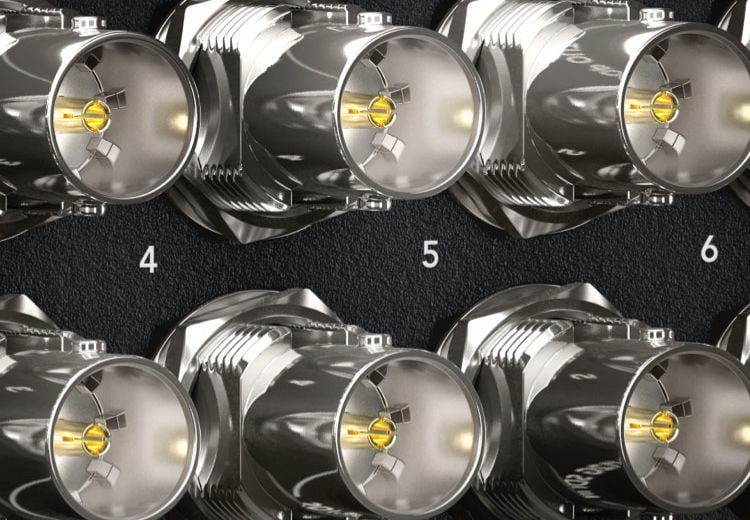

It offers 6 12G-SDI inputs and 2 12G-SDI outputs in an ultra-small 1/2 rack width design. A loop output is available for each input. The Blackmagic Videohub Mini 6x2 12G is suitable for clients who work in confined spaces and want to expand the number of inputs on their SDI equipment. In addition to adding additional inputs for SDI broadcast equipment, the Blackmagic Videohub Mini 6x2 12G also includes 12G-SDI connections that work in all SD, HD and Ultra HD video standards up to 2160p60, a reference input and a clean switch that is selected on the video outputs. This allows you, for example, to switch a specific source to just one output while the same source can be routed as a direct output to other outputs simultaneously.

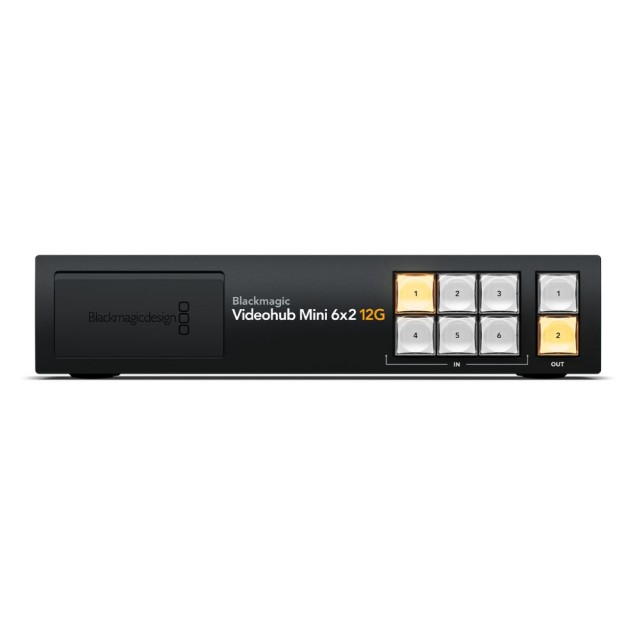

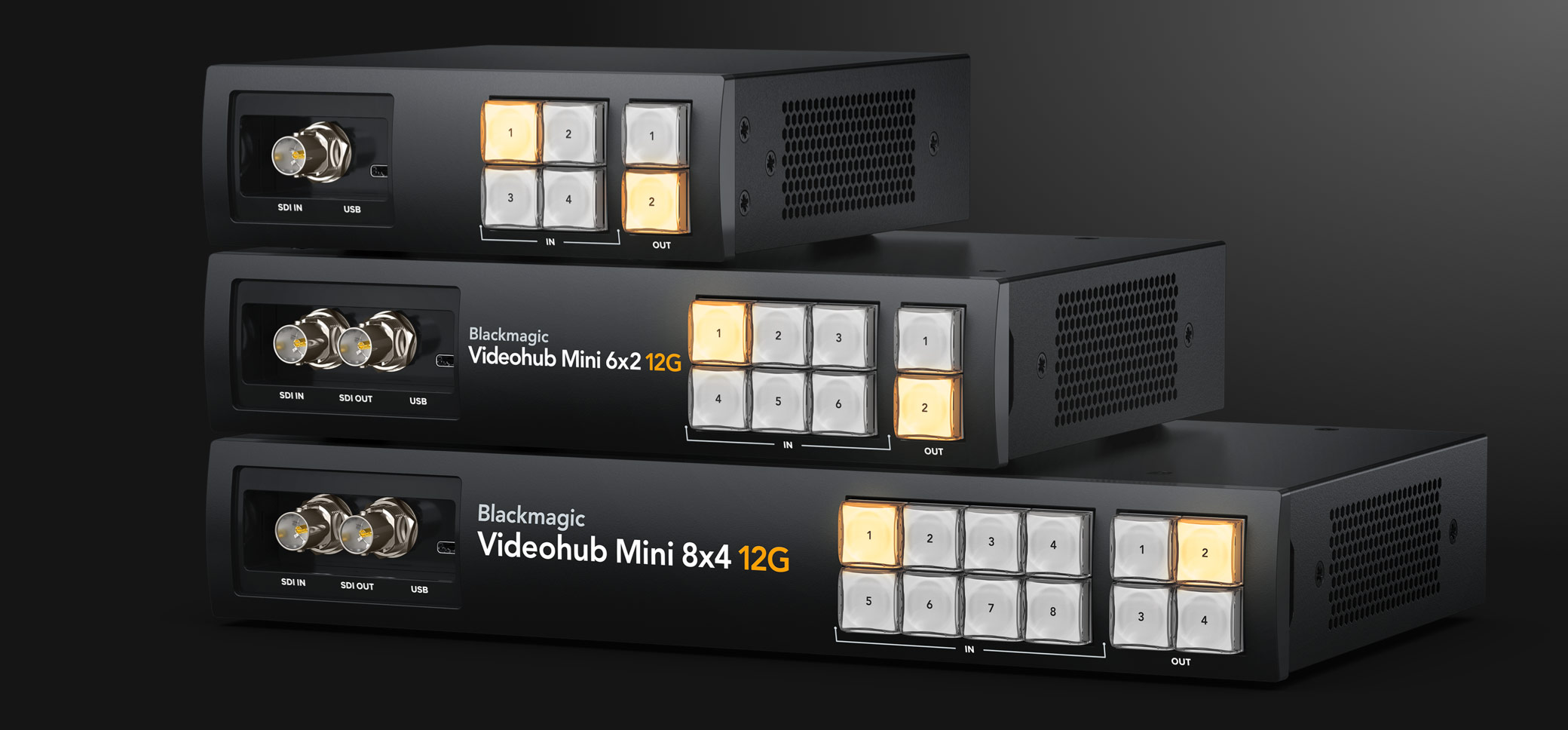

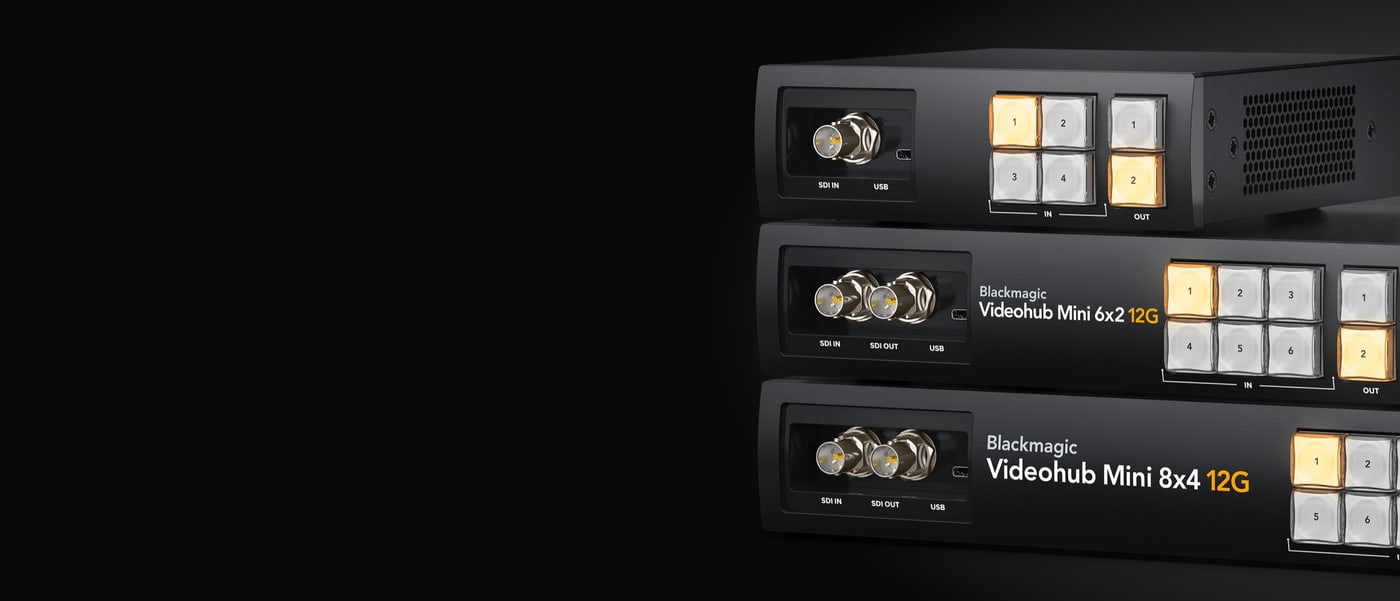

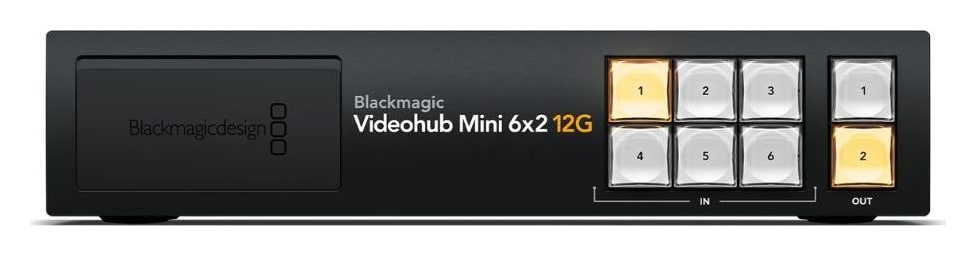

A front panel control panel allows for quick video signal routing and also includes an emergency 12G-SDI input for connecting external equipment and a USB-C output for use as a webcam. The device also supports SDI signal re-clocking and remote control via Ethernet.

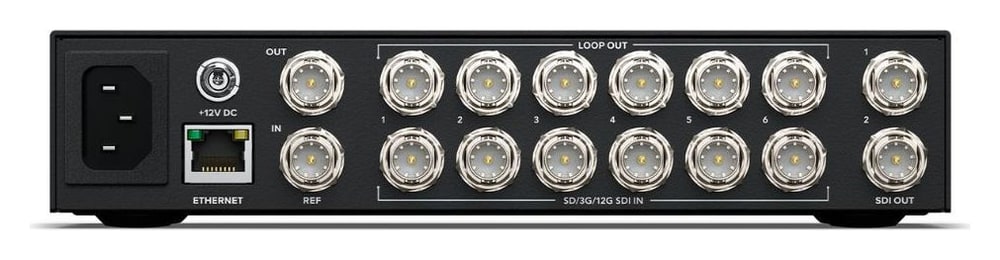

Any device with SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI outputs can be connected to the Blackmagic Videohub Mini 6x2 12G. 12G-SDI provides high frame rates in Ultra HD over a single BNC cable, while being fully compatible with common HD equipment. This allows you to seamlessly switch between different video inputs and the SDI output standard will automatically adapt. The Video Hub supports all video standards, including 525 NTSC, 625 PAL, 720p, 1080i, 1080p, 2K, 4K and all Ultra HD formats.

The Videohub is designed to support the highest quality video possible. With the Videohub Mini 6x2 12G, you can route 4:2:2 video in both 8-bit and 10-bit quality in any standard - and it even supports 4:4:4 12-bit SDI video up to 2160p30 resolution, which is ideal for feature film.

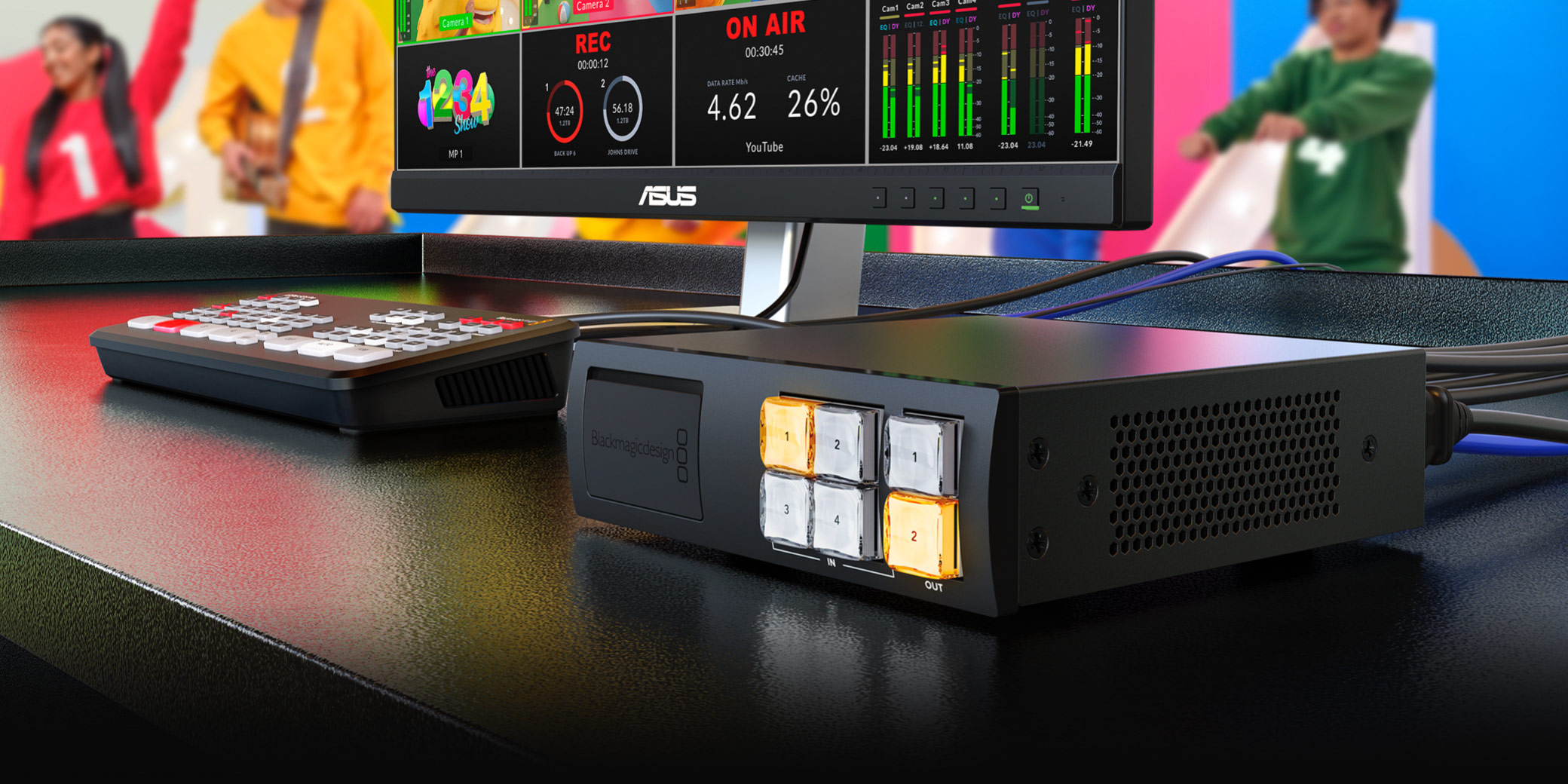

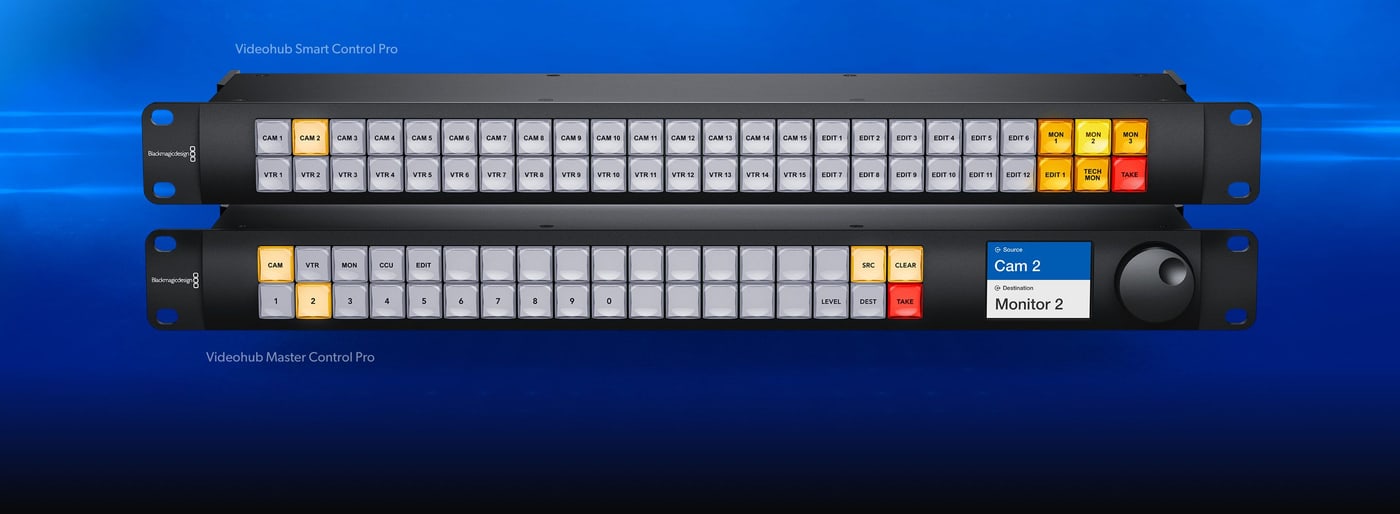

The router can be controlled remotely, which is especially crucial in large broadcast studios where the equipment connected to the router is spread out in different parts of the building. There are two different hardware control panels to choose from - Videohub Master Control Pro and Videohub Smart Control Pro.

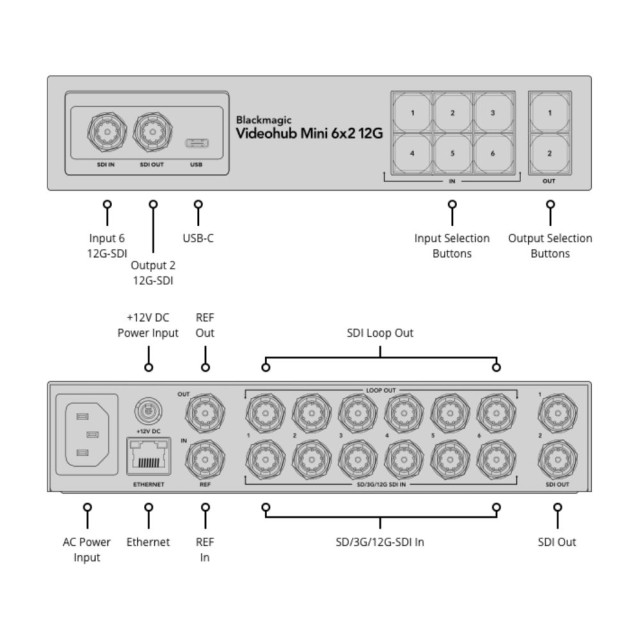

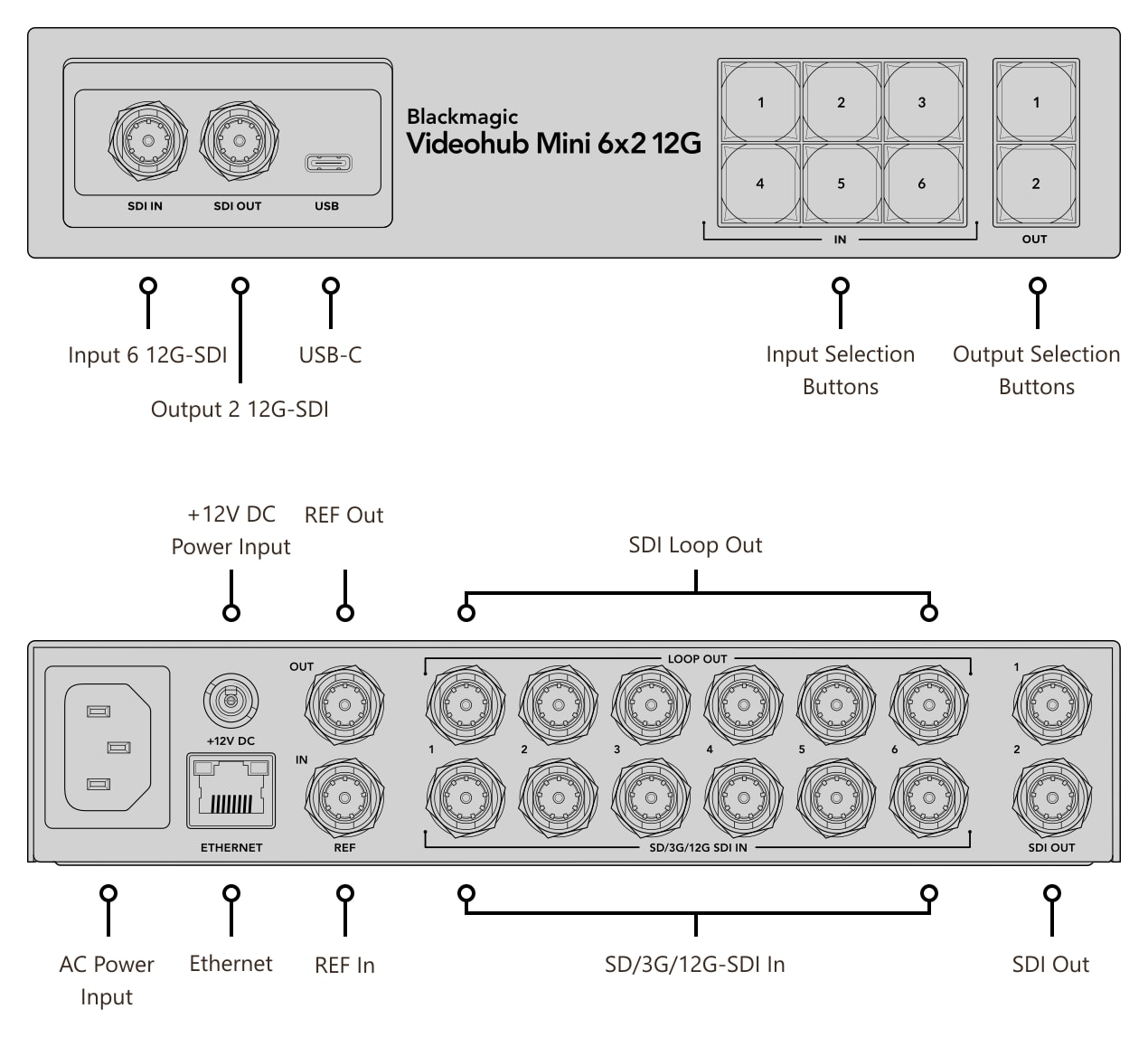

Connection:

• SDI video inputs: 6 (front input overrides rear input 6)
• SDI video outputs: 2 (front panel output mirrors rear output 2)
• SDI speeds: 270 Mbps, 1.5G, 3G, 6G, 12G
• Video input resynchronization: on all 6 inputs for clean switch

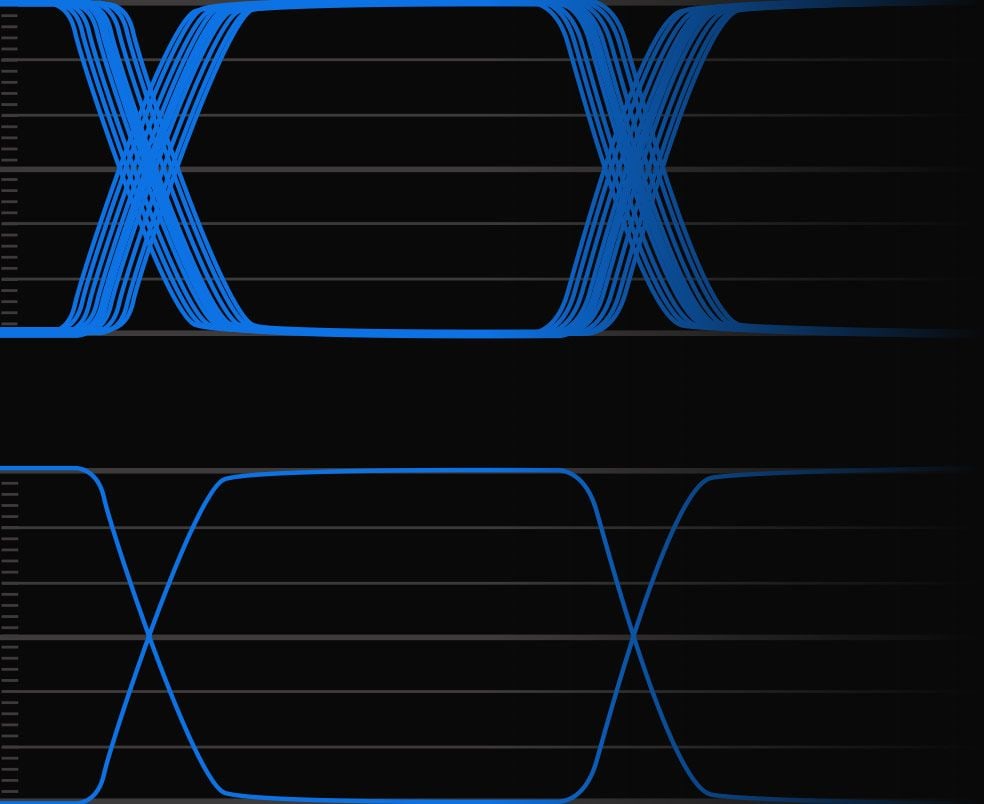

• SDI signal re-clocking: On all outputs
• Tri-Sync or Black Burst
• Loopoutput with termination
• Webcam Output: USB-C
• Ethernet: 10/100/1000 BASE-T support

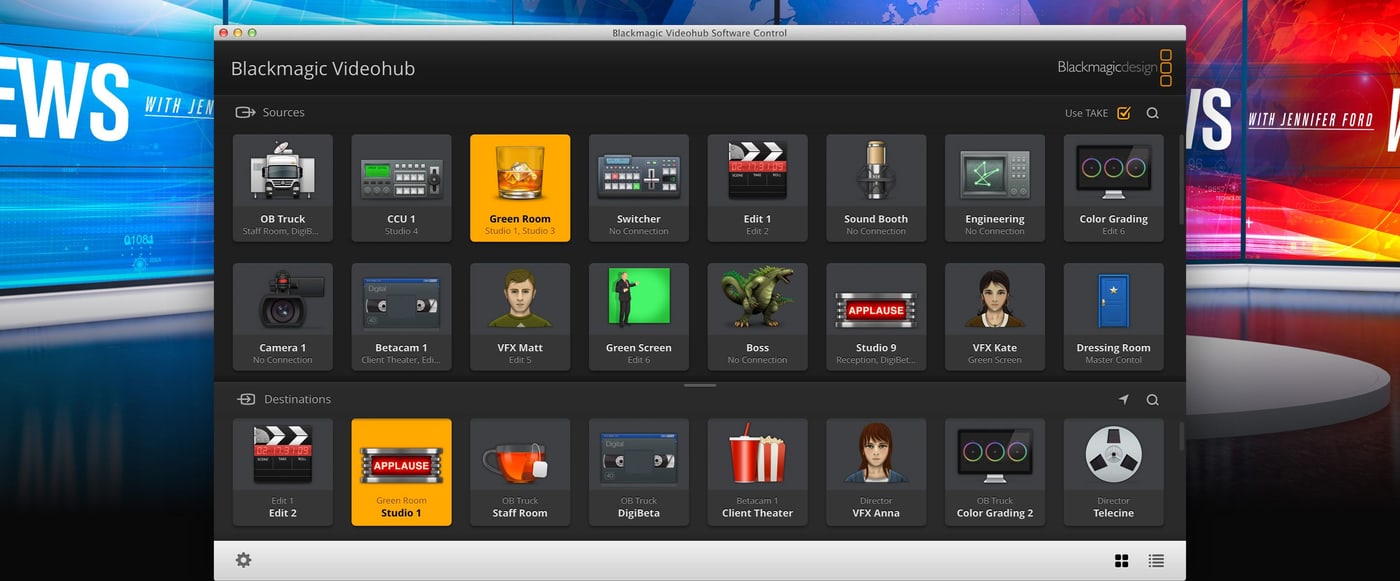

• Computer Interface: 1x USB-C 3.1 Gen 1 for webcam output, software updates and connection to Videohub Setup Utility

Package Includes:

• Blackmagic Videohub Mini 6x2 12G
• Welcome pack with QR code for software download
