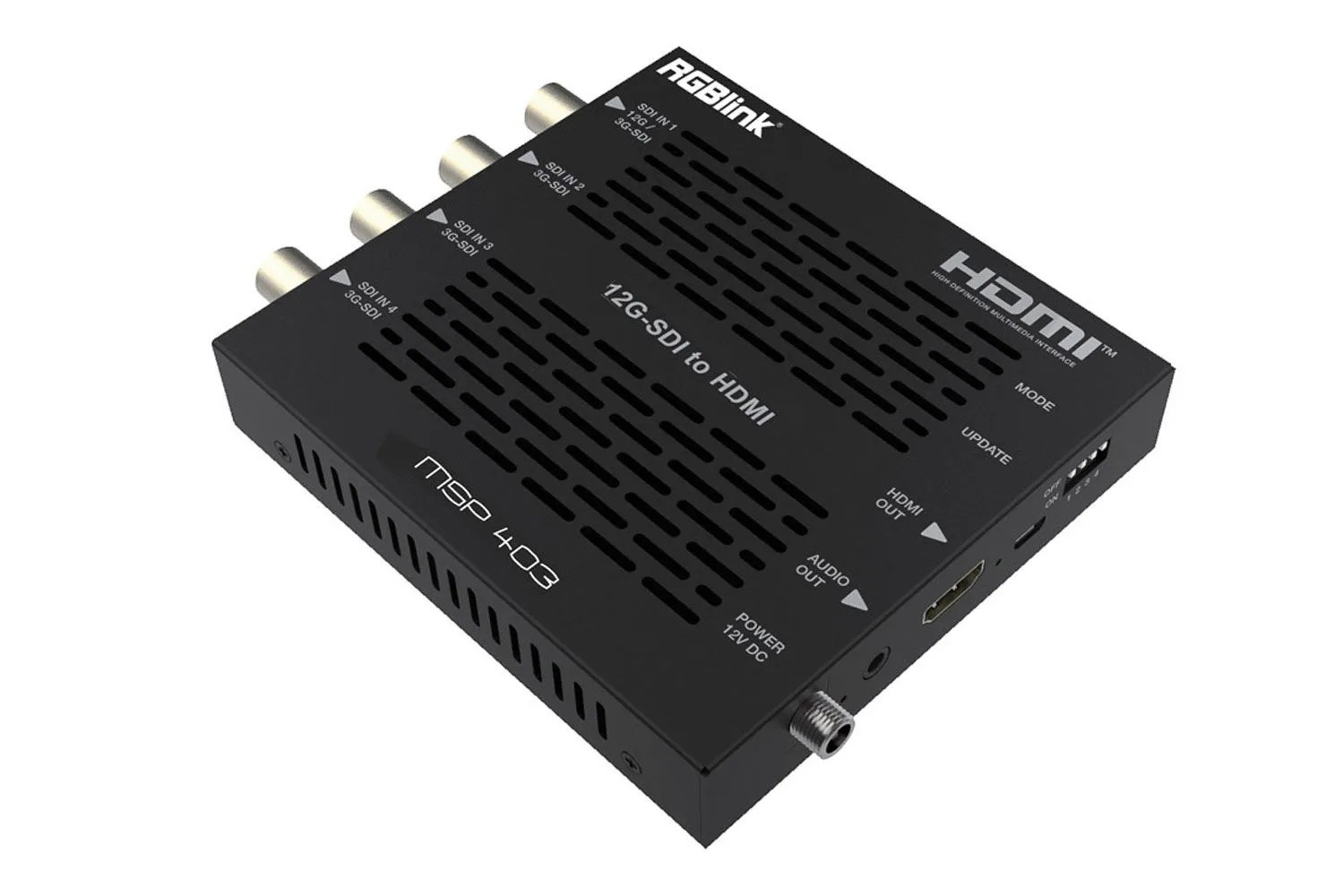

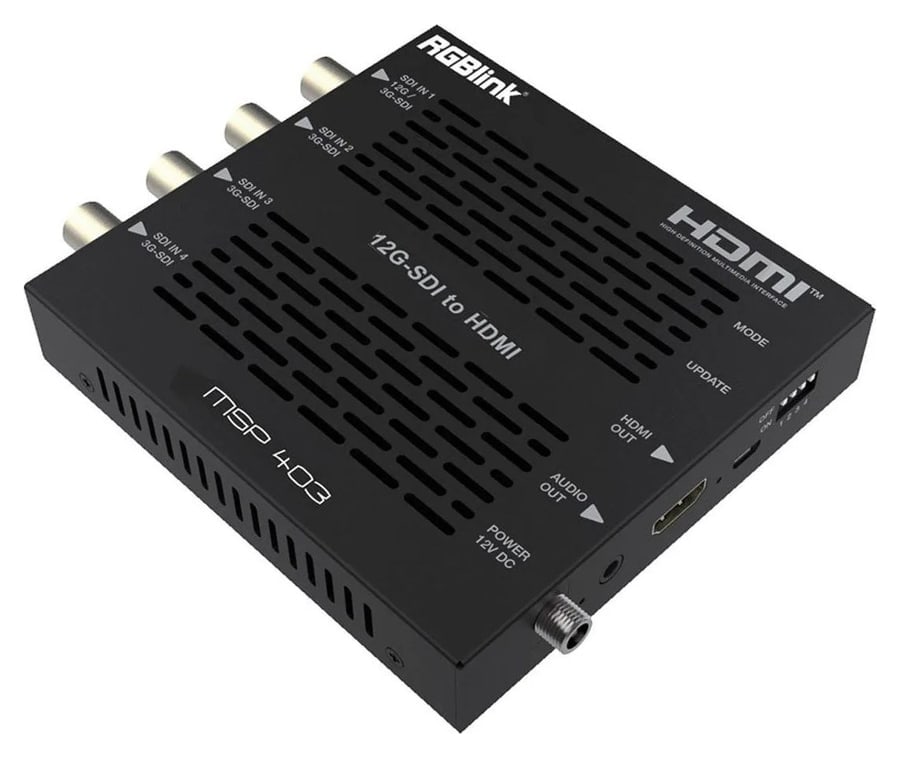

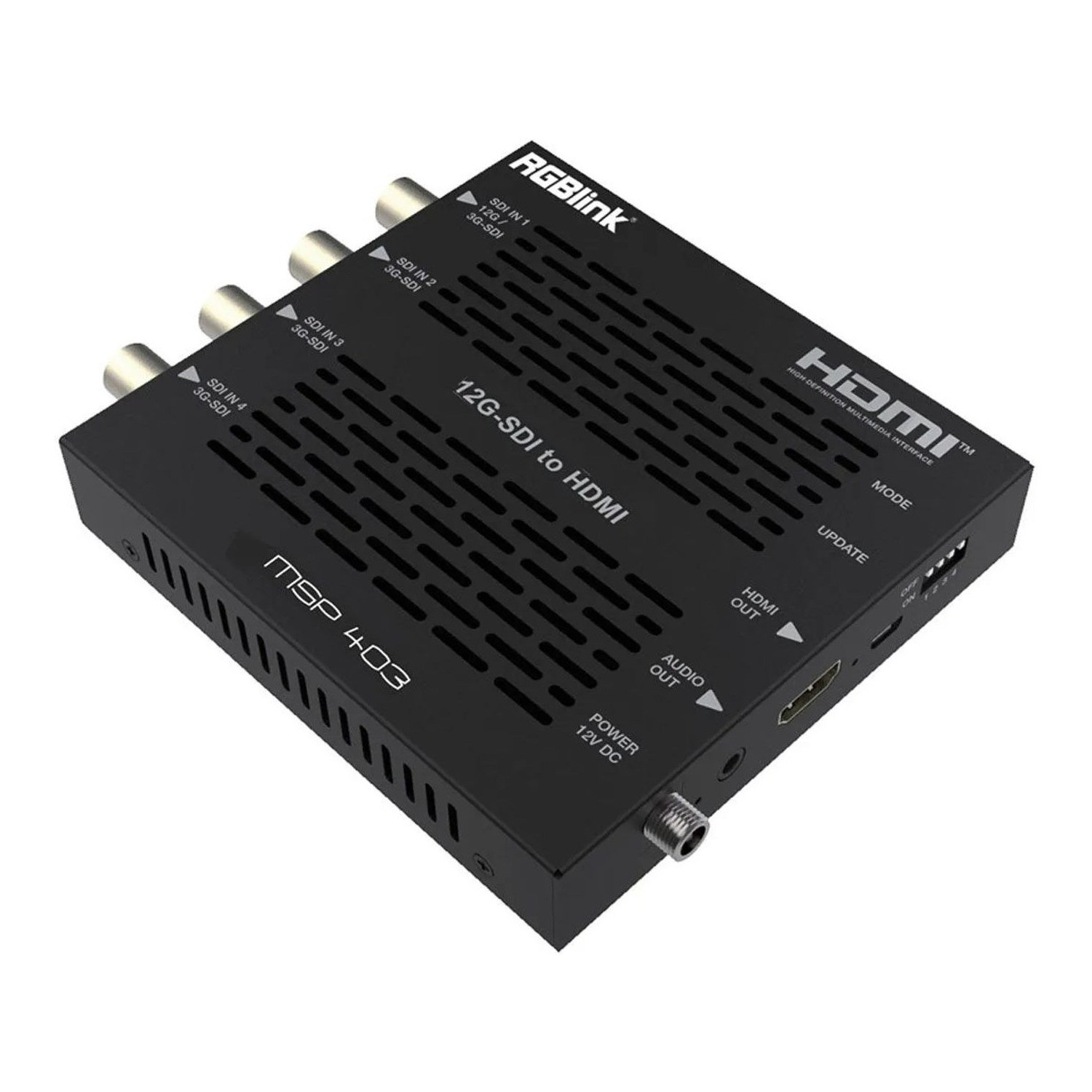

RGBlink MSP 403 12G SDI-HDMI

The RGBlink MSP 403 is a professional 4K 12G-SDI to HDMI converter designed to deliver high-quality video monitoring and signal conversion for broadcast and live production environments. Supporting single-link 12G-SDI or quad-link 3G-SDI inputs with HDMI 2.0b output, the MSP 403 provides reliable long-distance transmission, audio embedding, and ultra-high-definition output up to 2160p @ 60Hz.

The RGBlink MSP 403 is a compact and reliable 12G-SDI to HDMI video converter built for professional AV, broadcast, and live event workflows. It supports either one 12G-SDI input or four 3G-SDI inputs via BNC connectors, converting the signal to HDMI 2.0b output for direct connection to professional monitors, displays, or projectors. The unit supports video resolutions up to 4K UHD (2160p @ 60Hz), ensuring sharp and accurate image reproduction.

Designed for stable long-distance signal reception, the MSP 403 supports SDI cable lengths of up to 100 meters for 3G-SDI and up to 60 meters for 12G-SDI. Integrated audio embedding allows SDI audio to be output via HDMI and a dedicated 3.5mm mini-jack audio output. With a compact, lightweight design and simple plug-and-play operation, the MSP 403 is ideal for monitoring, signal conversion, and distribution in OB vans, broadcast studios, stage production, and professional AV installations.

Key Features:

• Converts 12G-SDI or quad-link 3G-SDI to HDMI 2.0b
• Supports resolutions up to 2160p @ 60Hz (4K UHD)
• Long-distance SDI reception: up to 100m (3G-SDI), 60m (12G-SDI)
• Audio embedding with HDMI and 3.5mm analog audio output
• Supports single-link 12G-SDI or quad-link 3G-SDI input
• Compact and lightweight design
• Plug-and-play operation for fast setup
