Blackmagic Design Videohub Smart Control Pro
SKU: VHUB/WSC/PRO
Blackmagic Design Videohub Smart Control Pro is a 1U network control panel with 48 programmable buttons for instant signal routing. It supports Videohub routers as well as ST 2110 NMOS control, macros for multiple commands and power via PoE or the internal AC power supply. It is ideal below a monitor, below a deck or at an edit workstation.
849 € with VAT
701.65 € without VAT
Availability
Shipment day: 27. 10.
Shipment day: 27. 10.
To be sent 1 pcs
Bratislava 1 pcs
Bratislava 1 pcs
Top accessories for Blackmagic Design Videohub Smart Control Pro
Blackmagic Design Videohub Mini 8x4 12G
Blackmagic Videohub Mini 8x4 12G is a professional zero latency video router with
1 149 €
In stock 2 pcs
Blackmagic Design VideoHub 12G 20x20
Blackmagic Videohub 20x20 12G is a professional zero latency video router with 20
2 629 €
In stock 1 pcs
Blackmagic Design Smart Videohub CleanSwitch 12x12
Blackmagic Design Smart Videohub CleanSwitch 12x12 is a compact 1U router with 12
1 759 €
In stock 1 pcs
Blackmagic Design VideoHub 12G 40x40
Blackmagic Videohub 40x40 12G is a professional zero latency video router with 40
4 419 €
In stock 1 pcs
Blackmagic Design VideoHub 12G 10x10
Blackmagic Videohub 10x10 12G is a professional zero latency video router with 10
1 479 €
on request
Blackmagic Design VideoHub 120x120 12G
Blackmagic Videohub 120x120 12G is a professional zero latency video router with
14 279 €
on request
Blackmagic Design Universal Videohub 288
Universal Videohub 288 is a professional 18RU rack frame for large broadcast installations.
11 489 €
on request
Blackmagic Design Videohub Mini 6x2 12G
Blackmagic Videohub Mini 6x2 12G is a professional zero latency video router with
859 €
on request
Blackmagic Design Videohub Mini 4x2 12G
Blackmagic Videohub Mini 4x2 12G is a professional zero latency video router with
759 €
on request
Blackmagic Design Videohub 80x80 12G
Blackmagic Videohub 80x80 12G is a professional zero latency video router with 80
11 339 €
on request
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description

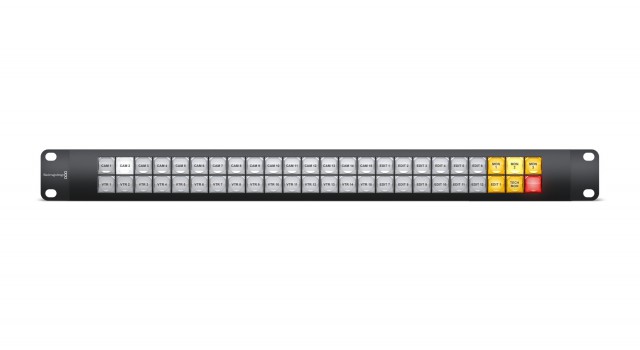

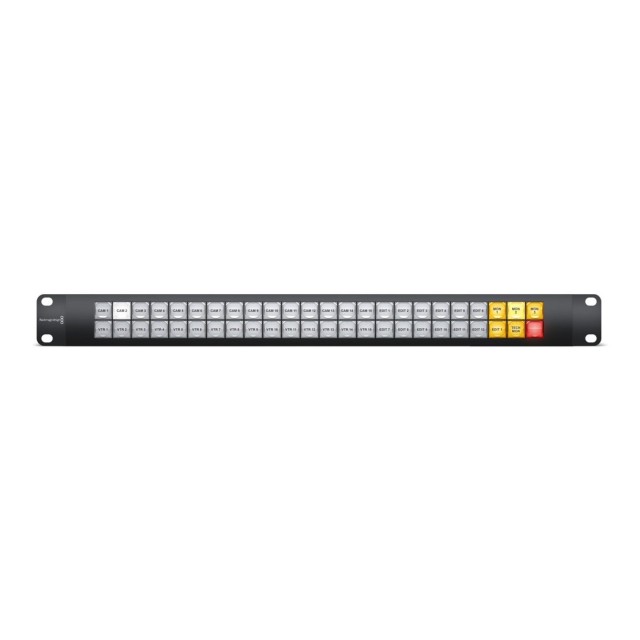

Blackmagic Design Videohub Smart Control Pro is a 1U network control panel with 48 programmable buttons for instant signal routing. It supports Videohub routers as well as ST 2110 NMOS control, macros for multiple commands and power via PoE or the internal AC power supply. It is ideal below a monitor, below a deck or at an edit workstation.
Route with a single button press
Each button can be programmed for a single router crosspoint – press it and the route is made.
48 programmable buttonsUp to 10 macrosVideohub and ST 2110 NMOSEthernet with PoE+1 RU
A panel for every monitor
Install Smart Control Pro below a monitor and each button switches a different source to its output – fast cut-bus style control.
One or many destinations
The panel controls a single router output, or multiple destinations with a Take button.
Macros
Up to 10 buttons trigger several routes at the same time.
Power
PoE on the Ethernet input or an internal 100–240 V AC power supply.
Configuration
Free software for Mac and Windows via USB-C.

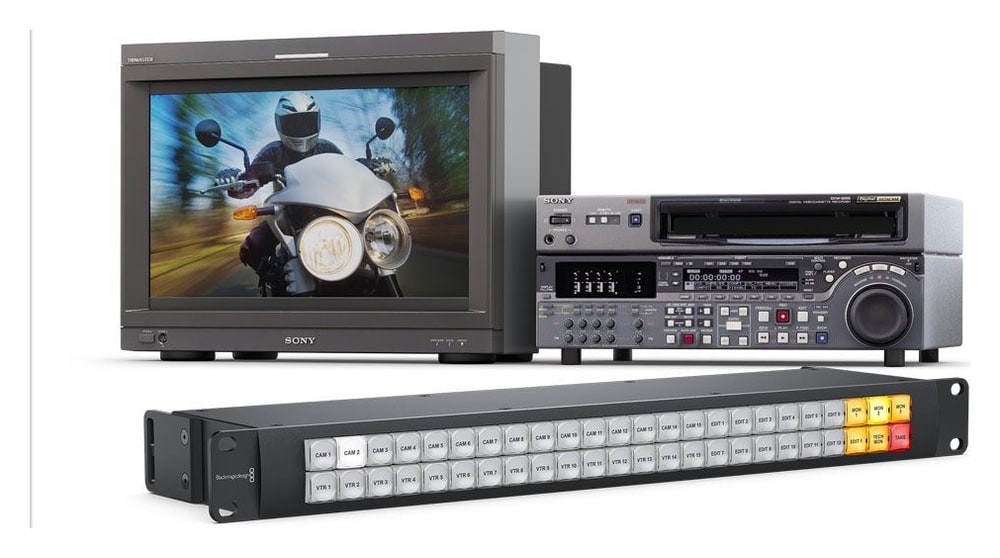

Cut-bus style control
When you dedicate the panel to one monitor, all buttons are sources and each press changes what the monitor shows. In the same way you can install it below a deck or in an edit suite and select the input with a single button.

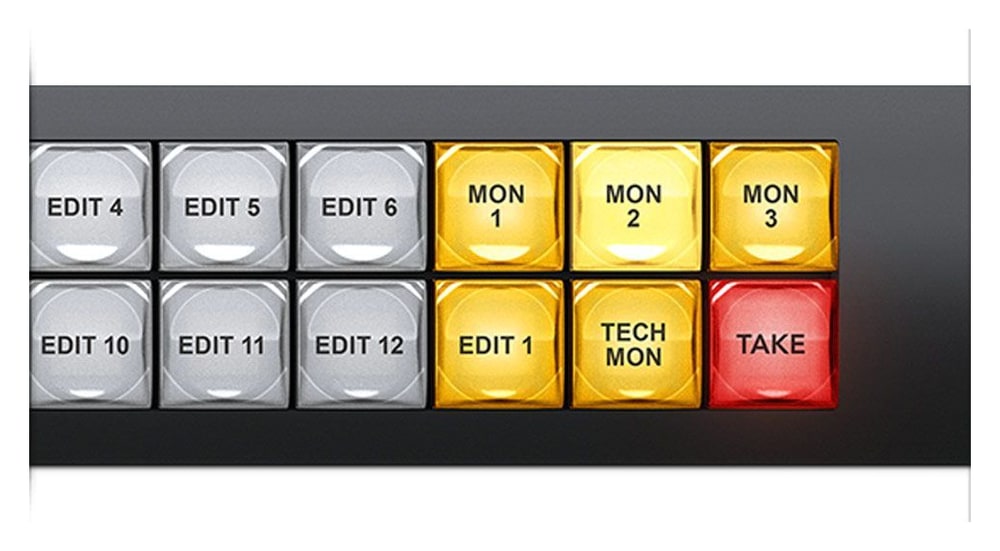

Multiple destinations and a Take button
Although it is a cut-bus panel, it can also handle multiple destinations: some buttons select the output, others the source, and with the Take button the change is confirmed only when you want it.

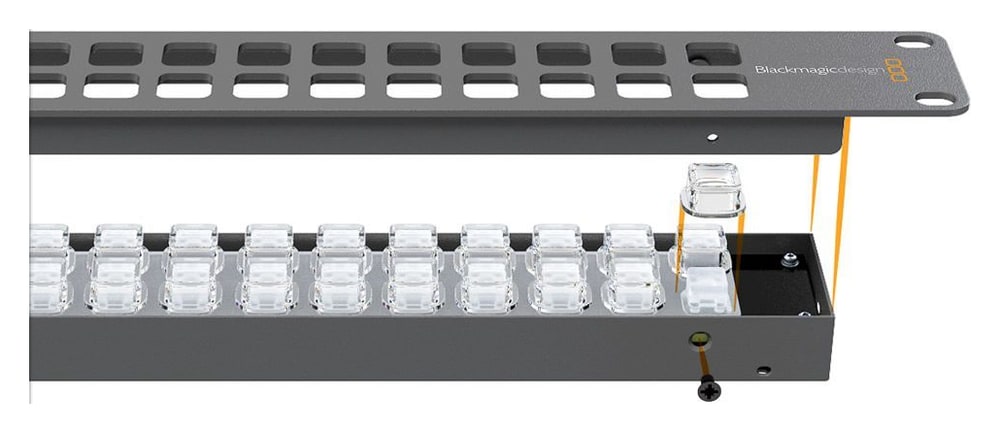

Custom button labels
The front cover unscrews and slides off, so you can insert your own labels under the clear buttons. The buttons are lit by RGB and white LEDs with adjustable brightness, so they stay readable even in a dark control room.

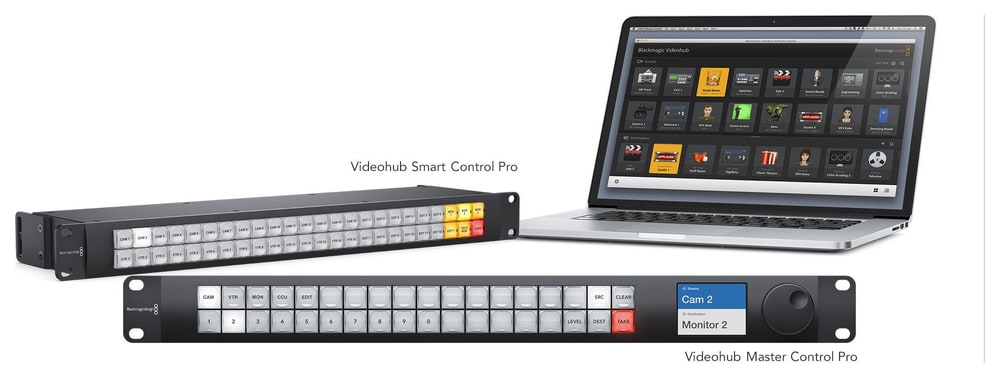

Videohub and ST 2110
The panel can be configured as a Videohub router controller or as an NMOS controller for ST 2110 systems (NMOS IS-04, IS-05 and PTP v2).

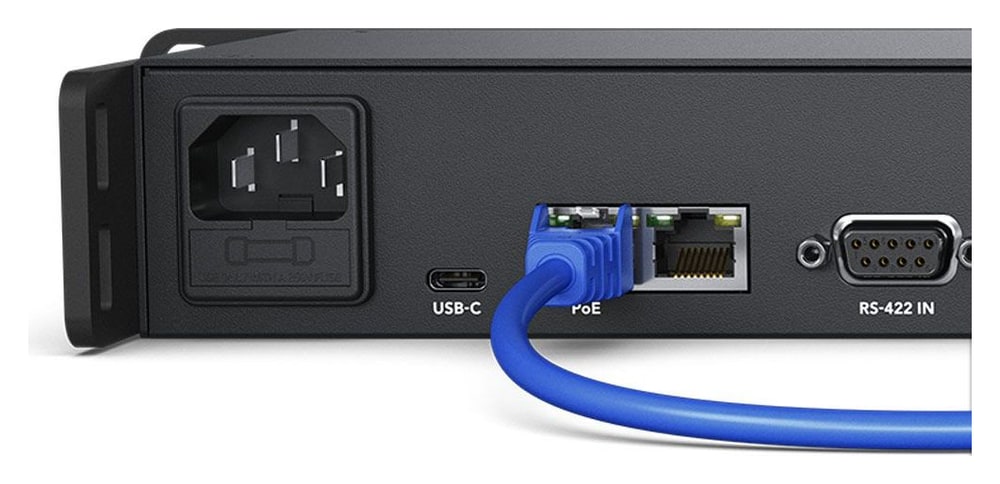

Ethernet with PoE+ and loop through
The panel connects to a regular computer network. The input port supports power over Ethernet, so with a PoE switch no power cable is needed; the second port loops through to other panels or computers. Otherwise the panel runs on its internal 100–240 V AC power supply.
Setup via USB-C
Buttons, sources, destinations and the router address are set with free software for Mac and Windows via USB-C, which is also used for firmware updates. The button configuration is preserved after a power failure and can be saved for later recall.

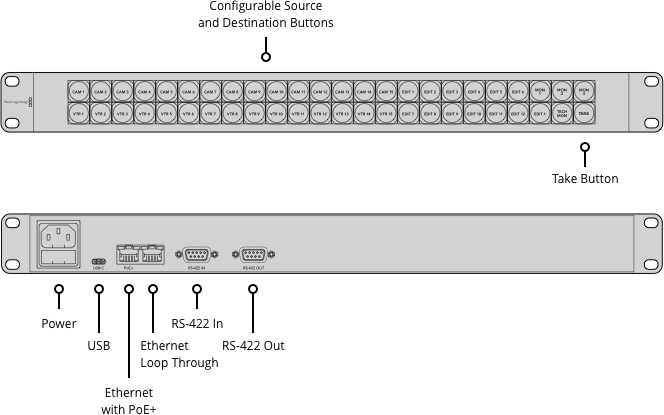

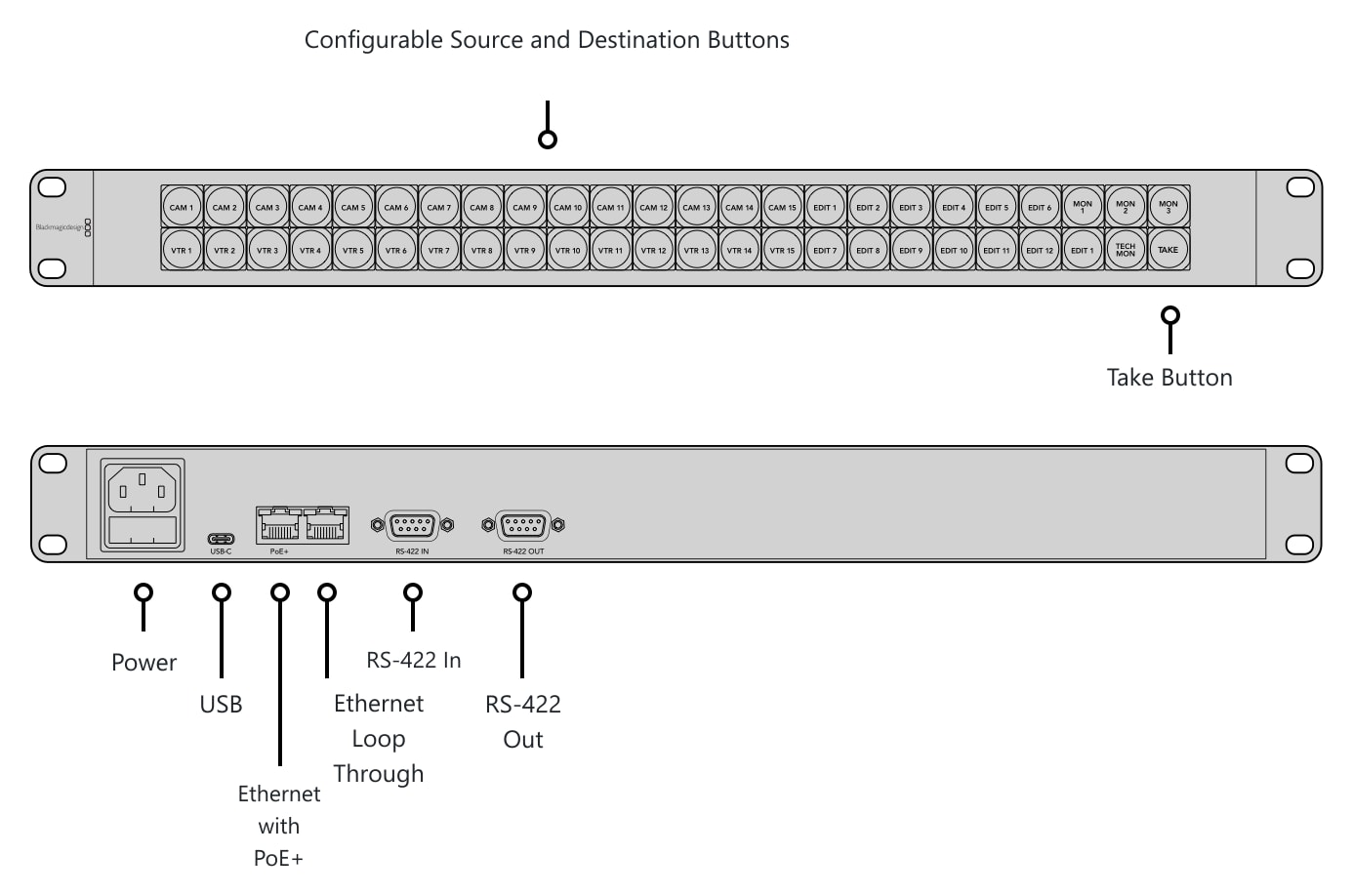

Connections and controls

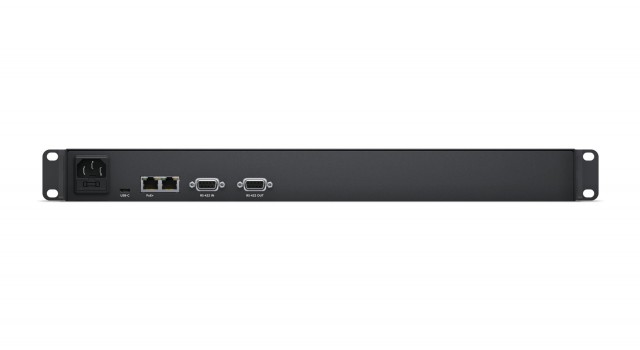

The front has configurable source and destination buttons and a Take button; the rear panel has the AC power input, USB-C, Ethernet with PoE+, Ethernet loop through and RS-422 in and out (for future implementation).

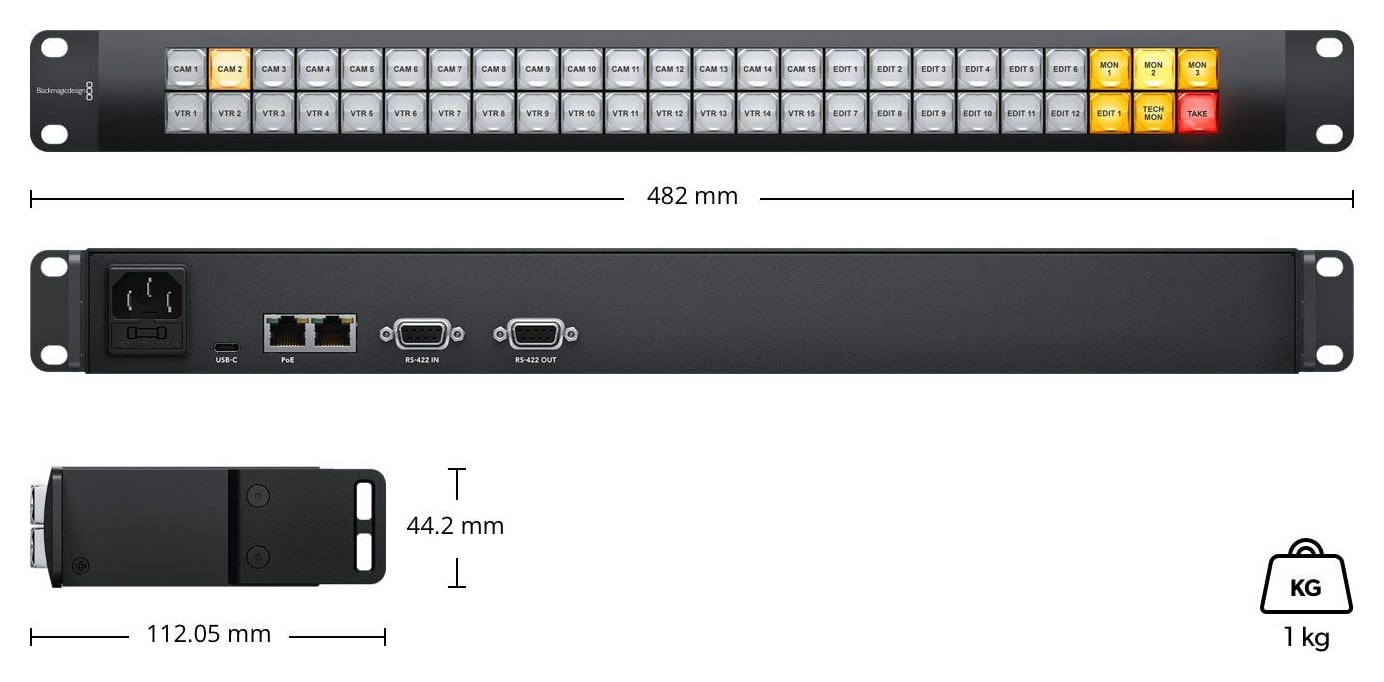

Dimensions and weight

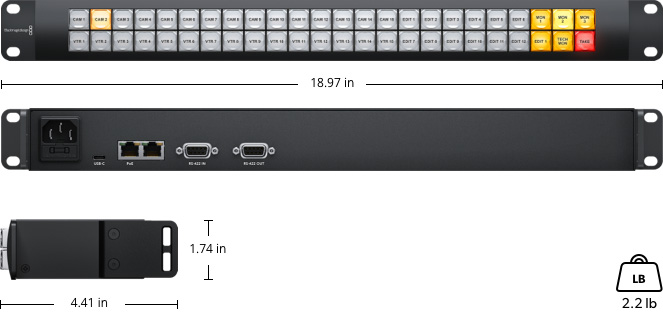

Dimensions 482 × 112.05 × 44.2 mm (W × D × H), weight 1 kg. It occupies 1 RU in a 19″ rack.
More information
Fast source selection at every workstation
Videohub Smart Control Pro replaces the idea of one expensive central panel shared by an entire studio. The affordable 1U controller can sit below a deck, monitor or individual workstation, placing one-button source selection exactly where it is needed. Forty-eight durable RGB illuminated buttons remain legible in a dark control room, and removable caps accept custom labels.
The panel can route to one or several destinations. Multi-destination operation can use a Take confirmation mode, while color feedback shows prepared and active routes. Current firmware also provides up to ten macro buttons for simultaneous commands and allows the unit to control both classic Videohub routers and ST 2110 devices through NMOS.
Installation uses Ethernet input and output, with Power over Ethernet on the input. Configuration is stored using the macOS or Windows application, and USB‑C supports firmware updates. An internal 100–240 V AC supply is available in addition to PoE.
- 48 programmable RGB buttons
- Single or multiple destinations with optional Take mode
- Up to 10 multi-command macros
- Ethernet pass-through, PoE and internal AC supply
PACKAGE CONTENT
- Videohub Smart Control Pro
SPECIFICATIONS
- Hardware control: 48 programmable buttons, RJ45 Ethernet for remote control of routers over an IP network
- Macros: up to 10 buttons for multiple simultaneous routes
- Ethernet: RJ45 in and out; PoE on the input, no PoE on the output
- RS-422: in and out (for future implementation)
- Computer interface: USB-C for configuration and software updates
- PTP sync: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
- NMOS: IS-04 v1.3.2 (peer-to-peer via mDNS/DNS-SD), IS-05 v1.1.2, BCP-002-01, BCP-004-01
- Button configuration: free software for Mac and Windows, USB 2.0 (480 Mb/s)
- Updates: firmware updater application via USB
- Operating systems: macOS 13 Ventura, macOS 14 Sonoma or later, Windows 10 (64-bit), Windows 11
- Power: internal 100–240 V AC or PoE
- Power fail protection: button configuration and router communication preserved and restored instantly at power on; configuration can be saved
- Rack installation: 1 RU
- Dimensions (W × D × H): 482 × 112.05 × 44.2 mm
- Weight: 1 kg
- Storage temperature: −20 to 45 °C
- Relative humidity: 0–90 % non-condensing
- Warranty: 1 year limited manufacturer warranty
