Blackmagic Design Smart Videohub CleanSwitch 12x12
SKU: VHUBSMTCS6G1212
Blackmagic Design Smart Videohub CleanSwitch 12x12 is a compact 1U router with 12 inputs and 12 outputs of 6G-SDI. Re-sync on every input enables clean switching between sources of the same standard and also lets you use the unit as twelve independent SDI re-synchronizers. It supports SD, HD and Ultra HD up to 2160p30 and is controlled from the front panel,…
1 759 € with VAT
1 453.72 € without VAT
Personal pickup: 26. 10. from 09:00
Shipment day: 26. 10.
Shipment day: 26. 10.
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Blackmagic Design Smart Videohub CleanSwitch 12x12
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
Infinitek L-4.5CHWS 2m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19 €
To be sent > 5 pcs
Blackmagic Design Videohub Smart Control Pro
Blackmagic Design Videohub Smart Control Pro is a 1U network control panel with 48
849 €
To be sent 1 pcs
Blackmagic Design Videohub Master Control Pro
Blackmagic Design Videohub Master Control Pro is a 1U network panel for fast access
859 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Design Smart Videohub CleanSwitch 12x12 is a compact 1U router with 12 inputs and 12 outputs of 6G-SDI. Re-sync on every input enables clean switching between sources of the same standard and also lets you use the unit as twelve independent SDI re-synchronizers. It supports SD, HD and Ultra HD up to 2160p30 and is controlled from the front panel, via Ethernet or RS-422.
Clean 12×12 switching without picture jumps
Each of the twelve 6G-SDI inputs has its own re-sync, so the router switches cleanly between sources of the same standard – no picture shift and no flash.
12× 6G-SDI input12× 6G-SDI outputRe-sync on all inputsUltra HD up to 2160p301 RU
Twelve re-synchronizers in one router
The inputs can also be used independently for automatic re-timing of SDI feeds – with no extra hardware in the rack.
Reference
A Tri-Sync or Black Burst input gives clean switching a common timing reference.
Control
Front panel with LCD, Ethernet, RS-422 and Videohub hardware panels.
Power fail protection
Routes are preserved and restored instantly at power on.
Installation
One rack unit, 160 mm deep, with an internal 100–240 V AC power supply.

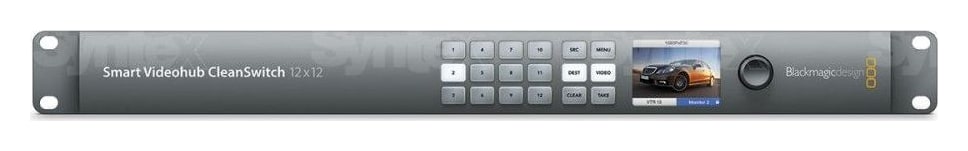

Re-sync on every input
The router automatically re-times cameras, decks and computer sources that share no common sync. When a source matches the reference standard, the switch is clean, with no picture shift and no flash. All outputs also feature SDI reclocking.
Multiple formats at once
Each input detects SD, HD or 6G-SDI by itself, so SD, HD and Ultra HD signals up to 2160p30 can run on the same router at the same time. Clean switching works between formats that match the reference frame rate.

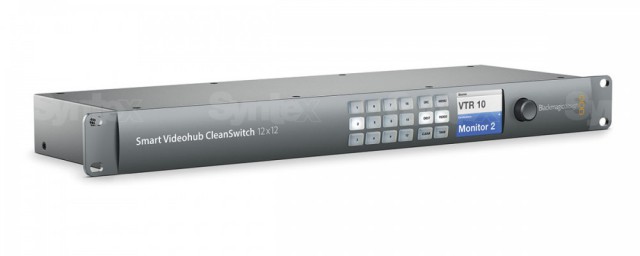

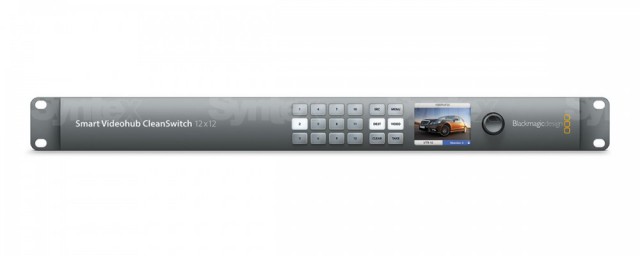

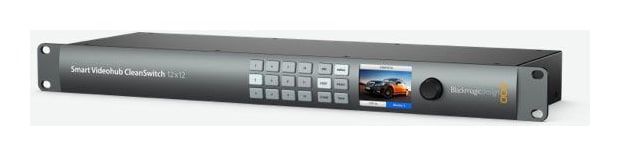

Control right from the front panel
Twelve buttons are used for local routing, another six buttons and a spin knob for the menus. The 2.2 inch color LCD shows live video plus source and destination labels, so you always know what you are switching.

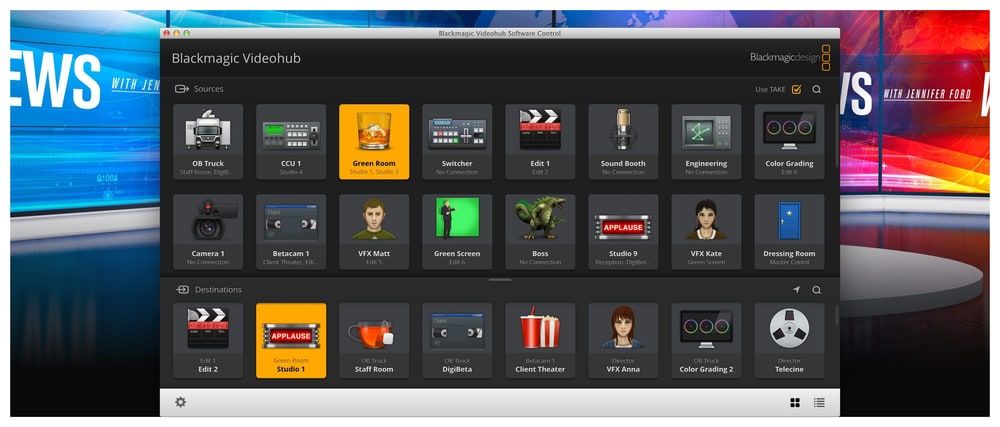

Remote control and integration
Over Ethernet the router is controlled by free Videohub software for Mac and Windows and by Videohub hardware panels. The RS-422 serial input accepts switching commands from other systems, and the Videohub SDK and Videohub Ethernet Control Protocol are available for custom integration.
Fits any rack
The router takes one rack unit and is only 160 mm deep, so it also fits shallow portable racks. It is powered by an internal 100–240 V AC power supply.

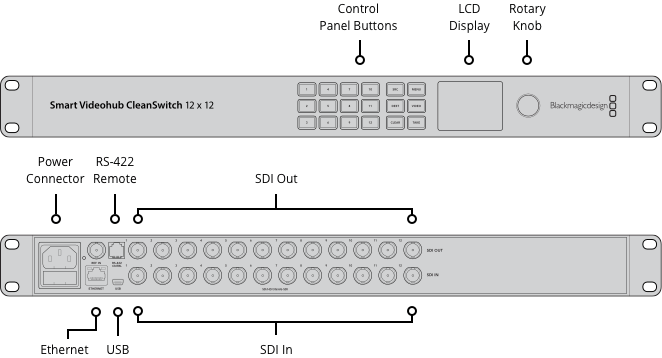

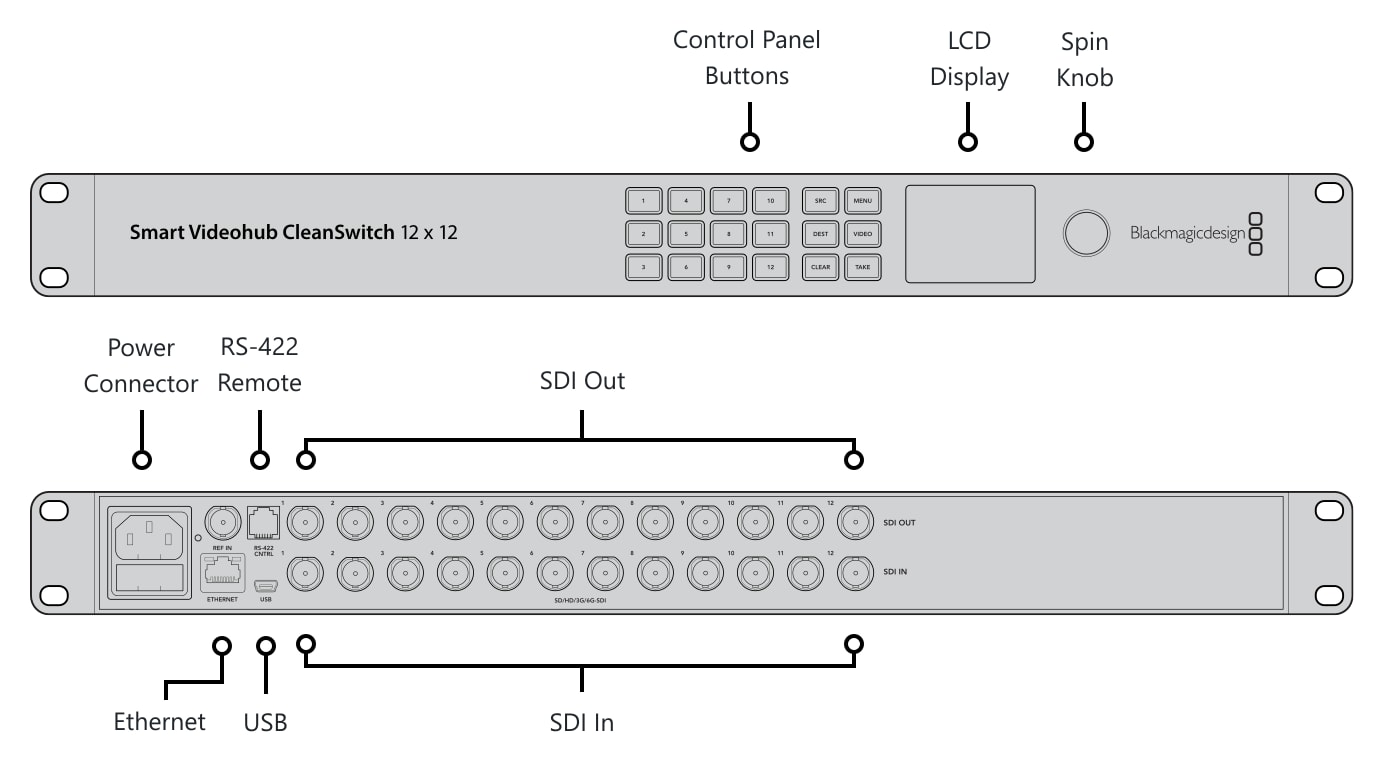

Connections and controls

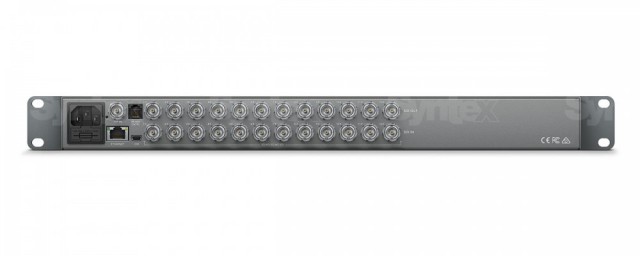

The rear panel has 12 SDI inputs and 12 SDI outputs, a reference input, Ethernet, RS-422 and USB for updates; the front has control panel buttons, an LCD and a spin knob.

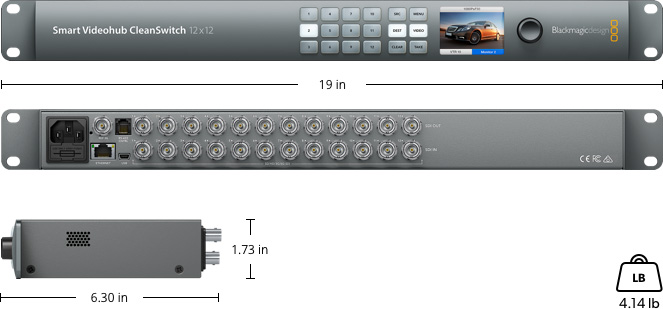

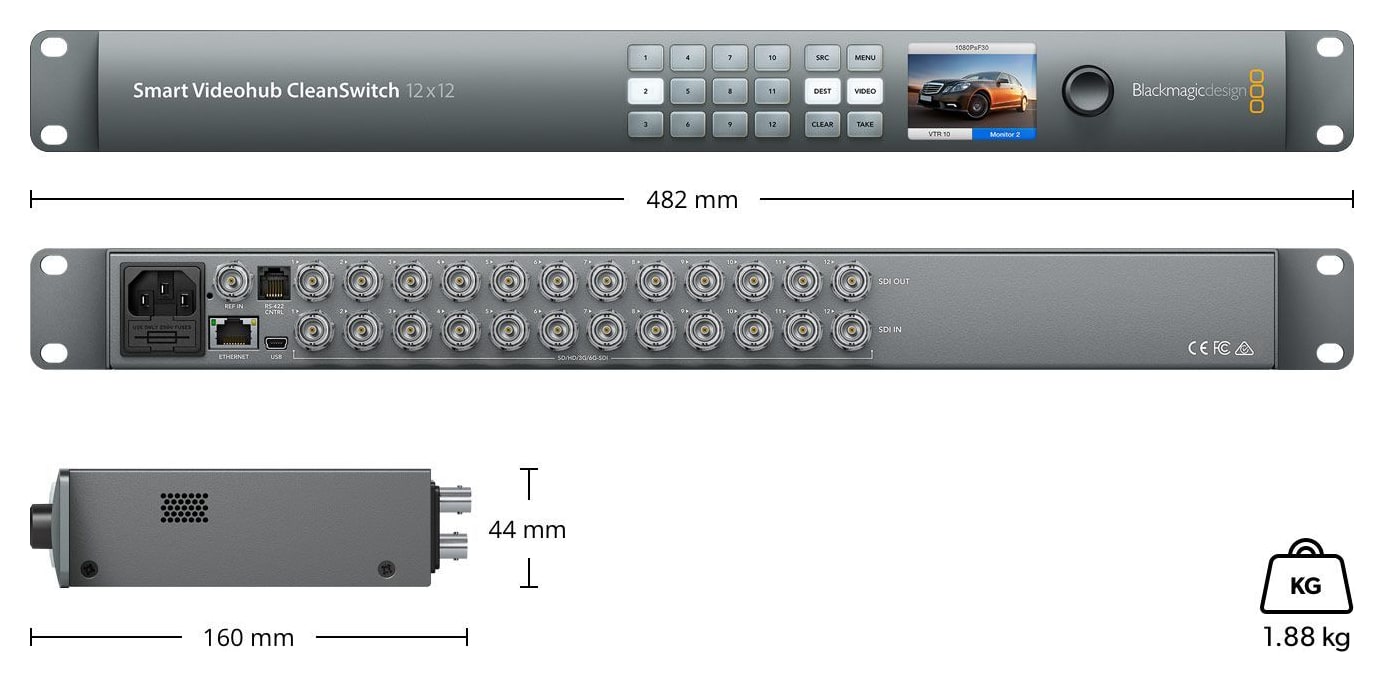

Dimensions and weight
Dimensions 482 × 160 × 44 mm (W × D × H), weight 1.88 kg. It occupies 1 RU in a 19″ rack.
More information
Confidence with mixed, unsynchronized sources
Smart Videohub CleanSwitch 12x12 was created for control rooms where sources do not share a common reference. Every input is automatically re-synchronized, so professional broadcast equipment, cameras, decks and computer outputs can be combined and switched without picture shifts or flashes when the video standard matches.
This is especially valuable in outside broadcast vehicles, live production, concerts and conferences where technicians often receive unfamiliar sources. Its 6G‑SDI design routes SD, HD and Ultra HD on the same router, while all twelve inputs can also be used independently for automatic SDI timing.
The front panel combines direct buttons, a spin knob and an LCD showing video previews and routing labels. Ethernet, RS‑422, a reference input and free Blackmagic Videohub Control software extend the built-in controls. Routes are restored after a power interruption.
- Clean switching between sources using the same standard
- Re-synchronization on all 12 inputs and output reclocking
- Direct control with LCD preview
- Ethernet control and external Videohub panel support
PACKAGE CONTENT
- Smart Videohub CleanSwitch 12x12
- Welcome wallet with QR code for software download
SPECIFICATIONS
- SDI inputs: 12× 10-bit SD-SDI, HD-SDI and 6G-SDI
- SDI outputs: 12× 10-bit SD-SDI, HD-SDI and 6G-SDI
- Input re-sync: on all 12 inputs (clean switch)
- SDI reclocking: on all outputs
- Reference: Tri-Sync or Black Burst
- Control panel connection: Ethernet
- Serial control: RS-422 (RJ-6), 1 input for crosspoint switching control
- Format detection: automatic SD, HD and 6G-SDI on each input; simultaneous routing of 4K, HD and SD
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98 to 1080p60, 1080PsF23.98 to 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K standards: 2K DCI 23.98p, 24p, 25p, 23.98PsF, 24PsF, 25PsF
- Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K standards: 4K DCI 23.98p, 24p, 25p
- SDI compliance: SMPTE 259M, 292M, 296M, 424M, 425M level A and B, ITU-R BT.656 and BT.601
- Sampling and color: 10-bit 4:2:2 and 4:4:4, YUV or RGB
- SDI audio: 48 kHz, 24-bit
- SDI metadata: video payload identification as per SMPTE 352M
- Control panel: 12 buttons, 6 menu buttons and a spin knob, 2.2″ color LCD
- Software: free router control for Mac and Windows, Videohub SDK, Videohub Ethernet Control Protocol
- Operating systems: macOS 13 Ventura, macOS 14 Sonoma or later, Windows 10 (64-bit), Windows 11
- Updates: USB
- Power: internal 100–240 V AC, IEC cable
- Power fail protection: routes preserved and restored instantly at power on
- Rack installation: 1 RU
- Dimensions (W × D × H): 482 × 160 × 44 mm
- Weight: 1.88 kg
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 45 °C
- Relative humidity: 0–90 % non-condensing
- Warranty: 3 year limited manufacturer warranty
