AVMATRIX 8 x 8 3G-SDI Matrix Switcher (1 RU)

AVMATRIX MSS0811 is a compact 1RU 8×8 matrix switcher for 3G/HD/SD-SDI and DVB-ASI signals in studios and mobile control rooms. It offers automatic format detection, front-panel control with LCD, PC control over Ethernet or RS-232 and redundant power.

More information

Promotion: -50% ends in: 16d: 16h: 10m
966.79 € 483.4 € with VAT 399.5 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX MSS0811 is a compact 1RU 8×8 matrix switcher for 3G/HD/SD-SDI and DVB-ASI signals in studios and mobile control rooms. It offers automatic format detection, front-panel control with LCD, PC control over Ethernet or RS-232 and redundant power.

Compact 8×8 SDI matrix in 1RU

A matrix switcher for eight 3G/HD/SD-SDI or DVB-ASI inputs and eight independent outputs. Automatic format detection and input equalization simplify deployment in studios, mobile control rooms and distribution.

AVMATRIX MSS0811
8× 3G/HD/SD-SDI input8× outputLevel A/B · DVB-ASIEthernet · RS-232 · USBTwo 12 V adapters

Redundant power in the box

Two 12 V power adapters are included for redundant operation, which improves reliability in critical broadcast environments.

Flexible matrix

Any of 8 inputs to any of 8 outputs, mixed formats at once.

Front-panel control

Front-panel buttons, status on the 2.2-inch LCD.

Remote control

PC software over Ethernet or RS-232, or a USB keyboard.

LOCK button

LOCK prevents accidental routing changes.

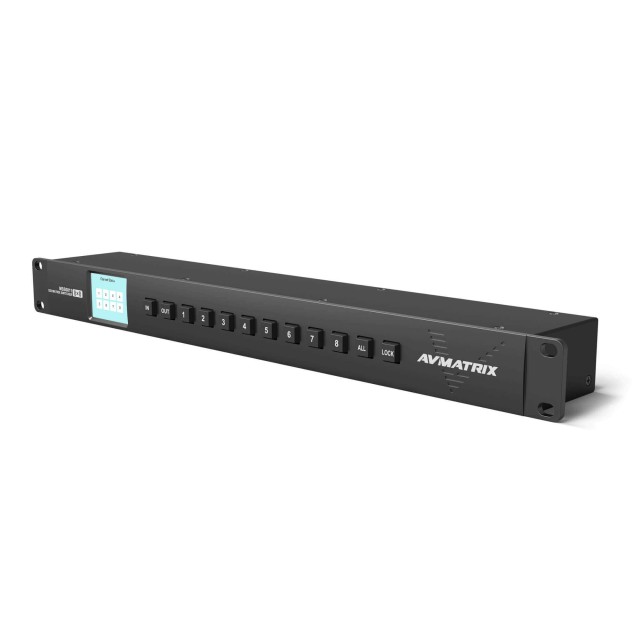

AVMATRIX MSS0811 – Front panel

Front panel

Routing buttons and a 2.2-inch LCD showing status.

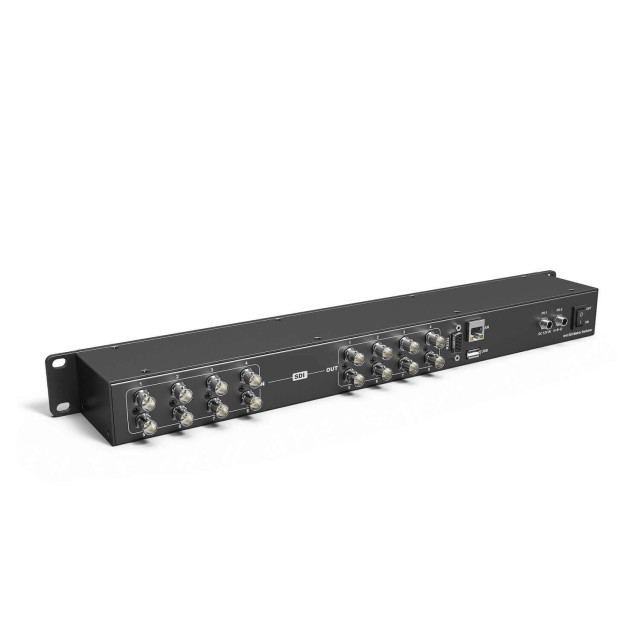

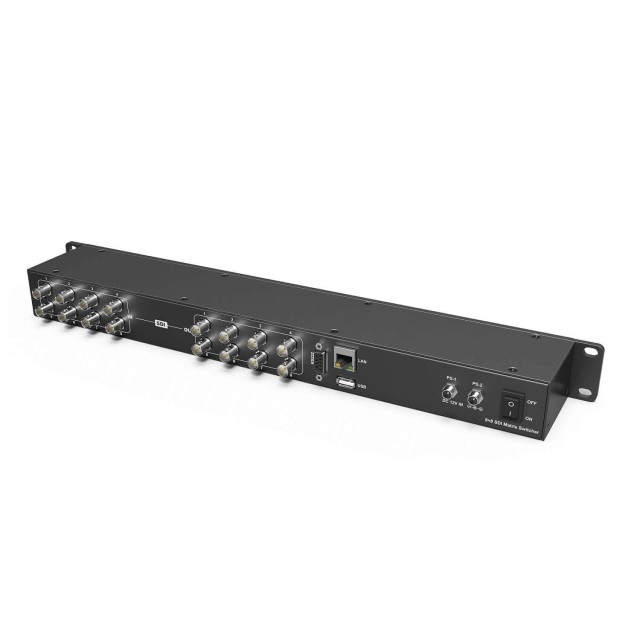

AVMATRIX MSS0811 – Rear panel

Rear panel

Eight SDI inputs, eight outputs, control ports and dual power.

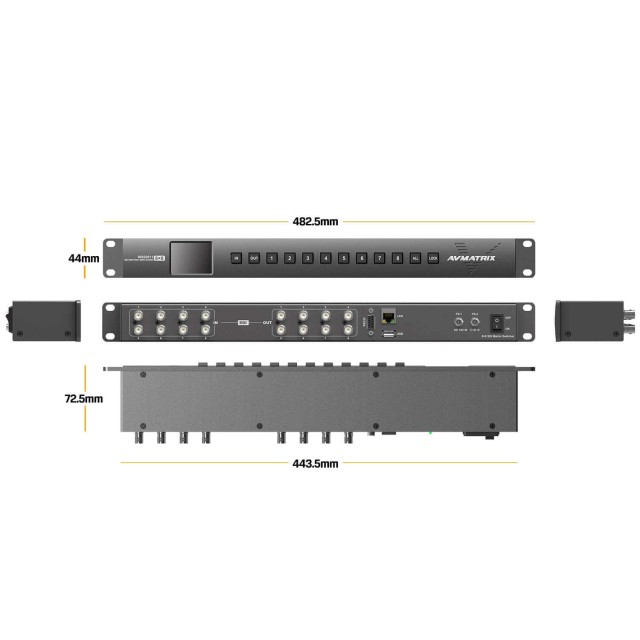

AVMATRIX MSS0811 – Compact 1RU design

Compact 1RU design

A slim unit for a 19-inch rack.

More information

About the product

AVMATRIX MSS0811 is a compact 1RU matrix switcher for routing eight 3G/HD/SD-SDI or DVB-ASI inputs to eight independent outputs. Automatic format detection and input equalization simplify deployment in studios, mobile control rooms and distribution systems.

Flexible 8×8 matrix

Any of the eight inputs can be routed to any of the eight outputs. The unit simultaneously handles multiple formats including SD, 720p and 1080p, supports 3G-SDI Level A and Level B, and is compatible with DVB-ASI.

Control for every installation

Routing can be performed from front-panel buttons and the current state is shown on a 2.2-inch LCD. Remote operation is available from PC software through Ethernet or RS-232, or from a USB keyboard. A LOCK button prevents accidental changes.

Redundant power

Two included 12 V power adapters enable redundant operation and improve reliability in critical broadcast environments.

Key features

  • 8× 3G/HD/SD-SDI inputs and 8× outputs
  • Level A, Level B and DVB-ASI support
  • automatic SDI input detection and equalization
  • 2.2-inch LCD and full front-panel control
  • Ethernet, RS-232 and USB control
  • redundant power
  • compact 1RU design

PACKAGE CONTENT

  • 1× AVMATRIX MSS0811
  • 2× 12 V DC power adapters
  • 1× user documentation

SPECIFICATIONS

  • Matrix: 8×8
  • Inputs: 8× 3G/HD/SD-SDI
  • Outputs: 8× 3G/HD/SD-SDI
  • Standards: SDI Level A/B, DVB-ASI
  • Formats: NTSC/PAL SD, 720p and 1080p at supported frame rates
  • Control: front panel, Ethernet, RS-232, USB keyboard
  • Display: 2.2-inch LCD
  • Power: dual 12 V DC, redundant
  • Design: 1RU
Parameters

Parameters

Manufacturer: AVMATRIX
Category: Routers

Main parameters

Router Inputs8
