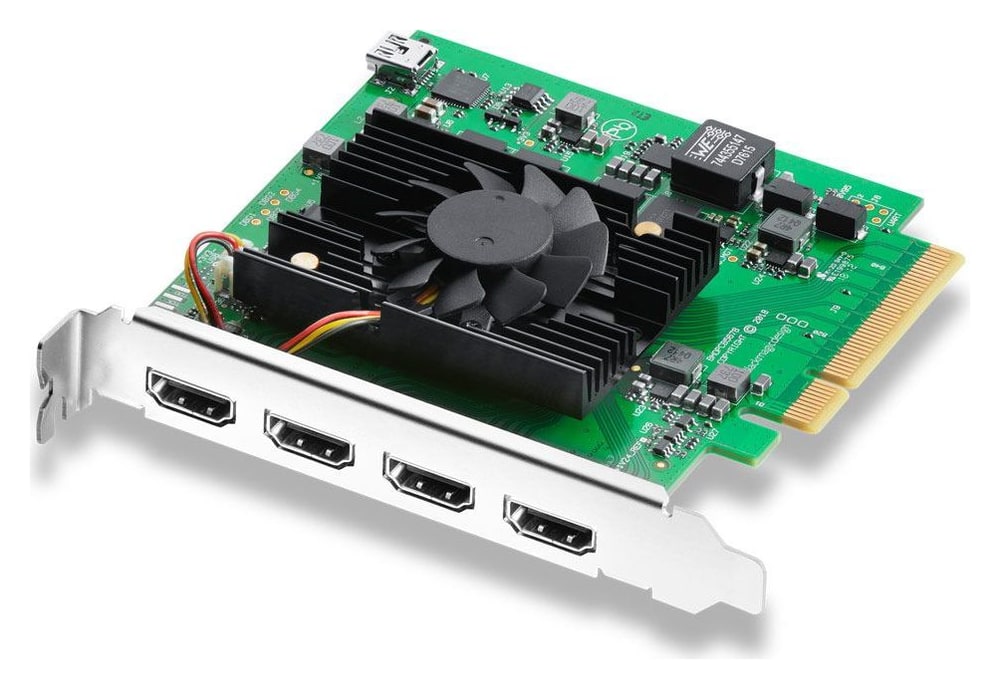

Blackmagic Design DeckLink Quad HDMI Recorder
SKU: BDLKDVQDHDMI4K
Blackmagic DeckLink Quad HDMI Recorder is a PCI Express card with four independent HDMI 2.0b inputs for simultaneous capture from four sources in any combination of SD, HD, Ultra HD, 4K DCI and computer formats up to 60 frames per second. The computer sees it as four separate capture cards, so it suits software switching, game capture, streaming and multi-channel…
Promotion: -7%
647.35 €
603.54 € with VAT
498.79 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs, Bratislava 1 pcs
Praha 1 pcs, Bratislava 1 pcs
Top accessories for Blackmagic Design DeckLink Quad HDMI Recorder
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 1.5m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.3 €
In stock > 5 pcs
vMix Software Pro
vMix is a PC-only (Windows) software overhead that uses SDI and HDMI input/output
1 329 €
To be sent 2 pcs
Sonnet Echo Express SE III (Thunderbolt 3)
3-slot Thunderbolt 3 desktop expansion system for PCIe cards.Connect Three Full-height,
1 089 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic DeckLink Quad HDMI Recorder is a PCI Express card with four independent HDMI 2.0b inputs for simultaneous capture from four sources in any combination of SD, HD, Ultra HD, 4K DCI and computer formats up to 60 frames per second. The computer sees it as four separate capture cards, so it suits software switching, game capture, streaming and multi-channel ingest.

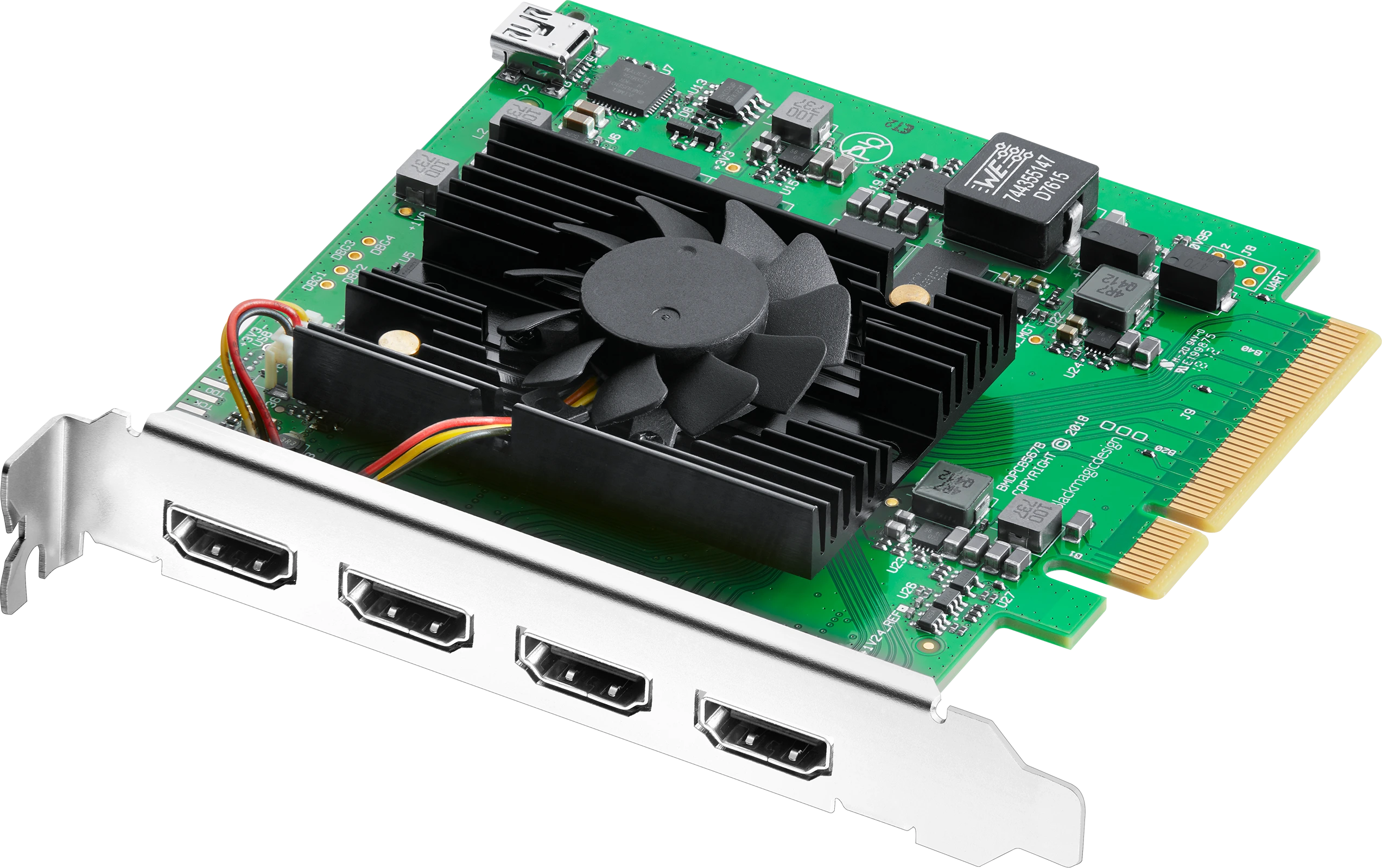

Four independent HDMI inputs
Simultaneous capture from four cameras, computers or game consoles – each input in its own format and frame rate, up to 4K DCI 60p.
4× HDMI 2.0bUp to 4K DCI 60p4 independent channelsHDRPCIe x8 Gen 3
Four capture cards in one
Installed in a single slot, the card appears as four independent capture cards that applications control separately.
Software switching
vMix, Wirecast and OBS with four live inputs.
Game capture
Game consoles in Ultra HD up to 60p.
Streaming
Several sources into one streaming software.
Ingest
Multi-channel capture in control rooms and broadcast trucks.

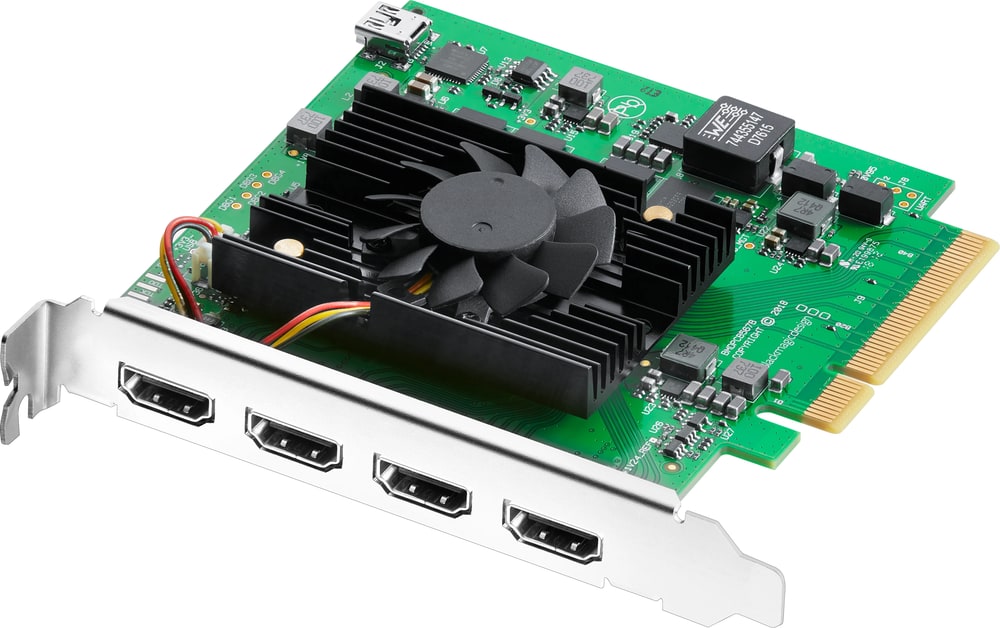

Four customizable capture cards in one
Each HDMI 2.0b input is independent, with its own format and 8 channels of embedded audio. You can capture two cameras, a computer and a game console at the same time and even combine different applications such as vMix, Wirecast and OBS. The HDMI inputs cannot capture copy protected content.
For software switching and streaming
vMix users can capture several sources at once and switch them in real time, including live streaming. The card takes a single slot, so it also suits compact servers in control rooms, broadcast trucks and data centers.
From SD to 4K DCI 60p
The inputs accept SD, HD up to 1080p60, Ultra HD and 4K DCI up to 60p and computer formats up to 2560 × 1600. They work with 8, 10 and 12-bit RGB 4:4:4 up to 4K DCI 30p, 8 and 10-bit YUV 4:2:2 in all formats and 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p, with the Rec. 601, 709 and 2020 color spaces; HDMI 2.0b supports Deep Color and HDR.

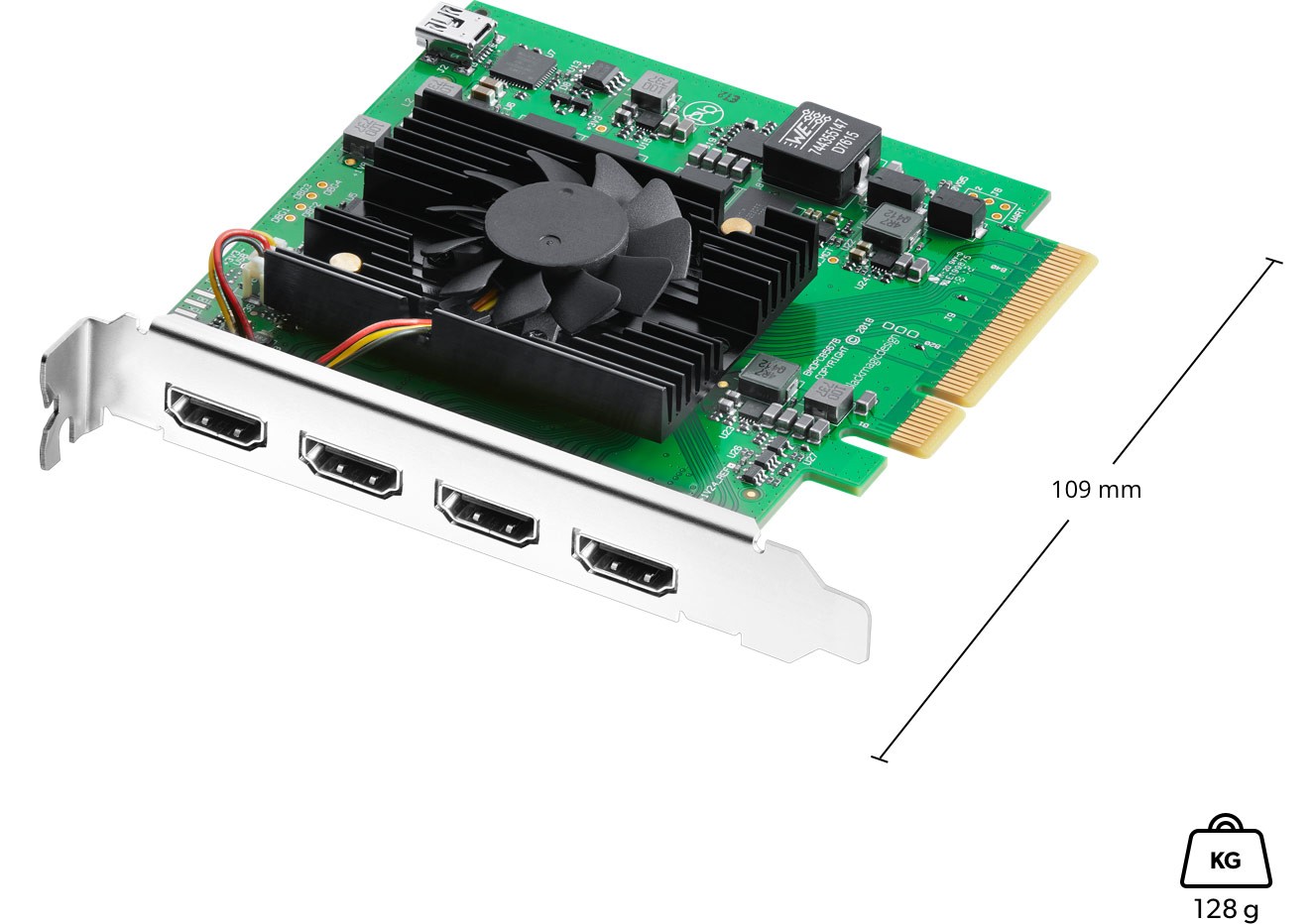

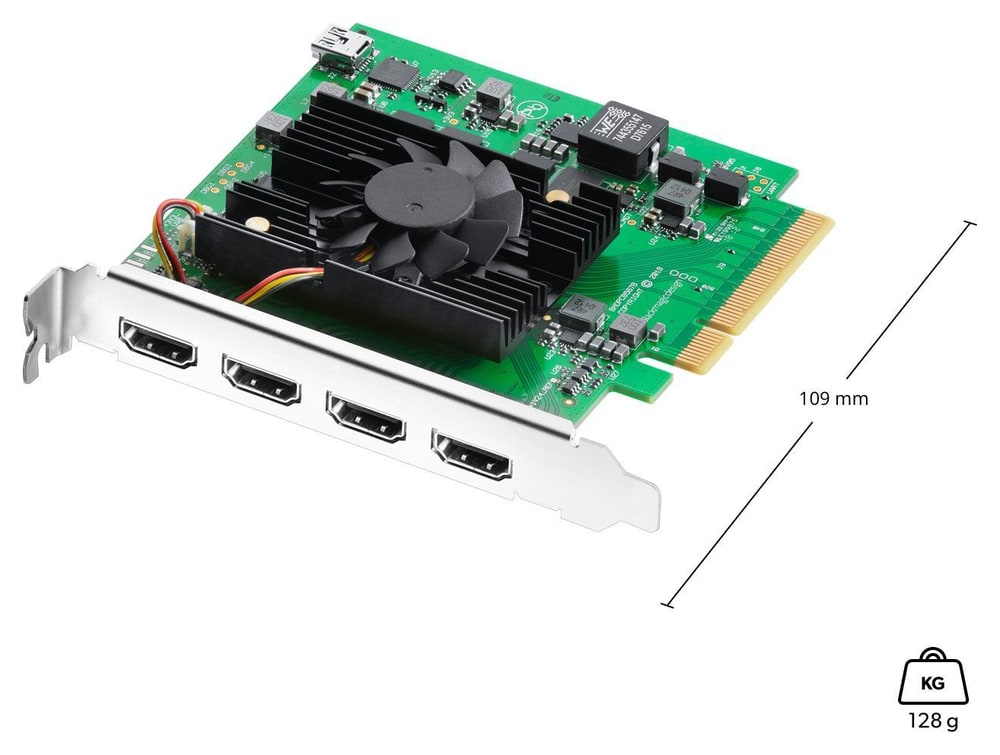

Dimensions and installation
The card is 109 mm long, weighs 128 g and draws 23 W. The PCI Express x8 generation 3 interface works in x8 and x16 slots of computers with macOS, Windows and Linux.
Software and SDK
The Desktop Video software includes Media Express, Disk Speed Test, Desktop Video Utility and the driver for macOS and Windows, and Media Express, Desktop Video Utility and the driver for Linux. The card works with Wirecast, vMix and OBS as well as Cinegy Capture Pro, Softron MovieRecorder or Zoom, and the Desktop Video SDK exposes every input separately.

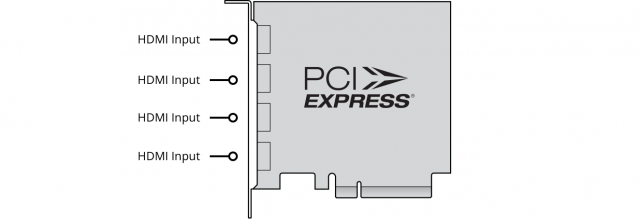

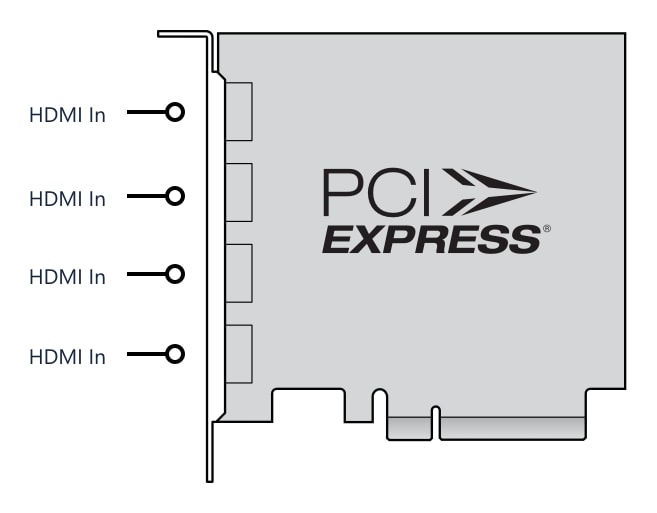

Connectors
The bracket carries four HDMI 2.0b inputs one above the other.
More information
Details for four-channel HDMI ingest
The DeckLink Quad HDMI Recorder card with a PCIe 3.0 x8 interface has four independent HDMI 2.0b inputs for simultaneous capture of any combination of SD, HD, Ultra HD, 4K DCI and computer formats. It suits ingest systems, developers and software switchers such as vMix.
DeckLink Quad HDMI Recorder is a powerful PCIe 3.0 x8 card. Thanks to four independent HDMI 2.0b inputs it can capture four different video sources at up to 60 frames per second. Installed in a free PCIe slot, the system registers it as four independent capture cards that can be operated separately through the Blackmagic Desktop Video SDK for macOS, Windows and Linux.
Applications can capture different video formats at the same time, which suits live streaming, control room applications and playout servers. Different applications such as vMix, Wirecast and OBS can also be combined independently. vMix users can capture the outputs of two cameras, a computer and a game console at the same time and switch them in real time, including live streaming. The card takes a single slot, so it also suits compact servers in control rooms, broadcast trucks and data centers.
The HDMI 2.0b inputs support 8 or 10-bit YUV and 8, 10 or 12-bit RGB video up to 4K DCI 30p, 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p, and computer and console outputs in 8-bit RGB up to 2560 × 1600. That makes it possible to capture sources from cameras to computers at the same time.
PACKAGE CONTENT
- DeckLink Quad HDMI Recorder card
SPECIFICATIONS
- Function: Capture (inputs only)
- HDMI inputs: 4 x independent HDMI 2.0b
- Simultaneous channels: 4
- Maximum format: Ultra HD and 4K DCI up to 60p
- Embedded audio: 8 channels per HDMI input; 48 kHz, 24-bit
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K DCI formats: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- Computer formats (DVI): 640 × 480p60, 800 × 600p50/60, 1440 × 900p50/60, 1440 × 1080p50/60, 1600 × 1200p50/60, 1920 × 1200p50/60, 1920 × 1440p50/60, 2560 × 1440p50/60, 2560 × 1600p50/60
- HDMI sampling and color precision: 4:4:4, 4:2:2, 4:2:0; 8/10/12-bit RGB 4:4:4 up to 4K DCI 30p, 8/10-bit YUV 4:2:2 in all formats, 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p/60p, 8-bit RGB 4:4:4 in DVI modes
- Color space: Rec. 601, Rec. 709, Rec. 2020
- HDR: HDMI 2.0b with Deep Color and HDR support
- Copy protection: HDMI input cannot capture copy protected sources
- Computer interface: PCI Express x8 generation 3, compatible with x8, x16 slots
- Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, 10-bit 4:2:2
- Software included: Media Express, Disk Speed Test, Desktop Video Utility and driver for macOS and Windows; Media Express, Desktop Video Utility and driver for Linux
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux
- Power consumption: 23 W
- Card length: 109 mm
- Weight: 128 g
- Operating temperature: 5–40 °C
- Storage temperature: −20–45 °C
- Relative humidity: 0–90% non-condensing
- Manufacturer warranty: 3 years (limited manufacturer warranty)
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Capture cards internal |
Main parameters
| Maximum resolution | 4K · HD · 3840×2160 @ 60 Hz · 4096×2160 @ 60Hz |
| Inputs | HDMI 4K · HDMI · HDMI 2.0 |
| Interface type | PCI Express 3.0 x8 |
Other parameters
| Other | Multiple inputs |
