Blackmagic Design DeckLink Duo 2 Mini

SKU: BDLKDUO2LP

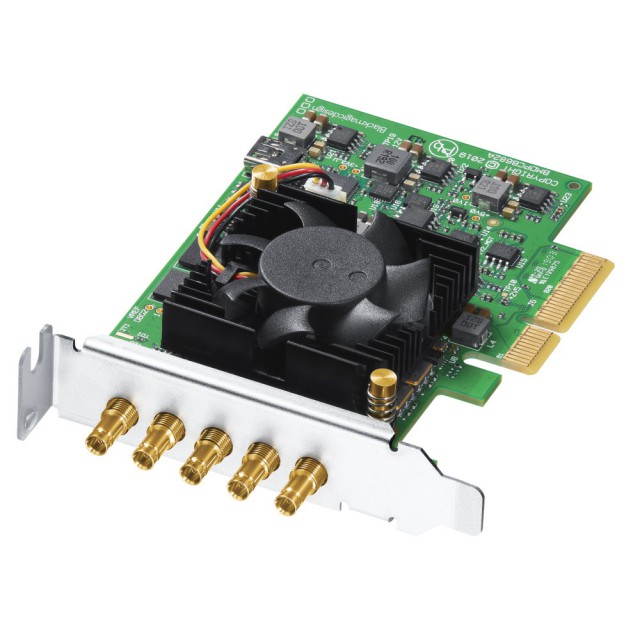

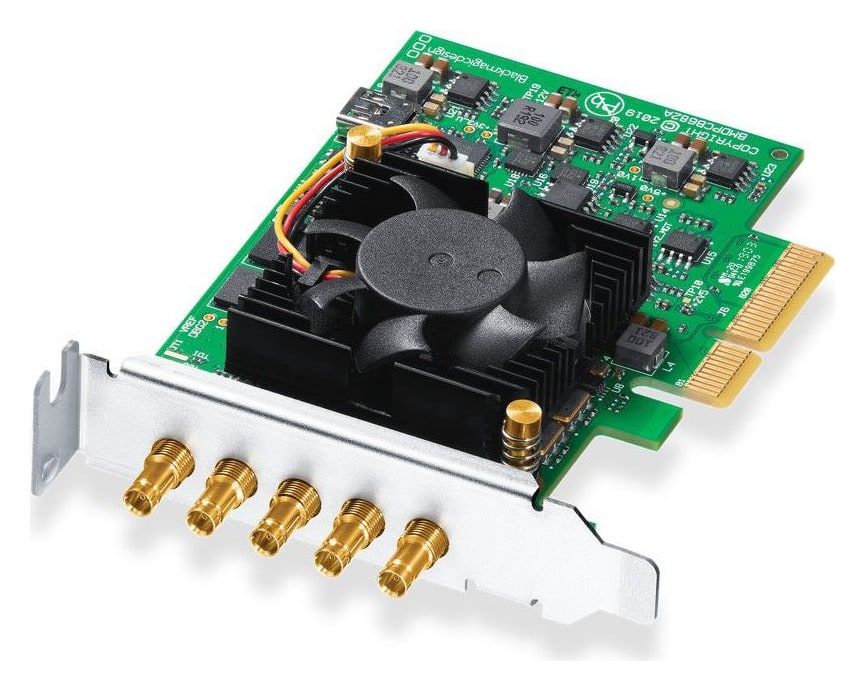

Blackmagic DeckLink Duo 2 Mini is a multi-channel low profile PCI Express card with four independent bidirectional 3G-SDI connectors. Each channel can be set separately for capture or playback of SD and HD video up to 1080p60, so one card with miniature DIN 1.0/2.3 connectors replaces four separate cards in a compact workstation or server.

More information

639 € with VAT 528.1 € without VAT
Add to Compare Price history
Personal pickup: 26. 10. from 09:00
Shipment day: 26. 10.
In stock 2 pcs
Praha 2 pcs, Budapest 1 pcs
SKU:
BDLKDUO2LP
Add to Compare Price history

Blackmagic Design DeckLink Quad 2

In stock 3 pcs1 069 €without VAT 883.47 €

Blackmagic Design DeckLink Duo 2

To be sent 1 pcs554.23 €without VAT 458.04 €

Blackmagic Design DeckLink Quad HDMI Recorder

In stock 2 pcs603.54 €without VAT 498.79 €

Blackmagic Design DeckLink 8K Pro Mini

In stock 2 pcs759 €without VAT 627.27 €

Top accessories for Blackmagic Design DeckLink Duo 2 Mini

Blackmagic Design Cable (DIN 1.0/2.3 to BNC Female, 20 cm)

High quality Blackmagic Design 6G-SDI cable, 20 cm long, that converts a Micro BNC
24 €
In stock > 5 pcs

Canare L-2.5CHWS DIN 1.0/2.3 (M) / BNC (F) 1,5 m, BLK

Flexible cable Mini DIN 1.0/2.3 (M-male) / BNC (F-female)
27 €
In stock > 5 pcs

vMix Software Pro

  • Free transport
  • LAST PIECE
vMix is a PC-only (Windows) software overhead that uses SDI and HDMI input/output
1 329 €
In stock 1 pcs

Canare L-2.5CHWS DIN 1.0/2.3 (M) / BNC (M) 10 m, BLK

  • LAST PIECE
Flexible cable Mini DIN 1.0/2.3 (M-male) / BNC (M-male)
36 €
In stock 1 pcs

Blackmagic Design Cable (DIN 1.0/2.3 to BNC Male, 44 cm)

High quality Blackmagic Design 6G-SDI cable, 44 cm long, that converts a Micro BNC
24 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Blackmagic DeckLink Duo 2 Mini is a multi-channel low profile PCI Express card with four independent bidirectional 3G-SDI connectors. Each channel can be set separately for capture or playback of SD and HD video up to 1080p60, so one card with miniature DIN 1.0/2.3 connectors replaces four separate cards in a compact workstation or server.

Four SDI channels in low profile

DeckLink Duo 2 Mini works like four separate cards in one slot. Every 3G-SDI connector can be set independently as an input or output – even in low profile workstations and servers.

4× 3G-SDI4× input/outputUp to 1080p60Low profilePCIe x4

Multi-channel capture and playback

The card suits media servers, graphics, streaming from several cameras and control room systems that need to work with several SDI signals at the same time.

Media servers

Playout and playback to several outputs at once.

Digital signage

Several screens from one low profile card.

Studio and control room

Capture and monitoring of several SDI signals at once.

Custom applications

Free Desktop Video SDK for macOS, Windows and Linux.

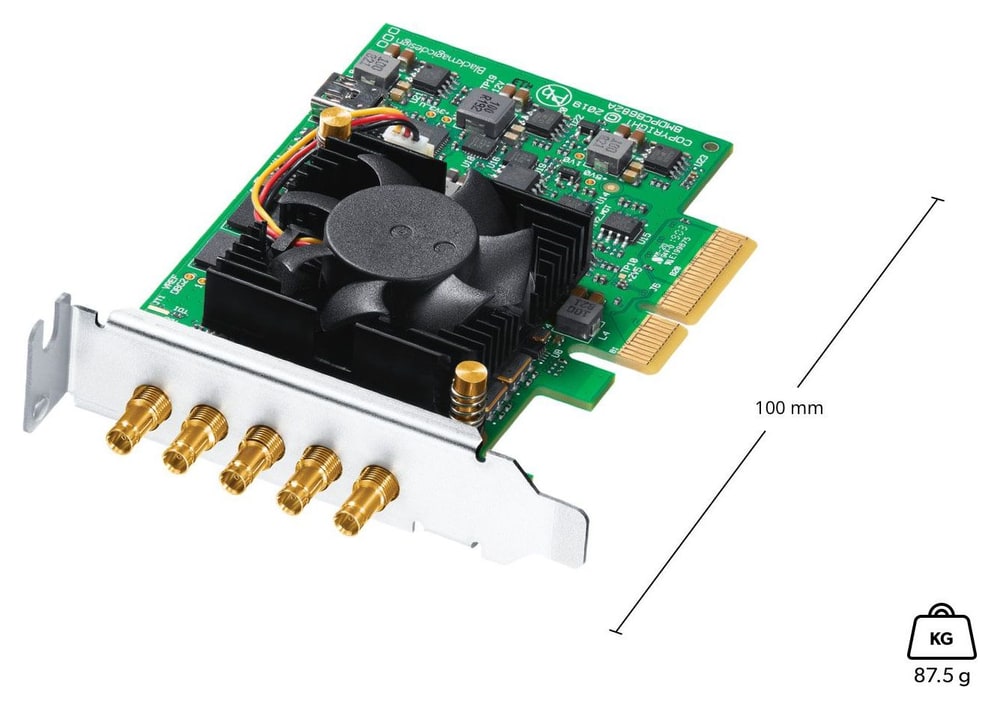

Low profile, DIN 1.0/2.3 connectors

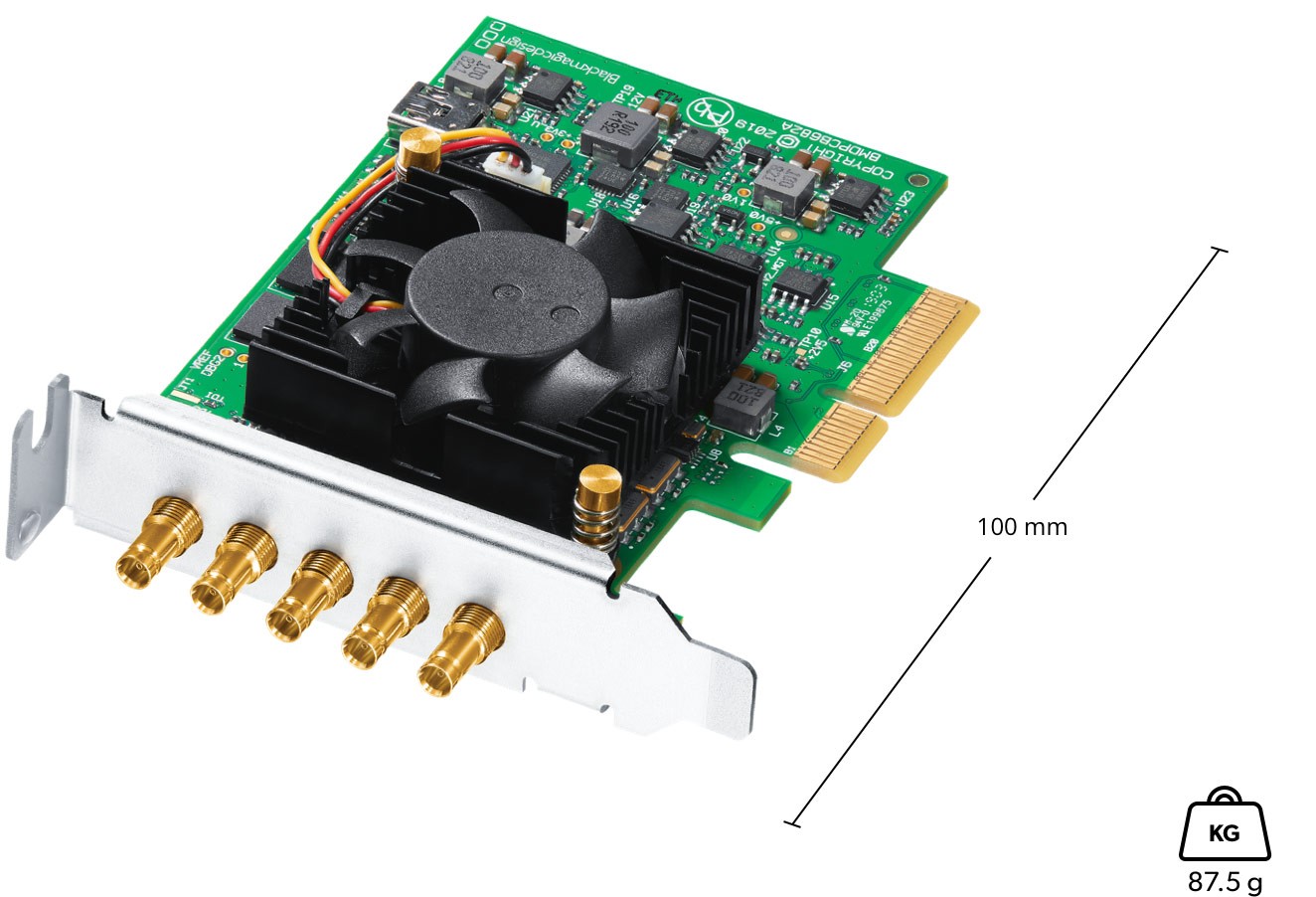

The compact card is 100 mm long, weighs 87.5 g and fits low profile workstations and servers. The miniature DIN 1.0/2.3 connectors save space on the bracket; the card connects to regular BNC cabling with DIN 1.0/2.3 to BNC adapter cables, sold separately.

DeckLink Duo 2 Mini – Low profile, DIN 1.0/2.3 connectors

Playout and digital signage

One computer can drive several screens or outputs at the same time. It suits media servers, multi-screen digital signage, playout and real time multi-channel capture.

DeckLink Duo 2 Mini – Playout and digital signage

SD and HD formats up to 1080p60

Every channel supports NTSC, PAL, 720p, 1080i, 1080PsF and 1080p up to 60 frames per second with 16 channels of embedded audio. The card handles 12-bit RGB 4:4:4 up to 1080p30 in playback and 10-bit YUV 4:2:2 in all formats, the Rec. 601 and 709 color spaces and static HDR metadata with HLG and PQ transfer characteristics; the reference input accepts Black Burst and Tri-Sync.

Software and SDK

The Desktop Video software includes Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and the driver for macOS and Windows, and Media Express, Desktop Video Utility and the driver for Linux. The PCI Express x4 generation 2 interface works in x4, x8 and x16 slots; among Mac computers, a Mac Pro with PCI Express slots is required. The card draws 10 W and the Desktop Video SDK exposes every channel to applications separately.

DeckLink Duo 2 Mini – Software and SDK

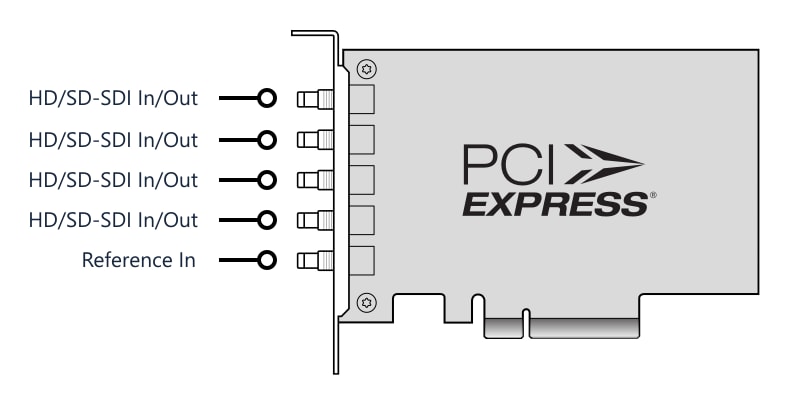

Connectors

The low profile bracket carries four HD/SD-SDI inputs/outputs with the reference input below them, all on DIN 1.0/2.3 connectors.

DeckLink Duo 2 Mini – Connectors

More information

Details for four-channel SDI inputs and outputs

DeckLink Duo 2 Mini is a low profile card with four independent 3G-SDI ports, each of which can be set separately as an input or output. It is designed for capture and playback from several cameras, media servers, graphics and other multi-channel SDI workflows in SD and HD up to 1080p60.

PACKAGE CONTENT

  • DeckLink Duo 2 Mini card

SPECIFICATIONS

  • Function: Simultaneous capture and playback
  • SDI connectors: 4 x bidirectional 3G-SDI (DIN 1.0/2.3)
  • Channel configuration: Each connector independently as input or output, up to 12-bit SD and HD
  • Maximum format: SD and HD up to 1080p60
  • Reference input: Tri-Sync or Black Burst
  • Embedded audio: 16 channels in SD and HD; 48 kHz, 24-bit
  • SD formats: 525i59.94 NTSC, 625i50 PAL
  • HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • Sampling and color precision: 4:2:2, 4:4:4; 8/10/12-bit RGB 4:4:4 up to 1080p30 (12-bit in playback only), 8/10-bit YUV 4:2:2 in all formats
  • Color space: Rec. 601, Rec. 709
  • HDR: Static HDR metadata, HLG and PQ transfer characteristics
  • Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ITU-R BT.656, ITU-R BT.601
  • SDI metadata: RP 188 / SMPTE 12M-2 and closed captioning
  • Processing: hardware real time color space conversion; software down conversion on playback and capture (letterbox, anamorphic 16:9); software SD to HD up conversion on capture; 720p ↔ 1080 cross conversion on playback (software); real time effects in DaVinci Resolve, Final Cut Pro, Premiere Pro and Media Composer
  • Computer interface: PCI Express x4 generation 2, compatible with x4, x8, x16 slots
  • Form factor: Low profile card
  • Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4
  • Software included: Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and driver for macOS and Windows; Media Express, Desktop Video Utility and driver for Linux
  • Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux; among Mac computers, only a Mac Pro with PCI Express slots
  • Power consumption: 10 W
  • Card length: 100 mm
  • Weight: 87.5 g
  • Operating temperature: 5–40 °C
  • Storage temperature: −20–45 °C
  • Relative humidity: 0–90% non-condensing
  • Manufacturer warranty: 3 years (limited manufacturer warranty)
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Capture cards internal

Main parameters

Maximum resolutionHD · 1920×1080 @ 60 fps
OutputSDI · 3G SDI
InputsSDI · 3G SDI
Interface typePCI Express 2.0 x4

Other parameters

OtherMultiple inputs
