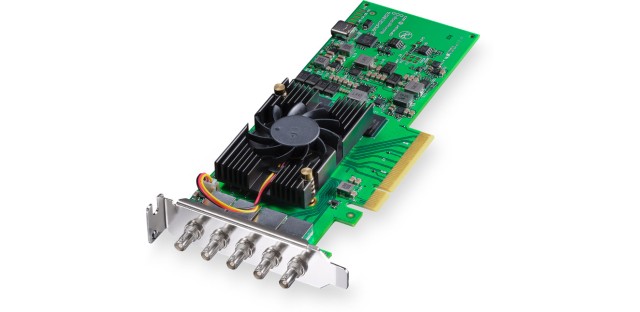

Blackmagic Design DeckLink 8K Pro Mini
SKU: BDLKHCPRO8K12GMINI
A low profile 8K PCI Express card with four independent bi-directional 12G-SDI connectors. It supports SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI, including high frame rates. It handles 12-bit RGB 4:4:4 with Rec. 2020 color space and HDR, carries up to 64 channels of embedded audio and, thanks to its low profile, also fits compact workstations running macOS,…
759 € with VAT
627.27 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for Blackmagic Design DeckLink 8K Pro Mini
Blackmagic Design DaVinci Resolve Studio
Promotion: -20% ends in: 17d: 21h: 02m
DaVinci Resolve Studio by Blackmagic Design is a professional application for editing,
246.84 €
308.55 €
Backordered > 5 pcs
Infinitek L-2.5CHWS 1m Micro BNC (M)/BNC (M)
Cable Micro BNC (M-male) / BNC (M-male)
19 €
To be sent > 5 pcs
Infinitek L-2.5CHWS 0.5m Micro BNC (M)/BNC (F)
Cable Micro BNC (M-male) / BNC (F-female)
27 €
To be sent > 5 pcs
Infinitek L-2.5CHWS 0.5m Micro BNC (M)/BNC (M)
Cable Micro BNC (M-male) / BNC (M-male)
18 €
To be sent 4 pcs
Canare L-2.5CHWS Micro BNC (M) / BNC (M) 2,5 m, BLK
Assembled SDI cable, Canare L-2.5CHWS, 2.5 m long, terminated with Micro BNC (M)
21 €
In stock 2 pcs
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
A low profile 8K PCI Express card with four independent bi-directional 12G-SDI connectors. It supports SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI, including high frame rates. It handles 12-bit RGB 4:4:4 with Rec. 2020 color space and HDR, carries up to 64 channels of embedded audio and, thanks to its low profile, also fits compact workstations running macOS, Windows or Linux.
Four 12G-SDI connectors on a low profile card
Every Micro BNC connector can be used as an input or an output. The compact card handles single, dual and quad link configurations.
4× 12G-SDILow profile8K6012-bit RGB 4:4:4PCIe x8 Gen 3
From SD all the way to 8K DCI
Support ranges from classic SD and HD formats through Ultra HD and 4K DCI to 8K and 8K DCI – up to 120 fps in HD, Ultra HD and 4K, and up to 60 fps in 8K.
12-bit processing and Rec. 2020
RGB 4:4:4 and the wide Rec. 2020 gamut for grading, mastering and VFX.
Up to 64 audio channels
16 channels of embedded audio in SD, HD and 2K, up to 64 in 4K and 8K.
HDR
Static HDR metadata with HLG and PQ transfer characteristics.
Stereoscopic 3D
Left and right eye capture and playback as two streams.
Bi-directional 12G-SDI Micro BNC connectors
Four 12G-SDI Micro BNC connectors support SD, HD, 2K, 4K and 8K in single, dual and quad link with 4:2:2 and 4:4:4 sampling, and switch between 2D and 3D as needed. The small Micro BNC connectors let all four plus the reference input fit on the low profile card; equipment with standard BNC is connected with Micro BNC to BNC cables.
For compact 8K workflows
The card works with 8 and 10-bit YUV 4:2:2 in all modes and 8, 10 and 12-bit RGB 4:4:4 up to 8Kp30 DCI, with Rec. 601, 709 and 2020 color spaces. With DaVinci Resolve, Final Cut Pro, Premiere Pro or Media Composer it is used for capture and for monitoring on professional monitors and projectors.

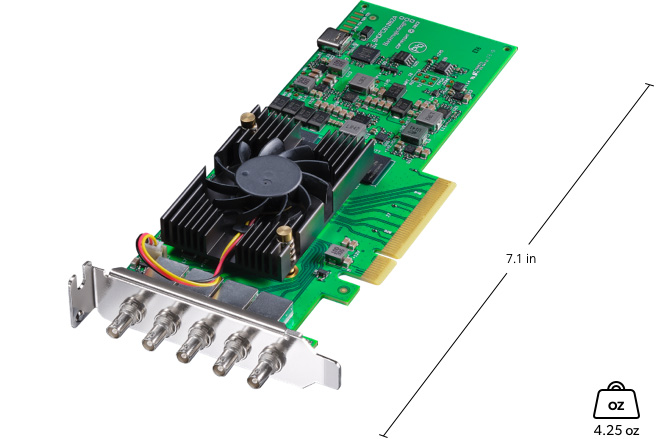

Low profile PCIe x8 card
The card is 180 mm long, weighs 120 g and is cooled by its own fan and heat sink. The 8 lane generation 3 PCI Express interface works in x8 and x16 slots, and power consumption is 18 W. The reference input accepts Tri-Sync and Black Burst.
Software and workflow
The software includes DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and the driver for macOS and Windows, and Media Express, Desktop Video Utility and the driver for Linux. Firmware is built into the driver and loads at system start.

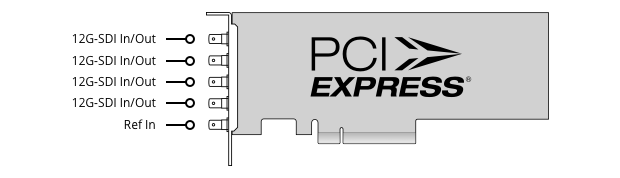

Connectors
The four bi-directional 12G-SDI Micro BNC connectors and the reference input are stacked on the low profile card.
More information
Details for compact 8K workflows
DeckLink 8K Pro Mini is a low profile PCIe x8 card for capture and playback of video up to 8K. Its four 12G-SDI Micro BNC connectors support single, dual and quad link operation, SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI, high frame rates, 10 and 12-bit RGB data with up to 4:4:4 sampling and Rec. 2020 color space.
Bi-directional 12G-SDI
Four bi-directional 12G-SDI Micro BNC connectors support SD/HD/2K/4K/8K and single, dual and quad link 4:2:2/4:4:4 operation. 2D and 3D workflows can be switched as needed.
Sync and PCI Express
The reference input accepts Tri-Sync and Black Burst. Generation 3 PCI Express x8 is compatible with 8 and 16 lane PCIe slots.
Software and workflow
The card works with DaVinci Resolve, Media Express, Disk Speed Test, LiveKey and Blackmagic Desktop Video Utility; firmware is built into the driver.
PACKAGE CONTENT
- DeckLink 8K Pro Mini card
SPECIFICATIONS
- Function: Capture and playback, each SDI connector as input or output
- SDI: 4× bi-directional 12G-SDI Micro BNC; SD/HD/2K/4K/8K, single, dual and quad link 4:2:2/4:4:4, 2D/3D switchable
- Maximum format: 8K / 8K DCI 60p, HD / Ultra HD / 4K DCI 120p
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50–720p60, 1080i50–1080i60, 1080p23.98–1080p120, 1080PsF23.98–1080PsF30
- 2K DCI formats: 2Kp23.98–2Kp120 DCI, 2KPsF23.98–2KPsF30 DCI
- Ultra HD formats: 2160p23.98–2160p120
- 4K DCI formats: 4Kp23.98–4Kp120 DCI
- 8K formats: 4320p23.98–4320p60
- 8K DCI formats: 8Kp23.98–8Kp60 DCI
- SDI sampling and color precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI; 8, 10-bit YUV 4:2:2 in all modes
- Color space: Rec. 601, Rec. 709, Rec. 2020
- HDR: static HDR metadata, HLG and PQ
- Audio: SDI: 16 channels embedded (SD/HD/2K), 64 channels (4K/8K); 48 kHz, 24-bit
- Reference input: Tri-Sync or Black Burst
- SDI compliance: SMPTE 259M, 274M, 292M, 296M, 372M, 424M, 425M A/B, 2036-1, 2048-1, 2081-10/11/12, 2082-10/11/12, ST 2108-1
- SDI metadata: RP 188/SMPTE 12M-2, closed captioning
- Processing: hardware based real time color space conversion on output; stereoscopic 3D – left/right eye dual stream
- Computer interface: 8 lane generation 3 PCI Express, compatible with x8 and x16 slots
- Form factor: Low profile PCI Express card
- Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, 422 HQ, 422, LT, Proxy; uncompressed 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4
- Software included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and driver (macOS, Windows); Media Express, Desktop Video Utility and driver (Linux)
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux
- Power consumption: 18 W
- Card length: 180 mm
- Weight: 120 g
- Operating temperature: 5 to 50 °C
- Storage temperature: −20 to 60 °C
- Relative humidity: 0–90% non-condensing
- Warranty: 3 years
ARTICLES
Parameters
![]()
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Capture cards internal |
Main parameters
| Maximum resolution | 8K · 4K · HD · 3840×2160 @ 60 Hz · 4096×2160 @ 60Hz |
| Output | 12G SDI · SDI |
| Inputs | 12G SDI · SDI |
| Interface type | PCI Express 3.0 x8 |
Other parameters
| Other | Multiple inputs |
