Blackmagic Design DeckLink Duo 2
SKU: BDLKDUO2

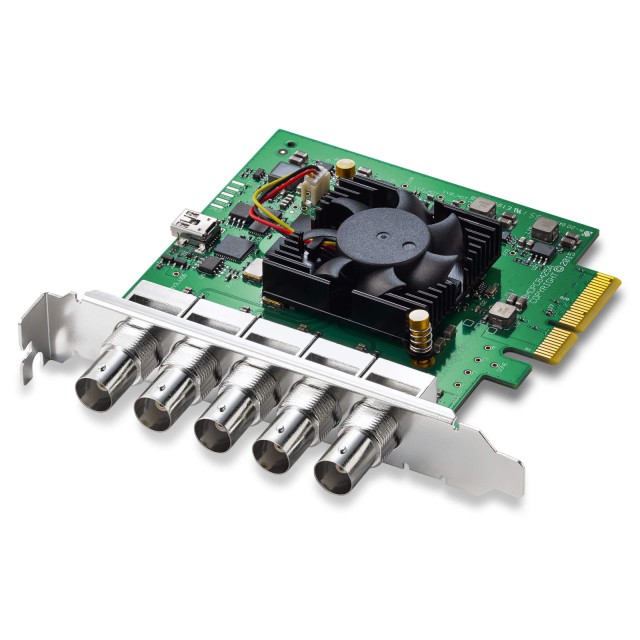

Blackmagic DeckLink Duo 2 is a multi-channel PCI Express card with four independent bidirectional 3G-SDI connectors. Each channel can be set separately for capture or playback of SD and HD video up to 1080p60 with 16 channels of embedded audio, so one card replaces four – for media servers, digital signage, playout and multi-channel capture.
Promotion: 554.23 €
562.65 €
554.23 € with VAT
458.04 € without VAT
Availability
Shipment day: 23. 10.
Shipment day: 23. 10.
To be sent 1 pcs
Bratislava 1 pcs
Bratislava 1 pcs
Blackmagic Design DeckLink Quad 2
Backordered 3 pcs1 069 €without VAT 883.47 €
Blackmagic Design DeckLink Quad HDMI Recorder
In stock 2 pcs603.54 €without VAT 498.79 €
Blackmagic Design DeckLink Duo 2 Mini
In stock 3 pcs639 €without VAT 528.1 €
Blackmagic Design DeckLink 8K Pro G2
In stock 2 pcs839 €without VAT 693.39 €Top accessories for Blackmagic Design DeckLink Duo 2
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
Sonnet Echo Express SE I (Thunderbolt 3)
PCIe cards for the additional connectivity and processing capabilities beyond what’s
529 €
To be sent 2 pcs
vMix Software Pro
vMix is a PC-only (Windows) software overhead that uses SDI and HDMI input/output
1 329 €
To be sent 2 pcs
MagicSoft Recorder
MagicSoft Recorder is an ingest application designed for the broadcast and post-production
Call us for pricing information
Sonnet Echo Express SE III (Thunderbolt 3)
3-slot Thunderbolt 3 desktop expansion system for PCIe cards.Connect Three Full-height,
1 089 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

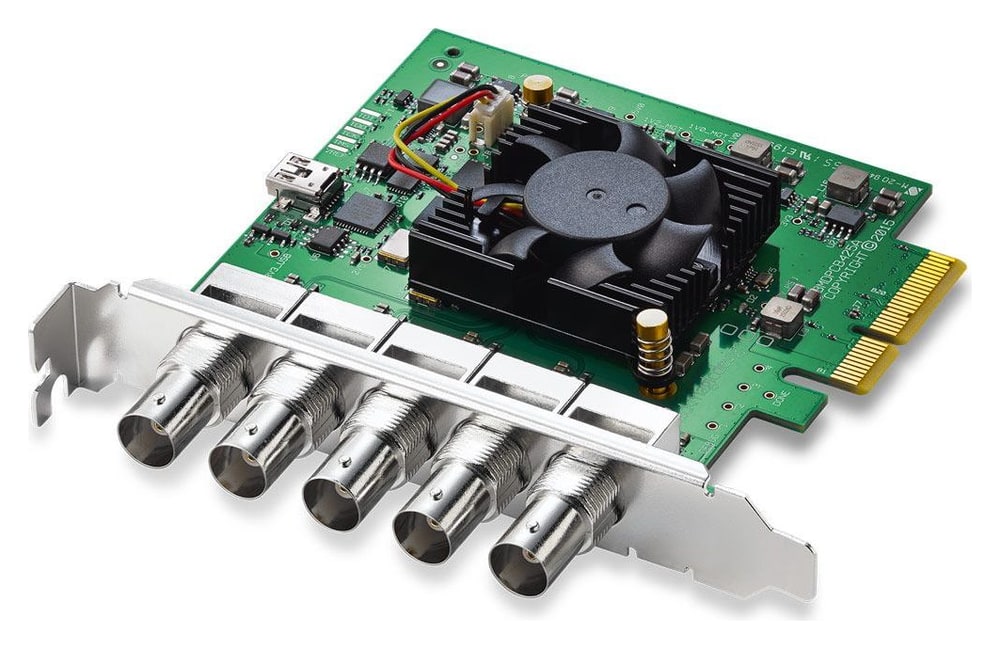

Blackmagic DeckLink Duo 2 is a multi-channel PCI Express card with four independent bidirectional 3G-SDI connectors. Each channel can be set separately for capture or playback of SD and HD video up to 1080p60 with 16 channels of embedded audio, so one card replaces four – for media servers, digital signage, playout and multi-channel capture.
Four SDI channels in one slot
The card appears to the computer as four separate SDI cards. Switch each 3G-SDI connector to input or output and combine the channels exactly as the job needs – from studio ingest to multi-channel playout.
4× 3G-SDIUp to 1080p604 independent channelsBlack Burst / Tri-SyncPCIe x4
Four cards in one
The channels work independently of each other – each in a different format and frame rate, with capture and playback at the same time.
Media servers
Playout and playback to several outputs at once.
Digital signage
Several screens from one card.
Multi-channel capture
Real time ingest from several cameras.
Custom applications
Free Desktop Video SDK for macOS, Windows and Linux.

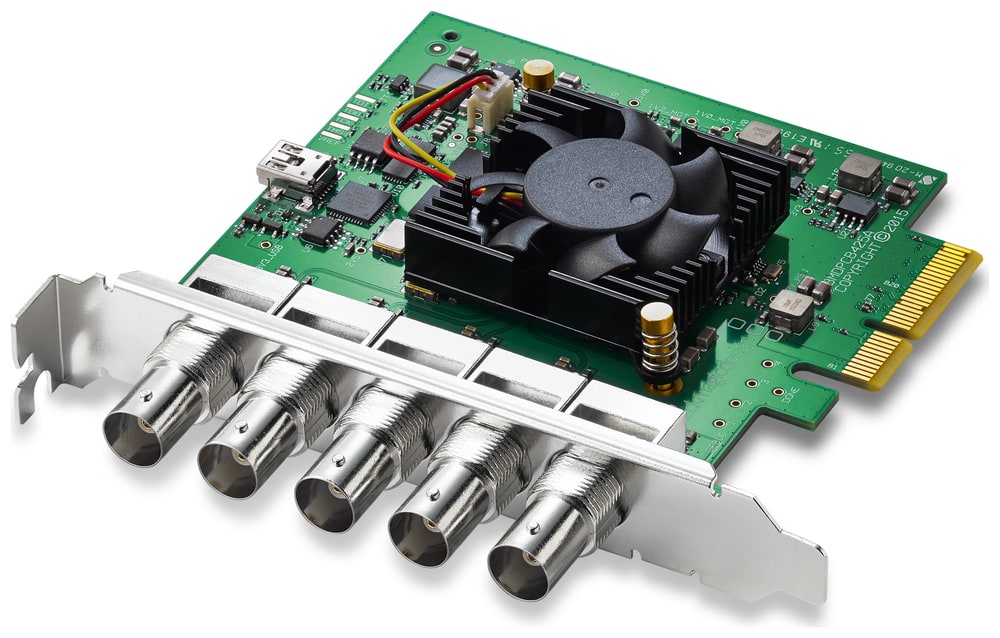

Five BNC connectors
The bracket carries four bidirectional 3G-SDI connectors and a Black Burst or Tri-Sync reference input. The card handles four inputs, four outputs, one input and three outputs, or two inputs and two outputs; every channel carries 16 channels of embedded 48 kHz / 24-bit audio.
Playout and digital signage
One computer can drive several screens or broadcast outputs at the same time. It suits media servers, multi-screen digital signage, playout as well as studio ingest and streaming.
SD and HD formats up to 1080p60
Every channel works with NTSC, PAL, 720p, 1080i, 1080PsF and 1080p up to 60 frames per second. The card handles 12-bit RGB 4:4:4 up to 1080p30 in playback and 10-bit YUV 4:2:2 in all formats, the Rec. 601, 709 and 2020 color spaces and static HDR metadata with HLG and PQ transfer characteristics.

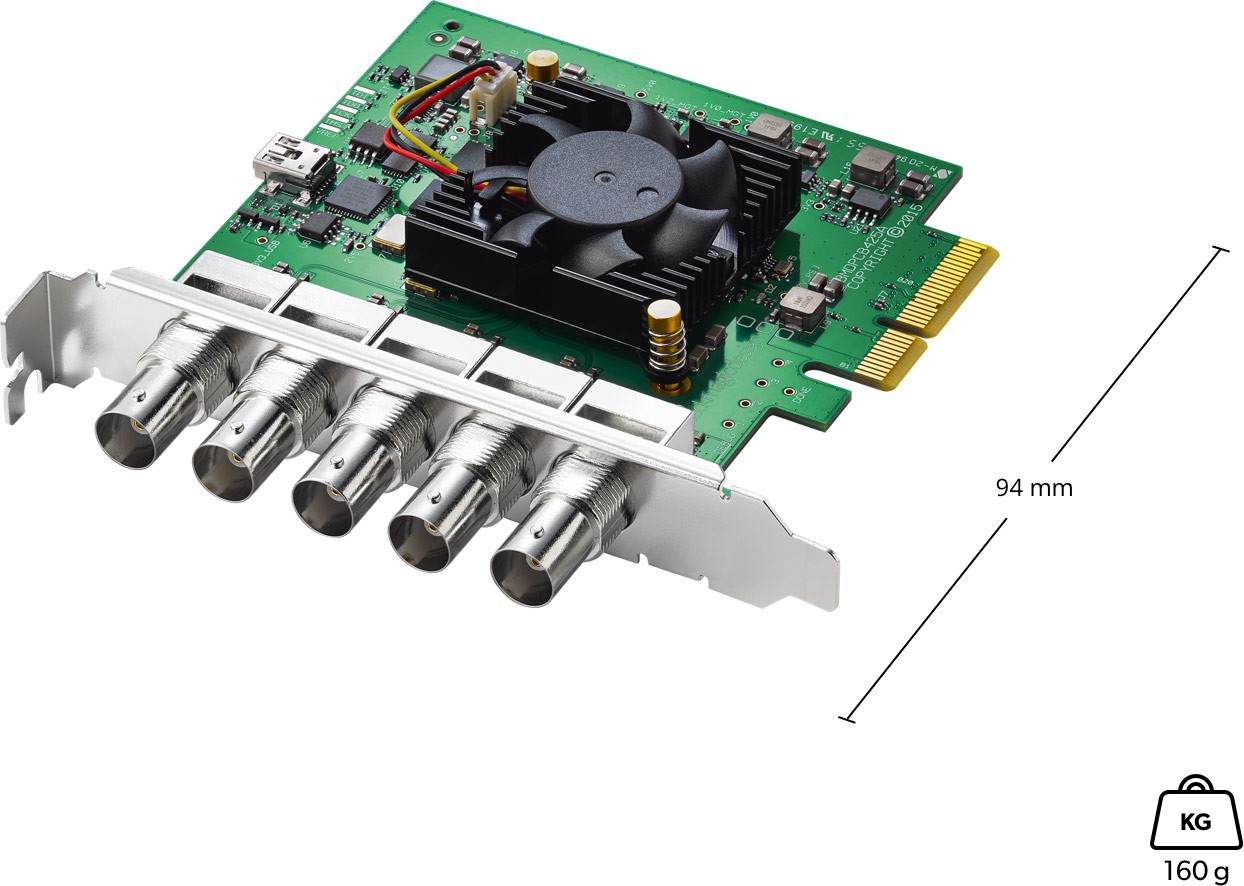

Dimensions and installation
The card is 94 mm long, weighs 160 g and draws 10 W. The PCI Express x4 generation 2 interface works in x4, x8 and x16 slots; among Mac computers, a Mac Pro with PCI Express slots is required.
Software and SDK
The Desktop Video software includes Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and the driver for macOS and Windows, and Media Express, Desktop Video Utility and the driver for Linux. The card works with DaVinci Resolve, Final Cut Pro, Premiere Pro and Media Composer as well as vMix, Wirecast or OBS, and the Desktop Video SDK exposes every channel to applications separately.

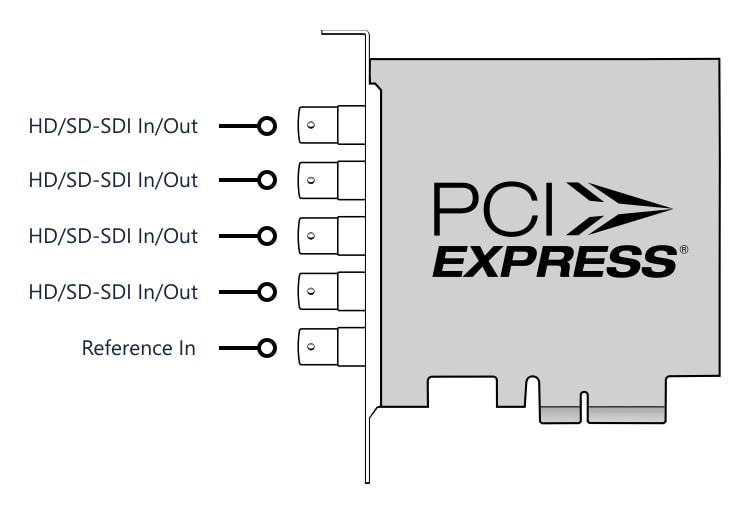

Connectors

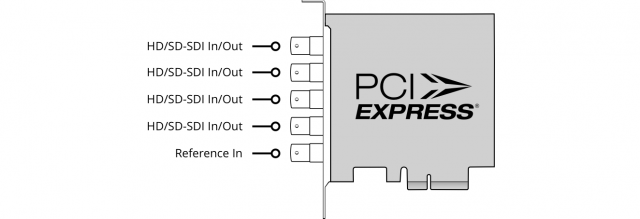

The bracket carries four HD/SD-SDI inputs/outputs with the reference input below them, all on BNC connectors.
More information
Details for four-channel SDI workflows
DeckLink Duo 2 is a powerful PCI Express x4 card for video capture and playback with four independent channels. Each can be assigned as an input or output, making it suitable for media servers, digital signage players and system integrators. An SDK for Windows, macOS and Linux is included.
Four independent 3G-SDI ports support SD and HD up to 1080p60. Each can run a different video standard independently of the other channels. The card handles duplex operation – simultaneous capture and playback – and has a Black Burst or Tri-Sync reference input.
It appears to the host computer as four independent SDI cards even though it takes a single slot. It can run with four inputs, four outputs, one input and three outputs, or two inputs and two outputs.
Media Express for capturing and playing back uncompressed video and an SDK for custom applications are included. The card supports codecs including AVC-Intra, DNxHR/DNxHD, ProRes, HEVC, XDCAM and uncompressed 8 and 10-bit modes.
PACKAGE CONTENT
- DeckLink Duo 2 card
SPECIFICATIONS
- Function: Simultaneous capture and playback
- SDI connectors: 4 x bidirectional 3G-SDI (BNC)
- Channel configuration: Each connector independently as input or output, up to 12-bit SD and HD
- Maximum format: SD and HD up to 1080p60
- Reference input: Tri-Sync or Black Burst
- Embedded audio: 16 channels in SD and HD; 48 kHz, 24-bit
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- Sampling and color precision: 4:2:2, 4:4:4; 8/10/12-bit RGB 4:4:4 up to 1080p30 (12-bit in playback only), 8/10-bit YUV 4:2:2 in all formats
- Color space: Rec. 601, Rec. 709, Rec. 2020
- HDR: Static HDR metadata, HLG and PQ transfer characteristics
- Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ITU-R BT.656, ITU-R BT.601
- SDI metadata: RP 188 / SMPTE 12M-2 and closed captioning
- Processing: hardware real time color space conversion; software down conversion on playback and capture (letterbox, anamorphic 16:9); software SD to HD up conversion on capture; 720p ↔ 1080 cross conversion on playback (software); real time effects in DaVinci Resolve, Final Cut Pro, Premiere Pro and Media Composer
- Computer interface: PCI Express x4 generation 2, compatible with x4, x8, x16 slots
- Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4
- Software included: Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and driver for macOS and Windows; Media Express, Desktop Video Utility and driver for Linux
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux; among Mac computers, only a Mac Pro with PCI Express slots
- Power consumption: 10 W
- Card length: 94 mm
- Weight: 160 g
- Operating temperature: 5–40 °C
- Storage temperature: −20–45 °C
- Relative humidity: 0–90% non-condensing
- Manufacturer warranty: 3 years (limited manufacturer warranty)
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Capture cards internal |
Main parameters
| Maximum resolution | HD · 1920×1080 @ 60 fps |
| Output | SDI · 3G SDI |
| Inputs | SDI · 3G SDI |
| Interface type | PCI Express 2.0 x4 |
Other parameters
| Other | Multiple inputs |
