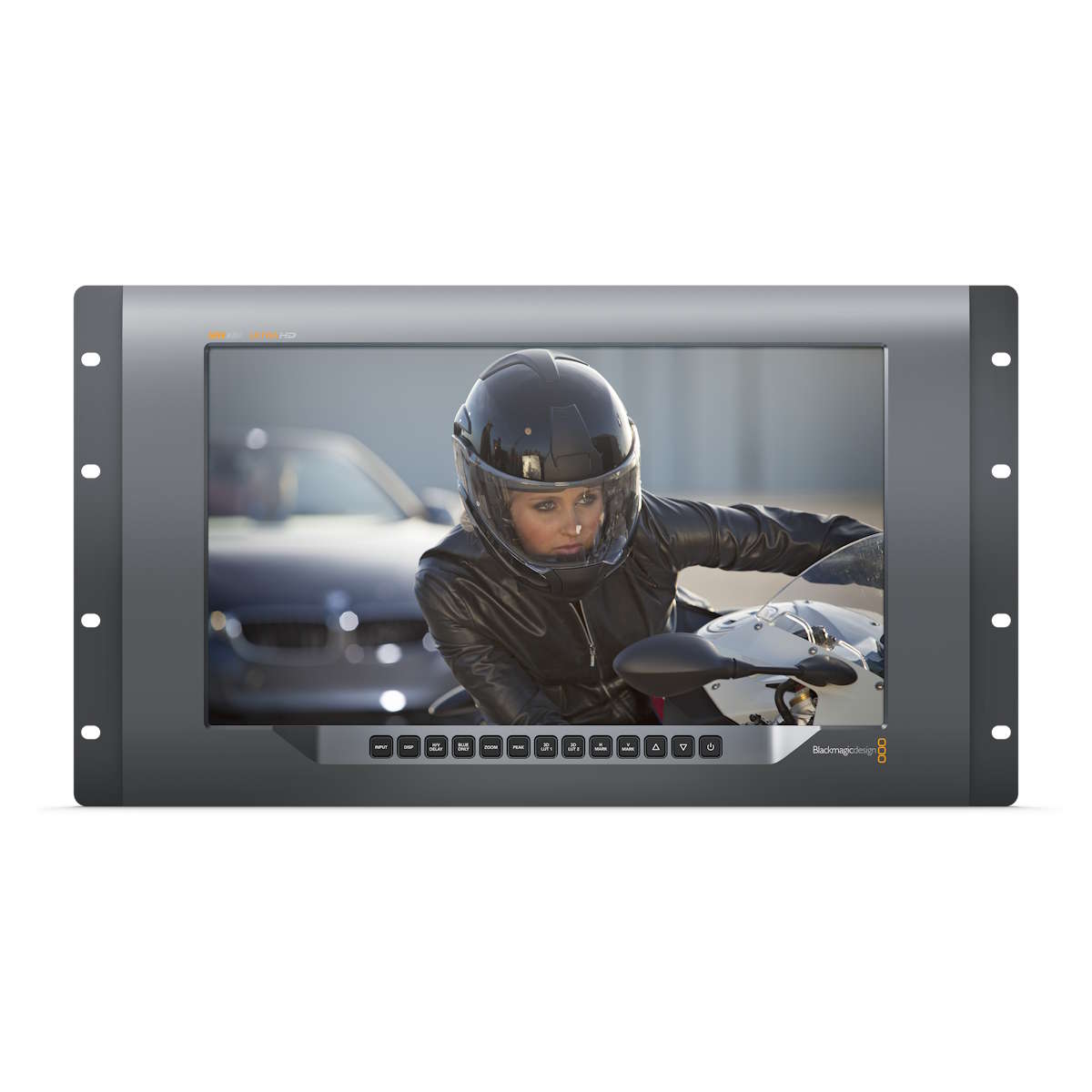

SmartView 4K is a professional Ultra HD broadcast monitor with a native resolution of 3840 x 2160, an amazingly bright LCD screen with a wide viewing angle and advanced broadcast features such as 3D LUTs, adjustable on screen markers, H/V delay, blue only and more. SmartView 4K features multi rate 12G-SDI inputs that automatically switch between SD, HD and…
SmartView 4K is a professional Ultra HD broadcast monitor with a native resolution of 3840 x 2160, an amazingly bright LCD screen with a wide viewing angle and advanced broadcast features such as 3D LUTs, adjustable on screen markers, H/V delay, blue only and more. SmartView 4K features multi rate 12G-SDI inputs that automatically switch between SD, HD and Ultra HD formats up to 2160p60.
Native Ultra HD monitoring in a slim 6RU design

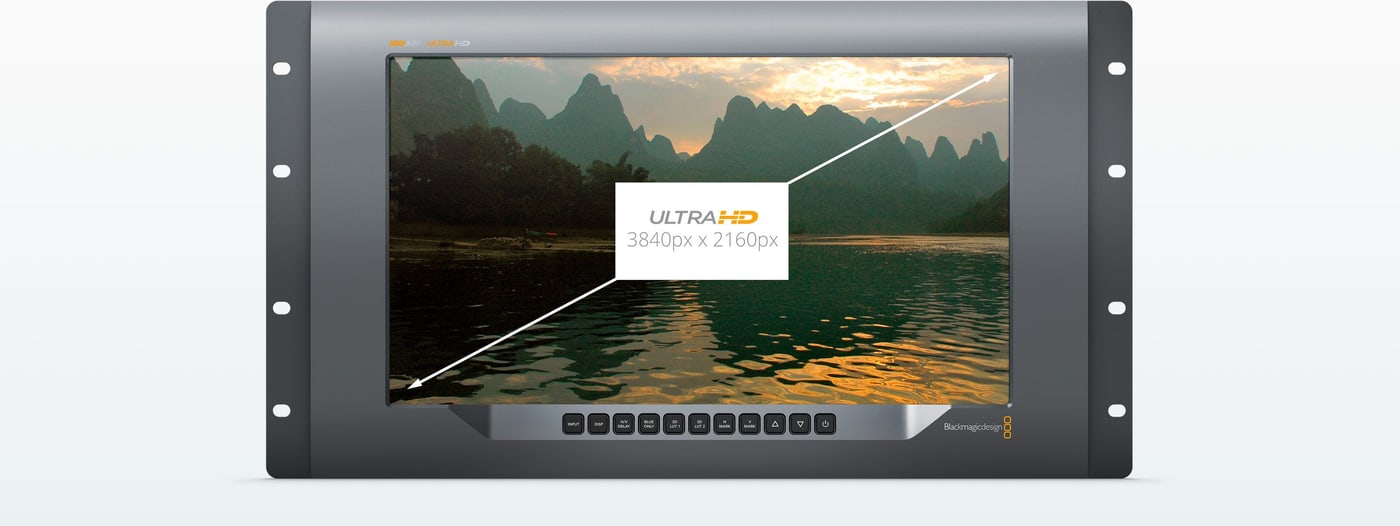

SmartView 4K combines a 15.6-inch 3840 × 2160 panel, dual 12G‑SDI inputs and professional monitoring tools for SD, HD, Ultra HD and DCI 4K up to 2160p60.
15.6″ Ultra HD12G‑SDI2160p60

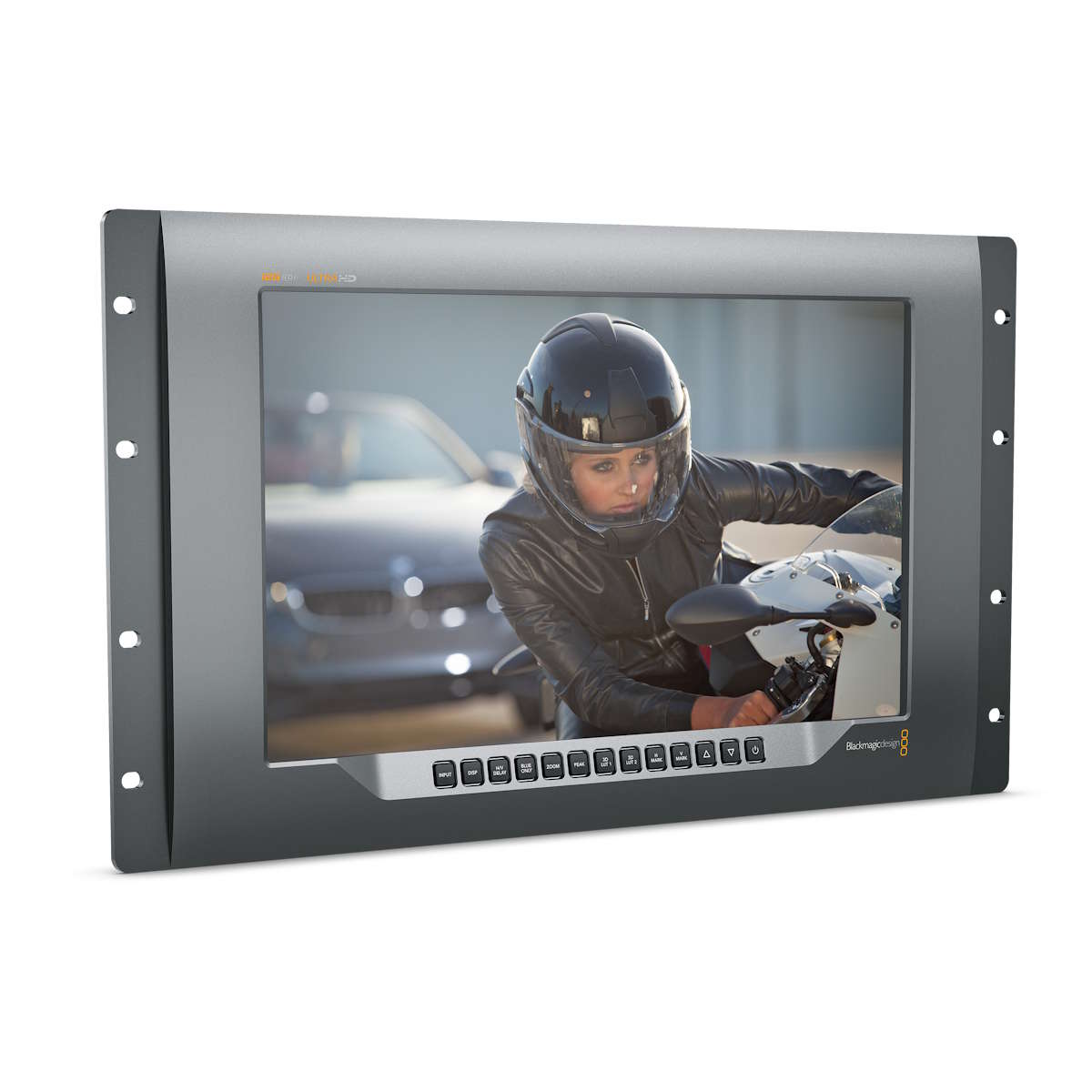

Teranex processing and monitoring tools
The built-in processor scales SD and HD sources to the panel’s native resolution. Tools include 3D LUTs, adjustable markers, H/V delay, blue only and fast input switching.

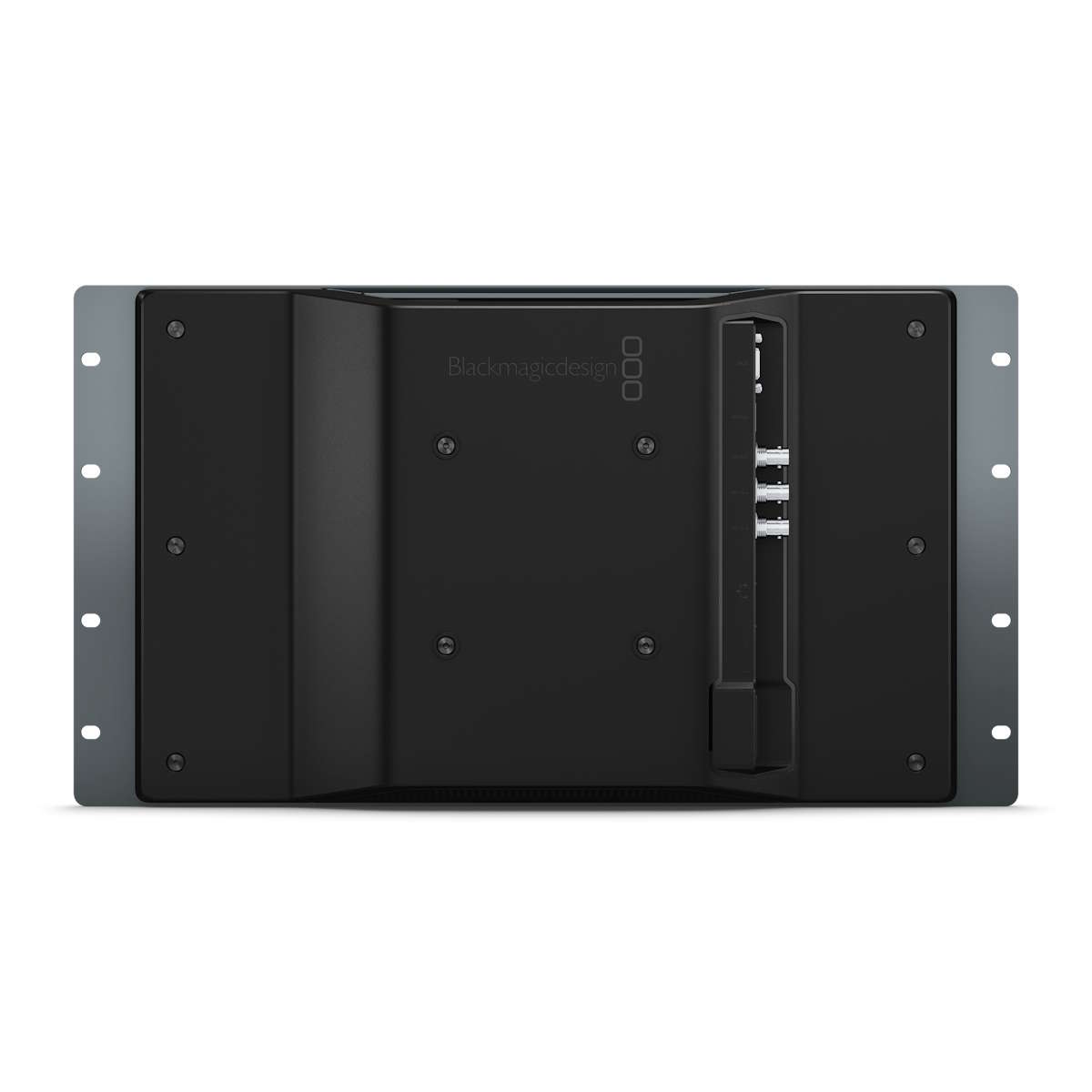

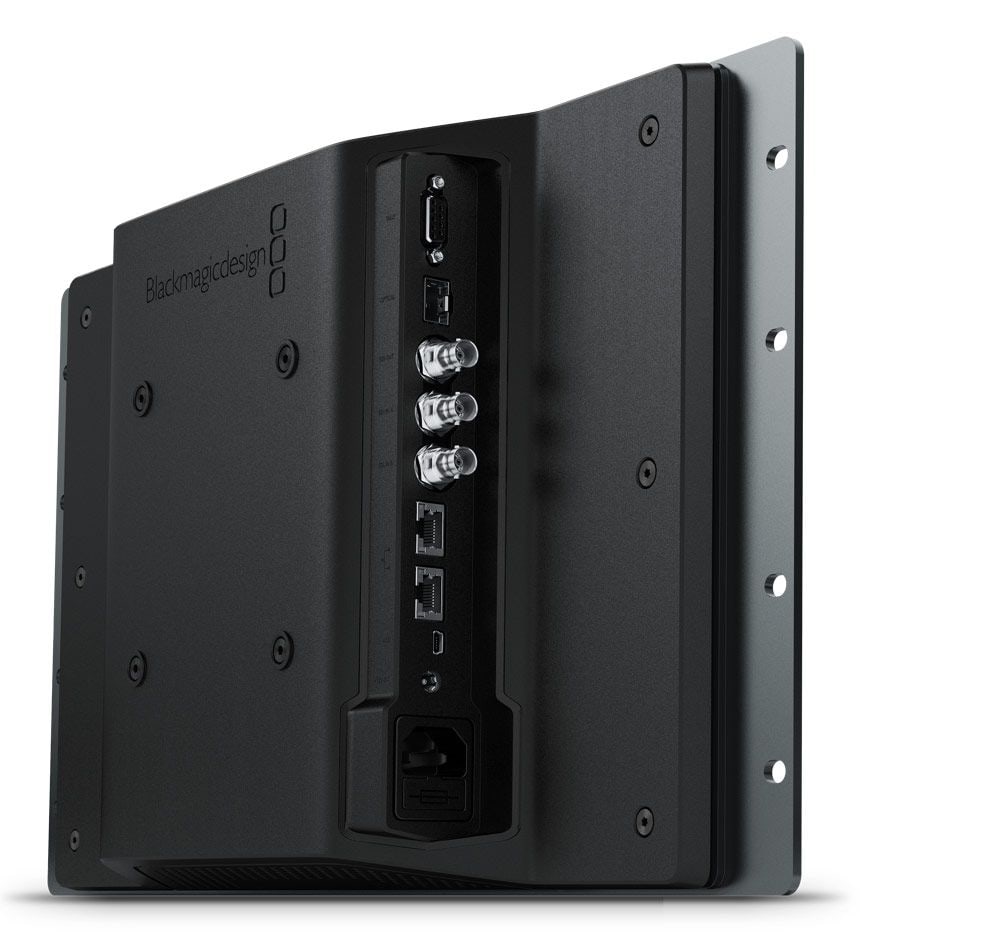

Rack, VESA and redundant power options
The machined metal chassis can be rack mounted or attached to an arm or wall using VESA points. AC and 12V DC inputs support mains or battery operation.
Keep Ultra HD pictures under control in the studio or on location
Get Ready for Ultra HD SmartView 4K is a professional Ultra HD broadcast monitor with a native resolution of 3840 x 2160, an amazingly bright LCD screen with a wide viewing angle and advanced broadcast features such as 3D LUTs, adjustable on screen markers, H/V delay, blue only and more. SmartView 4K features multi rate 12G-SDI inputs that automatically switch between SD, HD and Ultra HD formats up to 2160p60. With 12G-SDI, SmartView 4K is an incredibly future proof design with unprecedented full resolution Ultra HD high frame rate support all built into the attractive thin rack mount design.
Teranex Algorithms When monitoring SD, 720 HD or 1080 HD SDI sources, the built in Teranex processor uses advanced patented and proprietary PixelMotion™ algorithms to automatically de-interlace and scale video to the native Ultra HD resolution of the LCD. This means customers get visually transparent, artifact free scaling for the best quality possible and a fluid smooth viewing experience. The 6 rack unit size machined metal design of SmartView 4K features a built in control panel for access to advanced broadcast features such as built in 3D LUTs, H/V delay, blue only for checking hue and image noise and customizable frame markers. The machined metal design also has a metal internal chassis allowing VESA mounting points on the rear so the monitor can be rack mounted, or mounted on articulated arms similar to computer monitors. This allows installation in news rooms, walls and other non rack mount locations.

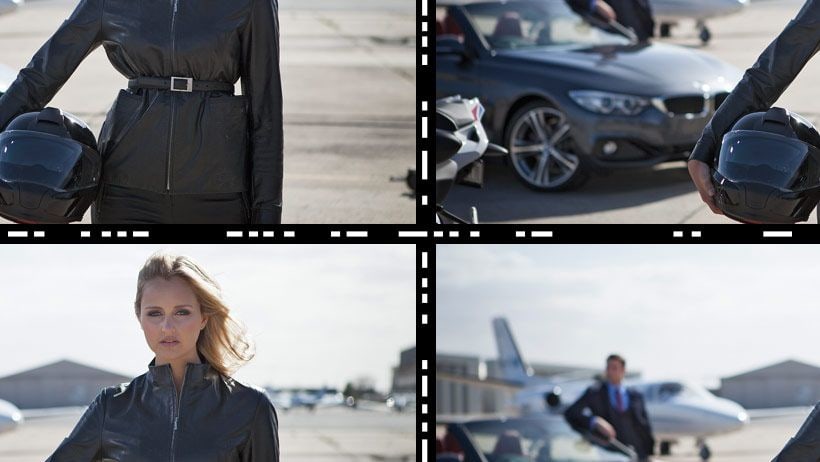

H/V Delay With the advent of SDI video in the mid 1990’s some features on analog broadcast monitors were lost. One of these feature was the H/V delay that allowed broadcast engineers to view data and signals in the horizontal and vertical blanking. With SmartView 4K, customers get these features retuned and with the H/V delay feature, customers can shift the image to monitor data and information in the SDI blanking, such as embedded audio data, subtitles, VITC and more.
AC/DC Power Blackmagic SmartView 4K includes both universal AC power as well as 12V DC power inputs so it can be used with a battery or plugged into standard AC mains power, making it the perfect professional monitor for any broadcast facility, mobile broadcast truck, or even on location and in fly away kits. There is also a SMPTE compatible optical fiber SDI socket for allowing customers to optionally add an optical fiber SDI module if they want to run optical fiber direct to their monitor without converters. Optional optical fiber is important with the high speeds of 12G-SDI where customers might feel more comfortable about the reliability of optical fiber.

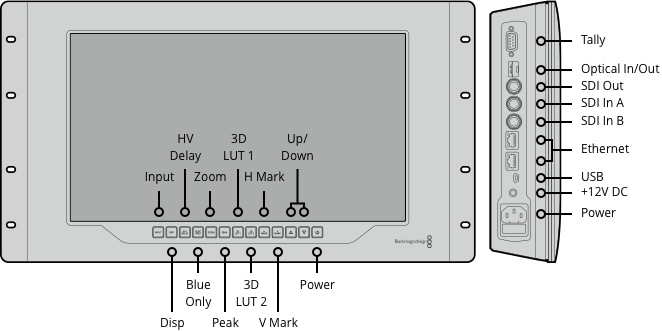

Remote Control Blackmagic SmartView 4K can be controlled from the front panel or remotely via rear mounted Ethernet connection with loop output using the included Mac and Windows software. It also supports VESA mounting so customers can install it on articulated monitor arms, on walls or in equipment racks. When used on set, the dual 3D LUTs can be selected on and off with the push of a button, and the DC power input allows a V-Lock battery pack to be mounted on the rear of the monitor and plugged into the DC input for long running time where no AC power is available.
SmartView 4K Key Features
Large, bright 15.6 inch native Ultra HD resolution LCD rack mount monitor.
Multi rate dual 12G-SDI connections, auto switching SD, HD and up to 2160p60 Ultra HD formats.
Built in Teranex processor automatically de-interlaces and scales SD and HD video up to Ultra HD resolution for improved quality on lower resolution video inputs.
Advanced broadcast features such as 3D LUTs, adjustable on screen markers, H/V delay and blue only.
Optical fiber SDI module socket so customers can add a SMPTE compatible optical fiber module.

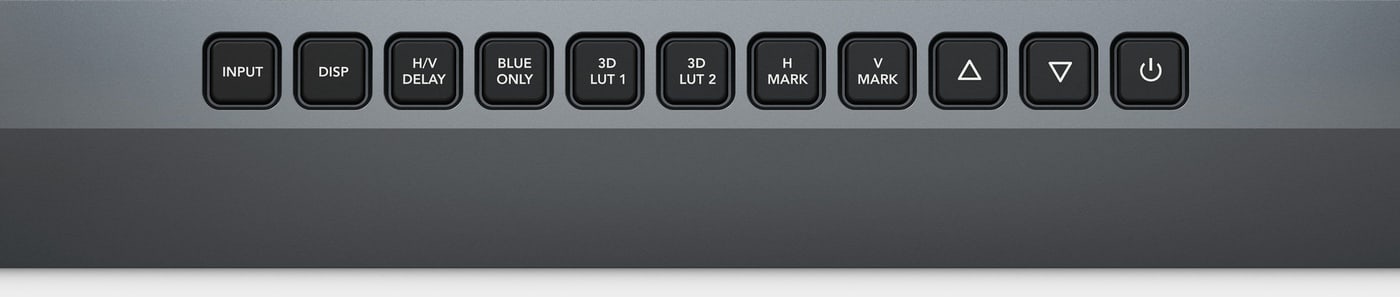

Control via front panel or remotely via Ethernet using included Mac and Windows software control panel allowing remote control and adjustments from a single location.
Both AC and 12V DV power inputs allowing mains and battery operation.
Rack mount and VESA mount points allowing rack or non rack installation.
PACKAGE CONTENT
1× Blackmagic Design SmartView 4K
1× card with software and documentation
SPECIFICATIONS
Display: 15.6″ LCD, 3840 × 2160 pixels

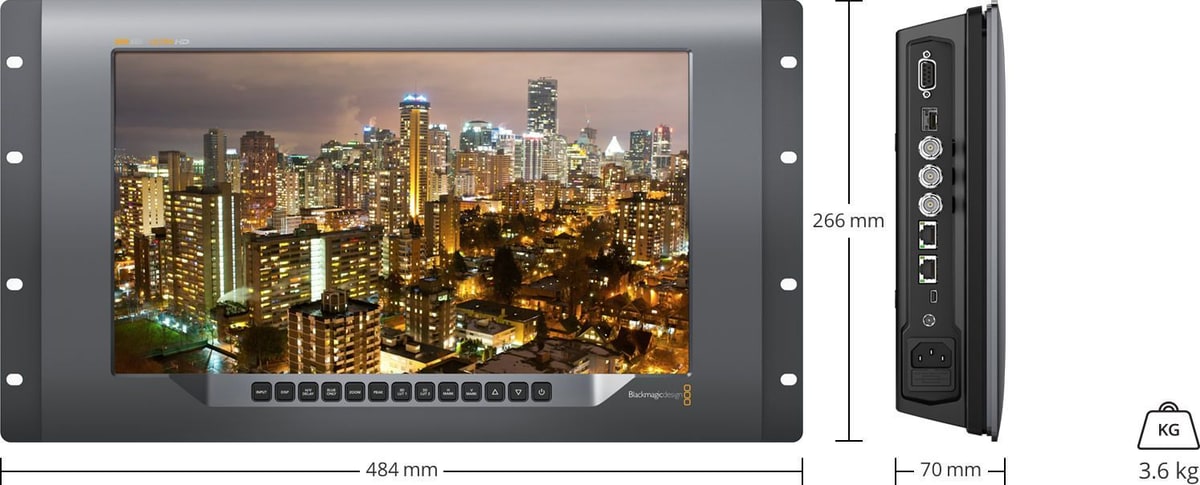

Rack installation: 6 RU
SDI inputs: 2× multi-rate 12G‑SDI
Loop output: reclocked SDI output follows the selected input
Optical interface: SFP cage for an optional optical SDI module
Formats: SD, HD, 2K DCI, Ultra HD and DCI 4K up to 2160p60
Monitoring tools: 3D LUTs, markers, H/V delay and blue only
Processing: Teranex deinterlacing and scaling to Ultra HD

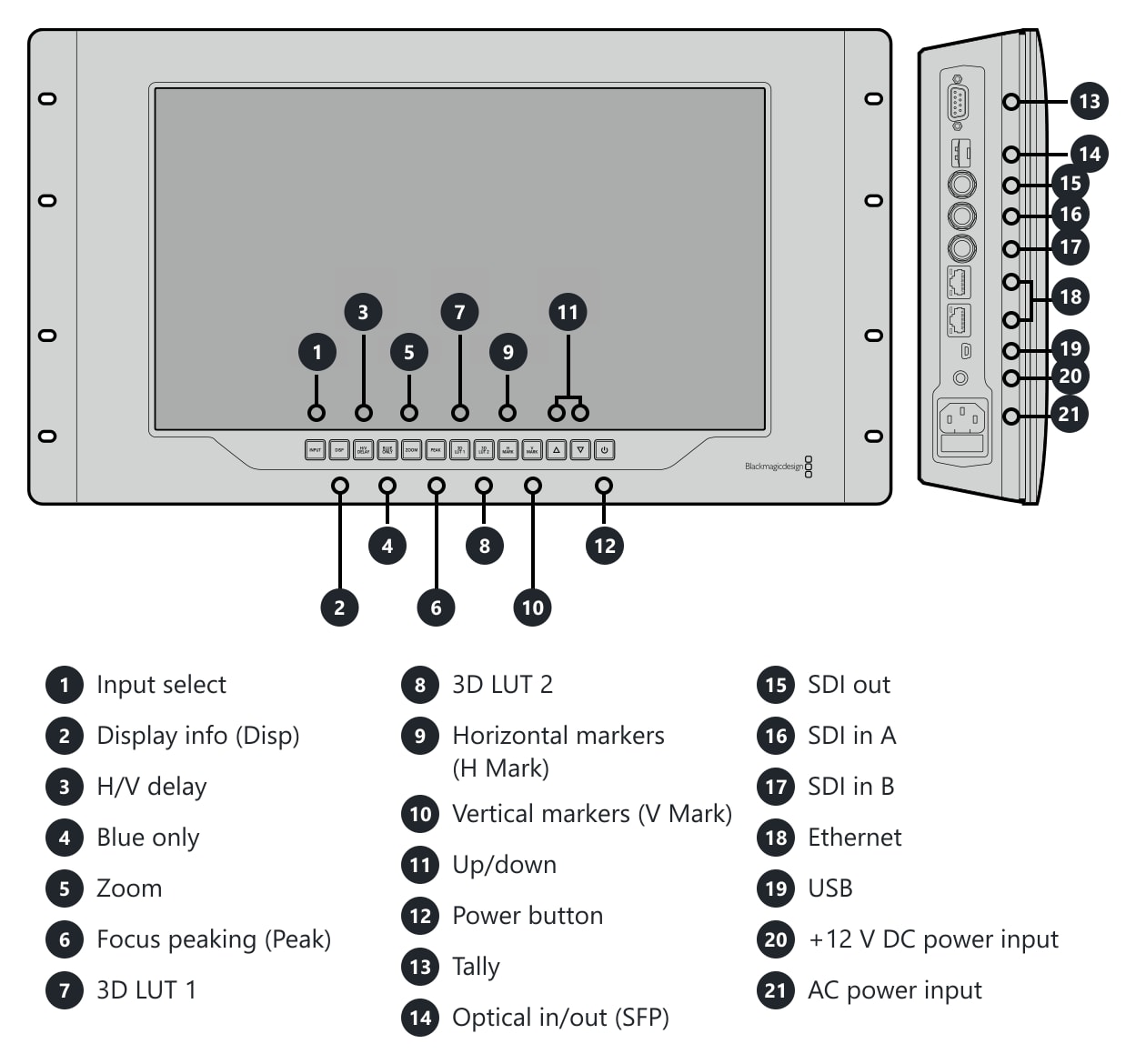

Control: front panel, USB and loop-through gigabit Ethernet
Tally: 9-pin D connector
Mounting: rack and VESA
Power: 100–240 V AC or 12 V DC
Warranty: 1 year
WE RECOMMEND
The SmartView 4K 2 is a professional Ultra HD monitor equipped with 12G-SDI inputs, enabling precise signal monitoring up to a resolution of 2160p60. For optimal use in the production workflow, it is recommended to pair it with cameras featuring native SDI output, editing cards for monitoring from post-production workstations, or converters for connecting HDMI devices.
Cameras with 12G-SDI output - These cameras allow direct connection to the monitor using a single SDI cable for 4K video transmission.
Editing Cards and I/O Interfaces - Devices for outputting video signals from a computer directly to a SmartView monitor for professional grading and editing.
