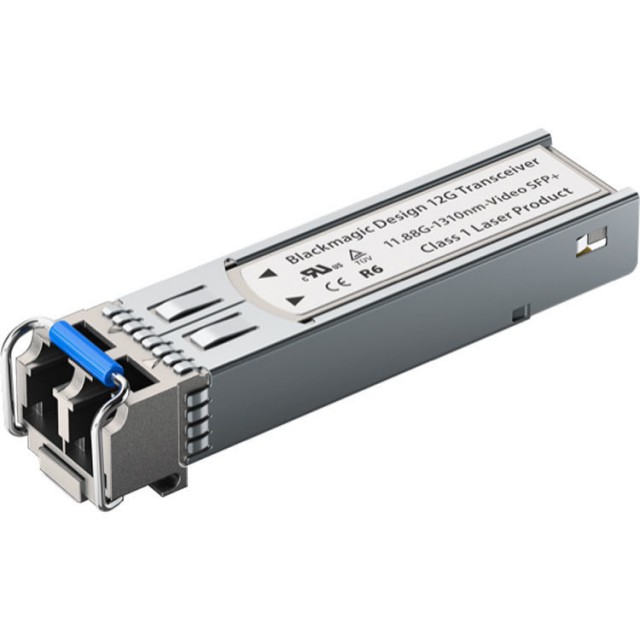

Blackmagic Design 12G-SDI SFP Optical Module
SKU: ADPT-12GBI/OPT
The Blackmagic Design 12G-SDI SFP Optical Module is an SFP optical module that carries SDI video over optical fiber in SD, HD and Ultra HD formats. It plugs into the optional SFP socket of Blackmagic Design devices, for example the Mini Converter Optical Fiber 12G or the Teranex Mini Optical to HDMI 12G. It uses duplex LC connectors for singlemode fiber and…
338 € with VAT
279.34 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 2 pcs
Praha 2 pcs, Bratislava 2 pcs
Praha 2 pcs, Bratislava 2 pcs
Top accessories for Blackmagic Design 12G-SDI SFP Optical Module
Blackmagic Design Mini Converter Optical Fiber 12G
The bi-directional Mini Converter Optical Fiber 12G converts SDI to optical and lets
178 €
In stock > 5 pcs
Blackmagic Design DeckLink 4K Extreme 12G
Promotion: -10%
Blackmagic DeckLink 4K Extreme 12G is a PCI Express card with full bandwidth 4K capture
1 075.47 €
1 196.69 €
To be sent 1 pcs
Blackmagic Design Teranex Mini Optical to HDMI 12G
Blackmagic Teranex Mini Optical to HDMI 12G is a professional converter from 12G-SDI
649 €
In stock 1 pcs
Blackmagic Design 2110 IP Mini BiDirect 12G SFP
Blackmagic 2110 IP Mini BiDirect 12G SFP connects a camera with SDI to an SMPTE-2110
509 €
on request
Blackmagic Design UltraStudio 4K Extreme 3
Blackmagic Design UltraStudio 4K Extreme 3 is a top-end capture and playback device
3 569 €
on request
Blackmagic Design 2110 IP Mini IP to HDMI SFP
Monitor SMPTE-2110 video and audio on an HDMI monitor or television even over long
345 €
on request
2C SM Jumper Duplex Patch Cable 0.40m Black (LC patch cable included in FieldCast Adapter Two)
2C SM Jumper Duplex Patch Cable 0.40m Black (LC patch cable included in FieldCast
39 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Blackmagic Design 12G-SDI SFP Optical Module is an SFP optical module that carries SDI video over optical fiber in SD, HD and Ultra HD formats. It plugs into the optional SFP socket of Blackmagic Design devices, for example the Mini Converter Optical Fiber 12G or the Teranex Mini Optical to HDMI 12G. It uses duplex LC connectors for singlemode fiber and a wavelength of 1310 nm.
12G-SDI over optical fiber
Insert the module into the SFP socket of a compatible Blackmagic Design device and the SDI signal travels over optical fiber, which covers far greater distances than coaxial cable.
12G-SDISD, HD, Ultra HDSinglemode 1310 nmLC connectorsSFP socket
For 12G-SDI
The 12G module carries SD, HD and Ultra HD formats. It fits the same SFP socket as the 3G and 6G modules.
Compatible devices
Mini Converter Optical Fiber 12G, Teranex Mini Optical to HDMI 12G, Teranex Mini HDMI to Optical 12G, 2110 IP Mini BiDirect 12G SFP, 2110 IP Mini IP to HDMI SFP. The DeckLink 4K Extreme 12G and the UltraStudio 4K Extreme 3 also have an optional optical input and output for up to two SMPTE modules.
Optical fiber
Duplex LC connectors for singlemode fiber, wavelength 1310 nm.
Sold separately
Devices with an SFP socket ship without a module, so you choose 3G, 6G or 12G to suit your work.
Which devices it fits
The Mini Converter Optical Fiber 12G, which converts SDI to optical fiber and back, has an SFP socket, and so do the Teranex Mini Optical to HDMI 12G and the Teranex Mini HDMI to Optical 12G. The module is bought separately for them, so you choose 3G, 6G or 12G according to the signals you need to carry. The 2110 IP Mini BiDirect 12G SFP and the 2110 IP Mini IP to HDMI SFP also have an SFP socket that accepts 3G, 6G and 12G modules. The DeckLink 4K Extreme 12G and the UltraStudio 4K Extreme 3 also offer an optional optical input and output for up to two SMPTE modules.
The difference between 3G, 6G and 12G modules
The 3G module carries SD and HD signals, while the 6G and 12G modules carry SD, HD and Ultra HD. The Mini Converter Optical Fiber 12G and the Teranex Mini devices handle formats up to 2160p60, so choose the 6G or 12G module for Ultra HD.
Optical fiber instead of coaxial cable
SDI over optical fiber covers distances that coaxial cable cannot, and uses the same affordable optical cables as computer networks. The signal runs over a duplex link with LC connectors and singlemode fiber.
What you need besides the module
At each end of the link you need a device with an SFP module, and singlemode fiber with duplex LC connectors between them. You will find a suitable patch cable in the accessories.
More information
Optional 12G optical module for SD, HD and Ultra HD standards. The module can be used with the Blackmagic Design Studio Camera, the Blackmagic Design ATEM Studio Converter or the Blackmagic Design ATEM Talkback Converter 4K.
- Adds optical fiber to the Blackmagic Studio Camera 4K
- Runs optical fiber over distances of up to 45 kilometers
- Supports 12G-SDI and 10-bit 4:2:2 video
- No ATEM Camera Converter required
PACKAGE CONTENT
- Blackmagic Design 12G-SDI SFP Optical Module
SPECIFICATIONS
- Type: SFP optical module (transceiver)
- SDI rate: 12G-SDI
- Supported formats: SD, HD and Ultra HD
- Wavelength: 1310 nm
- Optical fiber: Singlemode
- Connector: Duplex LC
- Label marking: Blackmagic Design 12G Transceiver, 11.88G-1310nm-Video SFP+
- Laser class: Class 1
- Compatible devices: Mini Converter Optical Fiber 12G, Teranex Mini Optical to HDMI 12G, Teranex Mini HDMI to Optical 12G, 2110 IP Mini BiDirect 12G SFP, 2110 IP Mini IP to HDMI SFP and the optional optical input and output for up to two SMPTE modules on the DeckLink 4K Extreme 12G card and the UltraStudio 4K Extreme 3 interface
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Source | Optical · 12G SDI |
| Target | Optical · 12G SDI |
