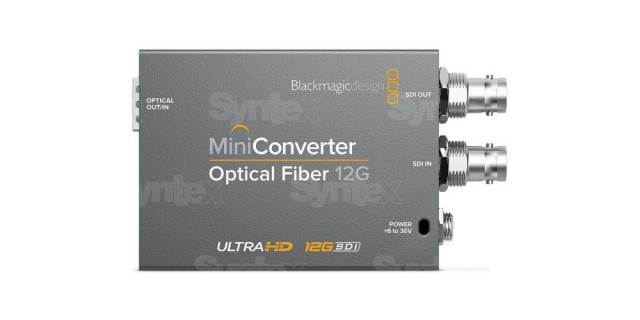

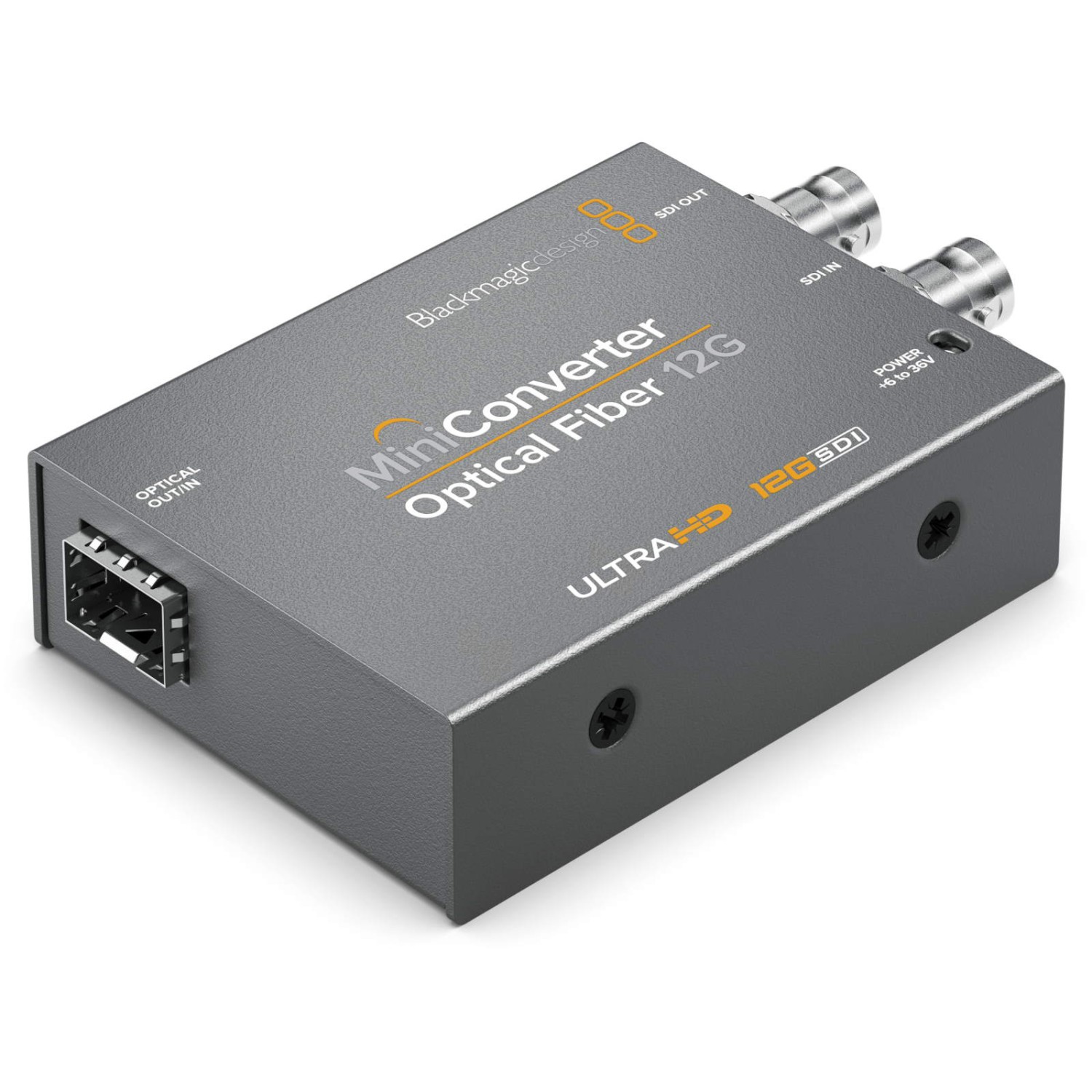

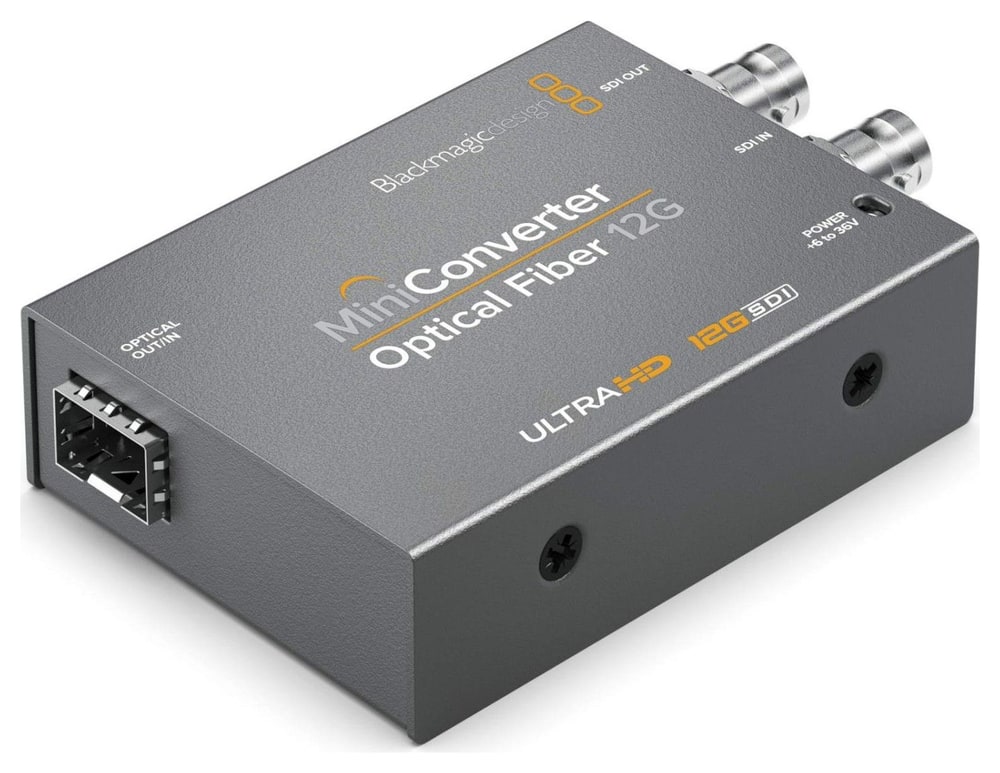

Blackmagic Design Mini Converter Optical Fiber 12G
SKU: CONVMOF12G
The bi-directional Mini Converter Optical Fiber 12G converts SDI to optical and lets you extend transmission distances considerably, up to 16 km. This can substantially reduce costs and increase the distance of camera positions in live broadcasts. Cameras can work up to 16 km away from the control room, recorders and switchers over low-cost optical cabling.…
178 € with VAT
147.11 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs, Bratislava 1 pcs, Budapest 1 pcs
Praha > 5 pcs, Bratislava 1 pcs, Budapest 1 pcs
Top accessories for Blackmagic Design Mini Converter Optical Fiber 12G
Blackmagic Design 12G-SDI SFP Optical Module
The Blackmagic Design 12G-SDI SFP Optical Module is an SFP optical module that carries
338 €
In stock 2 pcs
Blackmagic Design 6G-SDI SFP Optical Module
The Blackmagic Design 6G-SDI SFP Optical Module is an SFP optical module that carries
241 €
In stock 2 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs
Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC
Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request
Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The bi-directional Mini Converter Optical Fiber 12G converts SDI to optical and lets you extend transmission distances considerably, up to 16 km. This can substantially reduce costs and increase the distance of camera positions in live broadcasts. Cameras can work up to 16 km away from the control room, recorders and switchers over low-cost optical cabling. The converter also gives more flexibility when fitting out studios, sports stadiums or cultural and conference halls.
SDI over optical for kilometers
Converts SDI to optical and optical back to SDI at the same time, and each direction can even carry a different video standard.
12G-SDISFP socketUp to 2160p60Bi-directionalPower supply included
One converter, two paths
Multi-rate 12G-SDI supports SD, HD and Ultra HD up to 2160p60. A standard 3G, 6G or 12G-SDI SFP optical module can be installed in the socket; the SFP module is not included.
Remote cameras
Bring a camera up to 16 km to the control room over low-cost optical cabling.
Stadiums and arenas
Link positions at large outdoor events and in sports arenas.
Two directions
Send a different signal the other way at the same time, such as program from the control room.
Secure power
The power supply has a locking connector that will not pull out.

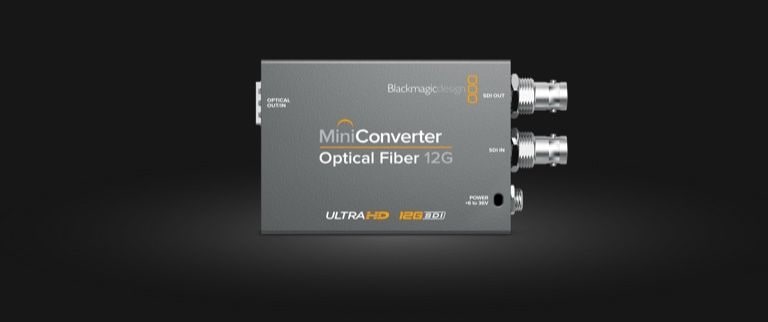

Two converters in one
Mini Converter Optical Fiber 12G converts SDI to optical and optical back to SDI at the same time, and each direction can carry a different video standard. Each direction works independently of the other and carries 16 channels of embedded audio.

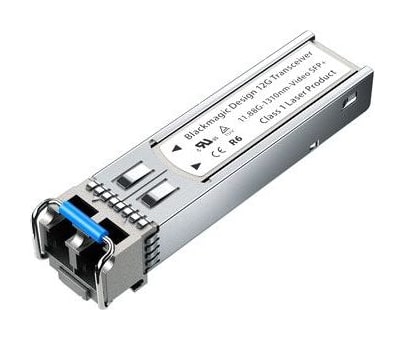

Standard SFP optical module
Any standard 3G, 6G or 12G-SDI SFP optical module can be installed in the SFP socket, so you can send SDI over the same low-cost optical cabling that is commonly used for computer networks. The SFP module is not included – Blackmagic offers 3G, 6G and 12G-SDI modules.

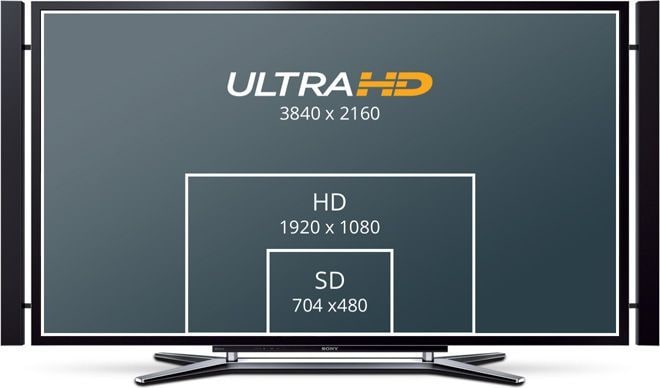

12G-SDI up to 2160p60
The multi-rate 12G-SDI connections are compatible with all SD, HD and Ultra HD formats up to 2160p60 and with level A and B 3G-SDI equipment. Reclocking and ASI support keep the signal clean along the whole route.
Power with a locking connector
The included universal power supply has a locking connector, so the power cannot be accidentally disconnected. The converter has no user controls – it detects the format itself and draws just 2 W.
In the rack, in the truck and outdoors
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a studio rack, an outside broadcast truck or a live sports event outdoors. The connections are easy to reach and use standard cables.

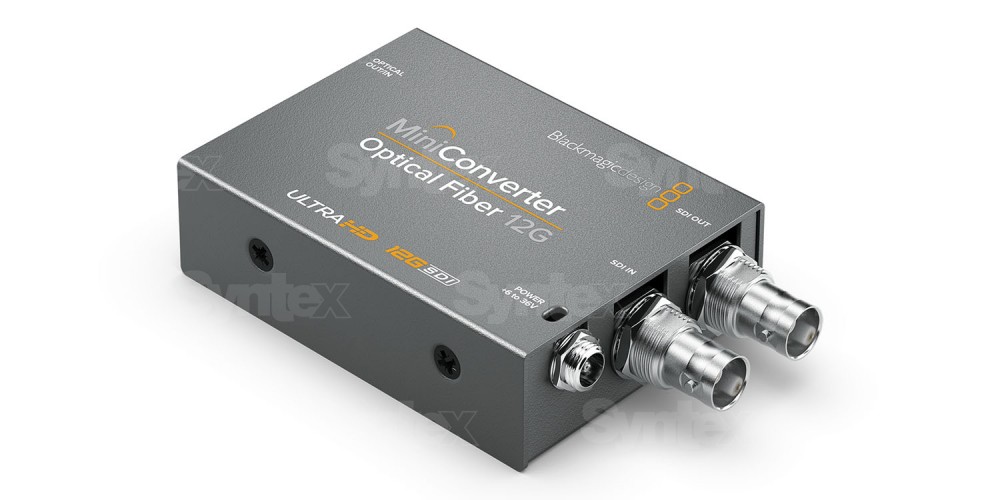

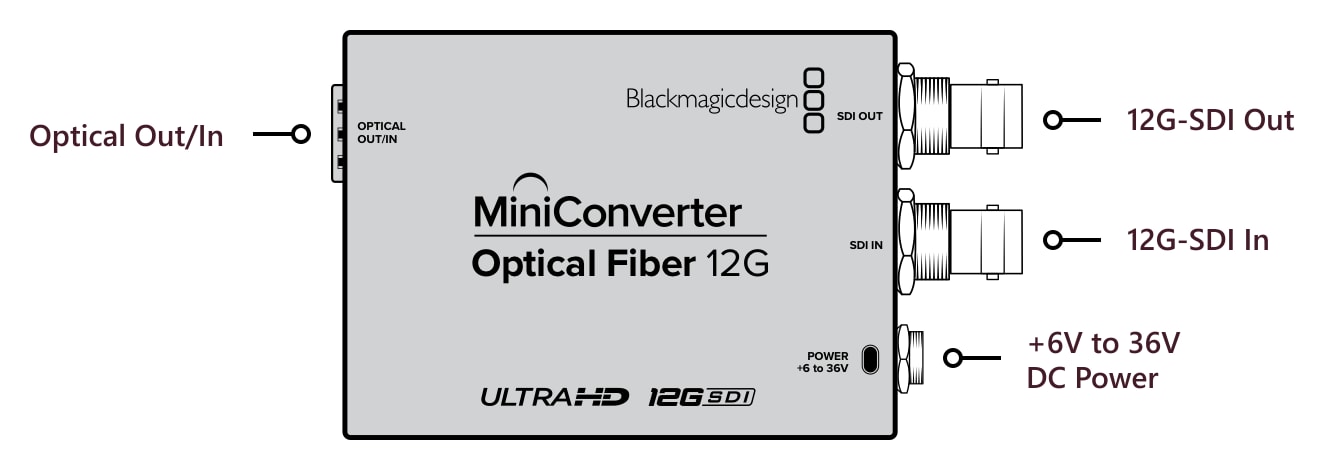

Connections
One side has the SFP socket for the optical output and input, the other the 12G-SDI output and input on BNC connectors and the locking power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
The converter has no user controls – it detects supported formats automatically and keeps picture and sound stable throughout the signal chain.
PACKAGE CONTENT
- Mini Converter Optical Fiber 12G
- Universal 12 V power supply with locking connector and international socket adapters
- SFP optical module not included
SPECIFICATIONS
- SDI input: 1× SD/HD/12G-SDI
- SDI output: 1× SD/HD/12G-SDI, automatically matching the optical input
- Optical fiber connection: 1× SMPTE SFP socket (10-bit SD/HD/12G-SDI optical input and output); SFP module sold separately
- Optical audio: 16 channels embedded in each direction
- Auto detection: SD, HD, level A or B 3G-SDI, 6G-SDI, 12G-SDI
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K standards: 2K DCI 23.98p, 24p, 25p, 2K DCI 23.98PsF, 24PsF, 25PsF
- Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K DCI standards: 4K DCI 23.98p, 24p, 25p
- SDI compliance: SMPTE 259M, 292M, 296M, 424M, 425M, ST 2081, ITU-R BT.656, BT.601 and SMPTE 297M (optical fiber)
- SDI sampling and color space: 4:2:2 and 4:4:4, YUV and RGB
- Audio sampling: 48 kHz, 24 bit
- ASI: yes
- Reclocking: yes
- Settings control: no user controls (automatic detection)
- Power supply: universal 12 V with international socket adapters, locking connector, cable tie point
- Operating voltage: 6–36 V DC
- Power consumption: 2 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing

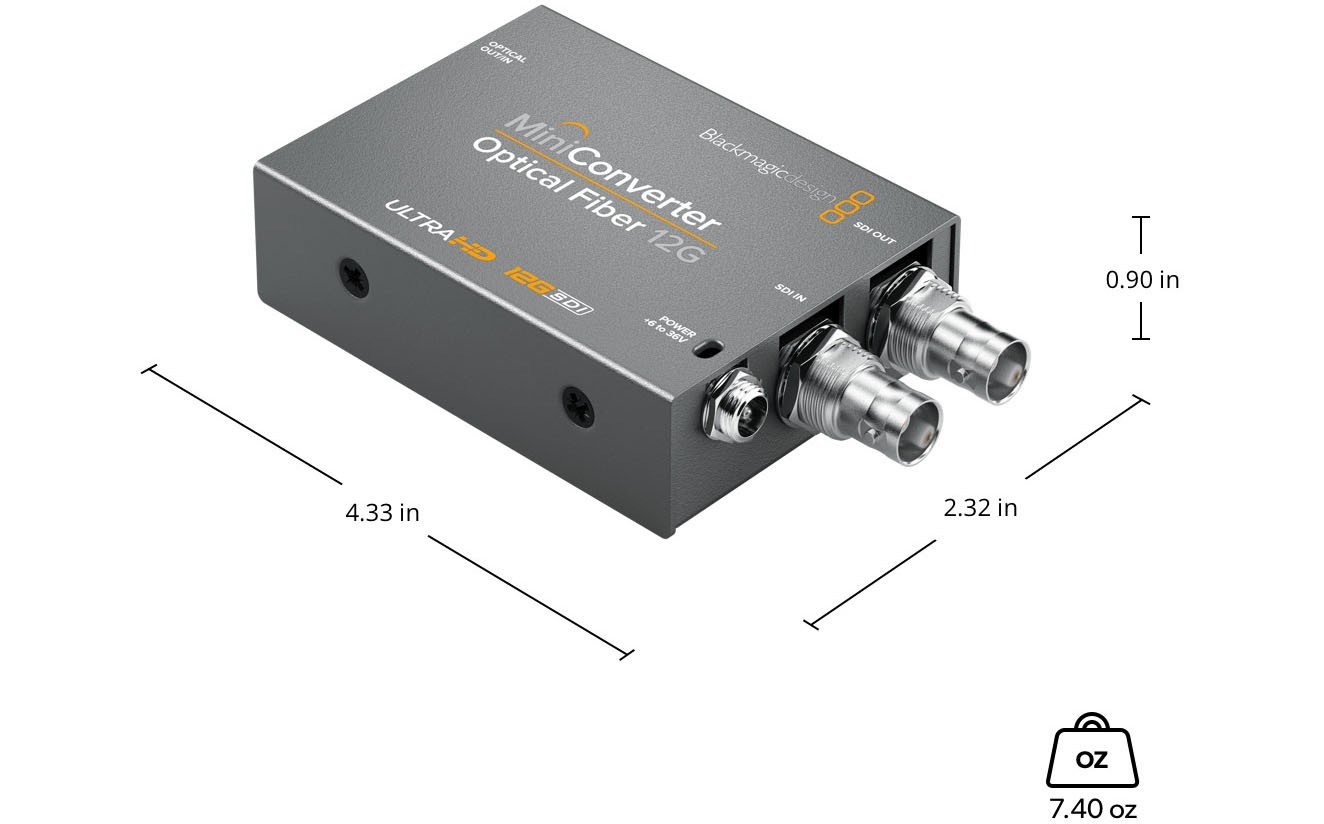

- Dimensions (L × W × H): 4.33 × 2.32 × 0.90 in (110 × 59 × 23 mm)
- Weight: 7.40 oz (210 g)
- Warranty: 3-year limited manufacturer warranty
WE RECOMMEND
The following accessories go with the Blackmagic Design Mini Converter Optical Fiber 12G.
Power supplies – Blackmagic Design power supplies for running the unit from the mains.
- Blackmagic Design Power Supply - Mini Converters 12V12W Locking
- Blackmagic Design Power Supply - Converters 12V10W
SFP optical modules – SFP modules for carrying SDI over optical fiber.
SDI cables – Coaxial cables for carrying SDI signals.
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | auto format adaptation · Bidirectional SDI/fiber conversion |
| Source | Optical · 12G SDI |
| Target | Optical · 12G SDI |
