AVMATRIX VC42 1080p HDMI PCIe 4-Channel Capture Card

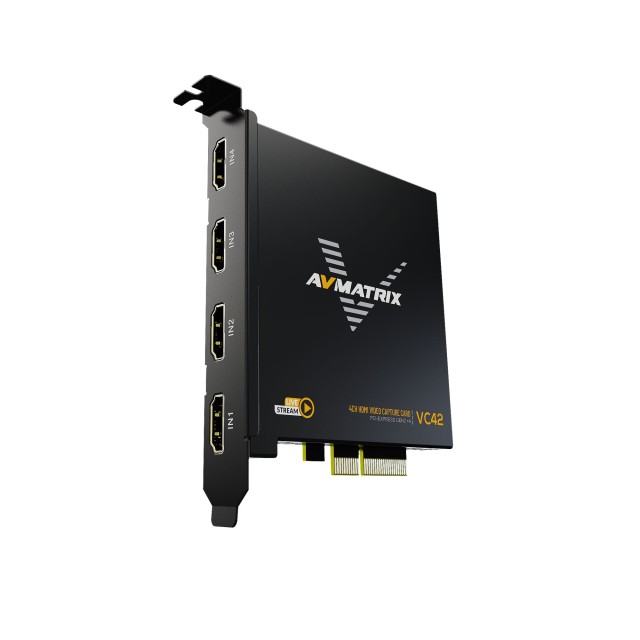

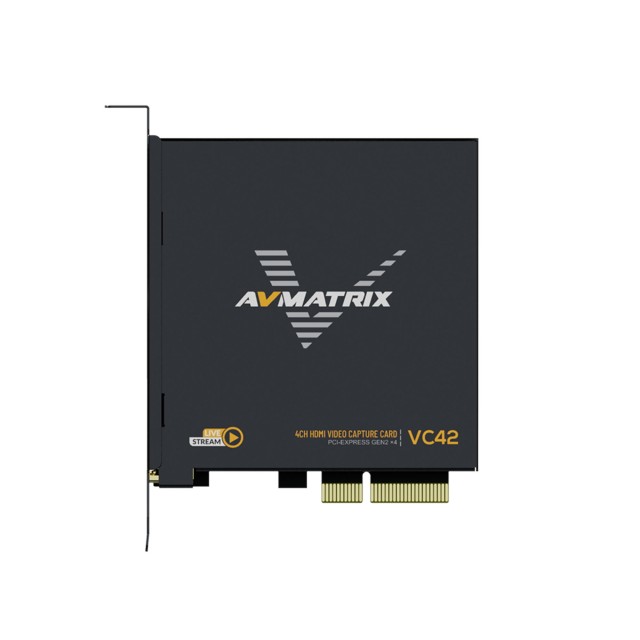

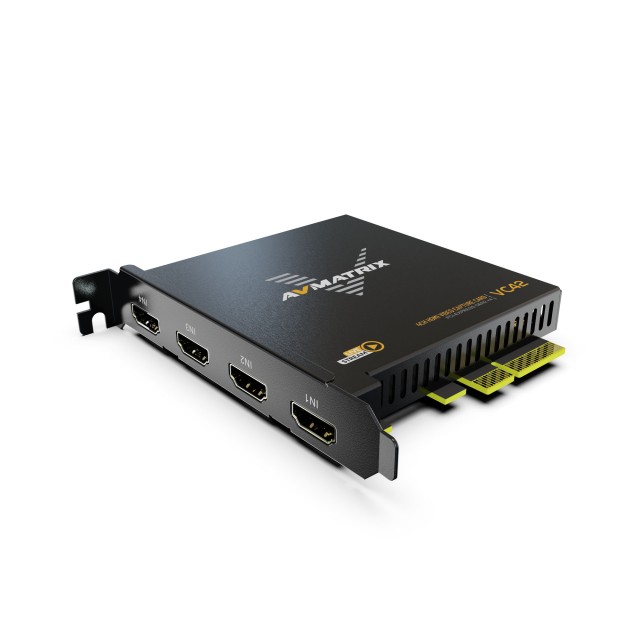

AVMATRIX VC42 is a four-channel internal HDMI capture card for simultaneous capture and streaming of multiple sources.

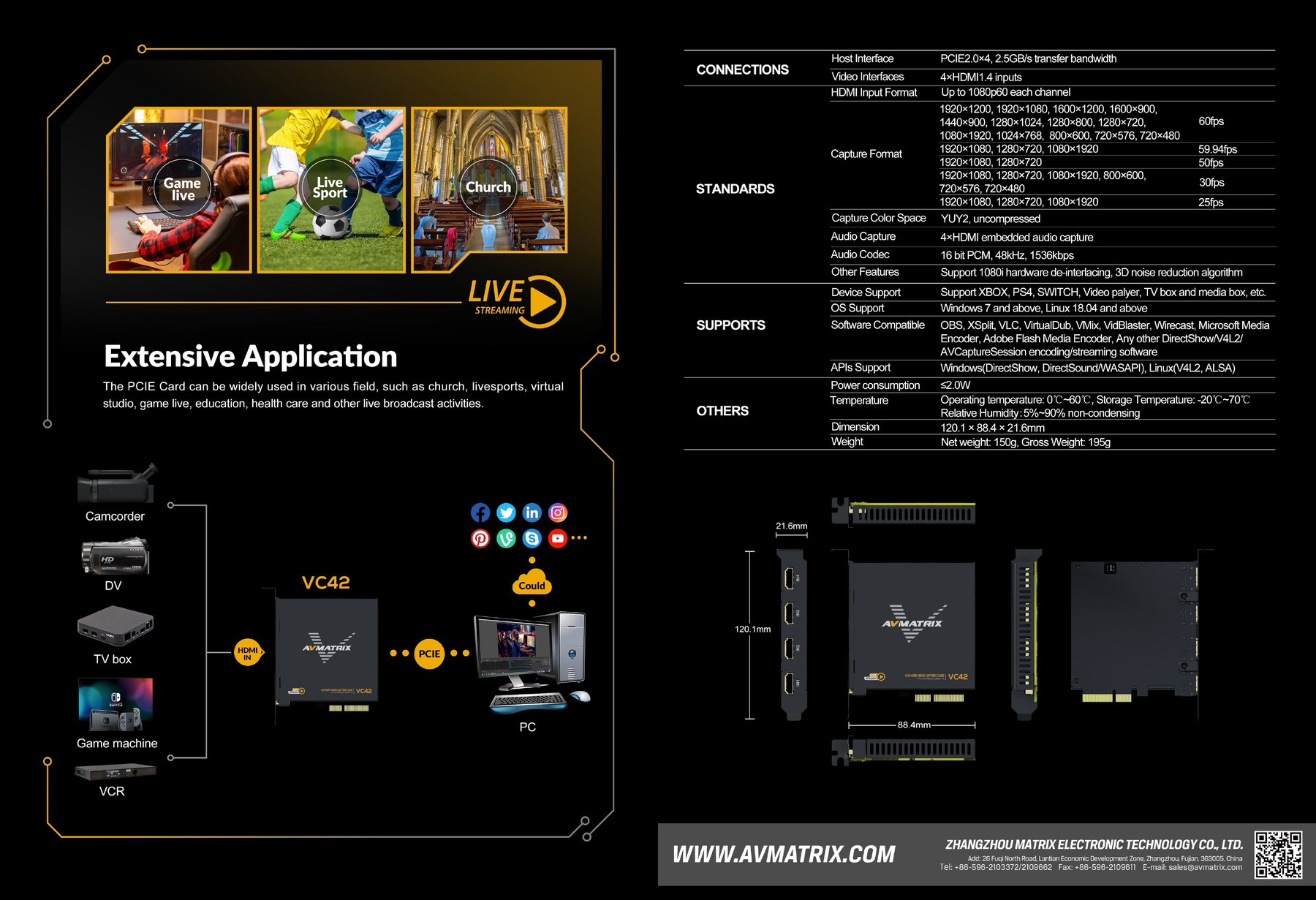

AVMATRIX VC42 is a four-channel internal HDMI capture card for simultaneous capture and streaming of multiple sources. The PCIe 2.0 ×4 interface provides high bandwidth and ultra-low latency for live production, streaming, recording and conferencing.

Uncompressed, low-latency video

The card delivers uncompressed YUY2 video, preserving source quality without additional hardware compression. PCIe transfer bandwidth reaches up to 2.5 GB/s.

Cleaner images and continuous operation

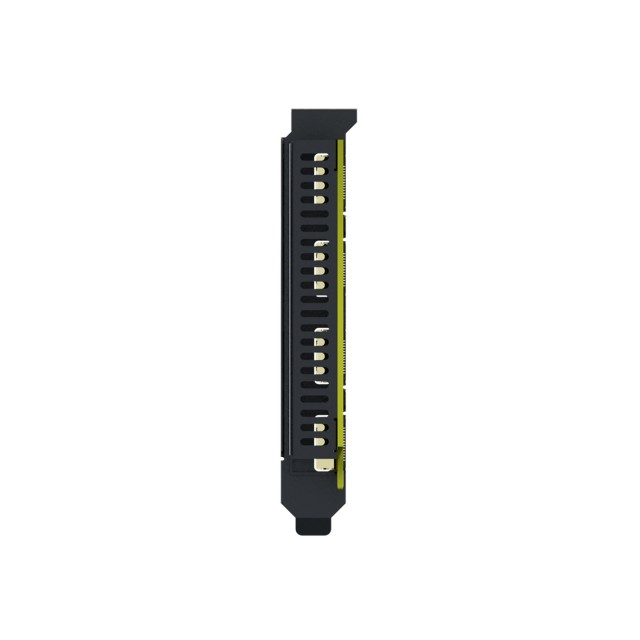

Hardware 1080i deinterlacing and a 3D noise-reduction algorithm help maintain a clean image. The gold-plated PCIe connector provides stable contact and the card is designed for long-term continuous operation.

Windows, Linux and popular applications

Support for Windows 7 and Ubuntu Linux 18.04 or later enables use with OBS, Microsoft Teams and other applications. Video can be streamed to platforms such as YouTube, Facebook or Twitch. Multi-input models also support horizontal and vertical production formats.

Key features

• a four-channel internal HDMI capture card for simultaneous capture and streaming of multiple sources

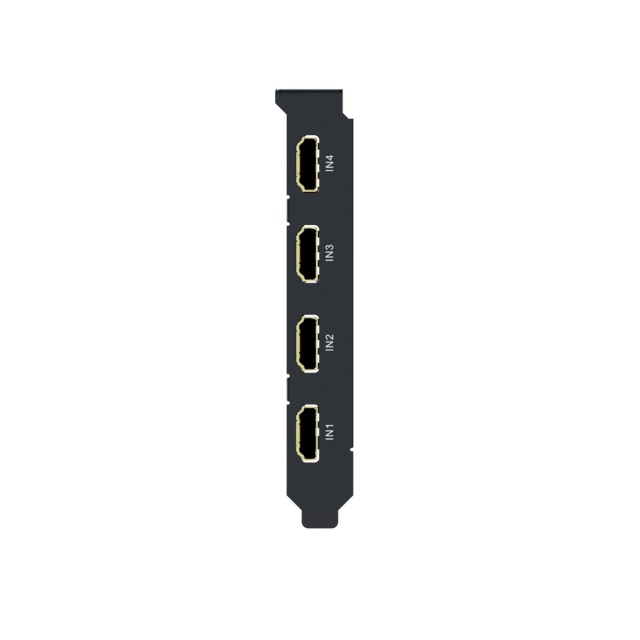

• 4× HDMI inputs
• maximum resolution 1080p60 per channel
• PCIe 2.0 ×4, up to 2.5 GB/s
• uncompressed YUY2 video
• hardware 1080i deinterlacing
• 3D noise reduction
• Windows and Linux
• designed for continuous operation
