Atomos A-Eye HD-20X
SKU: ATOMAEHD20
High-resolution PTZ camera using a 1/2.8" CMOS sensor with 2.07 million effective pixels and 20x optical zoom - ideal for education, church venues and affordable production sets. It delivers Full HD video up to 1080p60 with AI-assisted tracking and connects to production systems via HDMI, 3G-SDI or IP streaming.…
1 699 € with VAT
1 404.13 € without VAT
Availability
on request
Top accessories for Atomos A-Eye HD-20X
Canare L-5.5CUHD BNC (M) / BNC (M) 5 m, BLK
Assembled SDI cable, Canare L-5.5CUHD, 5 m long, terminated with BNC (M) and BNC
31 €
In stock > 5 pcs
PremiumCord ULTRA HDMI 2.1 High Speed + Ethernet cable 8K@60Hz 2m gold
PremiumCord is a unique brand of cables, adapters, and accessories for computers,
9.6 €
In stock 4 pcs
PremiumCord ULTRA HDMI 2.1 High Speed + Ethernet cable 8K@60Hz 1m gold
This HDMI cable supports data transmission in Ultra HD resolutions, including 8K
7.4 €
In stock > 5 pcs
Canare L-5.5CUHD BNC (M) / BNC (M) 20 m, BLK
Assembled SDI cable, Canare L-5.5CUHD, 20 m long, terminated with BNC (M) and BNC
84 €
In stock 4 pcs
RGBlink RGBCTL-PTZ-BK PTZ Controller
The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet
779 €
In stock 1 pcs
Atomos A-Eye Control
Atomos A-Eye Control is a desktop control unit for multi-camera operation with Atomos
1 209 €
4 pcs in stock at the supplier
Telycam V-Joy+ AT - silver PTZ Controller
The Telycam V-Joy+ AT NDI PTZ Controller Silver is a professional PTZ camera control
799 €
on request
ATOMOS A-Eye Controller PRO
The A-Eye Controller PRO is an advanced, high-performance PTZ controller designed
1 579 €
on request
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description

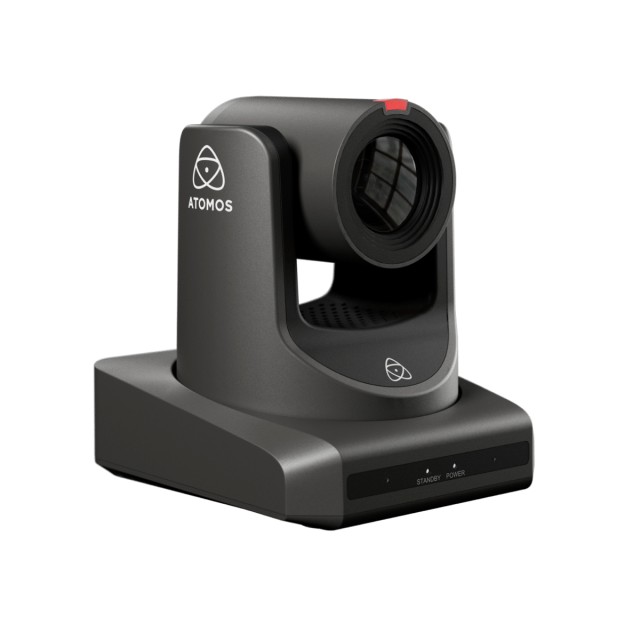

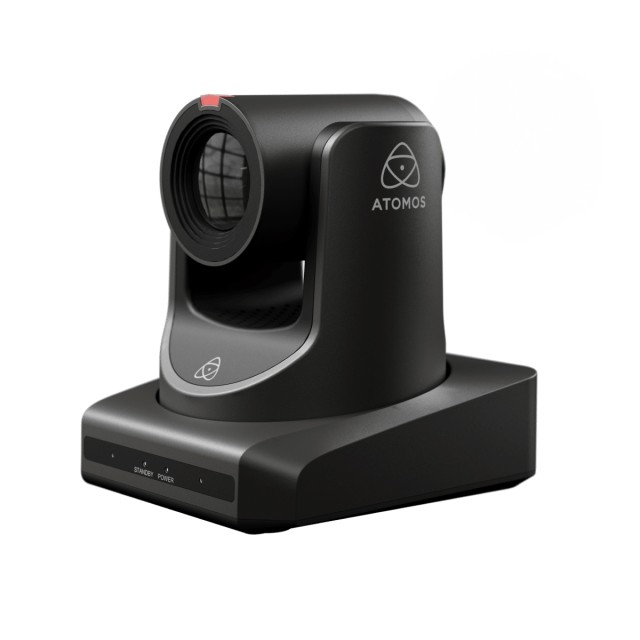

High-resolution PTZ camera using a 1/2.8" CMOS sensor with 2.07 million effective pixels and 20x optical zoom - ideal for education, church venues and affordable production sets. It delivers Full HD video up to 1080p60 with AI-assisted tracking and connects to production systems via HDMI, 3G-SDI or IP streaming. PoE+ supplies power and network connectivity over one Ethernet cable, simplifying permanent installations and remotely controlled multi-camera workflows.
Atomos A-Eye HD-20X
HD PTZ CAMERA FOR MULTI-CAMERA PRODUCTIONS

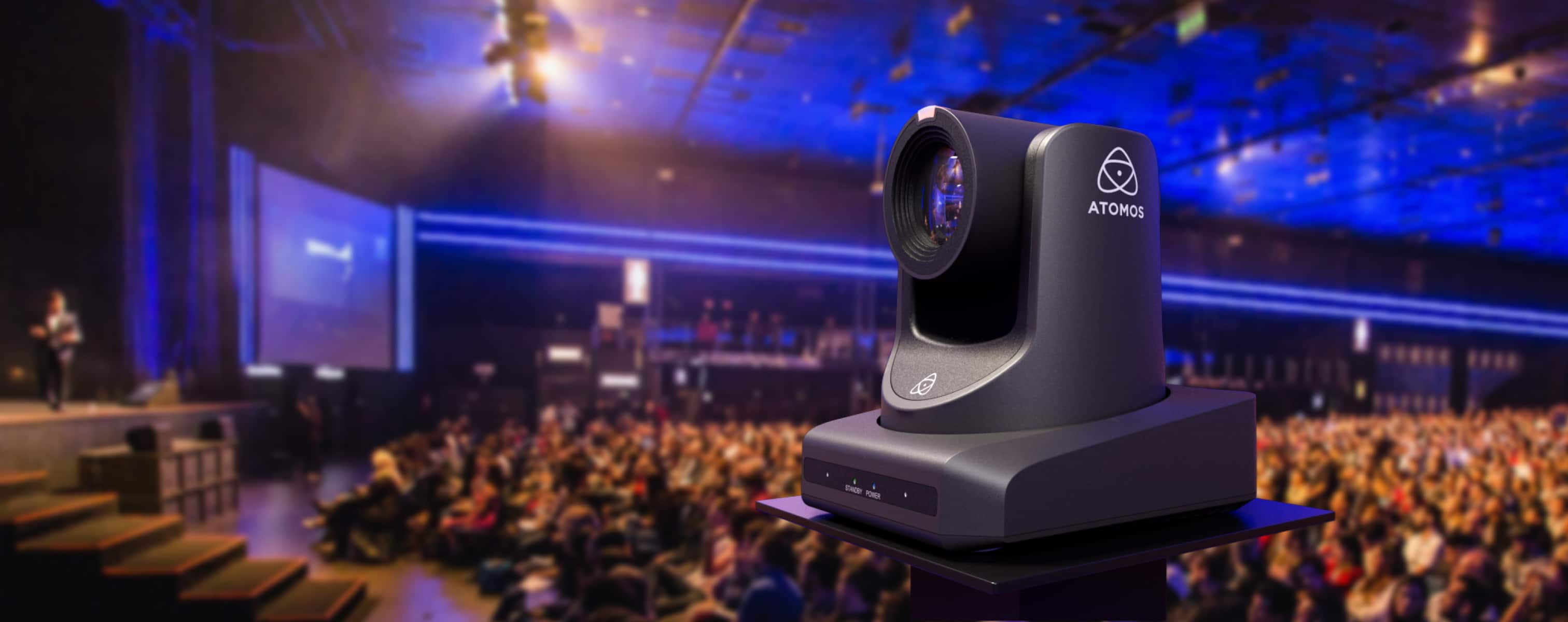

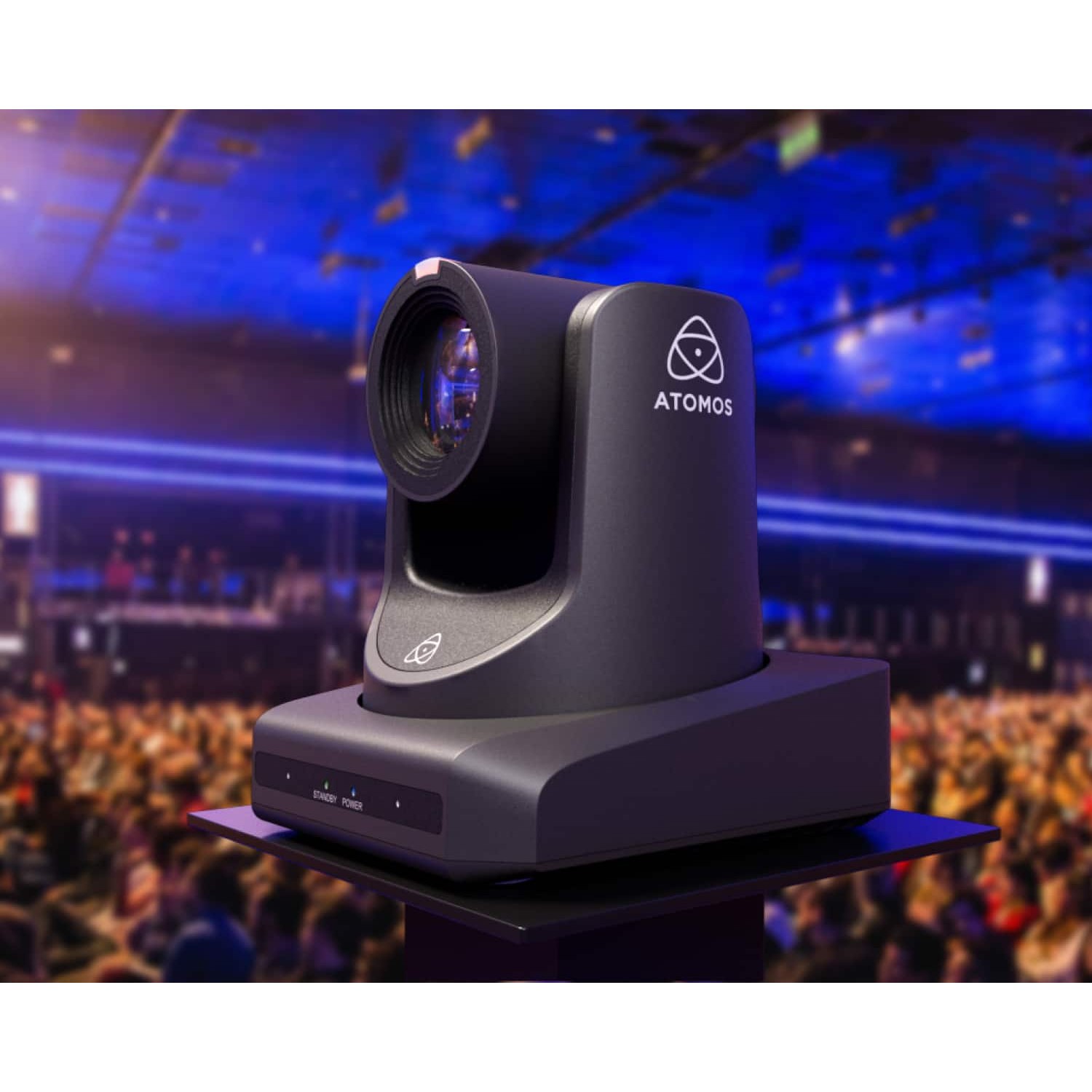

The A-Eye HD-20X delivers remotely controlled video for live broadcasts, corporate broadcasting, education, and religious services.
Full HD up to 1080p6020× optical zoom
A 1/2.8″ CMOS sensor with 2.07 Mpx, 20× optical zoom, and network streaming help capture the scene from wide shots to close-ups without the need for a camera operator at each location.
SMOOTHER SHOTS AND EASY CONTROL
Motorized movement covers ±170° pan and −30° to +90° tilt. Up to 255 preset positions are available; the camera supports precise remote control and AI-assisted subject tracking. This facilitates both standalone operation and synchronized multi-camera setups in a classroom, church, or small studio.

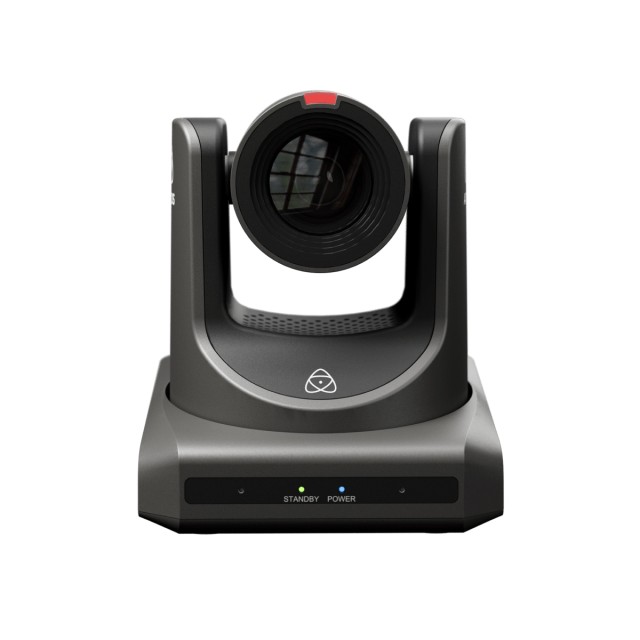

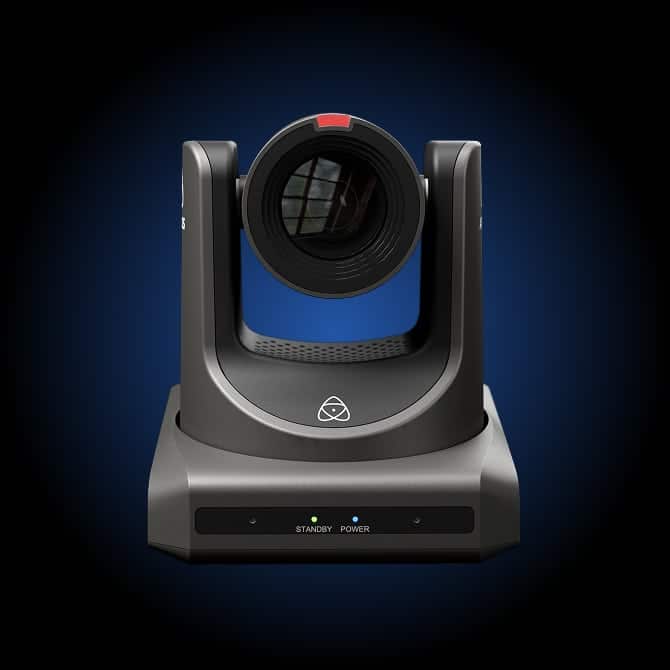

CLEAR INDICATORS DURING LIVE OPERATION
Front indicators help identify the camera’s status during remote operation; tally lights are useful when switching between cameras during a live broadcast. The A‑Eye HD-20X can be controlled via a compatible joystick, software, or preset positions, ensuring the camera remains an integral part of a production-controlled setup.

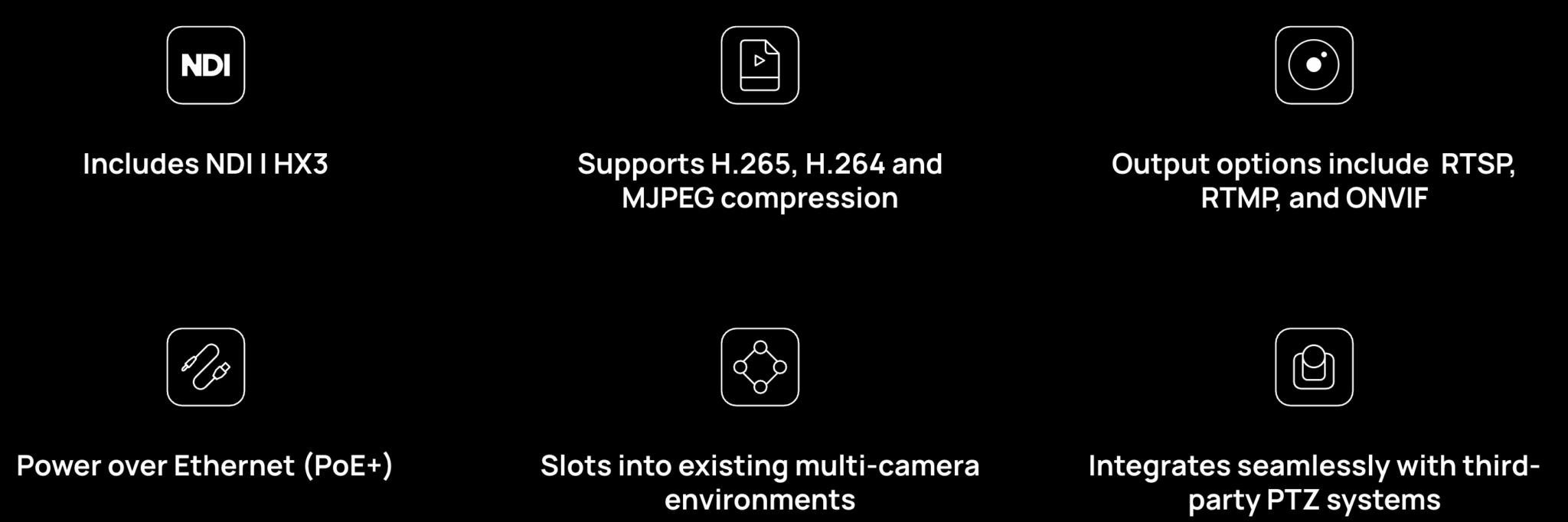

NETWORKED MULTI-CAMERA WORKFLOWS
- Includes NDI|HX3
- Supports H.265, H.264 and MJPEG compression
- Network protocols: RTSP, RTMP and ONVIF
- Power over Ethernet (PoE+)
- Designed for existing multi-camera setups
- Compatible with third-party PTZ systems
NDI|HX may require licence activation.
PACKAGE CONTENT
- Atomos A-Eye HD-20X PTZ Camera
- RS-232 serial cable, 2 m
- USB-A to USB-A cable, 1.5 m
- Lens cap
- Remote control
- Accessory mount
- Wall mount
- Screw set
- Power adapter with four interchangeable plugs
- Quick Start Guide
SPECIFICATIONS
- Sensor: 1/2.8″ CMOS, 2.07 MP
- Lens: 20× optical zoom, 4.42–88.5 mm, F1.8–F2.8
- Digital zoom: 16×
- Supported video modes: 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50
- Network streaming: up to 1920 × 1080 at up to 60 fps; H.264/H.265 compression, AAC audio
- USB/UVC: UVC 1.1/1.5, audio and PTZ control support; via USB: H.264 up to 1080p30, YUY2 up to 1080p5

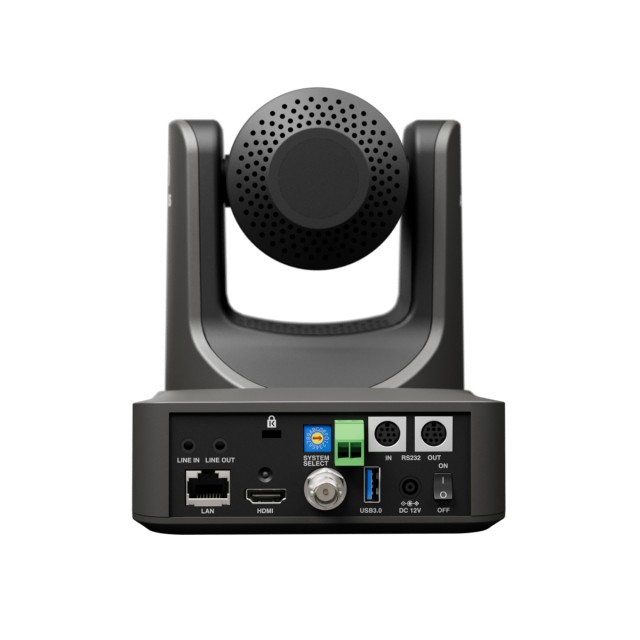

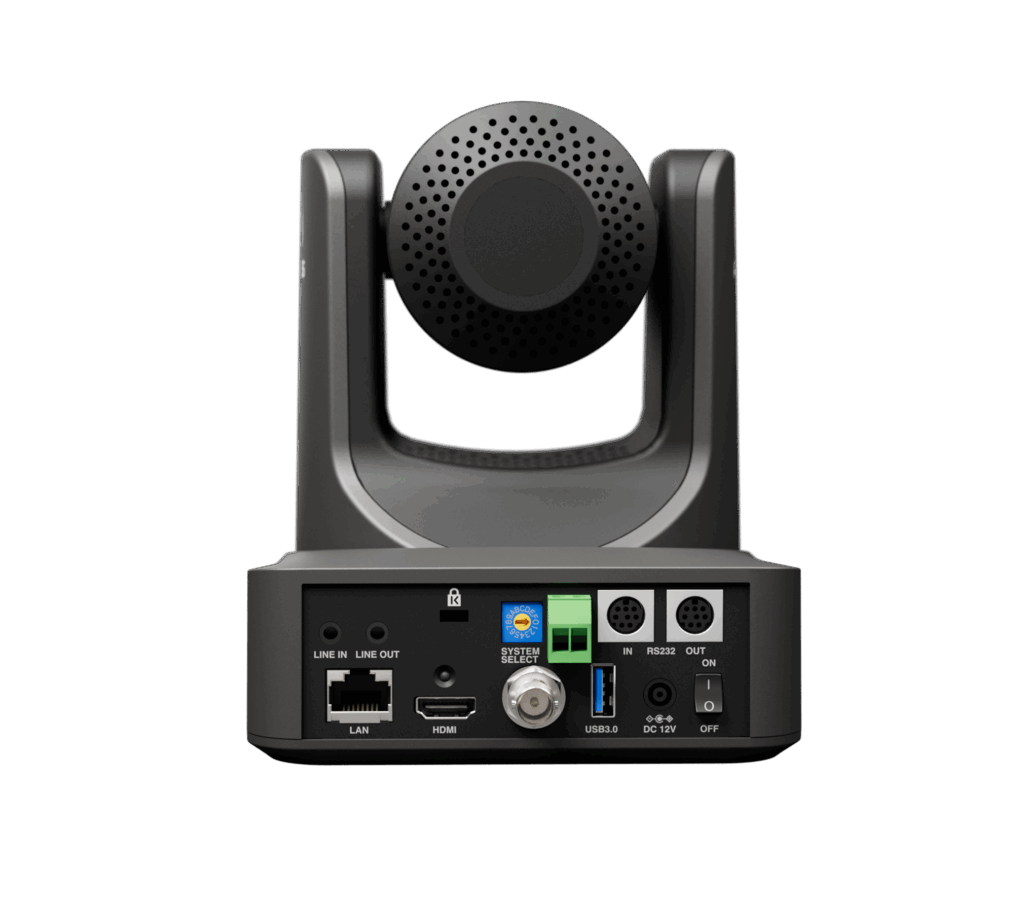

- Outputs: HDMI 1.3, 3G-SDI (BNC), USB-A 2.0, and 10/100 Mbps Ethernet; NDI HX3, RTMP/RTMPS, RTSP, SRT, ONVIF, VISCA over IP
- Audio: built-in dual microphones, 3.5 mm line-in and line-out; audio output also via HDMI/USB
- Motion: pan ±170°, tilt −30° to +90°, up to 255 presets, preset accuracy 0.1°
- Control ports: RS-232 IN/OUT, RS-485; VISCA, Pelco-D, and Pelco-P
- Power: 12 V DC or PoE+ 802.3at; maximum power consumption 15 W
- Dimensions and weight: 139.2 × 176.5 × 165.8 mm; approximately 1.5 kg
- Construction and Environment: ABS housing, operating temperature up to 40 °C
- Manufacturer’s warranty: 1 year; extended to 2 years upon registration
ARTICLES
WE RECOMMEND
The Atomos A-Eye HD-20X captures Full HD up to 1080p60 and outputs video over HDMI, 3G-SDI or an IP stream. The camera does not record to a card or SSD by itself; for external HDMI recording, choose an Atomos monitor-recorder that supports the required input resolution and frame rate.
For pan/tilt, presets and remote operation, choose a compatible PTZ controller in the Accessories tab. For video connections, the Accessories tab also includes HDMI and 75Ω BNC SDI cables in two practical lengths.
Parameters
| Manufacturer: | Atomos |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/2.8"-Type CMOS, 2.07 Megapixels (1920 x 1080) |
| Resolution | Full HD |
| Zoom | 20x |
| Output | HDMI · 3G SDI · IP · USB · 3,5 mm jack · NDI HX3 · USB 2.0 · HDMI 1.3 · UVC · USB-A |
| Sensor size | 1/2.8 palce |
| Maximum video resolution | Full HD |
| Optical zoom | 20× |
| Video outputs | HDMI · USB · NDI / Ethernet / IP · 3G-SDI |
| Network protocols | SRT · RTMP / RTMPS · RTSP / RTP · NDI|HX3 · ONVIF |
Other parameters
| Material | ABS |
| Weight | 1.5kg |
| Dimensions | 139.2x176.5x165.8mm |
| Digital zoom | 16× |
| Number of preset positions | 255 |
| Version | PTZ |
| Record format | H.265 · H.264 · MJPEG · YUY2, MJPEG, H.264, H.265 · YUY2 |
| FPS | Full HD 60fps |
| Lens lens aperture | 1.8f |
| Min. focal length | 4.4mm |
| Max. focal length | 88.5mm |
| Media type | Network / USB (no internal recording) |
| Other features | Streaming · Tally · PoE · NDI / NDI HX · SRT · 2D & 3D noise reduction, backlight compensation, image flip/mirror, tally light, low-light performance (0.5 lux @ f/1.8, AGC ON) · RTMP · RTMPS · AI tracking · RTSP |
| Control protocol | Pelco-P · Pelco-D · VISCA · ONVIF · ONVIF, VISCA, VISCA over IP, Pelco-D, Pelco-P, RS-232, RS-485 |
