Atomos Ninja Ultra (2023)

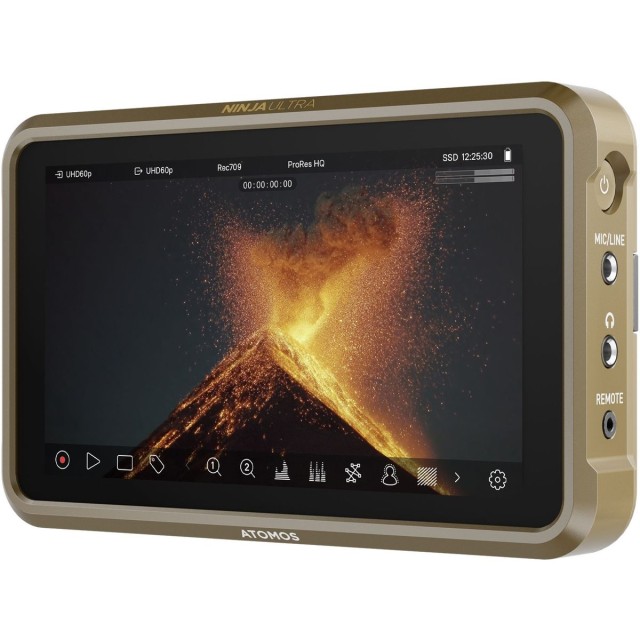

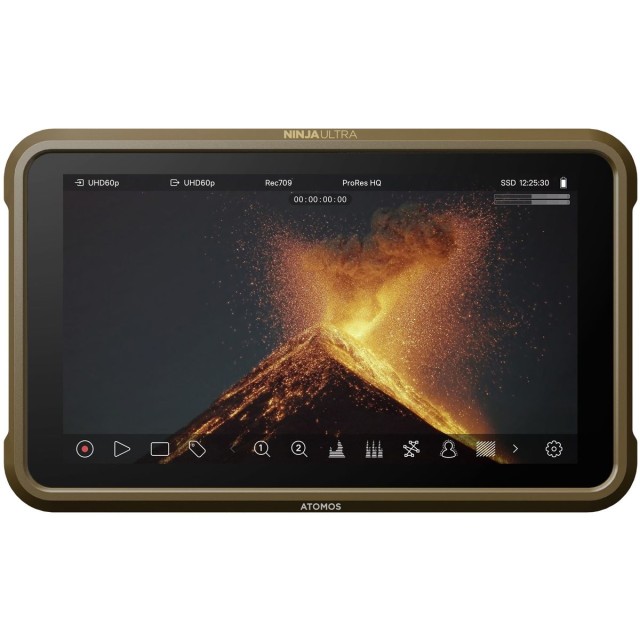

The Atomos Ninja Ultra (2023) is a 5.2-inch HDMI HDR monitor-recorder designed for film workflows that require advanced monitoring, external RAW recording, and efficient cloud integration. The Full HD touchscreen display, with 1,000 nits of brightness and 10-bit processing, supports Log, HLG, PQ, and custom 3D LUTs.

Precise on-set control: AtomOS 11 adds EL Zone, ARRI False Color, waveform, vectorscope, focus peaking, frame guides, RecordAssist, and PlayBackAssist. With compatible Ninja Ultra cameras, it records up to 8Kp30, 6Kp60, or 4Kp120 RAW via HDMI and supports Apple ProRes RAW, ProRes, Avid DNx, and H.265.

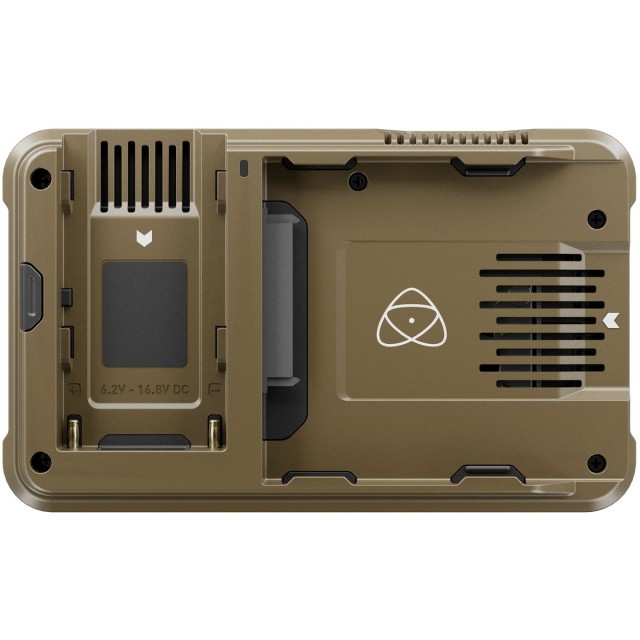

Expandable workflow: Dual Record allows you to simultaneously save a master file and a compact H.265 file for Camera to Cloud. The optional Atomos CONNECT adds 12G-SDI, Wi-Fi 6E, Gigabit Ethernet, AirGlu timecode, and remote image sharing; AtomX CAST transforms the device into a four-input HDMI switcher. The Ninja Ultra uses NP-F batteries, USB-C PD, or the included Battery Eliminator and records to Master Caddy/SSDmini media.

Atomos Ninja Ultra

MORE THAN JUST A MONITOR-RECORDER

The Ninja Ultra combines precise HDR preview, top-quality RAW recording, and tools for fast workflow from on-set to post-production. It’s designed for HDMI-equipped cameras, allowing you to control both the image and metadata right from the moment you shoot.

Up to 8Kp30RAW, 4Kp120RAW, 1,000 nits

MASTER AND CLOUD IN A SINGLE SHOT

In addition to Apple ProRes RAW, the Ninja Ultra supports Apple ProRes, Avid DNx, and H.265. The Dual Record feature allows you to simultaneously create a high-quality master and a more space-efficient H.265 file for quick sharing, editing, or Camera to Cloud. Automatic file naming, timecode, and Cine metadata support seamless workflows with compatible ARRI, Canon, RED, and Sony cameras.

IMAGES YOU CAN TRUST

AtomOS 11 offers Focus Peaking, waveform, vectorscope, EL Zone, ARRI False Color, zebra, custom 3D LUTs, and AtomHDR conversion from Log to HLG/PQ. The optional Atomos CONNECT expands the modular slot with 12G-SDI, Wi-Fi 6E, Gigabit Ethernet, AirGlu timecode, and remote collaboration via the cloud; AtomX CAST adds four-input HDMI switching.
