Telycam V-Joy+ AT - silver PTZ Controller

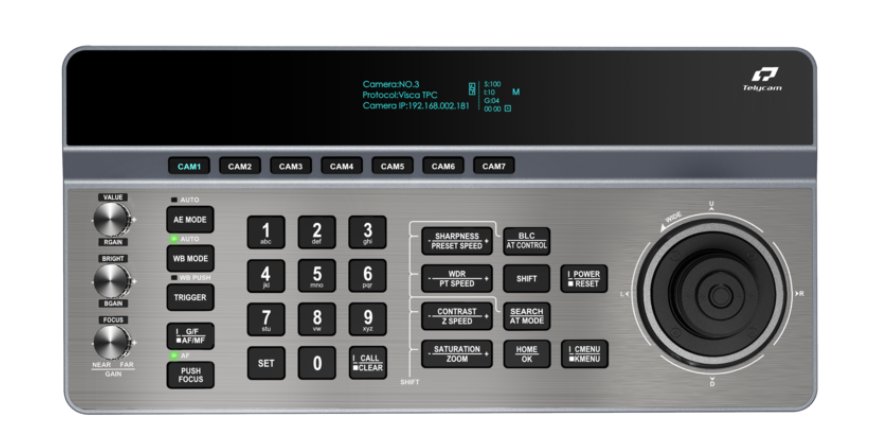

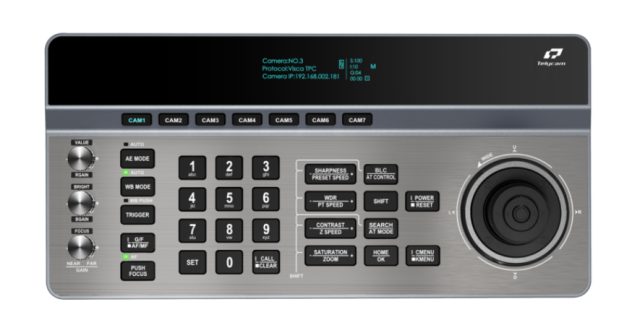

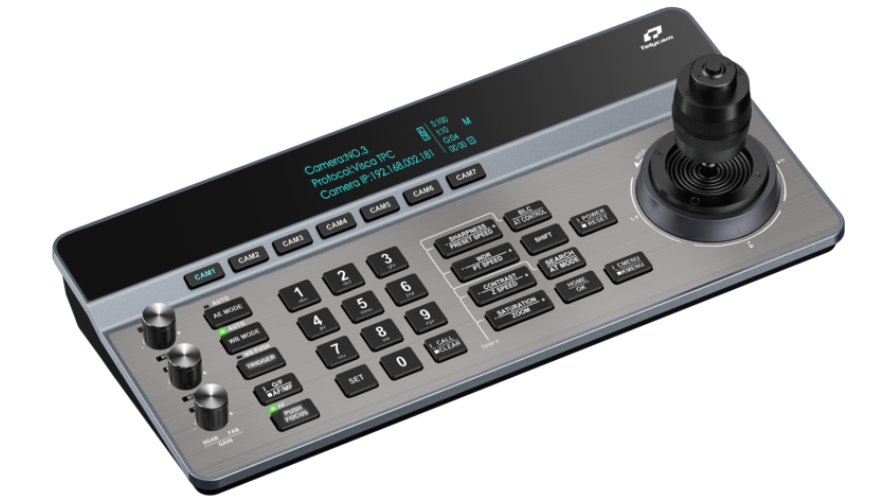

The Telycam V-Joy+ AT NDI PTZ Controller Silver is a professional PTZ camera control keyboard with built-in auto-tracking functionality. Supporting multiple protocols including NDI® HX, VISCA, and ONVIF, it enables precise multi-camera control with an intuitive joystick, OLED display, and PoE-powered network connectivity.

The Telycam V-Joy+ AT NDI PTZ Controller Silver from Telycam is an advanced PTZ camera controller designed for professional live production, broadcasting, and streaming environments. Featuring integrated auto-tracking control, it allows operators to easily activate and manage tracking functions directly from the keyboard, streamlining dynamic shooting scenarios without the need for additional software.

The controller supports a wide range of protocols including NDI® HX, VISCA (Serial and IP), ONVIF, and Pelco P/D, enabling seamless control of multiple cameras across different systems. With the ability to manage up to 255 cameras and support multiple keyboards on the same network, it offers exceptional scalability for complex production setups.

Equipped with a precise four-dimensional PTZF joystick, the V-Joy+ AT allows smooth and accurate control of pan, tilt, zoom, and focus. Operators can quickly adjust camera parameters such as exposure, white balance, iris, and backlight compensation. The controller also supports up to 128 preset positions, which can be easily stored, recalled, or cleared using the dedicated numeric keypad.

A built-in 3.12-inch OLED display provides clear real-time feedback on camera status and control settings. The ergonomic layout separates numeric and functional controls for intuitive operation, while shortcut keys allow quick switching between cameras. Connectivity options include Ethernet with PoE support, RS232, RS422, and RS485 interfaces, ensuring compatibility with a wide range of professional PTZ cameras.

Key Features:

• Professional PTZ camera controller with built-in auto-tracking control

• Supports NDI® HX, VISCA (IP/Serial), ONVIF, Pelco P/D protocols

• Control up to 255 cameras from a single keyboard

• PTZF 4D joystick for precise pan, tilt, zoom, and focus control

• Auto-tracking activation and customization directly from controller

• 128 preset positions for quick camera recall

• 7 camera shortcut keys for fast switching

• OLED display (3.12") for real-time status monitoring

• Ethernet port with PoE (IEEE802.3af) support

• Multiple control ports: RS232, RS422, RS485

• Adjustable parameters: exposure, white balance, iris, WDR, backlight compensation

• Upgradeable via USB Type-C
