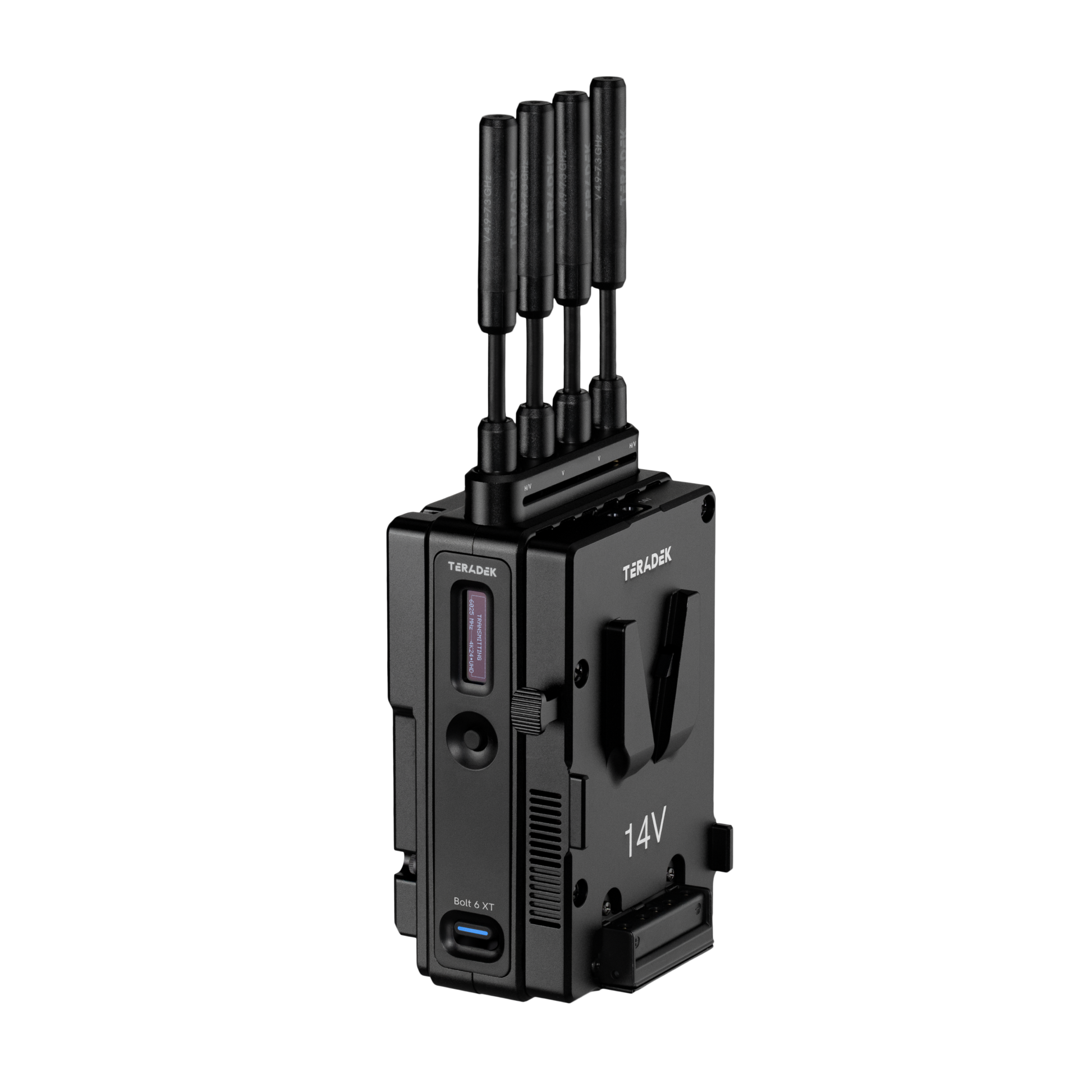

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX V-Mount

Teradek Bolt 6 XT 750 TX V-Mount is a professional wireless-video transmitter for camera workflows requiring virtually zero-delay video. It transmits up to 4K60 10-bit 4:2:2 HDR video over 12G-SDI and operates across 5 GHz and 6 GHz frequencies. The 750 version offers up to 750 ft (about 229 m) of line-of-sight range; the V-Mount version is intended for the corresponding battery configuration.

The transmitter offers both a 12G-SDI BNC and HDMI 2.0 input, a loop-through 12G-SDI output, and HDMI-to-SDI cross conversion. It supports transmission of metadata, timecode, and start/stop flags from most cameras. One transmitter can pair with up to six receivers and is cross-compatible with the entire Bolt 4K range, including Bolt 4K LT and Monitor Modules. The 750 configuration uses four external vertical antennas.

BOLT 6 XT 750 · TRANSMITTER

Wireless 4K for camera rigs

Send up to 4K60 10-bit 4:2:2 HDR over 12G-SDI with under 1 ms transmitter-to-receiver delay. This V-Mount 750 TX is designed for line-of-sight links up to 750 ft (229 m) on supported 5 and 6 GHz channels.

SDI and HDMI at the camera

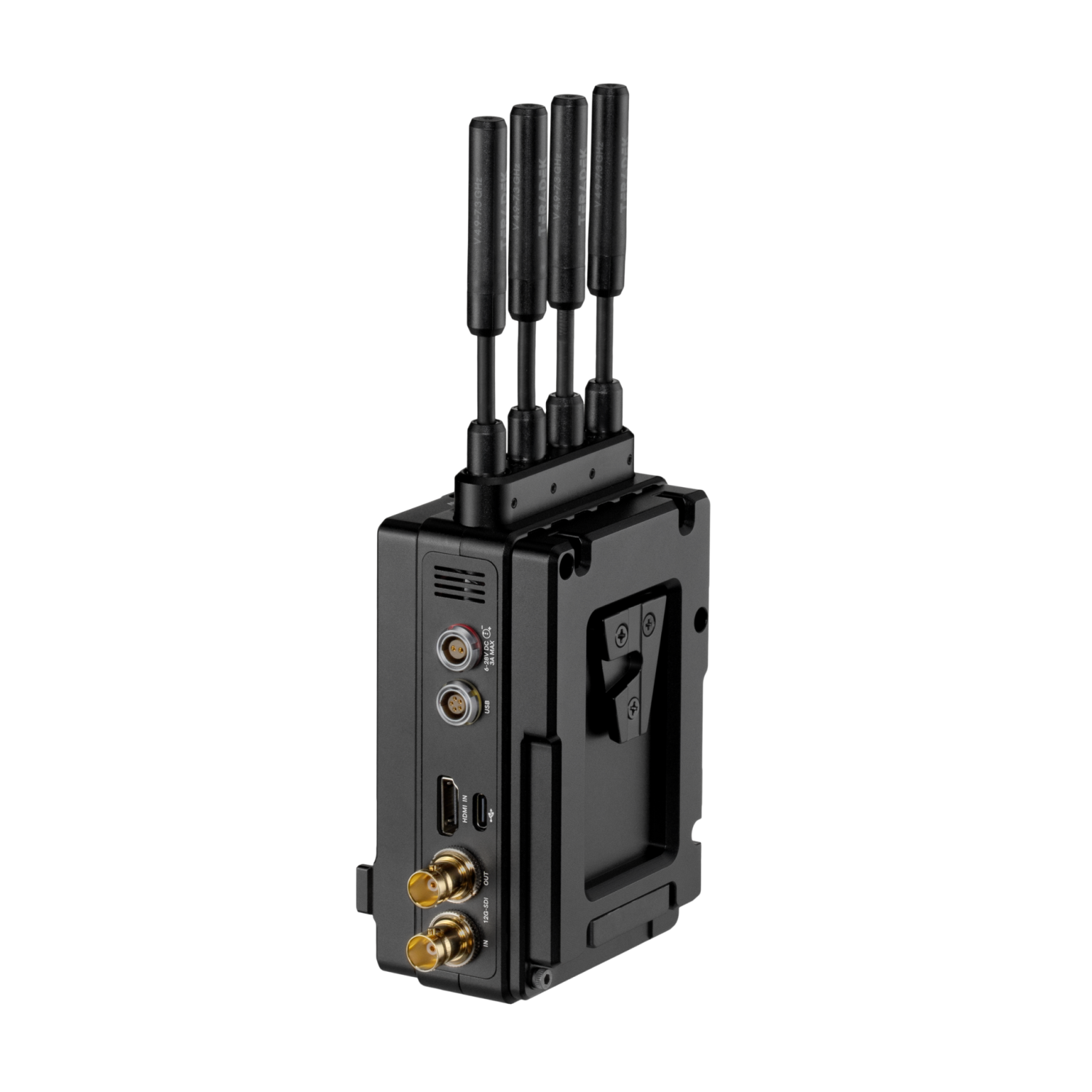

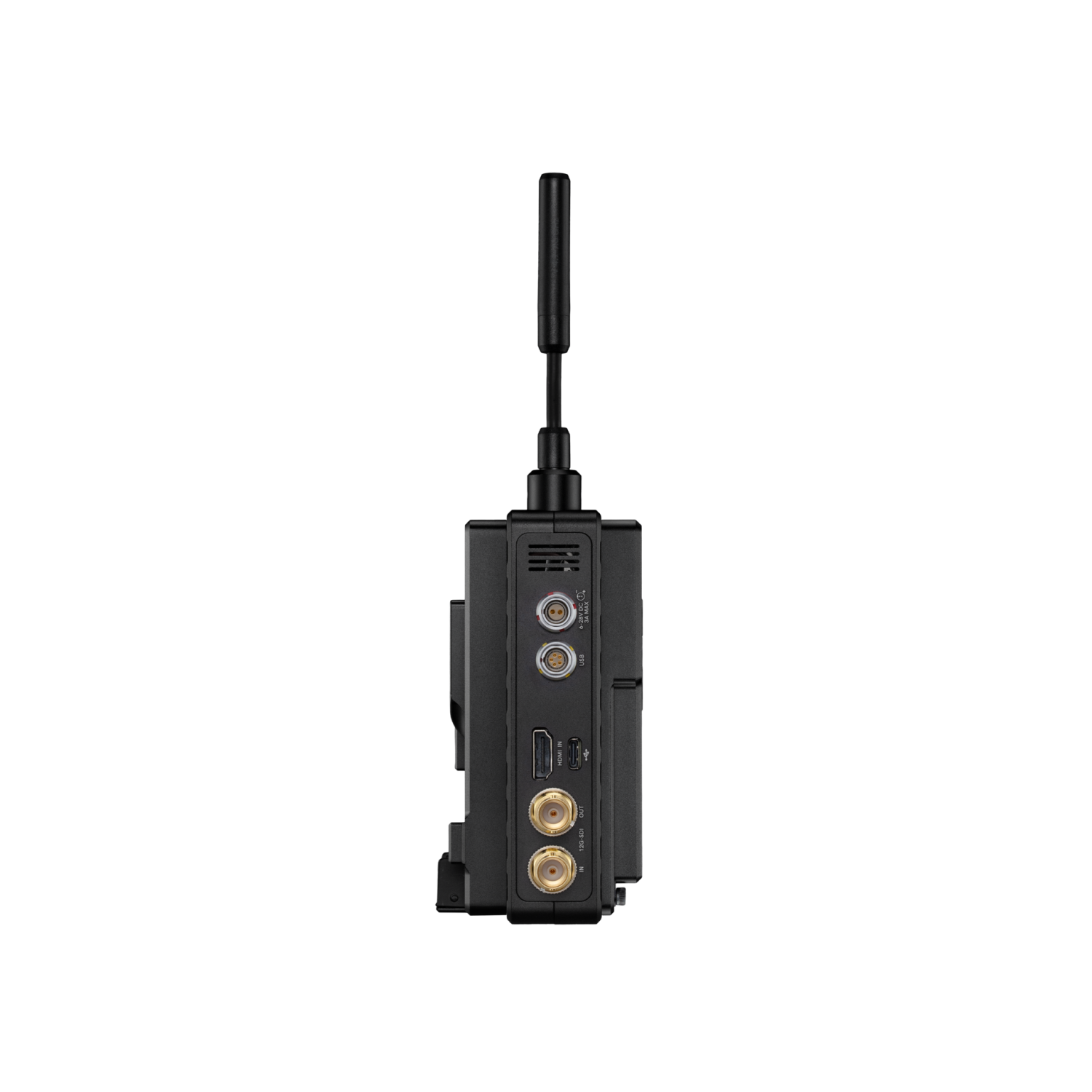

Connect a camera through 12G-SDI BNC or HDMI 2.0. The 12G-SDI loop output can pass the camera feed onward, including HDMI-to-SDI input conversion.

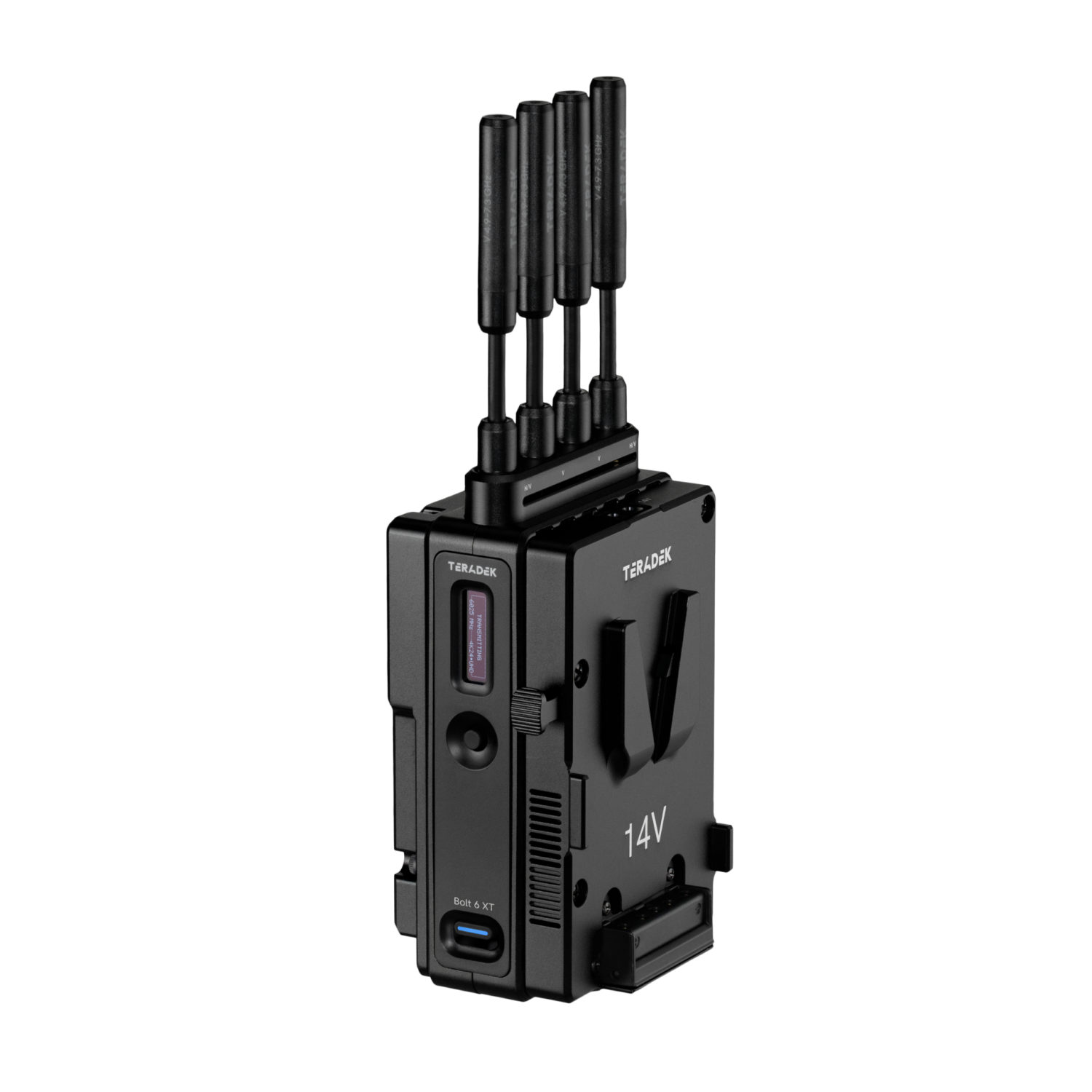

Power and mount to suit the rig

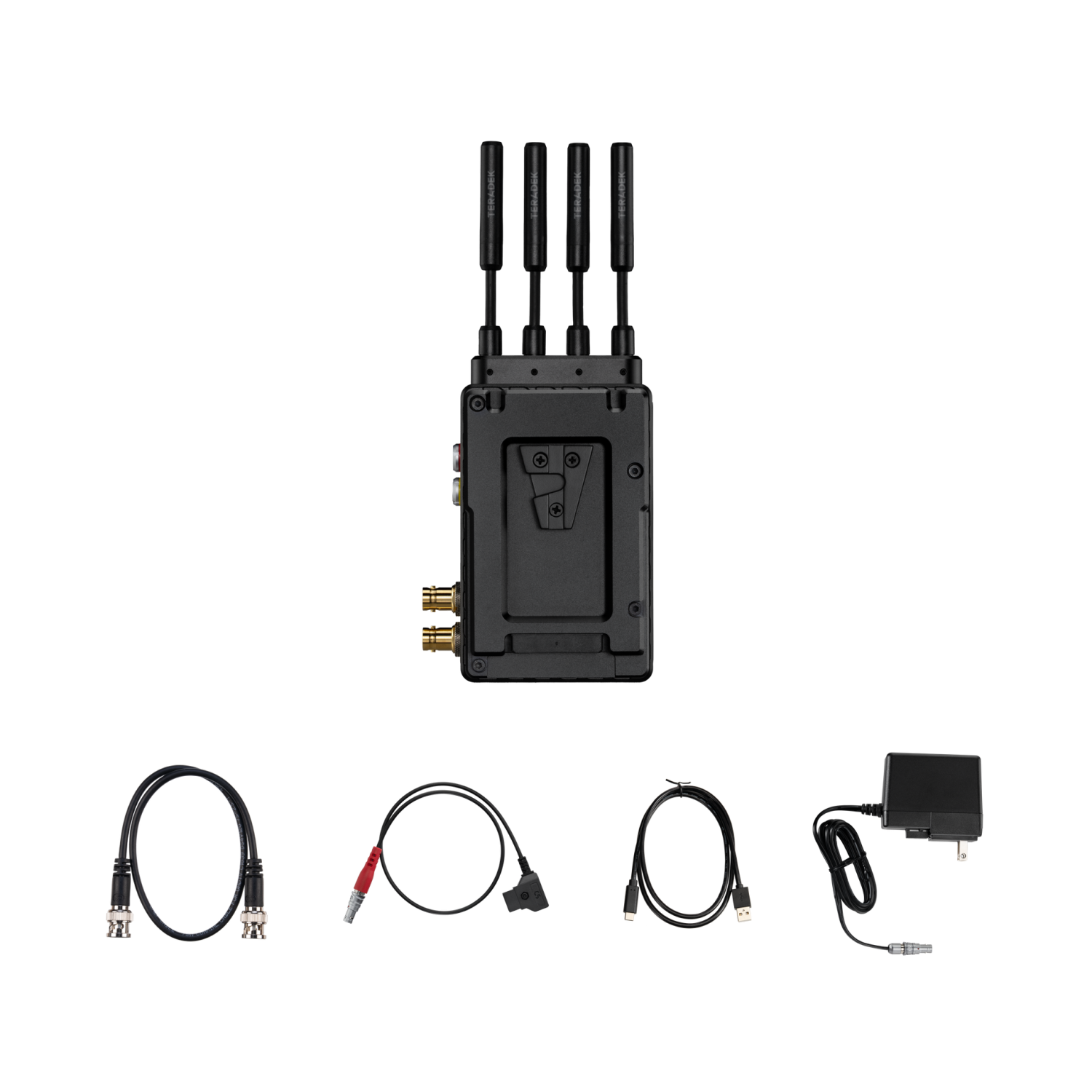

The V-Mount configuration fits a matching battery workflow; the transmitter also accepts power through its locking 2-pin DC input. Four supplied vertical antennas support the 750-foot configuration.
