Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX V-Mount

+3
  • New
  • Free transport
SKU: TE-10-2302-V

Teradek Bolt 6 XT 750 RX V‑Mount is a professional wireless receiver for up to 4K60 10-bit 4:2:2 HDR video with virtually zero delay. This exact model provides 12G-SDI and HDMI, 5/6 GHz operation, up to 750 ft line-of-sight range, and an integrated V-Mount battery plate.

More information

4 609 € with VAT 3 809.09 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TE-10-2302-V
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Teradek Bolt 6 XT 750 RX V‑Mount is a professional wireless receiver for up to 4K60 10-bit 4:2:2 HDR video with virtually zero delay. This exact model provides 12G-SDI and HDMI, 5/6 GHz operation, up to 750 ft line-of-sight range, and an integrated V-Mount battery plate.

Teradek Bolt 6 XT 750 RX V-Mount

4K60 wireless RX with V‑Mount

A standalone receiver for Bolt 6 XT systems that need to deliver a 4K signal to a monitor, video village, or recorder without a video cable. The integrated V‑Mount plate keeps power directly on the receiver.

12G‑SDI for 4K60

Bolt 6 XT RX handles up to 4K60 10-bit 4:2:2 HDR video through 12G-SDI and HDMI 2.0. The outputs suit professional monitoring and video chains, with metadata, timecode, and start/stop flags supported from most cameras.

5 and 6 GHz, 750 ft

The 750 model is designed for up to 750 ft (about 228 m) line of sight. Automatic and manual channel selection work in the 5 and 6 GHz bands; 6 GHz availability depends on local rules. Transmission uses Teradek Zero-Delay technology and AES-256 encryption with RSA-1024 key exchange.

V‑Mount exact version

This exact TE-10-2302-V version has an integrated V-Mount plate. It is not the no-mount or Gold Mount variant. The five supplied external V antennas are intended for the 750 model.

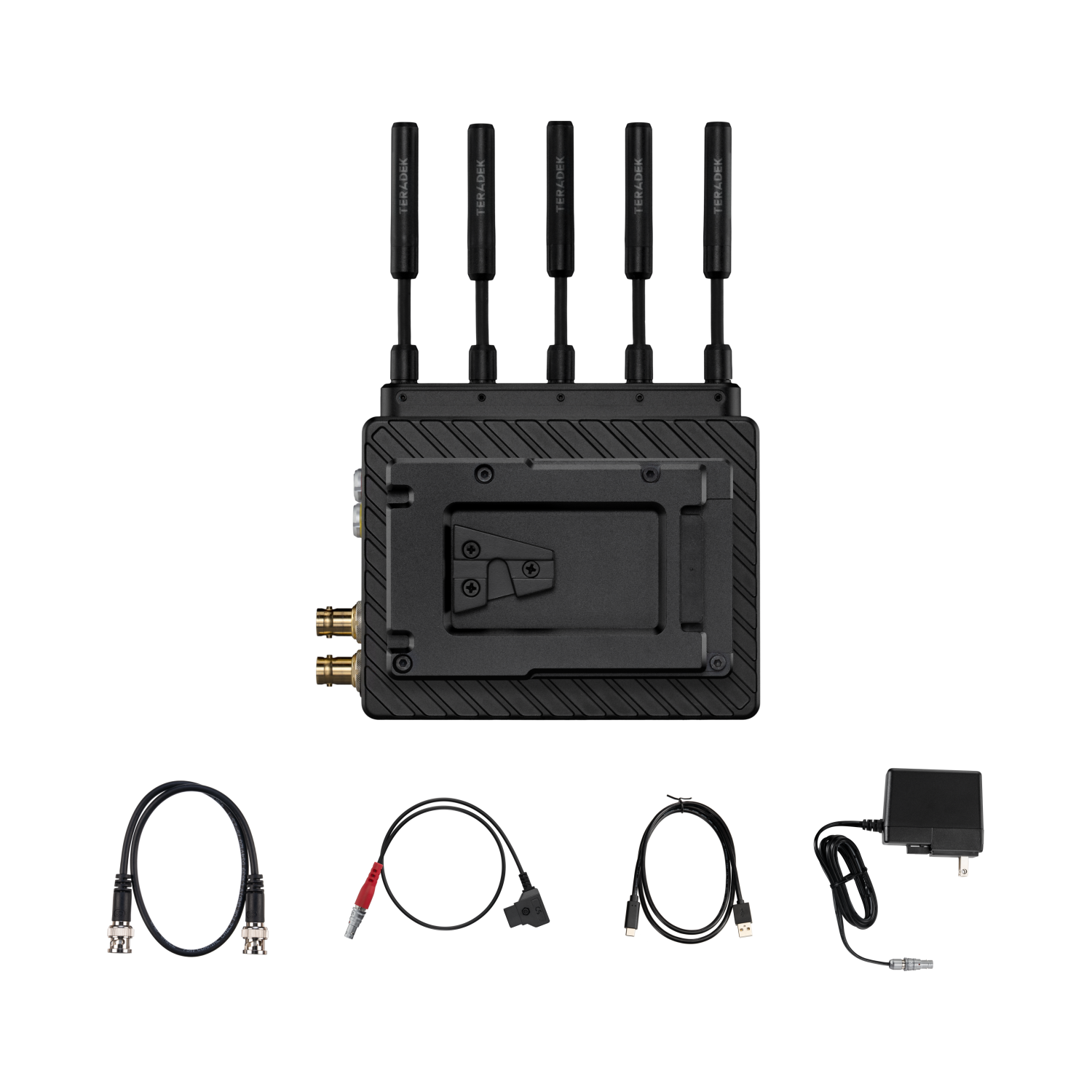

PACKAGE CONTENT

In the box

  • Bolt 6 XT 750 RX V-Mount
  • 5× 2 dBi external V antenna, 4.9–7.3 GHz, RP-SMA
  • 12G-SDI BNC to BNC cable, 46 cm
  • Bit 118 2-pin to PowerTap cable, 46 cm
  • 30 W AC adapter with 2-pin cable
  • USB-A to USB-C cable, 1 m

SPECIFICATIONS

Key specifications

  • Type: Bolt 6 XT 750 wireless video receiver
  • Video: up to 4K60, 10-bit, 4:2:2 HDR
  • Outputs: 12G-SDI (BNC) and HDMI 2.0
  • TX-to-RX delay: <0.001 s
  • Range: up to 750 ft / 228 m line of sight
  • RF: 5 and 6 GHz, auto/manual channel selection
  • Power: 2-pin locking 6–28 VDC input, V-Mount plate
  • Dimensions / weight: 112 × 139 × 27 mm / 430 g
  • SKU: TE-10-2302-V
Parameters

Parameters

Manufacturer: Teradek
Category: Wireless video transmission

Main parameters

LatencyZero delay
Input1 × HDMI 2.0, 1 × BNC 12G-SDI
