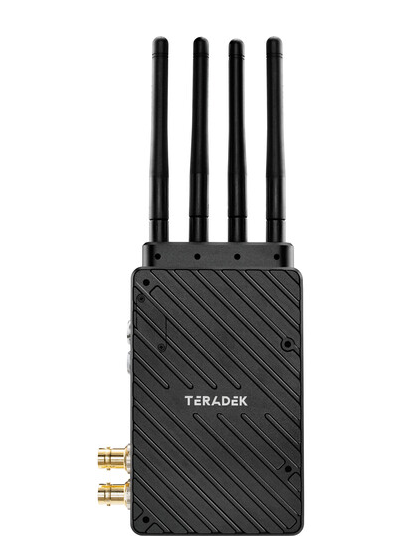

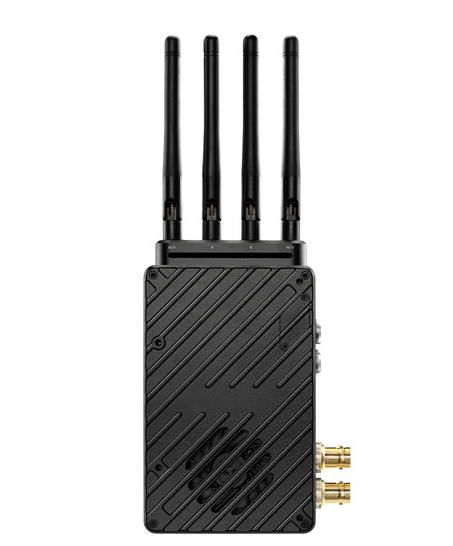

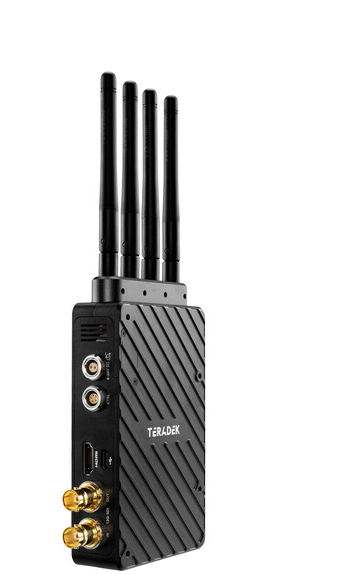

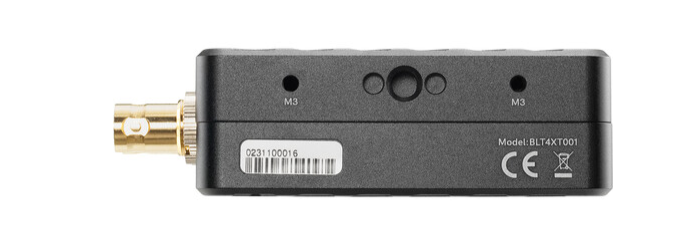

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX

The Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter is a compact professional wireless video solution designed to transmit high-quality video with less than 1 ms latency over distances of up to 750 ft / 228.6 m line of sight. It supports both HDMI 2.0 and 12G-SDI input, with a 12G-SDI loop output, allowing the transmitter to integrate easily into professional camera, monitoring, and production setups. It supports video resolutions up to DCI 4K at 60 fps, along with 10-bit 4:2:2/4:4:4 formats and Rec. 2020 HDR.

The Bolt 6 XT 750 introduces support for the 6 GHz wireless band while maintaining compatibility with Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module devices over the 5 GHz spectrum. The transmitter can send video to up to six compatible Bolt receivers simultaneously and includes improved long-range performance and noise rejection for demanding RF environments. AES-256 encryption helps protect wireless video transmissions, while timecode and camera start/stop trigger support provide additional production workflow capabilities.

A redesigned cooling system makes the unit 50% quieter than previous models, while its smaller and lighter construction makes it easier to integrate into camera rigs. The transmitter includes four RP-SMA antenna connections, a bright OLED display, a 5-pin LEMO output for optional camera-control functionality, and an SDI eye-pattern tool for checking cable integrity. Bluetooth connectivity enables use with the Teradek Bolt app for iOS and Android, providing spectrum analysis, channel selection, and remote configuration. The unit can be mounted using its 1/4"-20 accessory mount and operates from 6 to 28 VDC.

Key Features

• Supports the new 6 GHz frequency band
• Up to 750 ft / 228.6 m line-of-sight wireless range
• Less than 1 ms latency
• HDMI 2.0 and 12G-SDI video input
• 12G-SDI loop output
• Supports DCI 4K60 and UHD 4K60 video
• 10-bit 4:2:2 and 4:4:4 video support
• Rec. 2020 HDR support
• Transmits to up to 6 Bolt 4K or Bolt 6 receivers
• Compatible with Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module devices over 5 GHz
• AES-256 encryption
• Improved long-range mode and noise rejection
• 4 × RP-SMA antenna connections
• 5-pin LEMO output for optional camera control
• Bluetooth connectivity with iOS and Android app
• Spectrum analyzer and remote configuration
• SDI eye-pattern tool
• Supports timecode and camera start/stop triggers
• Smaller, lighter design with 50% quieter operation
• 1/4"-20 mounting thread
