SWIT S-4611 | Heavy Duty SDI to DVI converter

The SWIT S-4611 SDI to DVI Converter is a compact and durable solution for converting 3G/HD/SD-SDI signals up to 1080p60 into DVI-D output. Featuring SDI loop-through, 3.5mm audio de-embedding, and a rugged aluminum housing, it is ideal for broadcast, live production, and professional AV applications.

The SWIT S-4611 3G/HD/SD-SDI to DVI Converter allows you to display SDI video sources on DVI monitors, TVs, projectors, and video walls with ease. Supporting resolutions up to 1080p60, this compact unit converts a single 3G/HD/SD-SDI input to DVI-D output while maintaining high image quality and signal stability.

A built-in SDI loop output enables simultaneous connection to a secondary SDI monitor for local previewing. The converter also de-embeds up to two channels of embedded SDI audio (48 kHz) and outputs them via a 3.5 mm stereo analog jack, making it suitable for monitoring or external speaker setups.

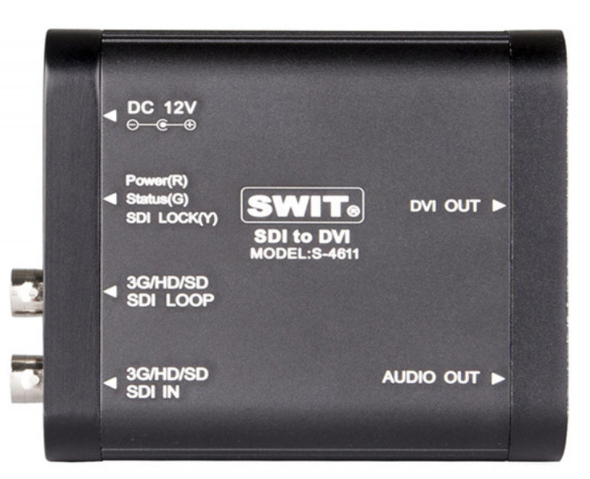

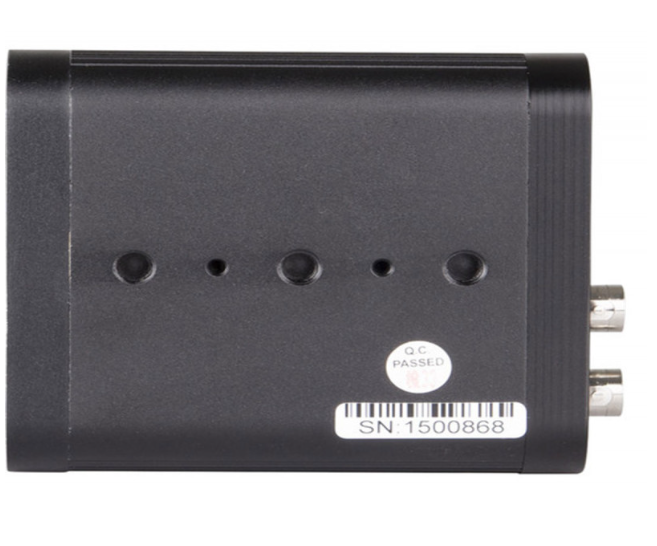

Designed for professional environments, the S-4611 features a unibody aluminum housing for durability and heat dissipation. Three LED indicators display power and signal status for quick troubleshooting. Dual 1/4″-20 mounting threads allow secure camera or rig mounting, and the included A-IP00 mounting plate provides additional wall or surface installation options with cable management.

With low 3W power consumption and wide operating temperature tolerance (0–70°C), the S-4611 is an excellent solution for field production, broadcast, corporate AV, and digital signage workflows.

Key Features

• Converts 3G/HD/SD-SDI to DVI-D

• Supports resolutions up to 1080p60

• SDI loop-through output for local monitoring

• 2-channel SDI audio de-embedding via 3.5mm output

• Compact, heavy-duty aluminum housing

• Dual 1/4″-20 mounting threads

• Includes AC power adapter and mounting plate

• Low power consumption (3W)
