SWIT S-1223H is a 21.5" Full HD 1920×1080 resolution studio LCD monitor with 2x SDI, HDMI, Y/Pb/Pr, VGA and composite inputs.

S-1223H

21.5-inch Full HD 3GSDI&HDMI Studio LCD Monitor

• 21.5-inch LCD Panel, 1920×1080 resolution
• 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 2-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Peaking focus assist (red/blue switch)
• AFD, Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
• V-mount / Gold mount battery plate optional
• USB firmware upgrade

21.5-inch Full HD Studio LCD Monitor

AFF-IPS LCD panel, LED backlight

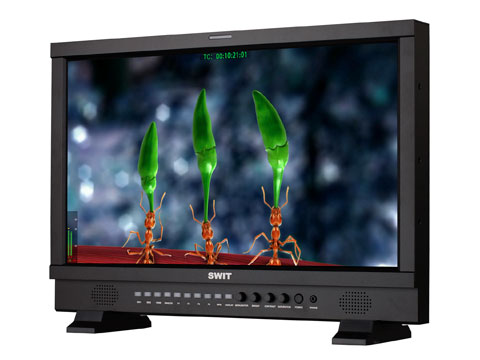

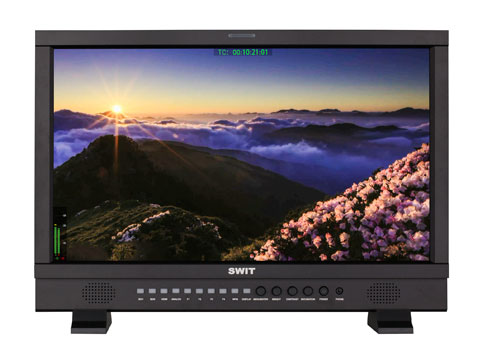

S-1223H adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178° / Vertical: 178°.

Multi-format Input/Output

S-1223H supports

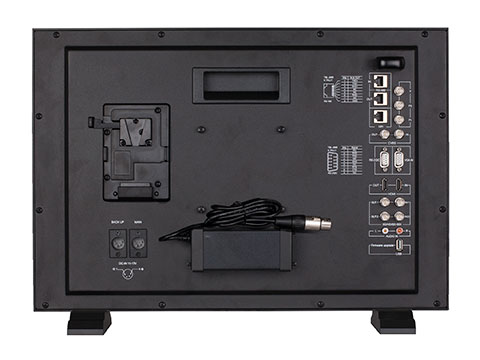

2K/3G/HD/SD-SDI input×2
2K/3G/HD/SD-SDI loop ×2
HDMI input ×1
HDMI loop×1
YUV input ×1
VGA input ×1
CVBS input ×1
CVBS loop ×1
RS485 UMD input×1
RS485 UMD output×1
RS232C UMD input ×1
RS485 GPI input ×1
L/R analog audio input×1

Digital Audio De-embed

2-ch Audio meters display+ Audio Alarm under SDI/HDMI

S-1223H supports 2-ch audio meters under SDI and HDMI input. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB. The ch-1 and ch-2 de-embedded audio can be output via 3.5mm headphone socket and speaker
If the audio value is too low or no embedded audio, it will display "MUTE" or "UNLOCKED" in the audio bar

UMD and Text-Tally Display

TSL 3.1/4.0 Protocol

S-1223H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

USB Firmware Upgrade

S-1223H provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1223H monitor to upgrade, without PC connection.

Multiple Power Sources

AC adaptor / V-mount / Gold mount

S-1223H provides a 4-pin XLR socket of DC 11-17V power input, and V-mount or Gold mount plate for outdoor using

3-color TALLY Light

RS485 input signal

There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
