SWIT S-1071H+(LUX) | 7" Studio LCD, no plate, SC

The SWIT S-1071H+(LUX) is a lightweight 7-inch on-camera and studio LCD monitor featuring a 1024×600 FFS display with 3G/HD/SD-SDI, HDMI, and CVBS inputs. Equipped with professional monitoring tools such as Peaking, Zebra, False Color, Audio Meters, and Timecode, plus front and rear RGB tally lights with GPI control, it is an ideal monitoring solution for DSLR shooters, broadcast crews, and studio production.

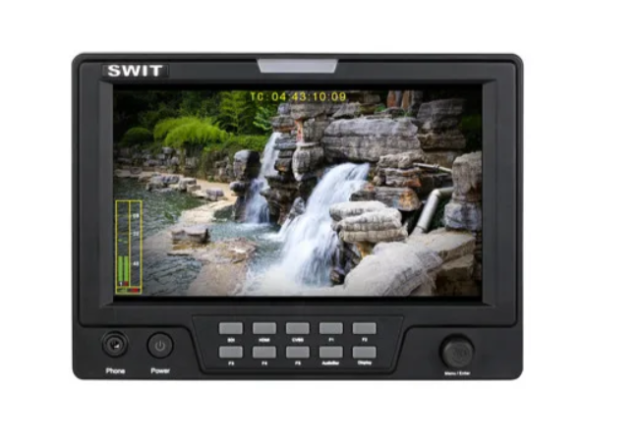

The SWIT S-1071H+(LUX) 7" Studio LCD Monitor is a professional-grade on-camera and studio monitoring solution designed for DSLR filmmakers, broadcast operators, and production crews. Featuring a 7-inch FFS LCD panel with 1024×600 resolution, 16.77 million colors, and wide 160° viewing angles, the monitor delivers accurate color reproduction and consistent brightness across viewing positions.

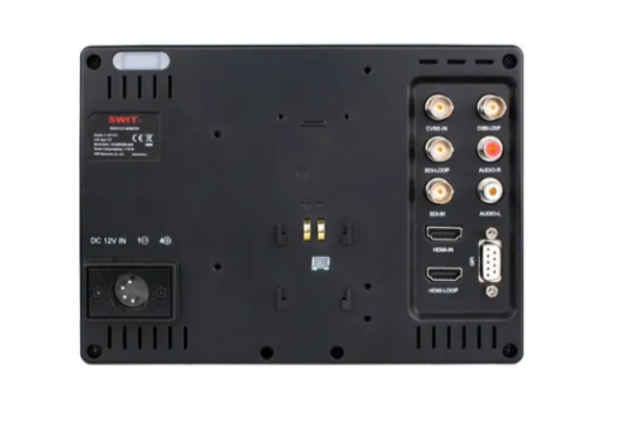

Supporting 2K/3G/HD/SD-SDI, HDMI, and CVBS inputs, along with SDI and composite loop outputs, the S-1071H+(LUX) integrates seamlessly into both studio and field workflows. With a brightness of 400 cd/m² and a 900:1 contrast ratio, it ensures clear image visibility in various lighting conditions.

The monitor is packed with professional assist tools including:

• Peaking focus assist

• Zebra exposure

• False Color

• R/G/B/Mono display modes

• Audio level meters

• Timecode display

• H/V delay

• AFD

• Scale markers

A standout feature is the front and rear three-color TALLY light (Red/Green/Yellow), controllable via GPI interface—ideal for multi-camera studio environments.

Power flexibility is enhanced through a 4-pin XLR DC input (6.5–17V) and optional battery plates for Sony, Canon, Panasonic, JVC, V-Mount, and Gold-Mount batteries. The monitor is supplied with a comprehensive accessory kit and a battery plate of your choice, making it production-ready out of the box.

Lightweight at just 550g, the S-1071H+(LUX) is equally suited for handheld rigs, gimbals, studio setups, and director’s monitoring stations.

Key Features

• 7" FFS LCD display (1024×600 resolution)

• 3G/HD/SD-SDI input with loop output

• HDMI and CVBS input

• Peaking, Zebra, False Color, Audio Meters

• R/G/B/Mono display modes

• Timecode, H/V delay, AFD, Scale markers

• Front & rear RGB tally light (GPI controlled)

• Wide 160° viewing angle

• Lightweight and portable (550g)

• Optional DV battery plates (Sony, Canon, Panasonic, JVC, V/Gold Mount)
