SWIT S-1093F(LUX) | 9-inch On camera LCD monitor with Luxury package, no plate

The SWIT S-1093F (LUX) is a professional 9-inch IPS LCD monitor designed for broadcast, filmmaking, and on-location production. It features a 1920×1200 Full HD resolution, LED backlight with up to 450 cd/m² brightness, 1000:1 contrast ratio, and 170° horizontal/vertical viewing angles for accurate image monitoring from any position. The screen is protected by integrated LCD protective glass to prevent scratches and damage.

The SWIT S-1093F (LUX) is a professional 9-inch IPS LCD monitor designed for broadcast, filmmaking, and on-location production. It features a 1920×1200 Full HD resolution, LED backlight with up to 450 cd/m² brightness, 1000:1 contrast ratio, and 170° horizontal/vertical viewing angles for accurate image monitoring from any position. The screen is protected by integrated LCD protective glass to prevent scratches and damage.

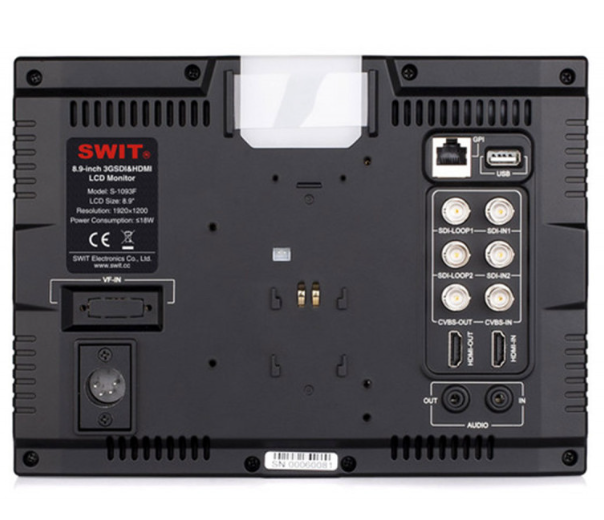

The monitor supports 2K/3G/HD/SD-SDI (2 inputs, 2 loop outputs), HDMI input/output, and CVBS input/output, ensuring compatibility with a wide range of cameras and production equipment. Advanced monitoring tools include waveform (Y/Pb/Pr/R/G/B), vectorscope, RGB/Y histogram, false color, H/V delay, AFD, mono/RGB display, and multiple aspect ratio markers (4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1).

Integrated 16-channel SDI and HDMI audio meters with alert indicators allow precise audio monitoring, and users can select any 2 channels for output via the 3.5mm headphone jack or built-in speakers. The monitor supports TSL 3.1/4.0 UMD & TALLY display via RJ45 (RS485), with front and rear tally lights (red, green, yellow).

Power options include 4-pin XLR DC input (6.5–24V), V-mount, Gold mount, and interchangeable DV battery plates. Firmware updates are easily performed via the rear USB port without requiring a PC. The included sun hood makes it suitable for outdoor shooting.

Key Features

• 9" IPS LCD, 1920×1200 resolution

• 170° H/V viewing angles

• Protective glass screen

• 2K/3G/HD/SD-SDI ×2 in / ×2 loop out

• HDMI in/out and CVBS in/out

• 16-channel embedded audio monitoring with alarms

• Waveform, vectorscope, histogram, false color, RGB scan

• Multiple aspect ratio markers & timecode display

• TSL UMD & TALLY via RJ45 (RS485)

• Firmware update via USB

• Power via 4-pin XLR, V-mount, Gold mount, or DV plates

• Sun hood included
