SWIT S-1073F(LUX) | 7-inch On camera LCD monitor with Luxury package, no Plate

The SWIT S-1073F (LUX) is a professional 7″ on-camera LCD monitor featuring a 1920×1200 resolution, 2K/3G/HD/SD-SDI and HDMI inputs, built-in HDMI-to-SDI conversion, and advanced monitoring tools including waveform, vectorscope, focus assist, and 3D-LUT support. Delivered in a luxury kit with rich accessories and hard case (no battery plate included), it is designed for demanding broadcast and cinema production.

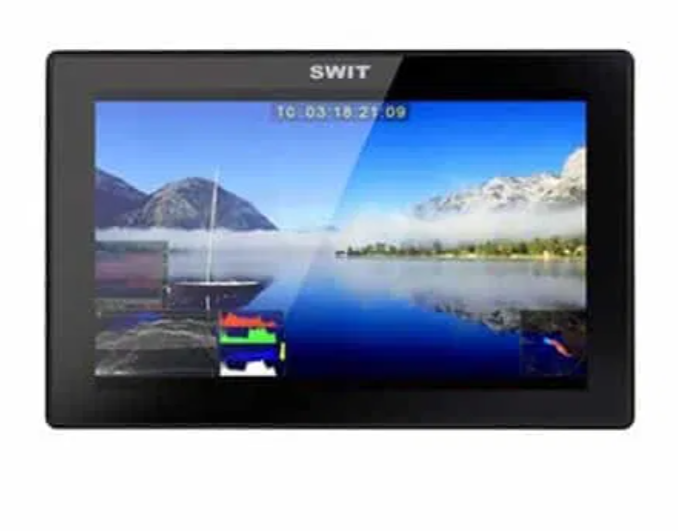

The SWIT S-1073F (LUX) is a high-performance 7-inch LED backlit LCD monitor engineered for professional cinematography and broadcast workflows. With a native 1920×1200 resolution, 1000:1 contrast ratio, and 400 cd/m² brightness, it delivers sharp and accurate image reproduction with wide 160° viewing angles.

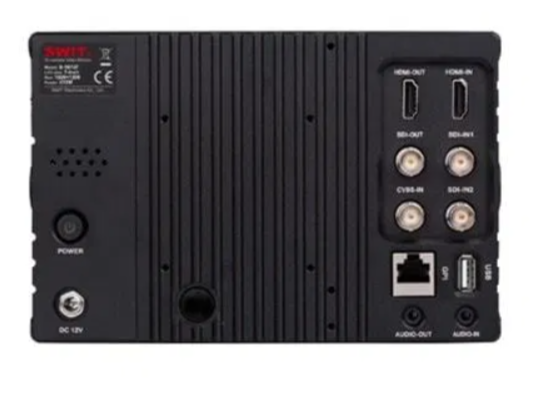

Equipped with dual 2K/3G/HD/SD-SDI inputs, HDMI 1.3 input, composite (CVBS), and both SDI and HDMI loop outputs, the S-1073F ensures maximum compatibility with modern and legacy camera systems. Its built-in HDMI-to-SDI converter enables seamless signal integration into SDI-based production pipelines. Embedded audio from SDI (up to 16 channels) and HDMI (2 channels) can be monitored via the 3.5mm headphone jack with on-screen audio meters.

For precise exposure and color control, the monitor includes adjustable focus assist (red/blue), zebra, false color, waveform, vectorscope, histogram (R/G/B/Y), R/G/B/Mono display modes, H/V delay, AFD, and multiple aspect ratio markers (4:3, 13:9, 15:9, 1.85:1, 2.35:1). Timecode display supports LTC, VITC1, and VITC2 formats, and dual tally via GPI is available.

The S-1073F supports built-in Log-to-Rec.709 conversions (Log-C, C-Log, S-Log3, V-Log, J-Log1, RedLogFilm) and allows importing custom 17x17x17 3D-LUTs via USB (.cube format). Power options are flexible via DC input (6.5–36V) or optional battery plates (V-mount, Gold-Mount, NP-F, BP-U, Canon, Panasonic, JVC types – plate not included in this version).

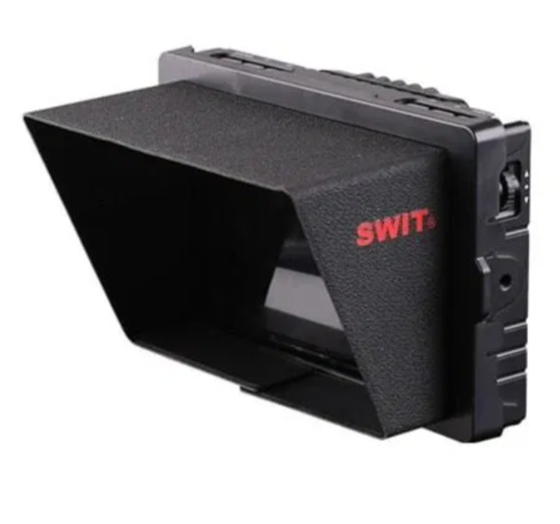

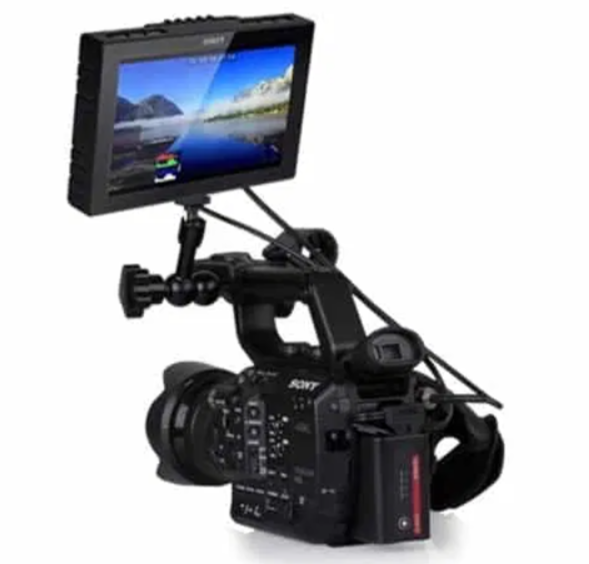

Delivered as a luxury package in a protective hard carrying case with comprehensive accessories, this monitor is ideal for cinema cameras, broadcast setups, and field production.

Key Features

• 7″ LED LCD, 1920×1200 resolution

• 1000:1 contrast ratio, 400 cd/m² brightness

• 160° wide viewing angles

• 2× 2K/3G/HD/SD-SDI inputs

• HDMI 1.3 input (up to 1080p60)

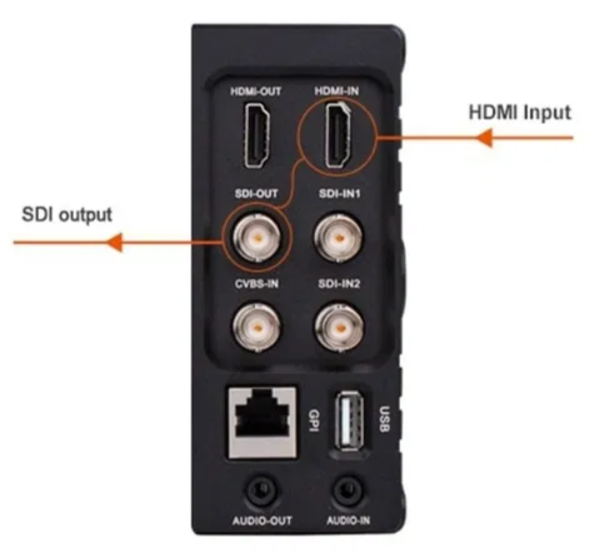

• Built-in HDMI → SDI converter

• SDI & HDMI loop outputs

• Composite (CVBS) input

• 16-ch SDI & 2-ch HDMI embedded audio monitoring

• Waveform, vectorscope, histogram, focus assist, zebra, false color

• 3D-LUT support (built-in & custom .cube via USB)

• Timecode display (LTC, VITC1, VITC2)

• Dual tally (GPI input)

• Power input: 6.5V–36V DC

• Max power consumption: 12W
