Sennheiser EW-DX TS 5-PIN (R1-9)

SKU: TS EW-DX 5-PIN (R1-9)

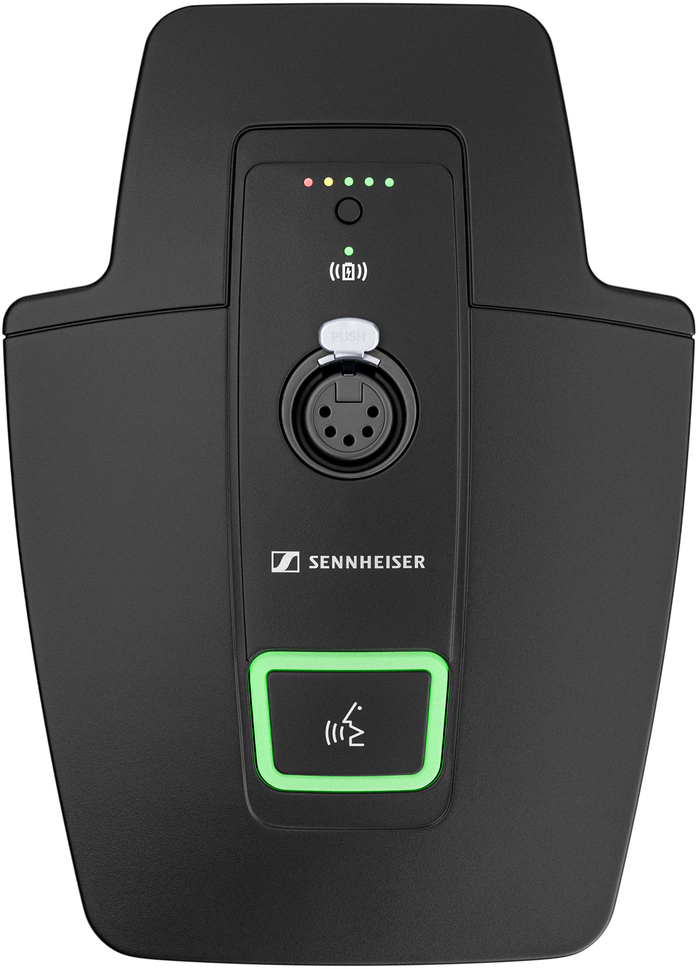

Sennheiser EW-DX TS 5-PIN (R1-9) is a digital wireless table-stand transmitter for the Evolution Wireless Digital system. The R1-9 version operates from 520 to 607.8 MHz and provides a stable base for compatible Sennheiser 5-pin XLR gooseneck microphones; no microphone is included.

More information

839 € with VAT 693.39 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TS EW-DX 5-PIN (R1-9)
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sennheiser EW-DX TS 5-PIN (R1-9) is a digital wireless table-stand transmitter for the Evolution Wireless Digital system. The R1-9 version operates from 520 to 607.8 MHz and provides a stable base for compatible Sennheiser 5-pin XLR gooseneck microphones; no microphone is included.

Sennheiser EW-DX TS 5-PIN R1-9

Evolution Wireless Digital

Wireless foundation for a conference microphone

EW-DX TS 5-PIN (R1-9) is a table-stand transmitter for compatible Sennheiser 5-pin gooseneck microphones. Its stable metal base sends audio to EW-DX receivers; no microphone is included.

Dedicated to the R1-9 band

The exact 700192 version operates from 520 to 607.8 MHz. Digital UHF transmission, 24-bit audio, 134 dB dynamic range and AES-256 encryption support demanding conference and installation workflows.

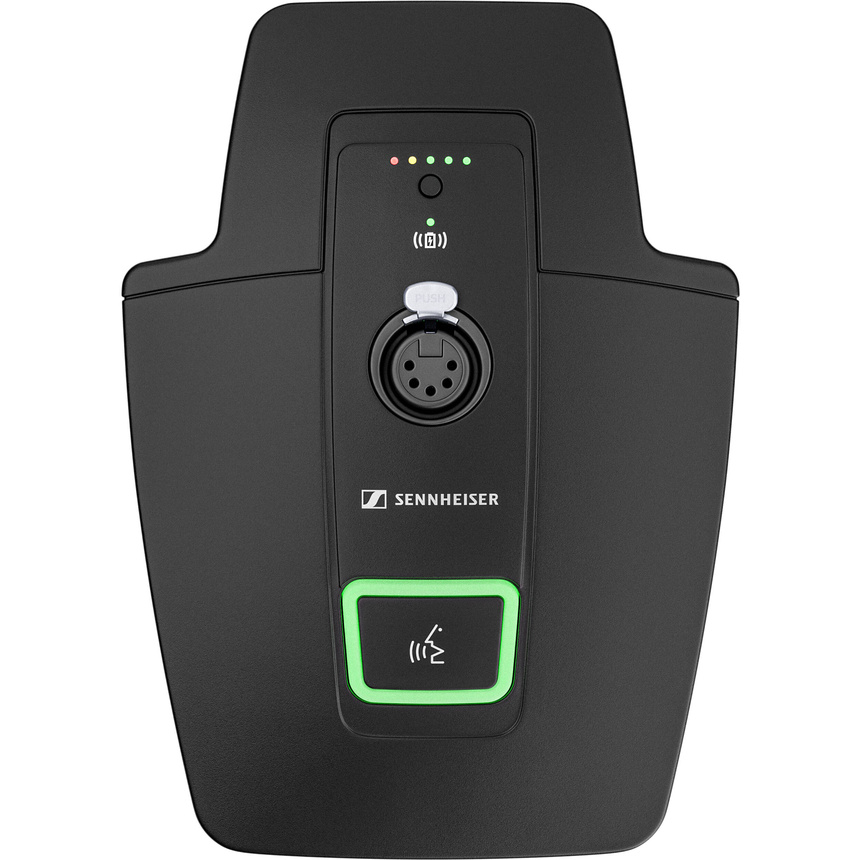

Detail stolního vysílače EW-DX TS 5-PIN

Ready for the EW-DX system

The 5-pin XLR input/output is intended for compatible gooseneck microphones such as the MEG 14-40 L-II B. The transmitter uses the rechargeable BA 40 battery and supports CHG 2W inductive or USB charging.

PACKAGE CONTENT

  • EW-DX TS 5-PIN (R1-9) table-stand transmitter ×1
  • BA 40 rechargeable battery ×1
  • Quick Guide ×1
  • Safety Instructions ×1

SPECIFICATIONS

  • Type: digital wireless table-stand transmitter
  • R1-9 frequency range: 520–607,8 MHz
  • Microphone input/output: XLR, 5pin
  • Compatibility: EW-DX receivers and compatible Sennheiser 5-pin microphones
  • Audio: 24-bit digital transmission
  • Dynamic range: 134 dB
  • Encryption: AES-256
  • Frequency grid: up to 3,480 frequencies in an equidistant grid
  • Power: BA 40 Li-ion battery
  • Charging: USB or CHG 2W inductive charging
  • Operating range: up to 100 m line of sight
  • Material: metal housing
Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Frequency bandR1-9 (520–607,8 MHz)
Number of channels1
Range100m
