Teradek Bolt LP‑E6 / Sony NP‑F Battery Plate with L‑Bracket (11‑0759)

The Teradek Bolt 11‑0759 is a dual-compatible L-bracket battery adapter plate for Canon LP‑E6 and Sony L‑Series/NP‑F batteries. It powers a compatible Bolt transmitter or receiver from a compact camera battery through its attached 2-pin cable and mounts directly to the device underside.

More information

253 € with VAT 209.09 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Teradek Bolt 11‑0759 is a dual-compatible L-bracket battery adapter plate for Canon LP‑E6 and Sony L‑Series/NP‑F batteries. It powers a compatible Bolt transmitter or receiver from a compact camera battery through its attached 2-pin cable and mounts directly to the device underside.

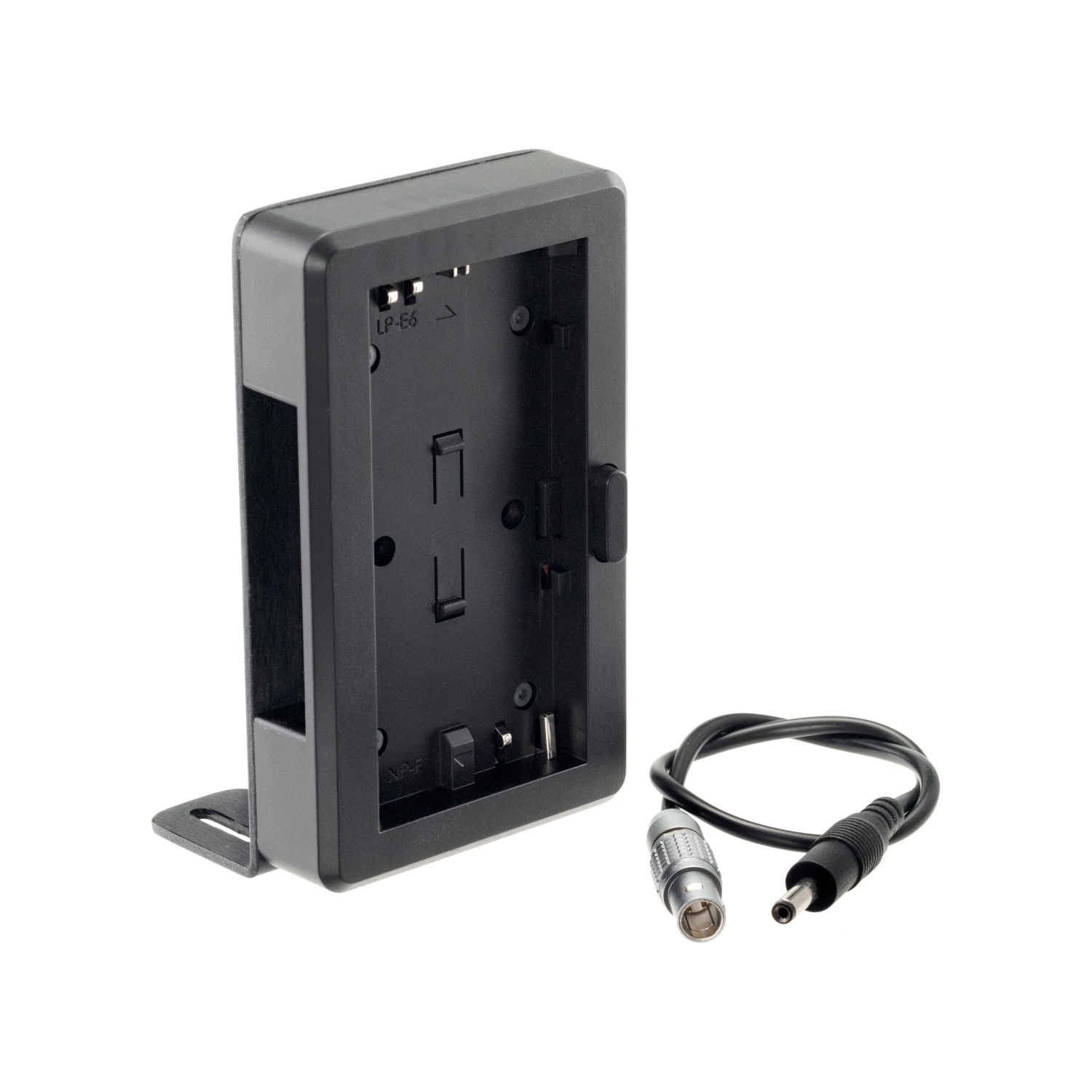

Teradek Bolt 11-0759 battery plate for LP-E6 and Sony NP-F

Power Bolt from compact camera batteries

Teradek 11‑0759 is an L-bracket battery adapter plate for Bolt transmitters and receivers. It accepts either a Canon LP‑E6 or Sony L‑Series/NP‑F battery and powers the device through its attached 2-pin cable.

The plate mounts directly to the underside of compatible Bolt TX/RX, ServPro, Cube 600/700, or COLR devices. Its 2-pin cable is for Bolt 6; Ace 750 requires a different DC-barrel cable.

Variant check: this item is exclusively the dual-compatible 11‑0759 version for LP‑E6 and Sony L‑Series/NP‑F. No photograph of the different 11‑0752 variant is used in the gallery.

PACKAGE CONTENT

  • Sony L‑Series / Canon LP‑E6 Dual Compatible Battery Adapter Plate ×1
  • 2-pin connector to DC plug cable ×1
  • M3 screws for Bolt 6 LT ×2
  • 4-40 mounting screws for legacy devices ×2

SPECIFICATIONS

  • SKU: 11‑0759
  • Compatible batteries: Canon LP‑E6 and Sony L‑Series / NP‑F
  • Output: attached 2-pin power cable
  • Compatible devices: Bolt TX/RX, ServPro, Cube 600/700, COLR
  • Mounting: device underside
  • Cable application: Bolt 6
Parameters

Parameters

Manufacturer: Teradek
Category: Power battery plates

Main parameters

Typ baterie / uchyceníSony NP-F · Canon LP-E6 / LP-E6P
Výstupy a rozhraní2-pin LEMO
KompatibilitaSony · Canon
For the batteryCanon LP-E6 / Sony L-Series
