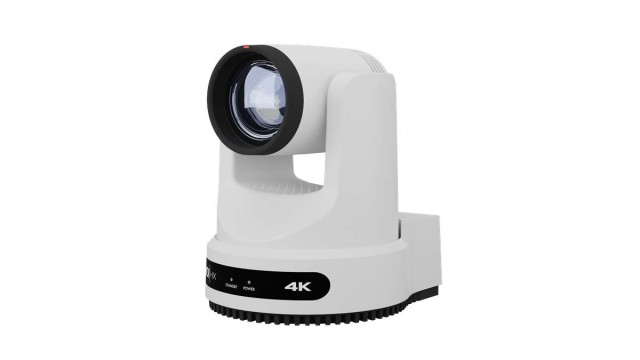

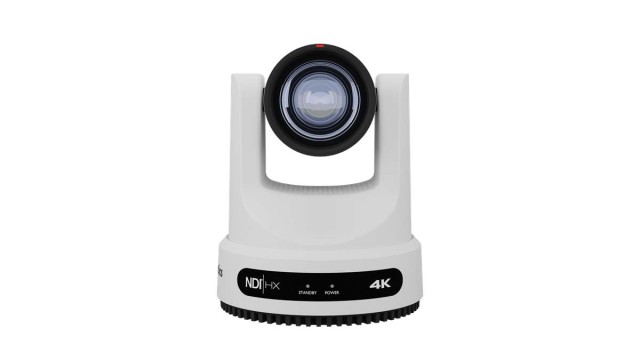

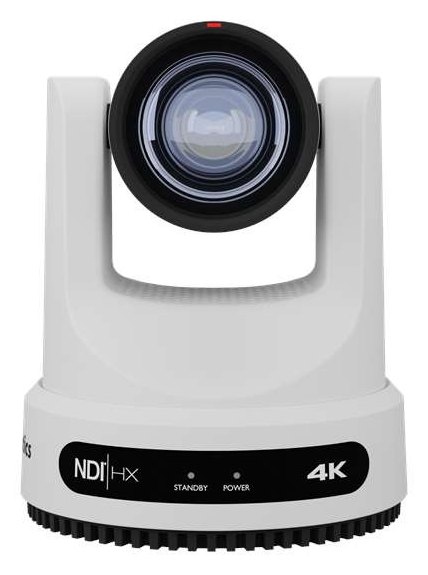

PTZOptics PT30X-4K-WH-G3 (WHITE)

The PT30X-4K-WH-G3 comes with a 30X optical zoom lens and a 60.7° horizontal field of view. The advanced UHD CMOS sensor allows the camera to perform exceptionally in low light scenarios with wide dynamic range and reduces noise to bare minimum. The PTZOptics Move 4K series sets a new standard for PTZ cameras offering accurate auto-tracking capabilites with…

More information

2 781.79 € with VAT 2 299 € without VAT
-+
Availability
14-30 days

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The PT30X-4K-WH-G3 comes with a 30X optical zoom lens and a 60.7° horizontal field of view. The advanced UHD CMOS sensor allows the camera to perform exceptionally in low light scenarios with wide dynamic range and reduces noise to bare minimum. The PTZOptics Move 4K series sets a new standard for PTZ cameras offering accurate auto-tracking capabilites with resolutions up to 4K60fps (1080p 60fps over 3G-SDI). In addition, this series includes a wide varietey of outputs such as USB, HDMI, SDI, and NDI®|HX.

The New Standard

PTZOptics introduces the new Move 4K series for a complete different and advanced user experience. The Move 4K cameras feature accurate auto-tracking and resolutions up to 4k 60fps (SDI 1080p 60fps). In addition, PTZOptics upgrades its hardware and software for better low-light performance.

Other features include PoE capabilites and a built-in-tally light. The Move 4K product range enables users to modernize their setup but will still be compatible with older systems, as HD and Full HD video resolutions are supported.

Unparalleled Performance and Versatility

PTZOptics has implemented SDI, HDMI, USB, and IP output in every Move 4K camera for easy deployment and better usability. In addition all cameras come with NDI®|HX and are available in 12x, 20x, 30x optical zoom.

Mount the Move 4K anywhere

Mount your camera in multiple angles using the PTZOptics brackets. The Move 4K has a new video inversion feature which automatically detects the camera's orientation. This feature will save you time on setup and installation. View our brackets here.

Control and Track

The renewed PTZOptics Web UI allows users to PTZ control their Move 4K camera and gives access to the integrated auto-tracking features. Users can also use production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster.

Camera Comparison

PT12X-4K-XX-G3 PT20X-4K-XX-G3 PT30X-4K-XX-G3
12X Optical Zoom 20X Optical Zoom 30X Optical Zoom
Auto-Tracking Auto-Tracking Auto-Tracking
SDI SDI SDI
NDI®|HX native NDI®|HX native NDI®|HX native

HDMI

HDMI HDMI
PoE PoE PoE
SRT SRT SRT
RTSP/ RTMP RTSP/ RTMP RTSP/ RTMP
Serial Control (RS-232/RS-485) Serial Control (RS-232/RS-485) Serial Control (RS-232/RS-485)
3.5mm Audio Embedding Connection 3.5mm Audio Embedding Connection 3.5mm Audio Embedding Connection
Up to 4K @ 60 FPS Resolution Up to 4K @ 60 FPS Resolution Up to 4K @ 60 FPS Resolution
Wide Dynamic Range Wide Dynamic Range Wide Dynamic Range





PACKAGE CONTENT

What’s in the Box:

  • Camera
  • AC Power Supply
  • USB A-A Cable
  • RS232 Cable
  • Quick Start Guide

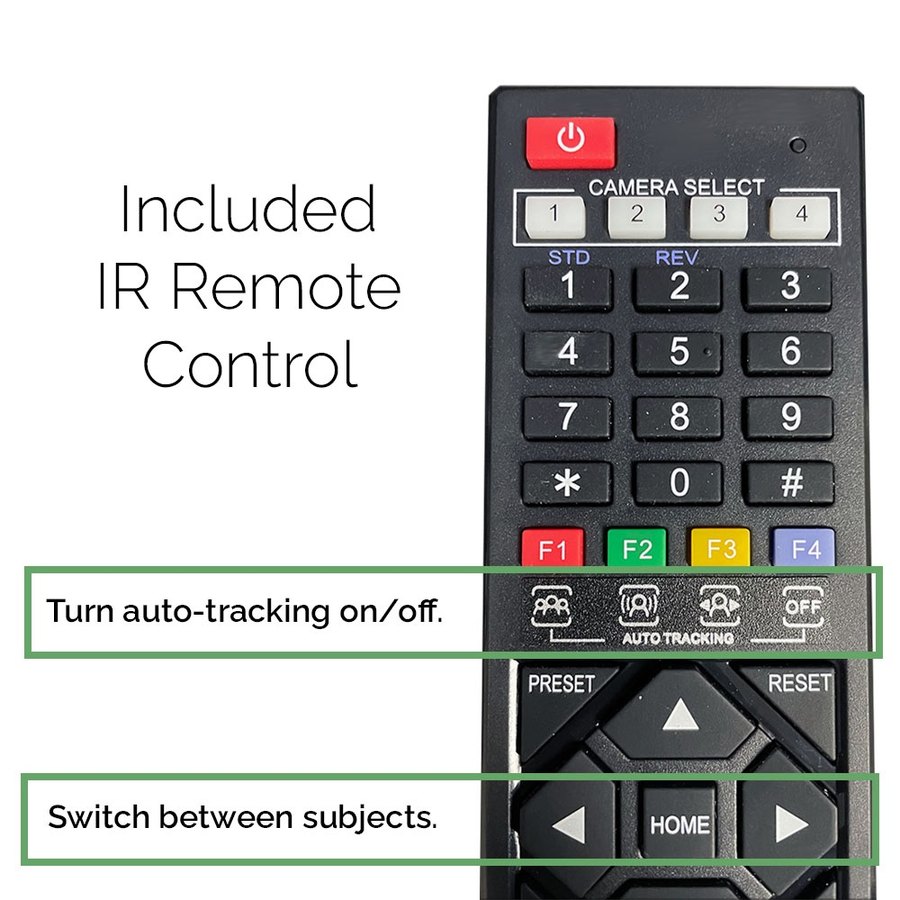

  • IR Remote
  • 2 AA Batteries

SPECIFICATIONS

Specifications

  • UltraHD 4K (3840x2160p) video resolutions up to 60 FPS
  • Built-in auto-tracking capabilities

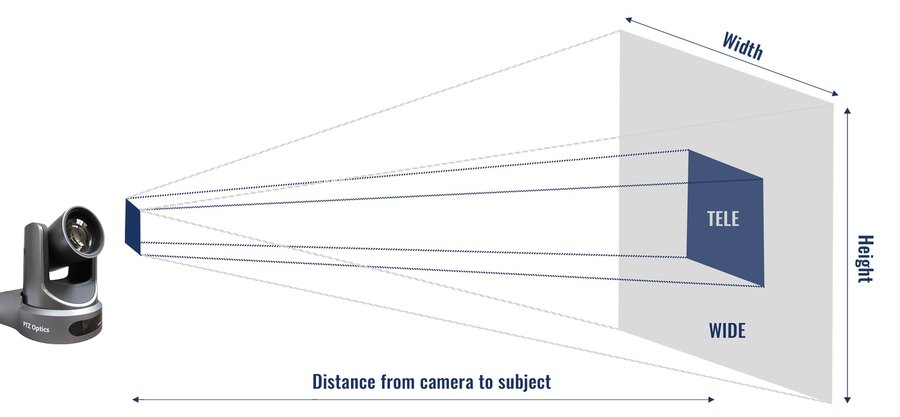

  • 30X optical zoom lens with a 60.7° horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • 3D noise reduction with our latest “low noise CMOS sensor”
  • Serial (RS232 & RS485) & IP control (LAN/WAN)

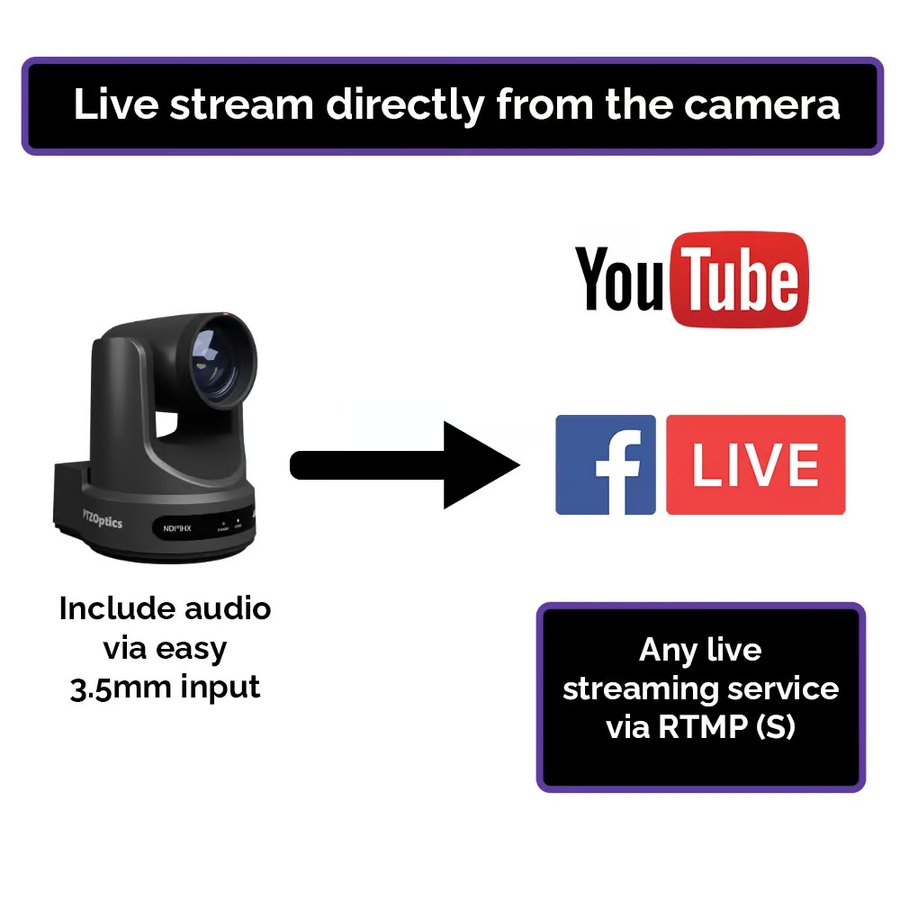

  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI, NDI®|HX 3 / IP streaming (SRT, RTSP, RTMP)
  • PoE (Power over Ethernet) or 12VDC power supply
  • Built in tally light
  • Photobooth capable

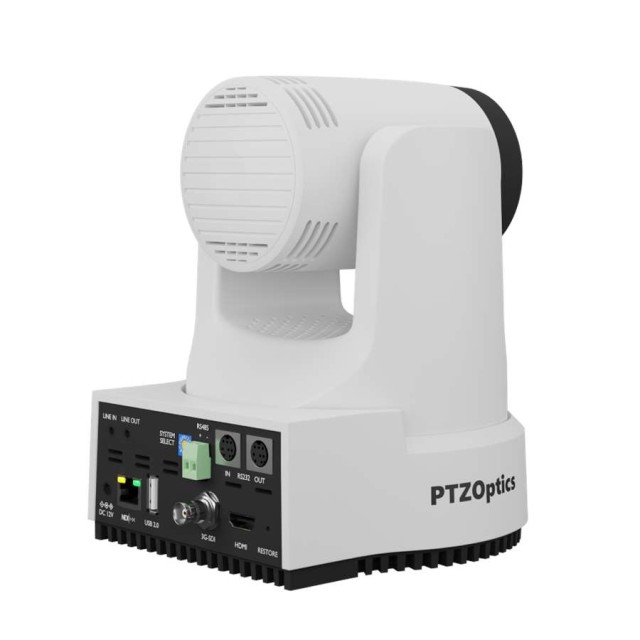

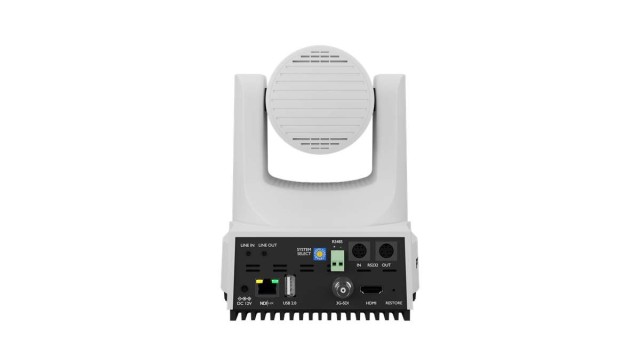

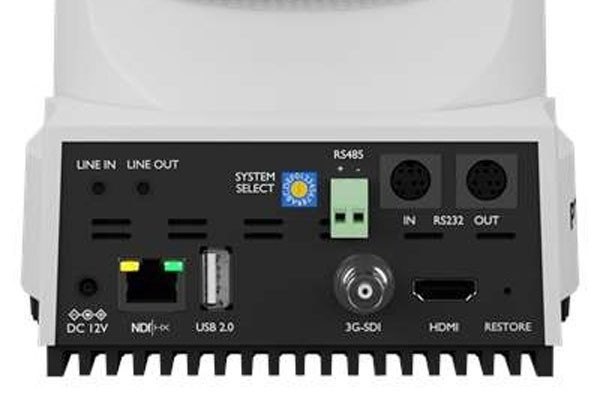

Rear Board

  • HD Video Output
    • 1x RJ45: 10/100/1000M Adaptive Ethernet Port
    • 1x HDMI: version 2.0
    • 1x USB 2.0: type A
    • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
  • Communication Interface
    • 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 2 pin Phoenix port, RS485 input / output, Max distance3,937ft/ 1200m, protocol: VISCA / Pelco-D / Pelco-P
  • Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
  • Audio Interface 1x 3.5mm Line level Input
  • Power Jack JEITA type (DC IN 12V)
Parameters

Parameters

Manufacturer: PTZOptics
Category: PTZ

Main parameters

Camera Sensor size1/2,7"
ResolutionFull HD
ResolutionHDV (720p)
Streaming service typesYouTube Live
Streaming service typesFacebook Live
Streaming service typesUSTREAM
Streaming service typesWOWZA
Streaming service typesRTMP
Resolution4K UHD
Zoom30x
Internal RecordingNo
Type of bayonetintegrated lens
OutputHDMI
OutputSDI
OutputNDI
OutputRTMP
Output3G SDI
OutputUSB

Other parameters

VersionPTZ
FPS4K 60fps
FPSHD 60fps
FPSUHD 60fps
Lens lens aperture1.8f
Colour depth8 bit
Colour depth10 bit
Other featuresPTZ
Other featuresStreaming
Other featuresPoE
Other featuresNDI / NDI HX
Control protocolNDI
Control protocolVISCA
