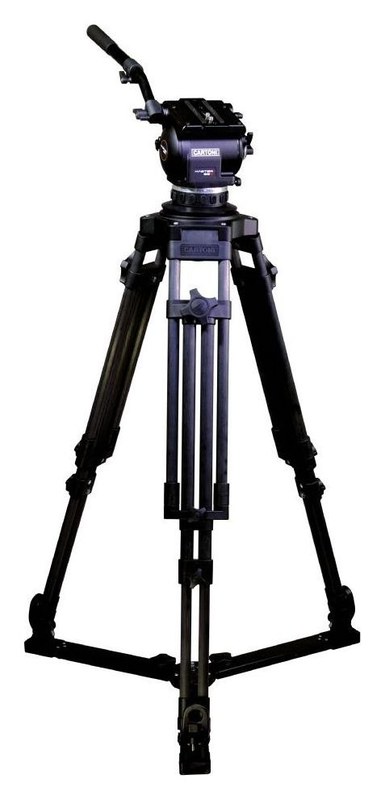

Cartoni Master 25 Studio 2-St CF System

The Cartoni Master 25 system combines the Master 25 fluid head with a 2-stage carbon fibre Studio tripod and an S838 ground spreader. It carries cameras from 3 to 30 kg, the working height is 74–174 cm and the complete system weighs 12.3 kg. It is aimed at operators who need dependable, lightweight support for broadcast and production cameras at a competitive price.

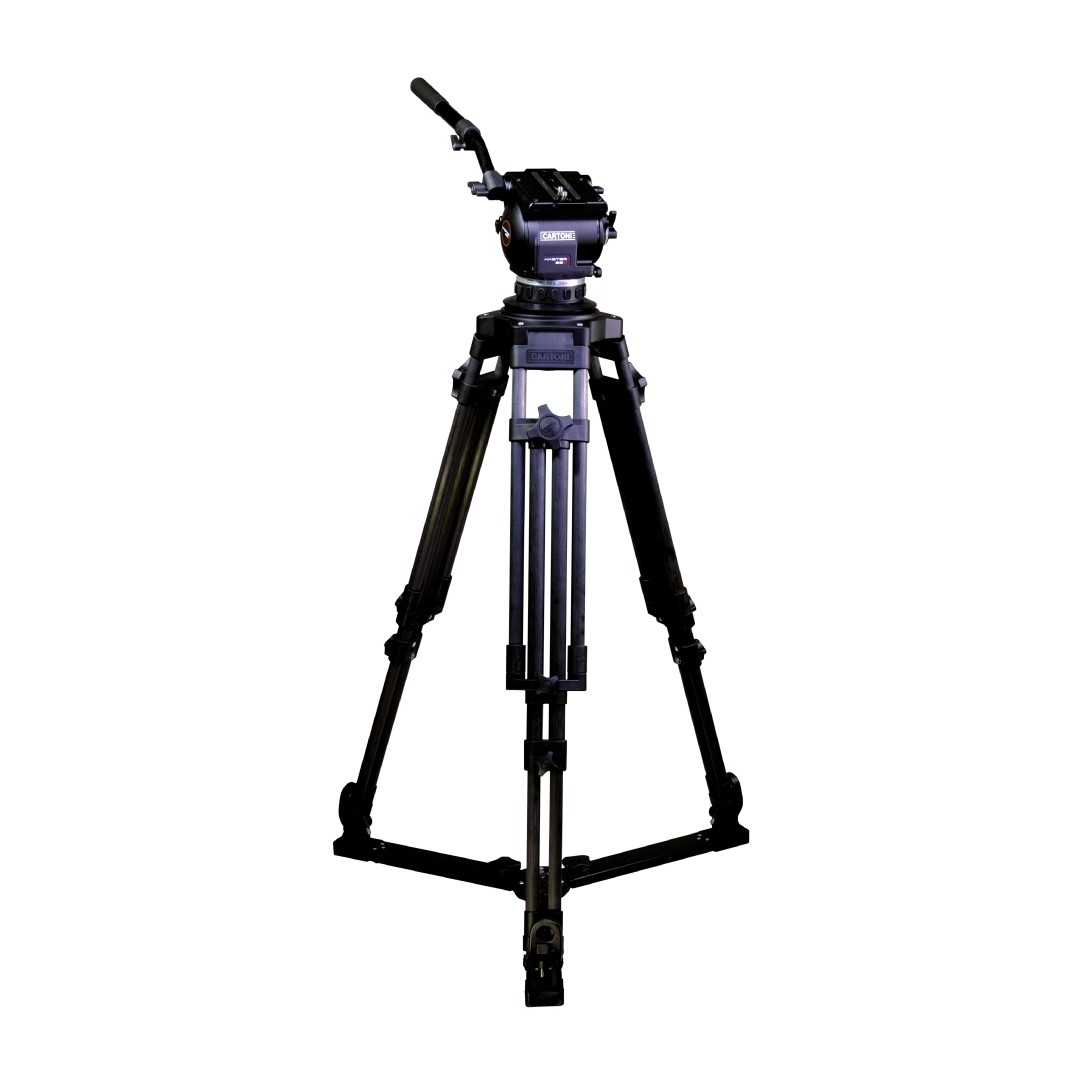

Master 25 on the Studio Carbon 2st. tripod

Master 25 is a nimble, versatile head for OB, ENG and EFP: it combines perfect balance with a super-smooth, patented continuous fluid drag and weighs only 4.4 kg itself.

3–30 kg150 mm bowlheight 74–174 cmweight 12.3 kg2-stage carbon fibre

Continuous drag, perfect balance

Continuous fluid drag and continuous counterbalance, ergonomic brake levers and a horizontal lock make Master 25 a dependable head for daily use.

3 to 30 kg

Payload for broadcast and digital cinema cameras.

150 mm bowl

The base fits 150 mm tripods directly and pedestals via the standard 4 bolts.

150 kg tripod capacity

Locking knobs and leg castings in a polymer and fibreglass blend save weight.

Ground spreader

Firm footing for the studio tripod on a flat floor.

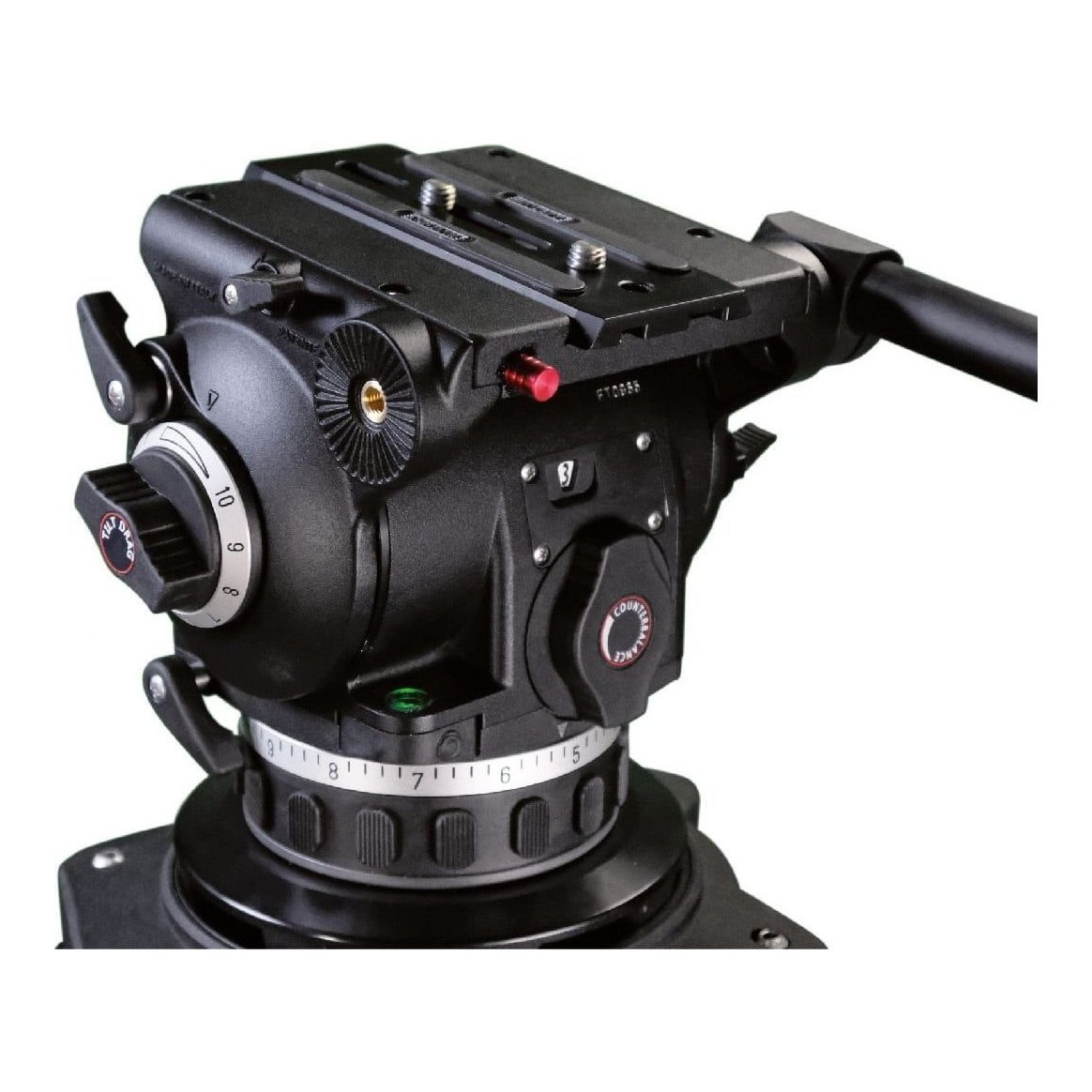

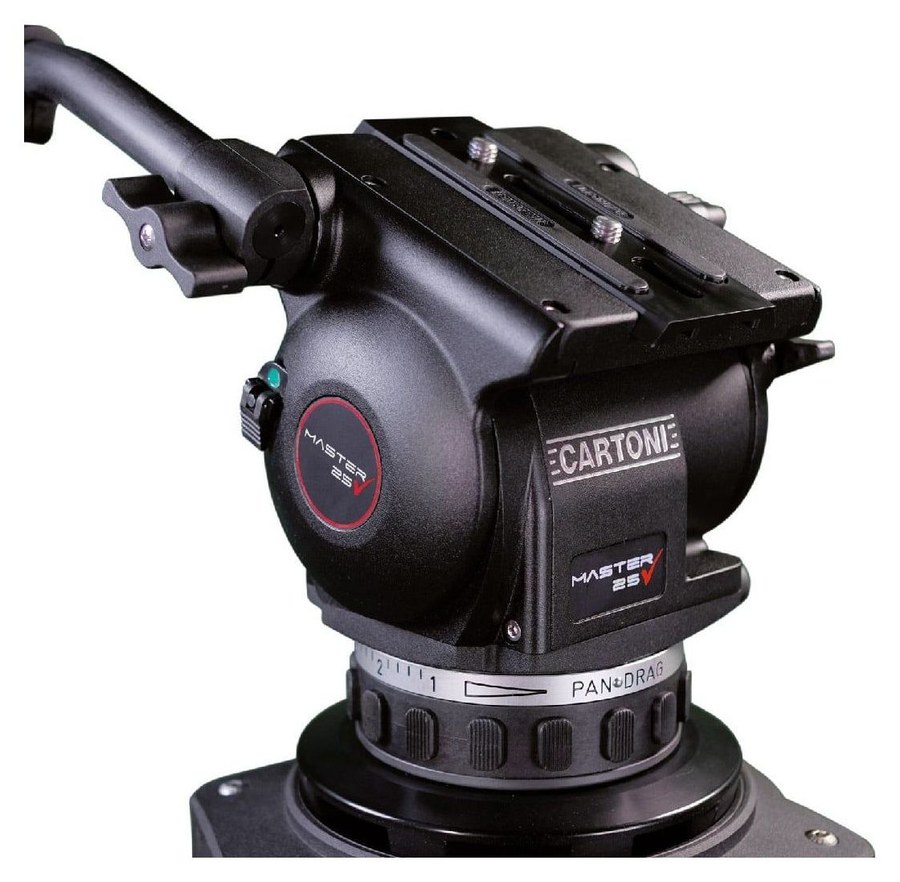

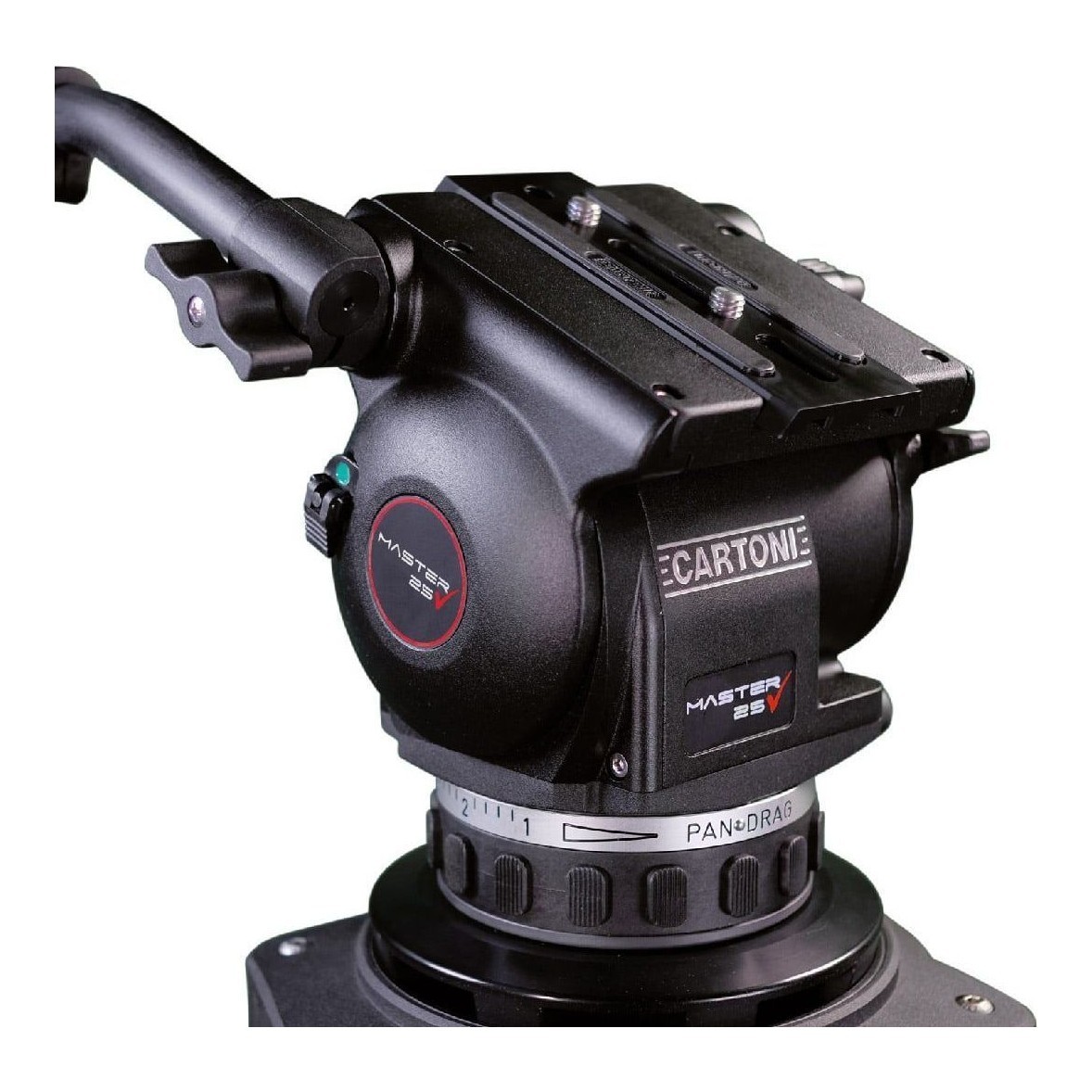

Master 25 fluid head

±90° tilt, removable tie-down shaft, illuminated spirit level and an 11 cm sliding camera platform compatible with Vinten Vision 250.

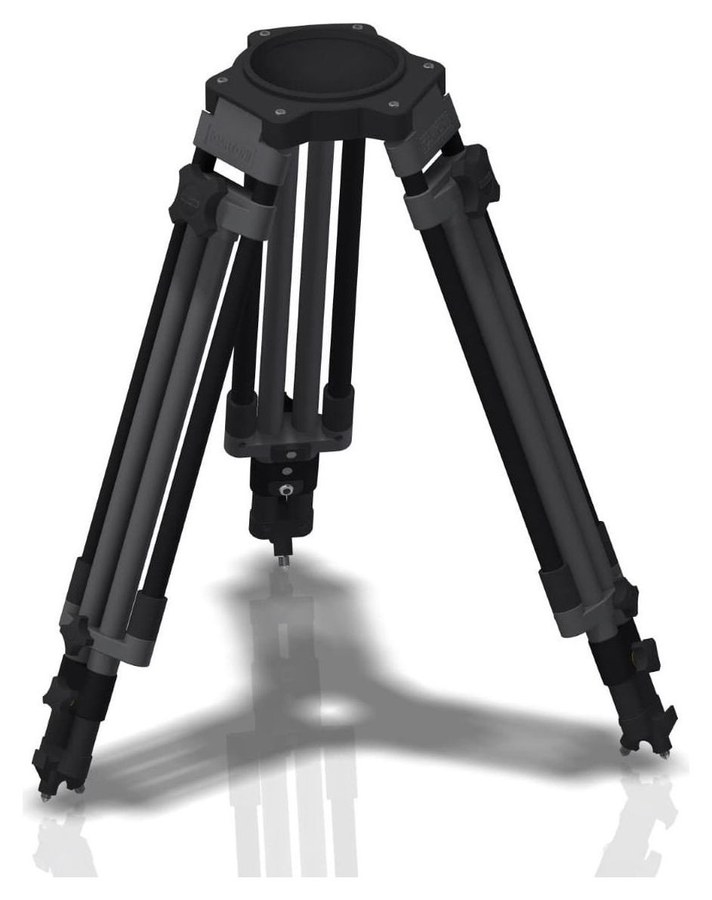

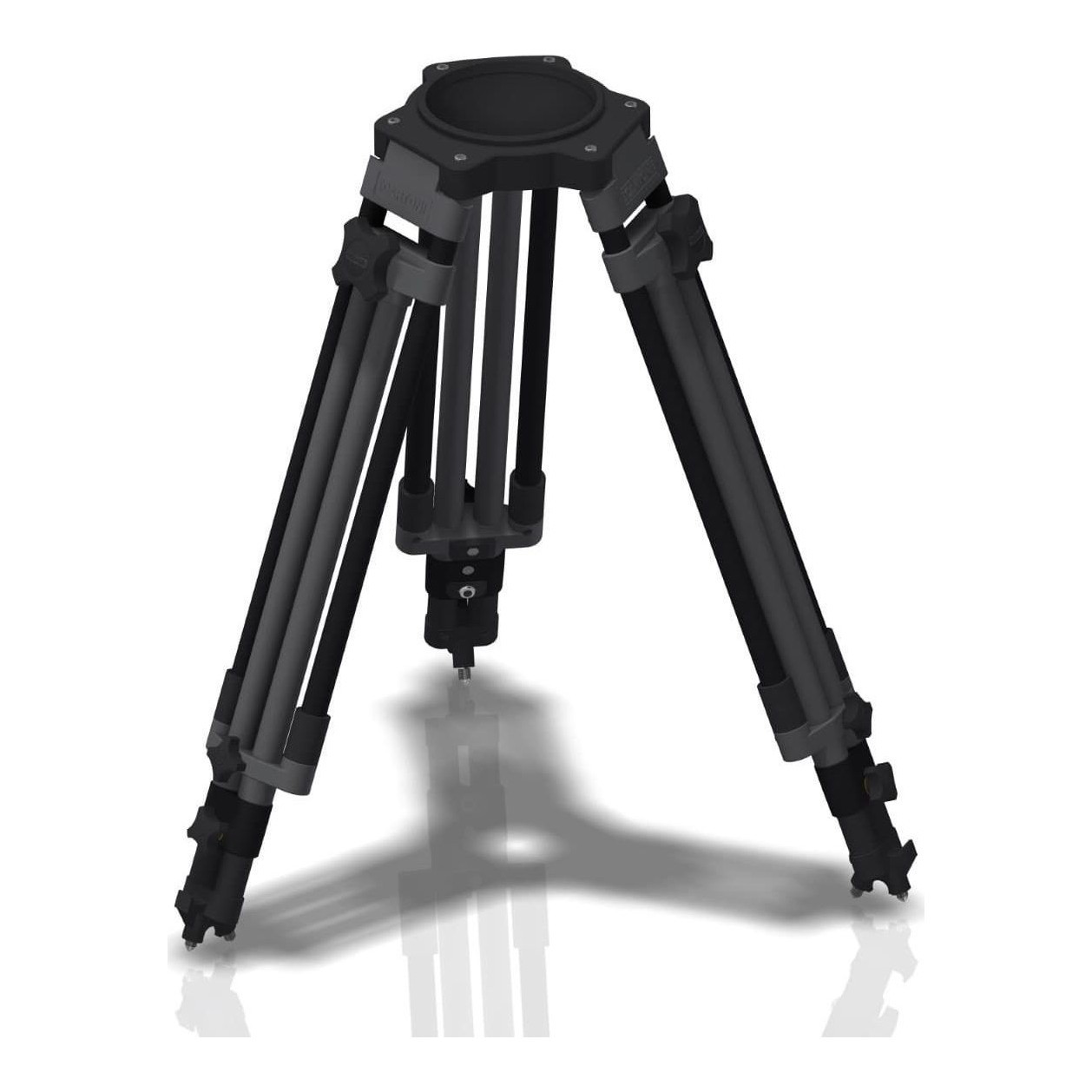

Carbon studio tripod

The aluminium alloy Mitchell base integrates the leg castings into a torsion-free structure; six 2.5 cm carbon fibre tubes and a 150 kg tripod capacity.

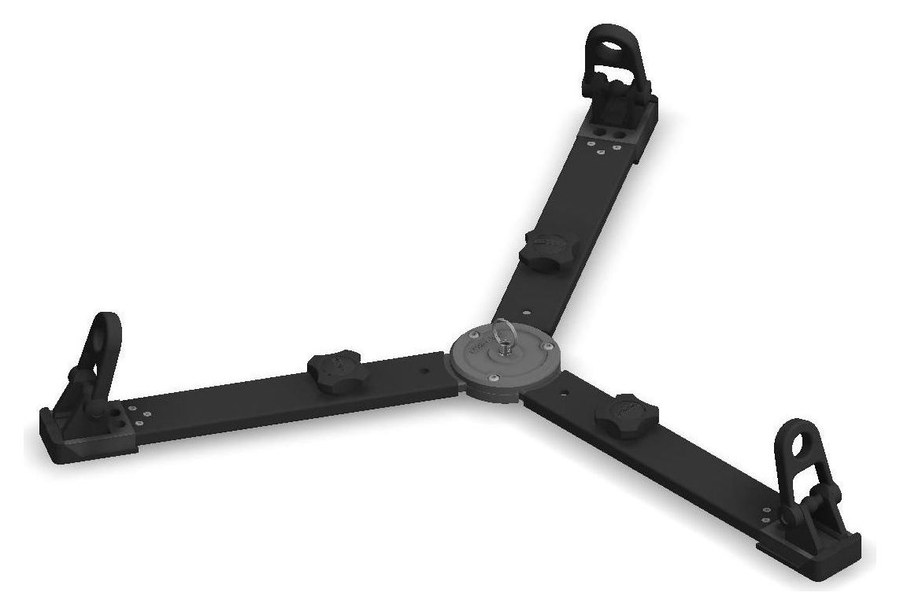

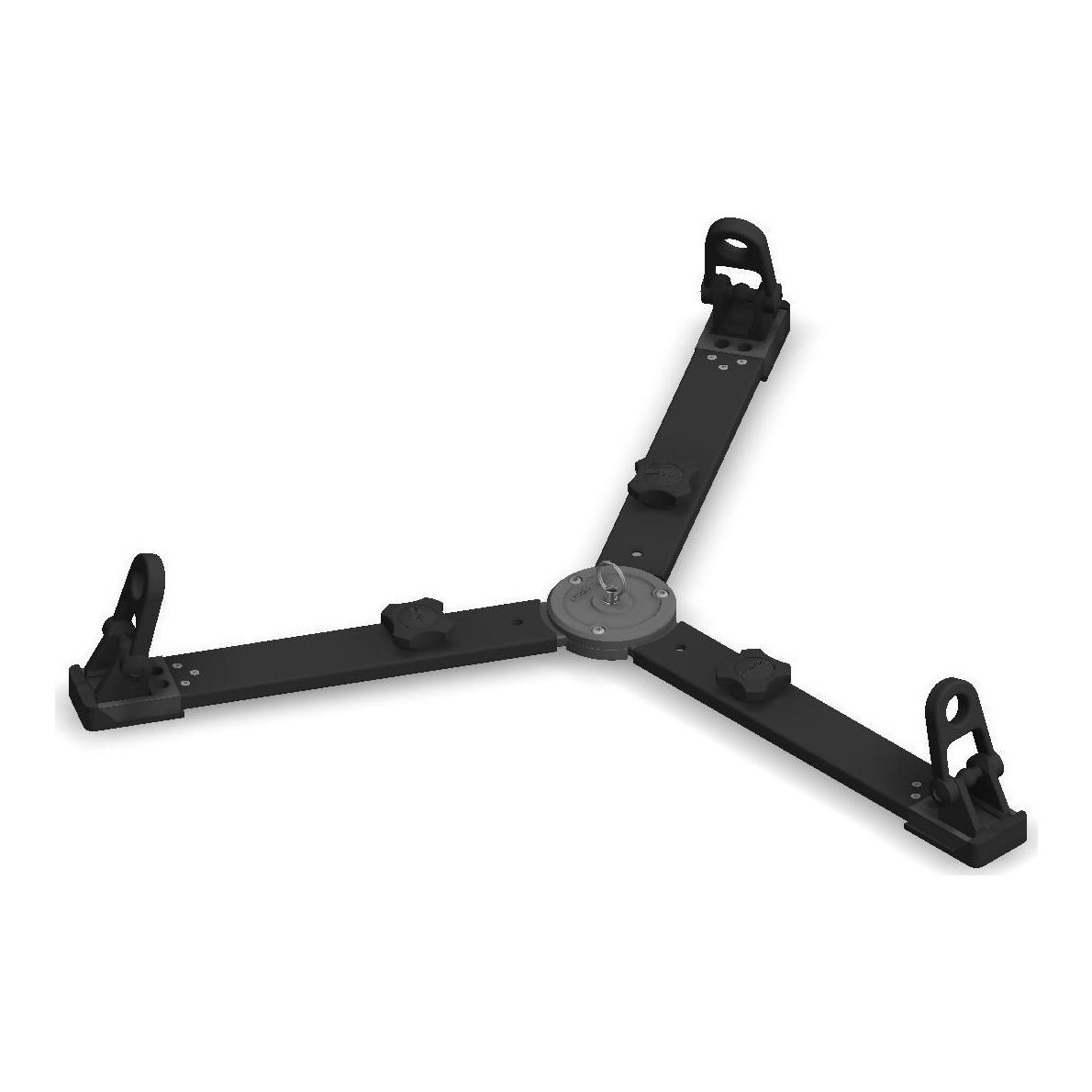

S838 ground spreader

Ground spreader for T724 studio tripods with ball foot coupling.

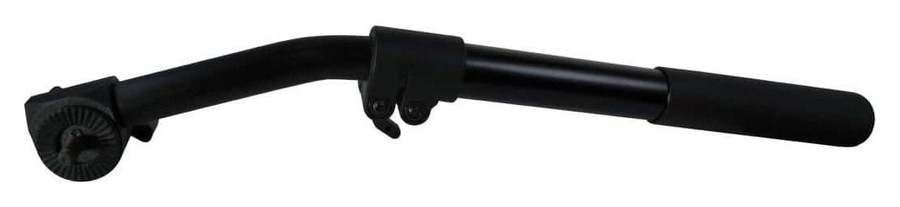

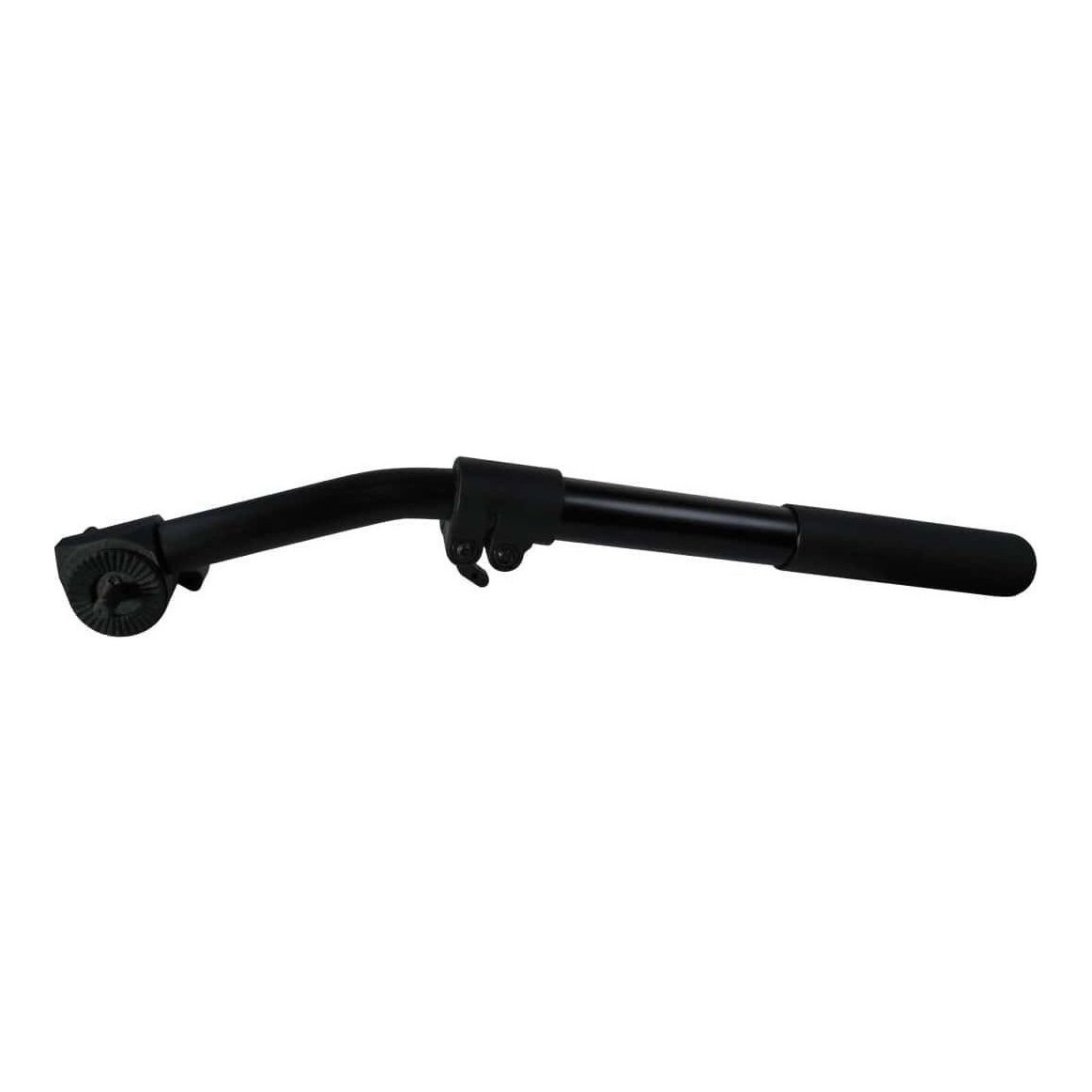

Two pan bars

The system has two telescopic pan bars for two-handed operation.

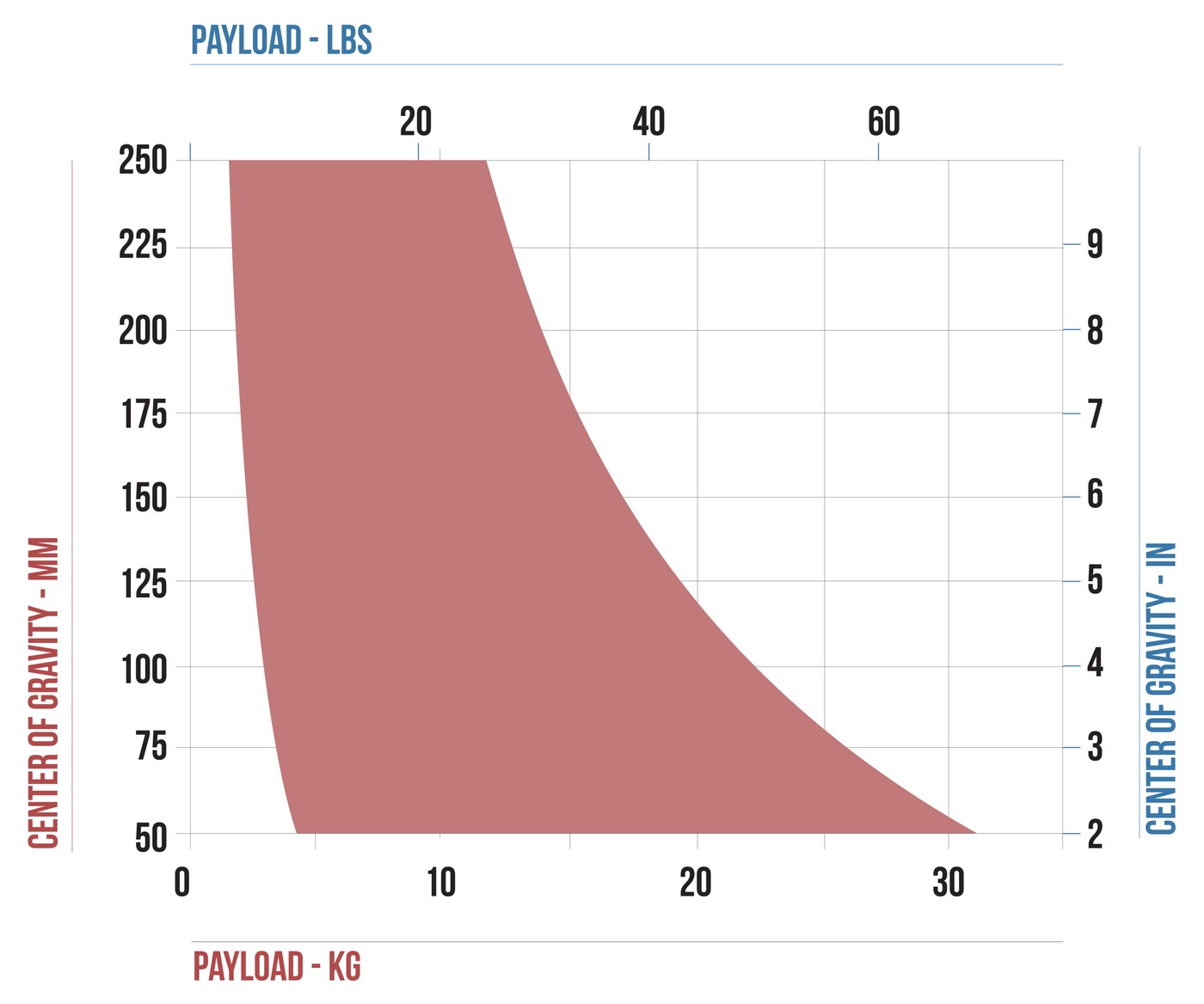

Payload range

The chart shows how much camera weight the Master 25 head balances depending on the height of the centre of gravity above the plate.
