Cartoni C20S Dutch Head

  • Free transport
SKU: H513/D

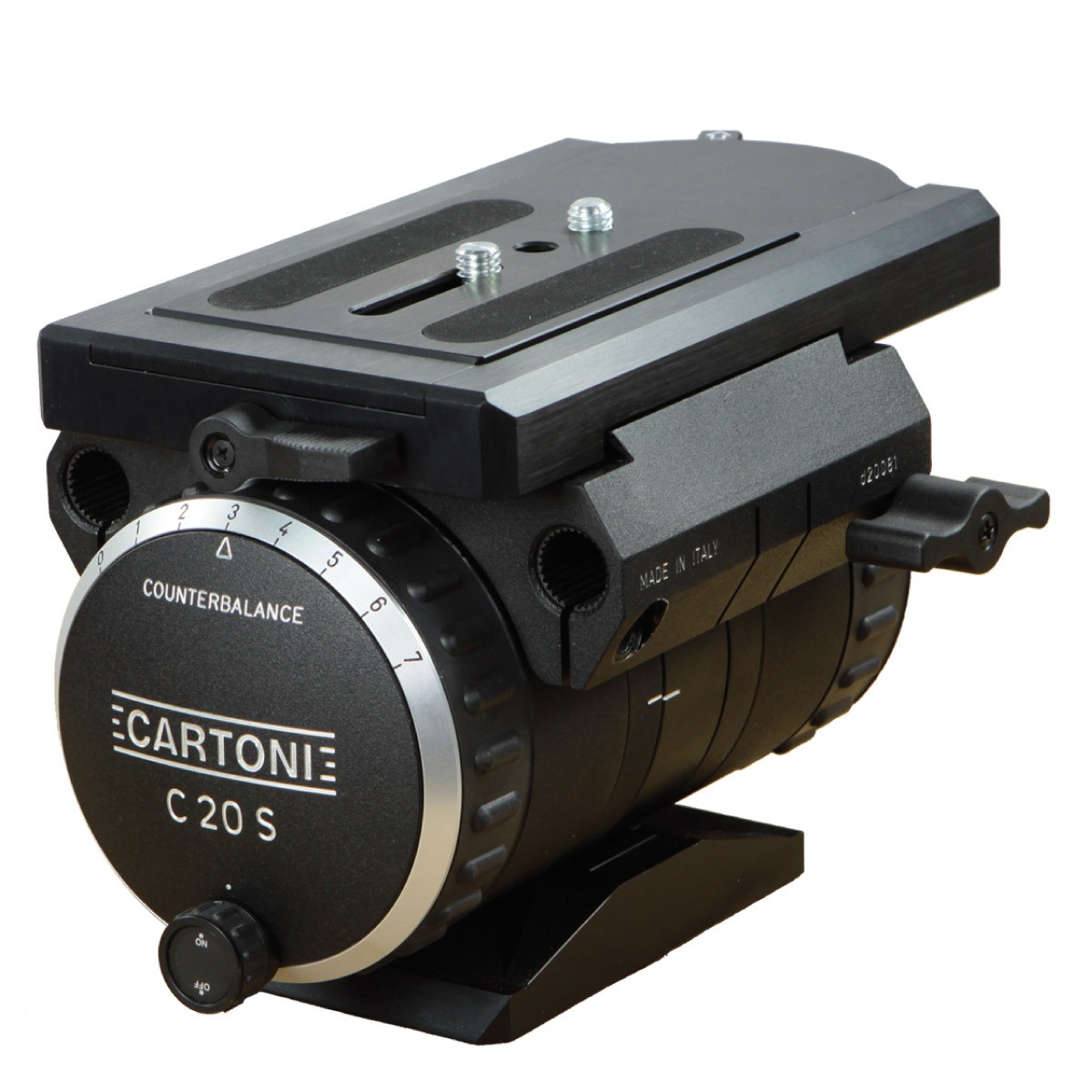

The Cartoni C20S Dutch Head (H513/D) adds a third axis to a standard fluid head for smooth side tilt, known as the Dutch angle. Designed for camera rigs up to 25 kg, it has the award-winning Cartoni fluid module with drag 0 to 7, a 7-step spring counterbalance and a ±65° range. It mounts on a Euro-style quick-release plate or with two 3/8″ screws.

More information

6 419 € with VAT 5 304.96 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
H513/D
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Cartoni C20S Dutch Head (H513/D) adds a third axis to a standard fluid head for smooth side tilt, known as the Dutch angle. Designed for camera rigs up to 25 kg, it has the award-winning Cartoni fluid module with drag 0 to 7, a 7-step spring counterbalance and a ±65° range. It mounts on a Euro-style quick-release plate or with two 3/8″ screws.

A smooth Dutch angle for any head

The Dutch Head sits on the head you already own and adds a lateral axis for more striking cinematic shots. In its C20S version it is rated for rigs up to 25 kg and weighs 5 kg.

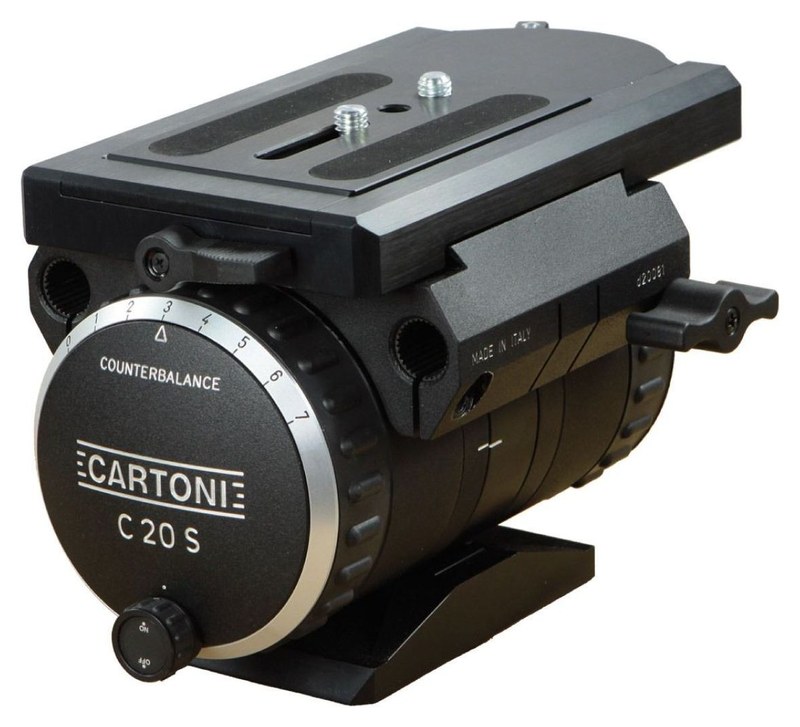

Cartoni C20S Dutch Head
up to 25 kg7-step drag + 0±65° side tilt5 kg

A third axis for side tilt

This special head adds a third axis to a standard fluid head, allowing the lateral movement known as the Dutch angle. Exceptionally smooth side-tilt effects become simple and straightforward to execute.

Fluid module 0–7

The award-winning Cartoni fluid module with drag in 7 steps and position 0 for free movement.

Spring counterbalance

The 7-step spring counterbalance keeps the rig under control even when tilted sideways.

Mounts on a head

It fits the Euro-style quick-release plate on any head, or attaches with two 3/8″ screws.

Telescopic pan bar

A special orientable telescopic pan bar completes the equipment.

PACKAGE CONTENT

  • C20S Dutch Head
  • telescopic pan bar C20S Dutch
  • camera plate C20S / C40S / Dutch Head

SPECIFICATIONS

  • Payload: up to 25 kg
  • Weight: 5 kg
  • Base: plate (mounts on a head)
  • Fluid drag: 7 steps + 0
  • Counterbalance: 7 steps + 0
  • Roll (third axis): ±65°
  • Operating temperature: −40 to +60 °C
  • Manufacturer code: H513/D
Parameters

Parameters

Manufacturer: Cartoni
Category: Heads

Main parameters

Payload25
Weight5kg
TypeFluid
