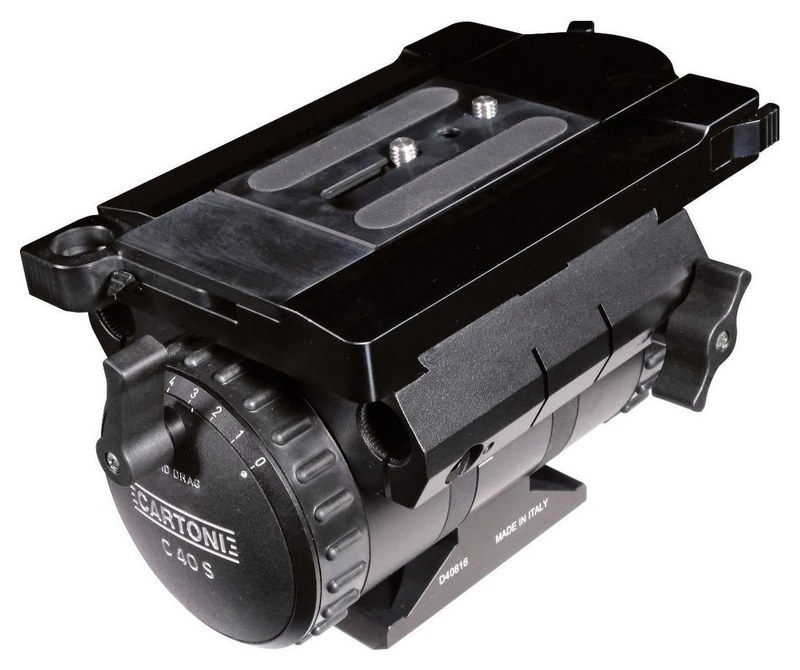

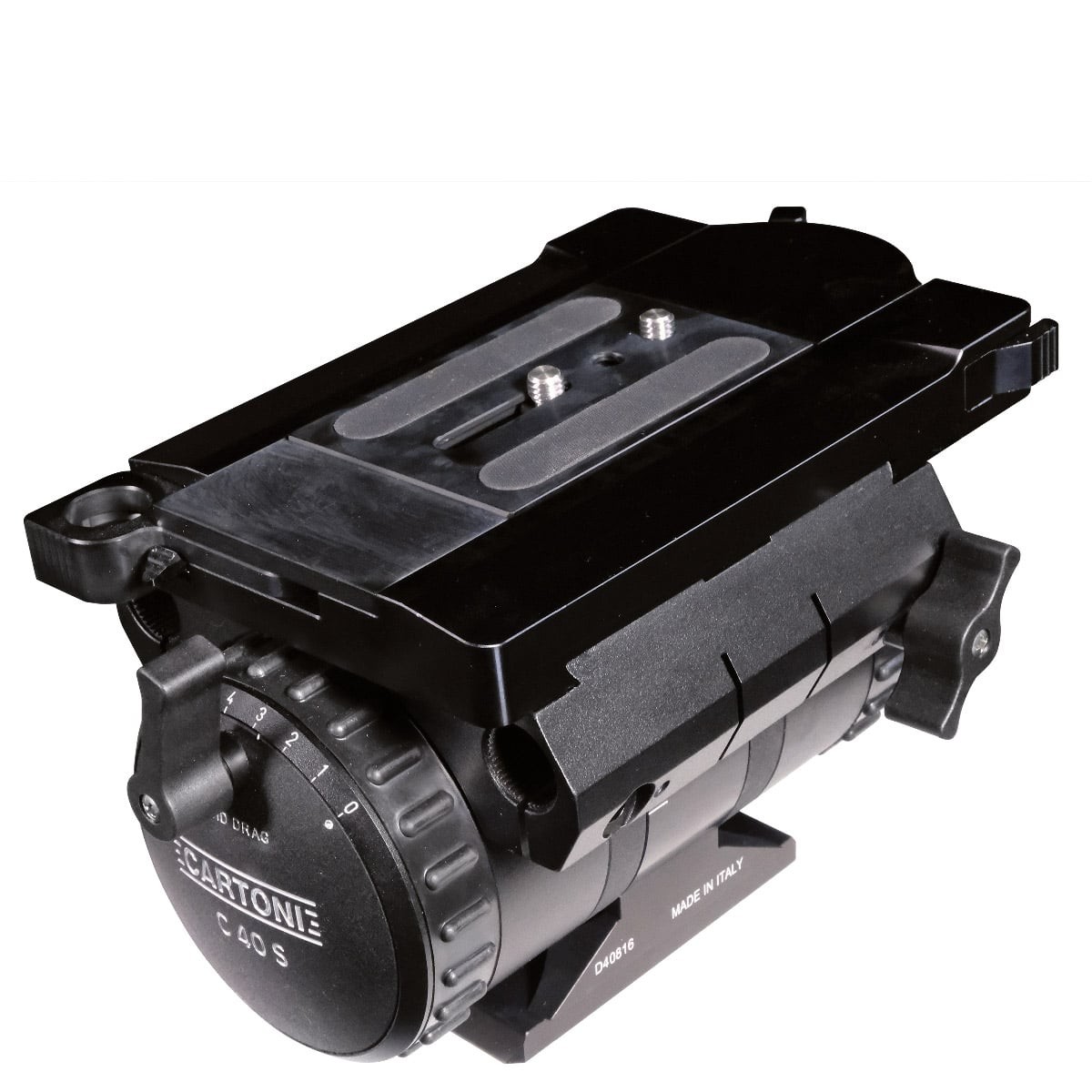

Cartoni C40S Dutch Head
SKU: H514/D
The Cartoni C40S Dutch Head (H514/D) adds a third axis to a standard fluid head for smooth side tilt, the Dutch angle, and is designed for heavier camera rigs up to 45 kg. It has the award-winning Cartoni fluid module with drag 0 to 7, a 7-step spring counterbalance and a ±65° range. Mounts on a Euro-style plate or with two 3/8″ screws.
8 569 € with VAT
7 081.82 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Cartoni C40S Dutch Head (H514/D) adds a third axis to a standard fluid head for smooth side tilt, the Dutch angle, and is designed for heavier camera rigs up to 45 kg. It has the award-winning Cartoni fluid module with drag 0 to 7, a 7-step spring counterbalance and a ±65° range. Mounts on a Euro-style plate or with two 3/8″ screws.
Dutch angle for heavier rigs too
The C40S Dutch Head is the stronger sibling of the C20S Dutch: it carries up to 45 kg and weighs 8 kg. It sits on the head you already own and adds a lateral axis for striking cinematic shots.
up to 45 kg7-step drag + 0±65° side tilt8 kg
A third axis for side tilt
This special head adds a third axis to a standard fluid head, allowing the lateral movement known as the Dutch angle. Exceptionally smooth side-tilt effects become simple and straightforward to execute.
Fluid module 0–7
The award-winning Cartoni fluid module with drag in 7 steps and position 0 for free movement.
Spring counterbalance
The 7-step spring counterbalance keeps the rig under control even when tilted sideways.
Mounts on a head
It fits the Euro-style quick-release plate on any head, or attaches with two 3/8″ screws.
Telescopic pan bar
A special orientable telescopic pan bar completes the equipment.
PACKAGE CONTENT
- C40S Dutch Head
- telescopic pan bar C40S Dutch
- camera plate C20S / C40S / Dutch Head
SPECIFICATIONS
- Payload: up to 45 kg
- Weight: 8 kg
- Base: plate (mounts on a head)
- Fluid drag: 7 steps + 0
- Counterbalance: 7 steps + 0
- Roll (third axis): ±65°
- Operating temperature: −40 to +60 °C
- Manufacturer code: H514/D
