Libec Q30B

Libec Q30B is a two-stage aluminium tripod leg set with a 75 mm bowl and the Quick Deploy system. Sliding the ring along the centre column opens the spreader and releases the upper leg locks at once, so the tripod goes up in a single move. Payload 45 kg at a weight of 2,9 kg.

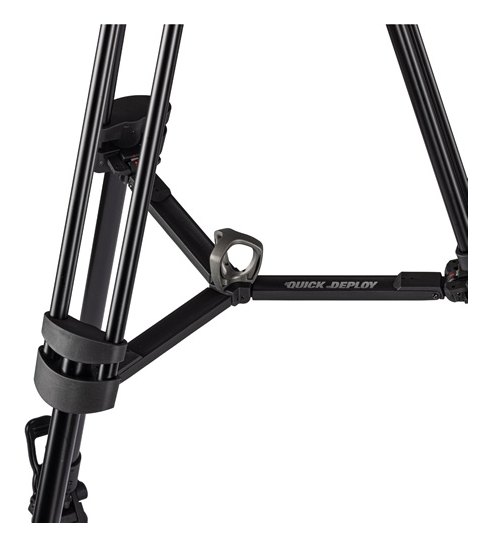

One move and it stands

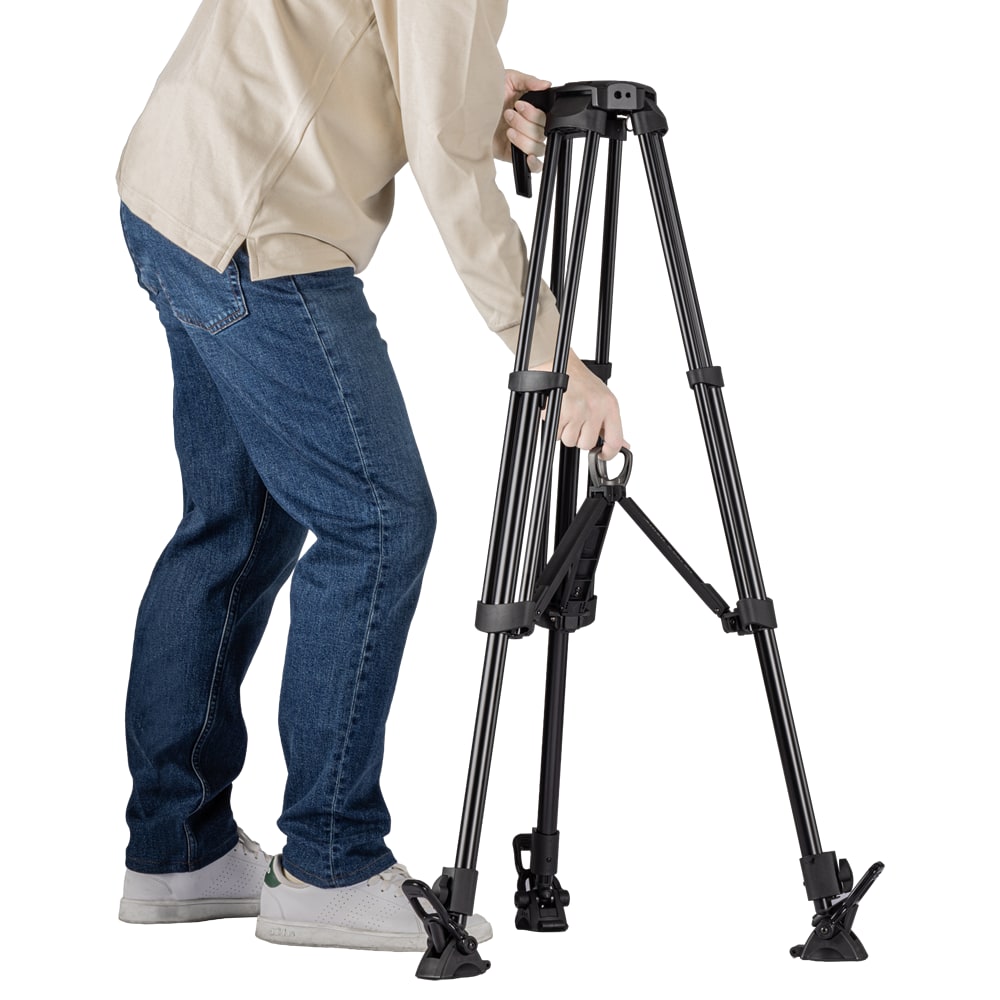

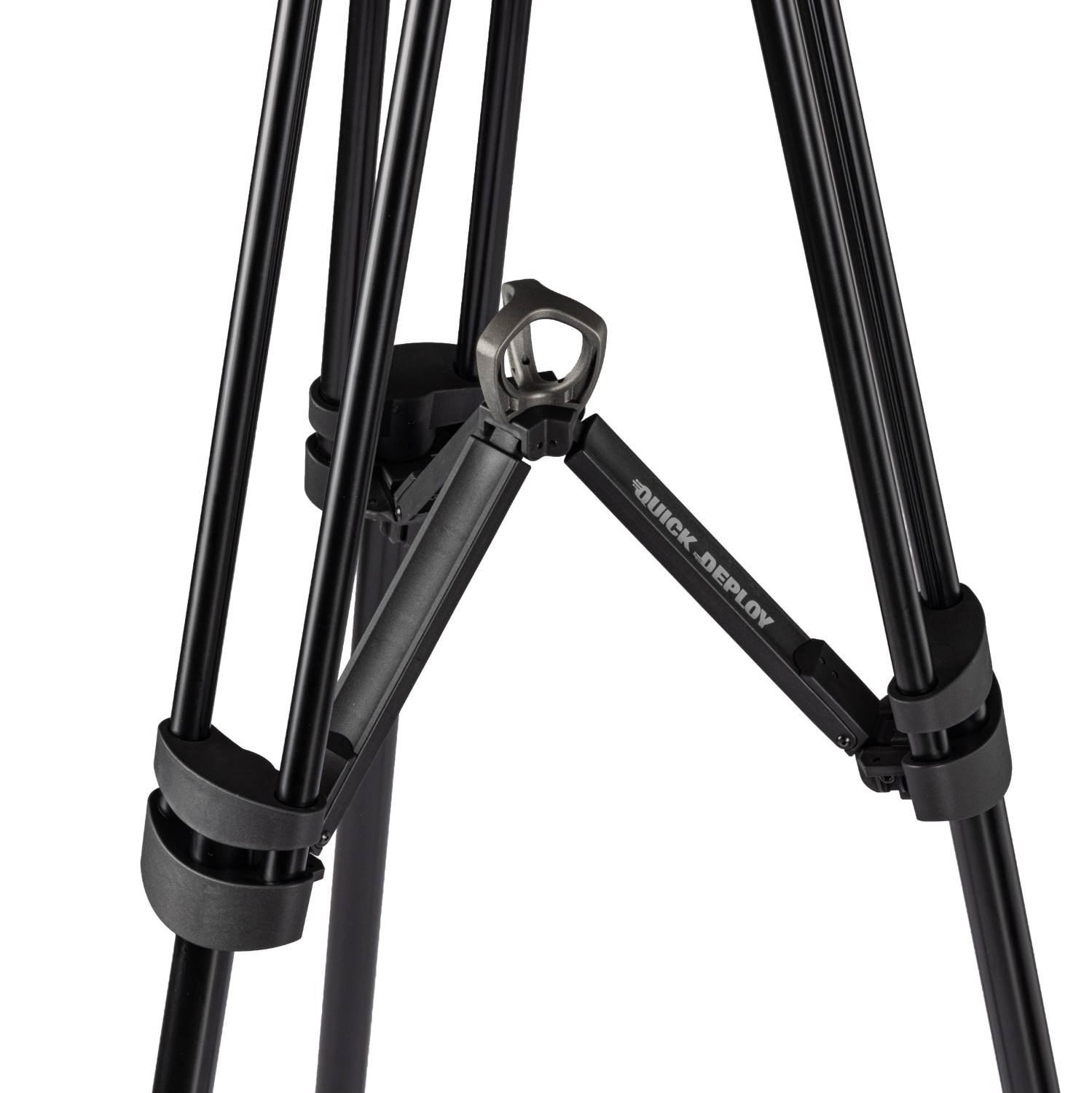

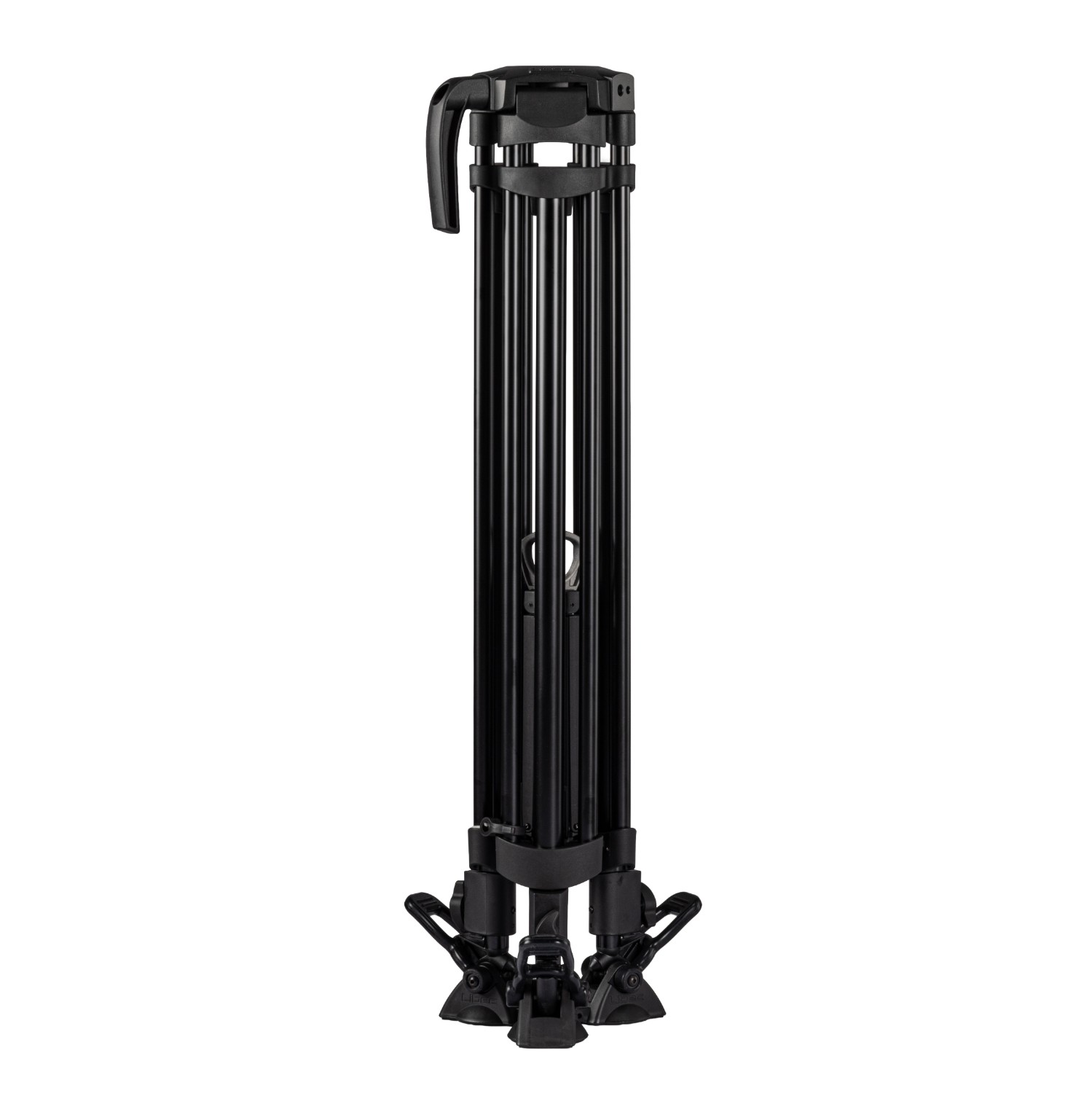

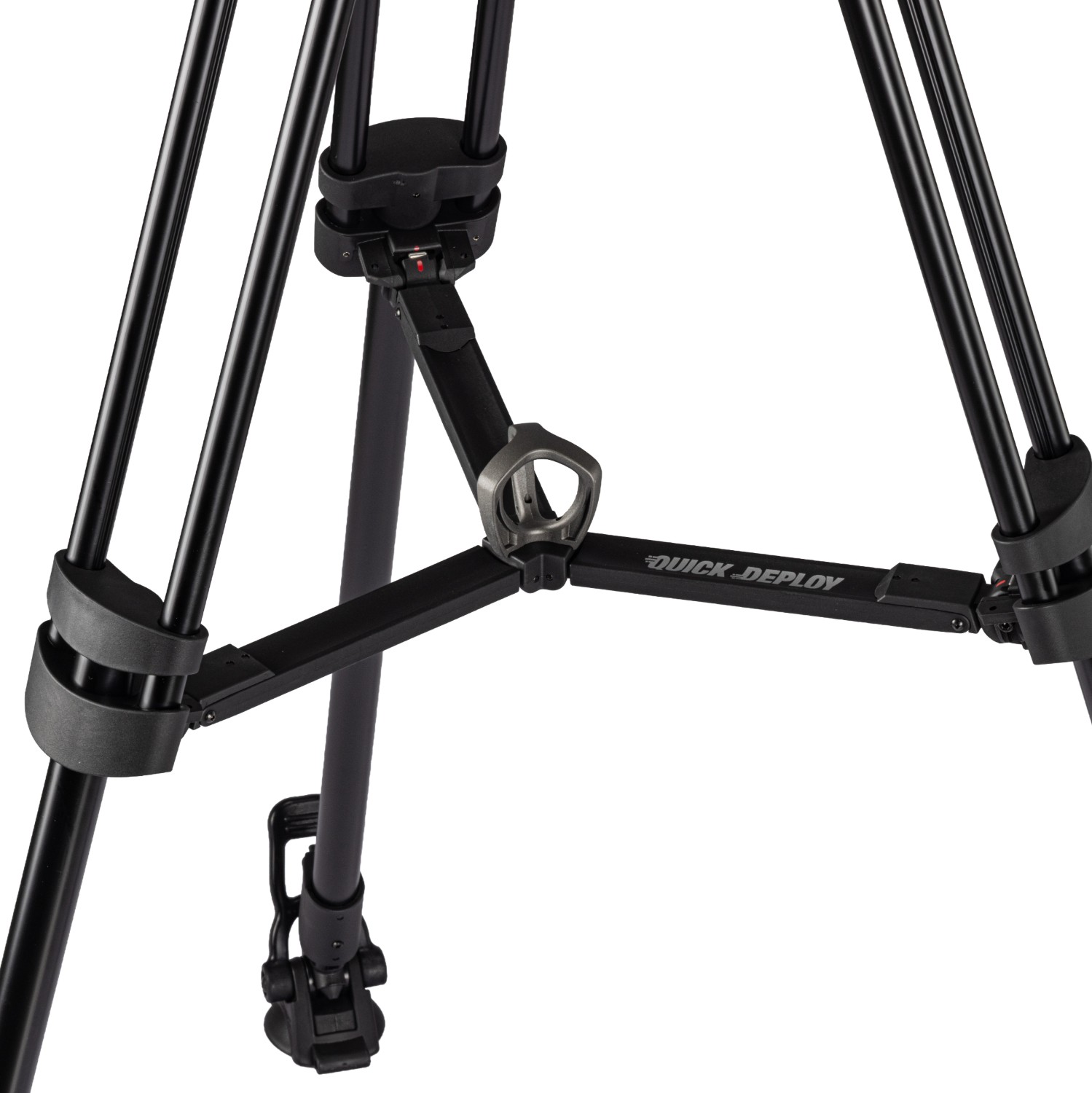

The Deploy ring in the middle of the tripod drives the spreader and the upper leg locks together. Move it up or down and the tripod opens or folds — no walking around it, no working through the locks one by one. On a set measured in seconds that is the difference between setting up and holding everyone up.

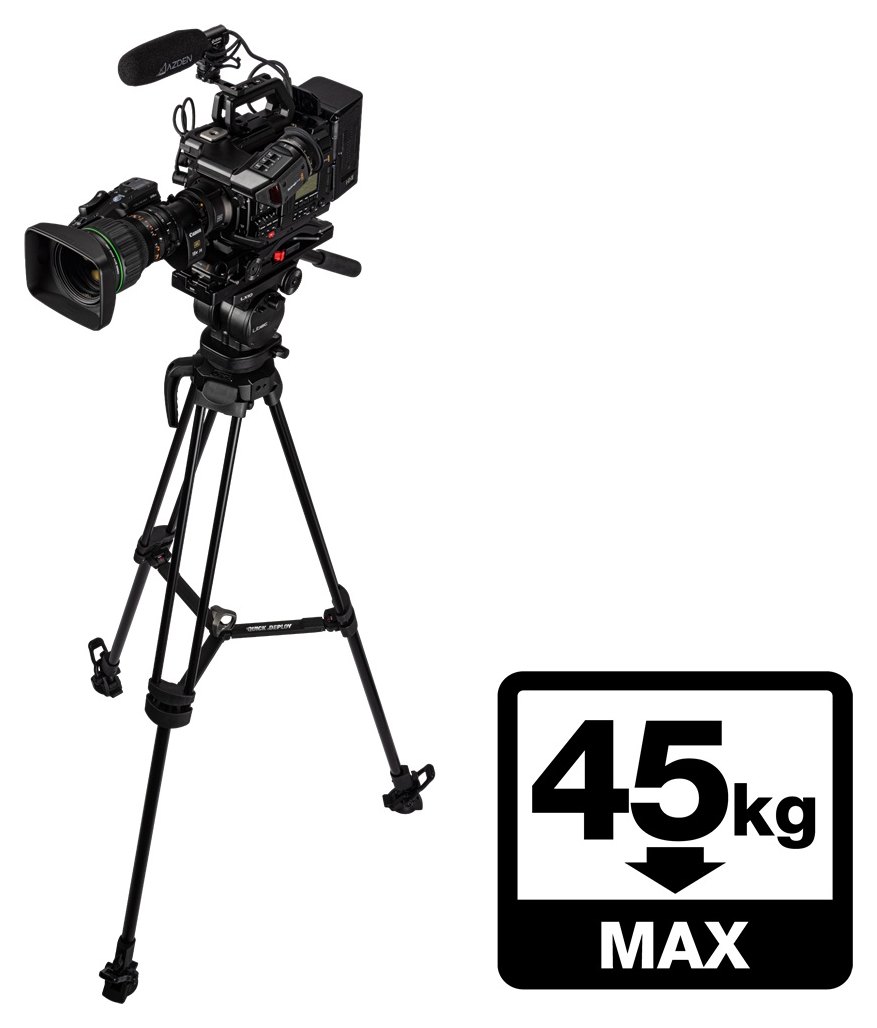

Payload 45 kg at 2,9 kg

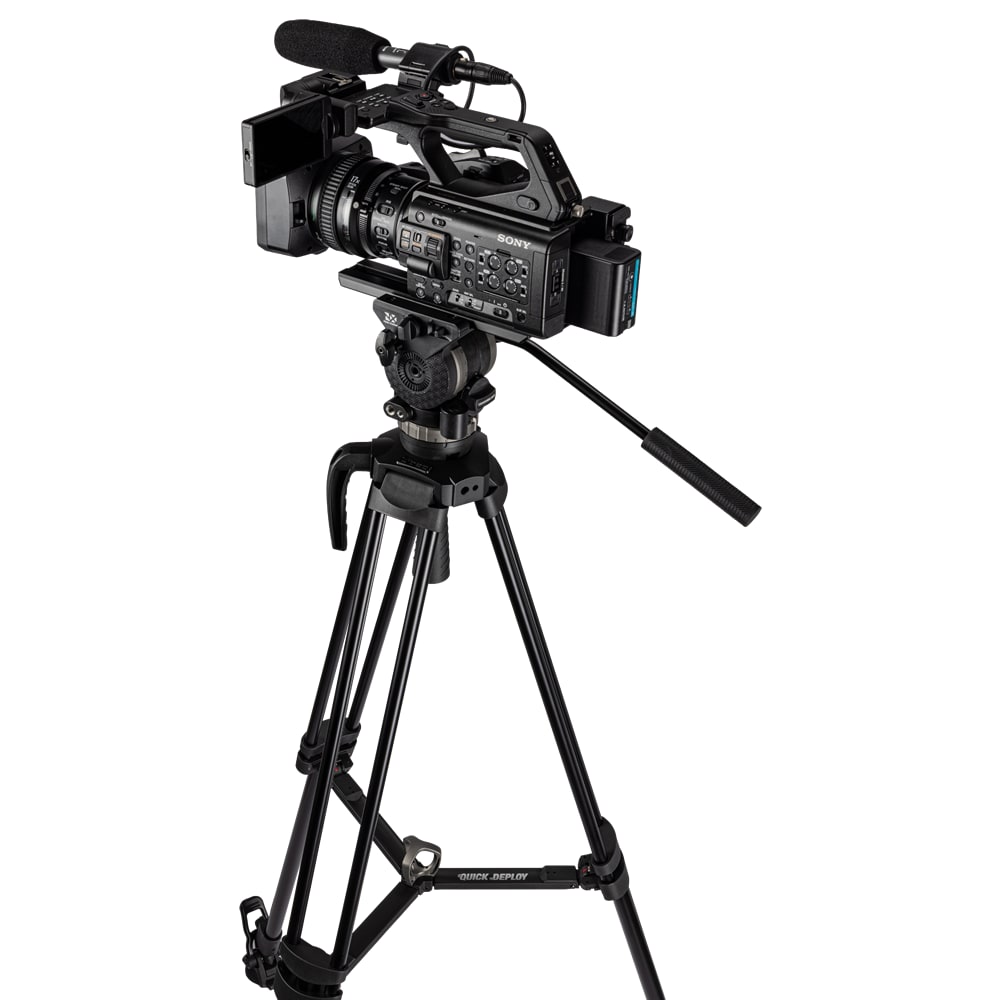

The legs carry 45 kg, so a fully rigged ENG or cinema camera, and weigh only 2,9 kg. That combination saves your back over a full day of carrying and still keeps the rig from flexing or wobbling under the camera.

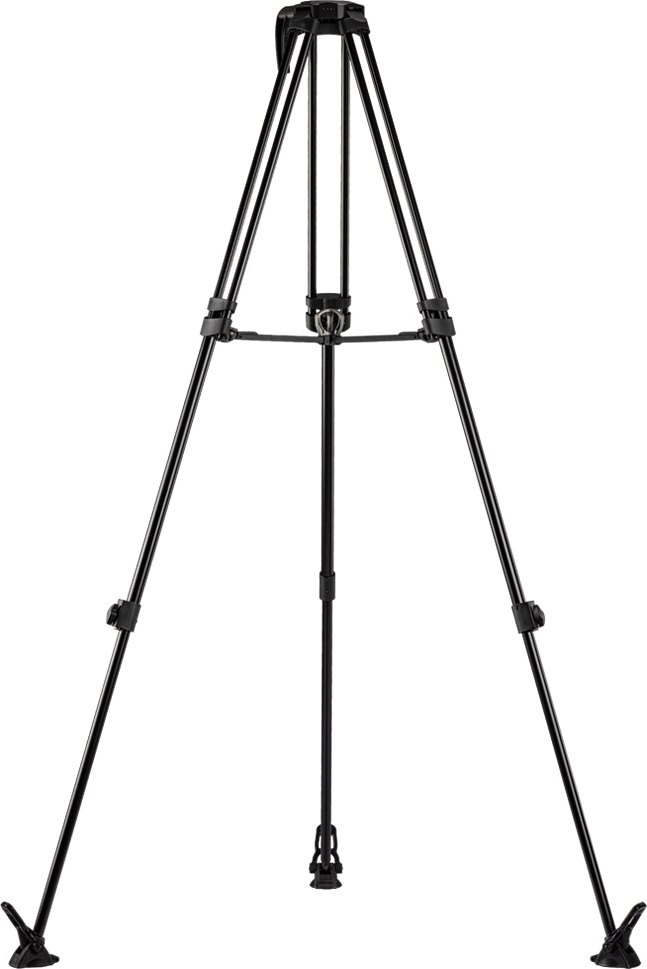

Height to suit the situation

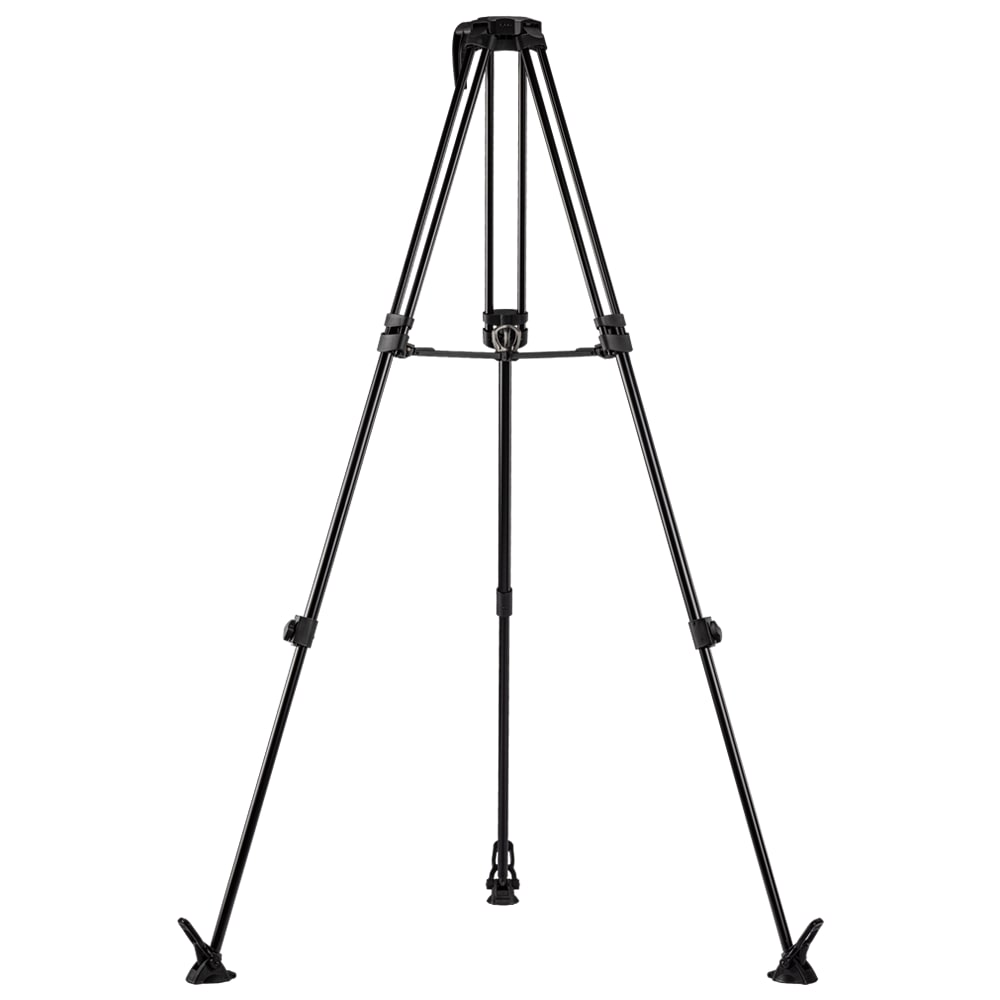

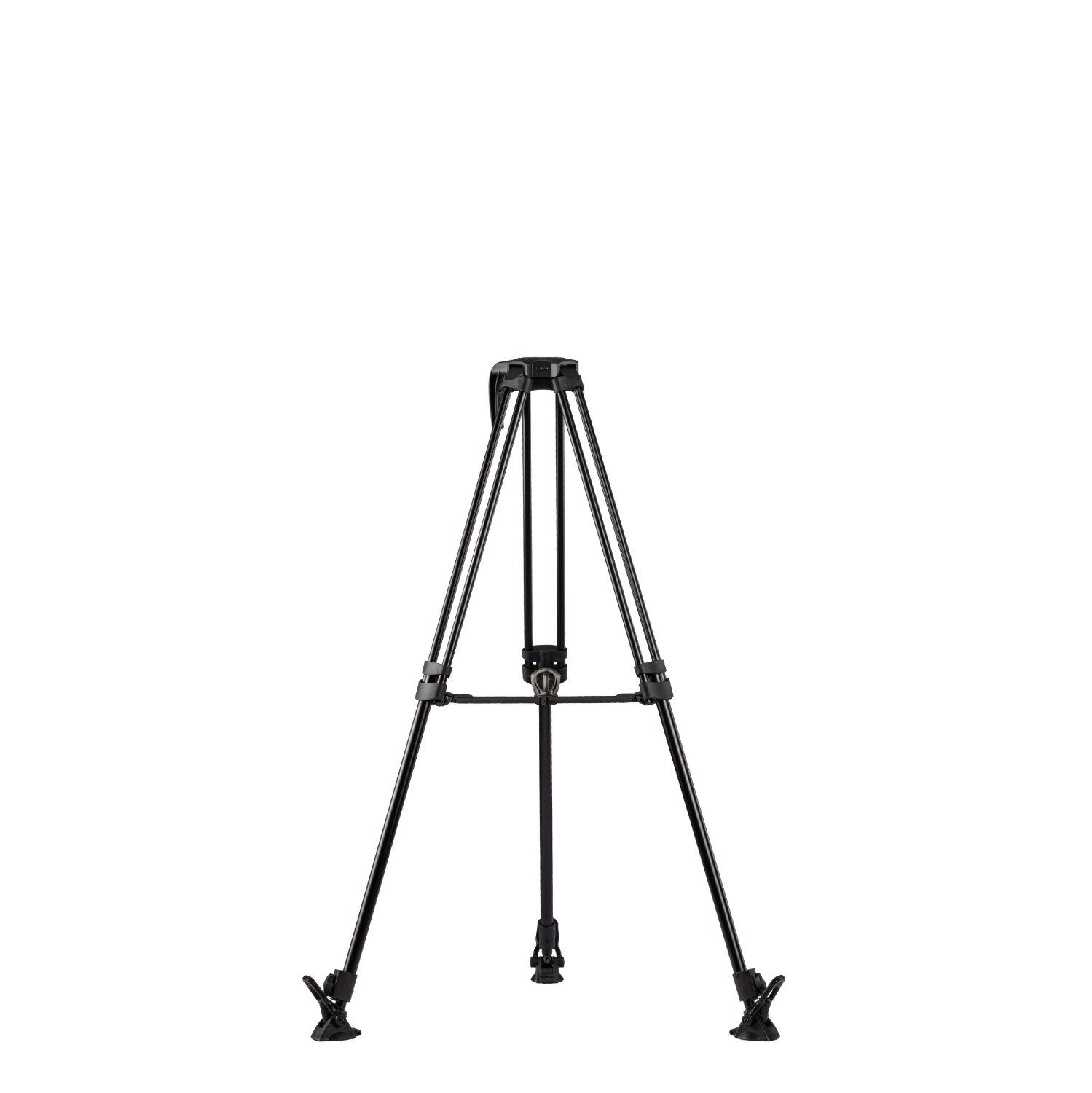

The Quick Deploy upper section covers ordinary shooting heights on its own. When you need to go higher, pre-extend the lower screw locks to the length you want — the fast deployment of the upper section is unaffected. The range is 72 to 169,5 cm.

Dust, heat and wind

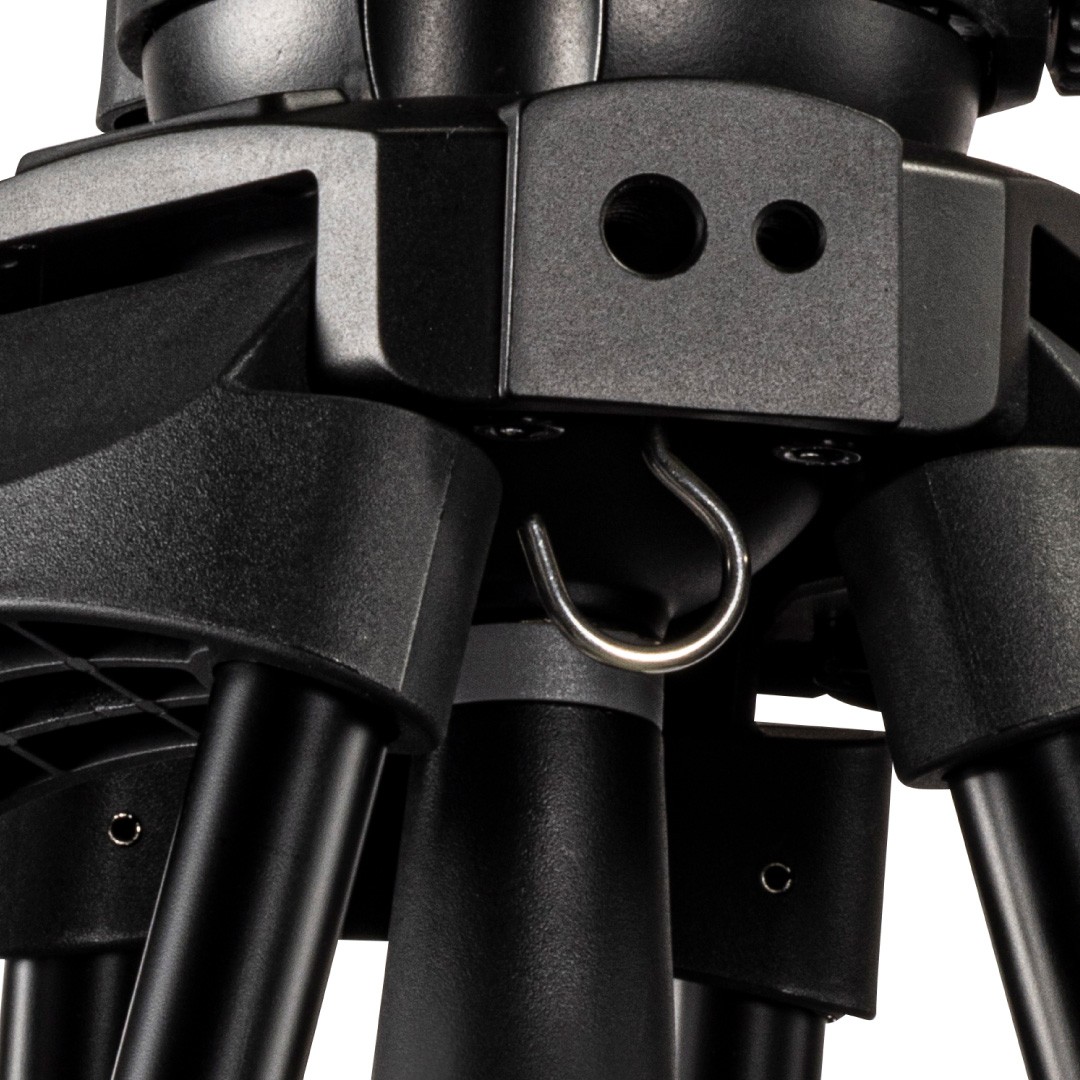

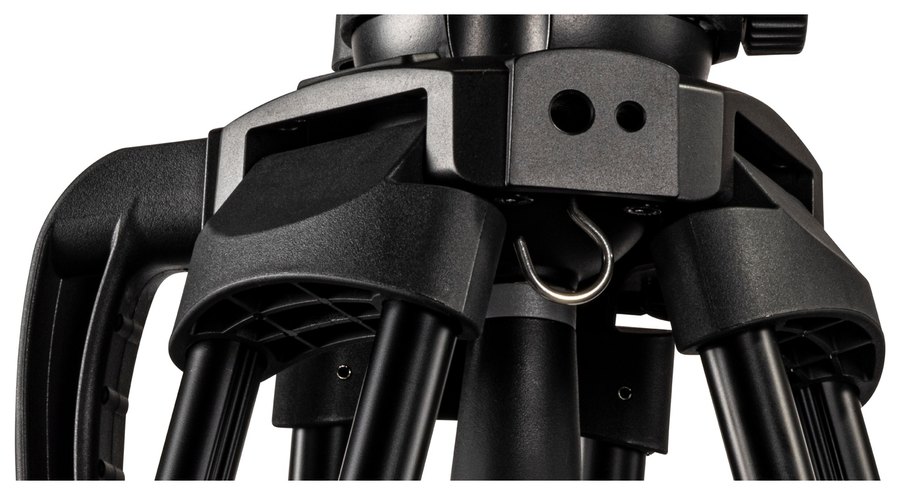

The lock mechanism is built dust-proof so sand cannot get into it; the manufacturer field-tested the set for a year in the Arizona desert. There is a weight hook underneath for added stability in wind, and the legs are shaped so fingers cannot be pinched when folding.

Ready out of the box

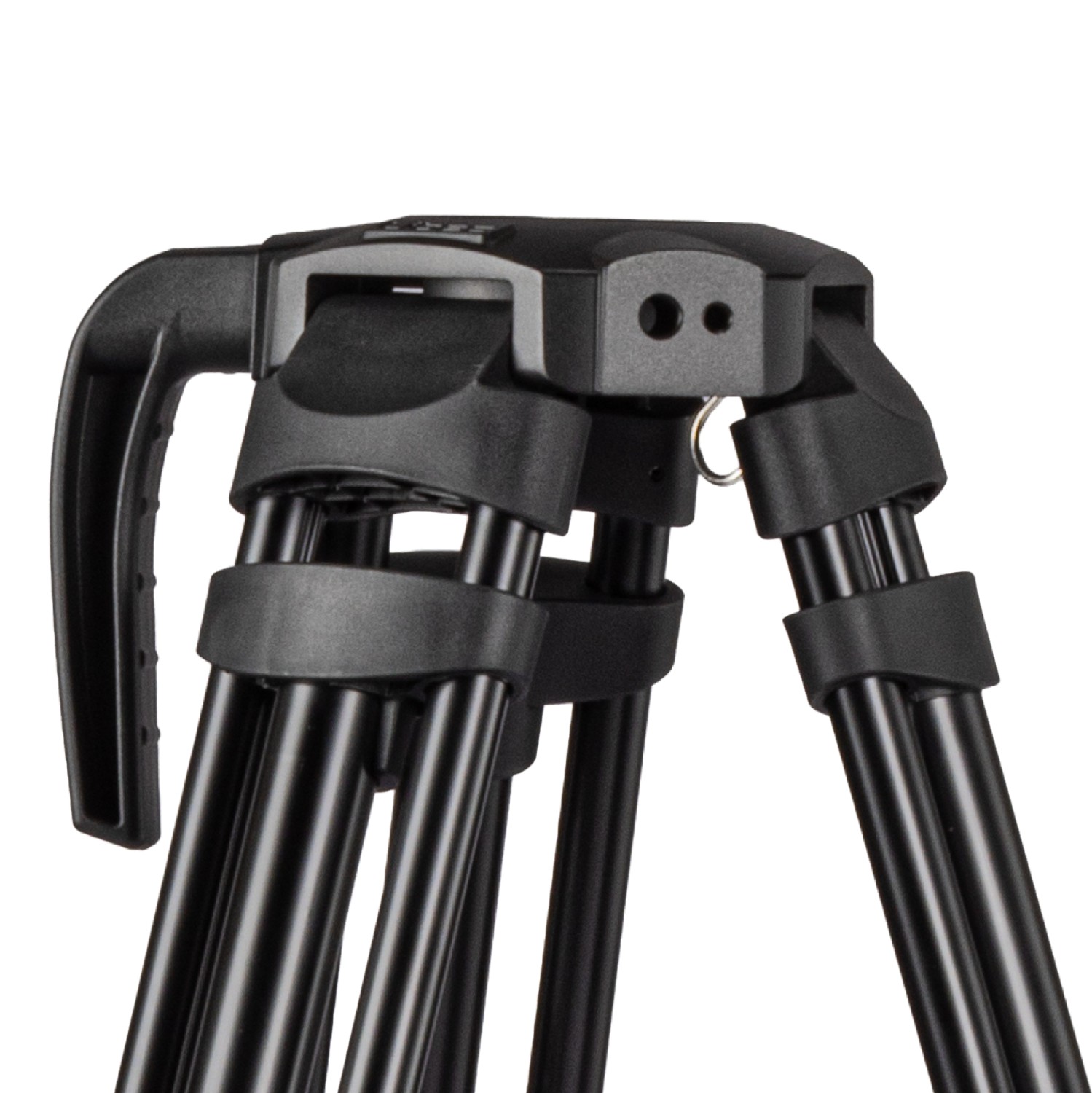

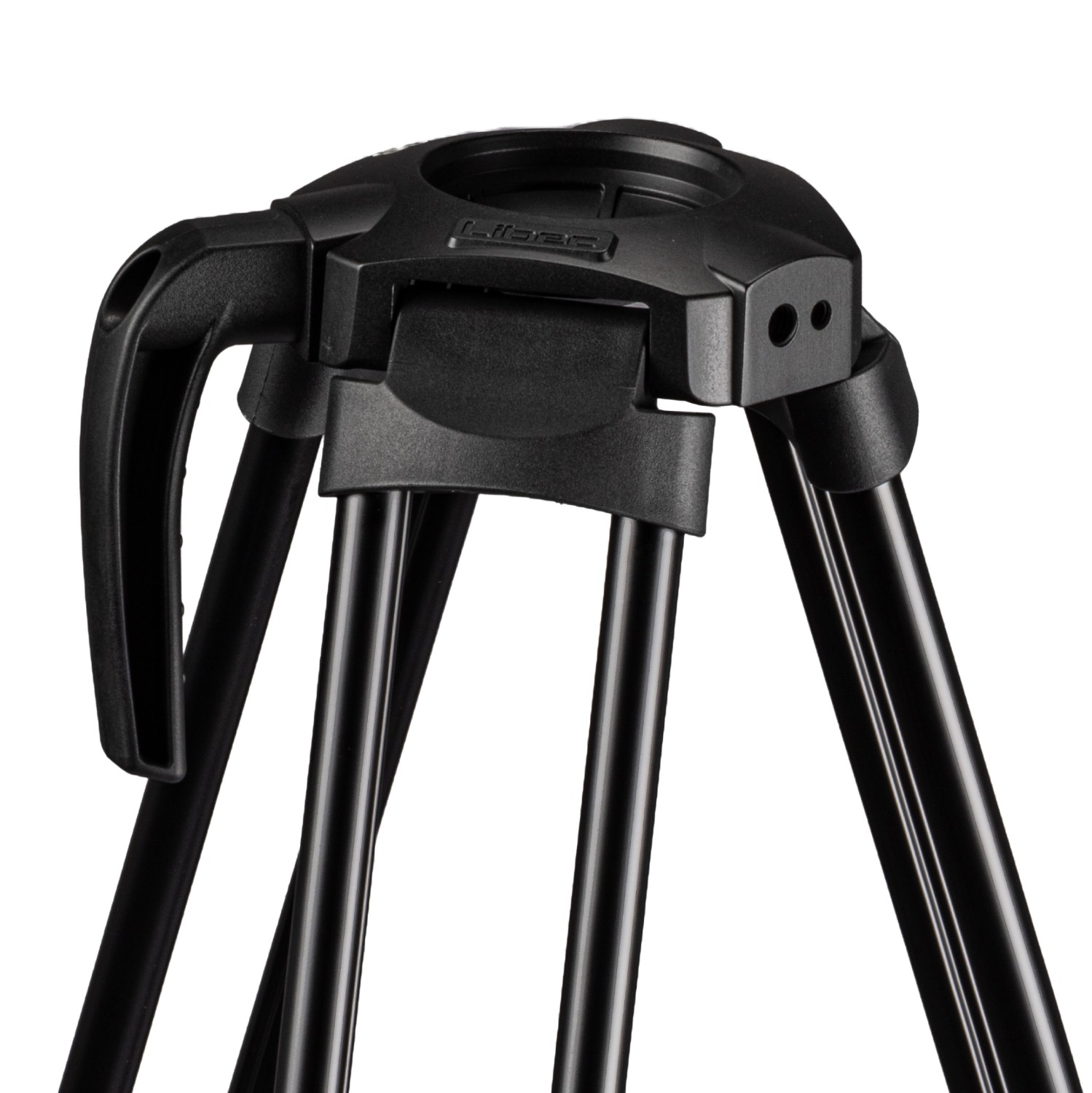

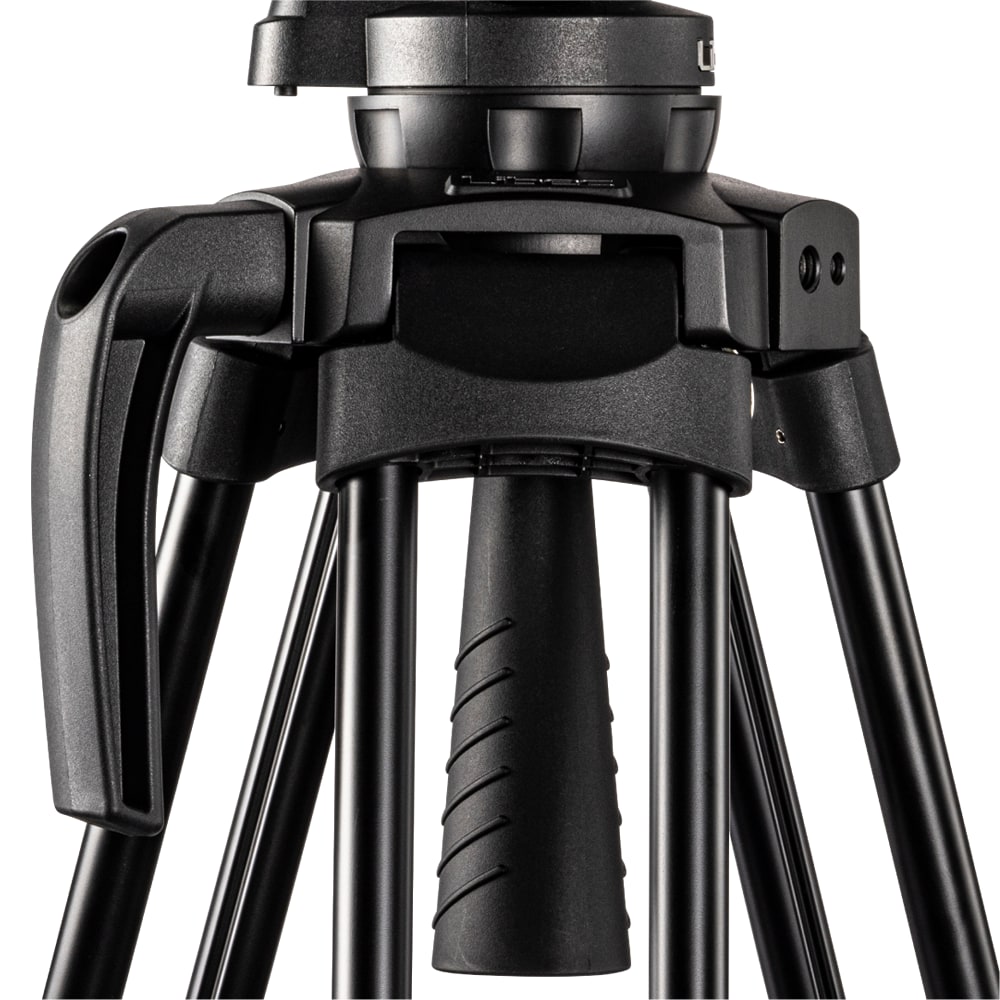

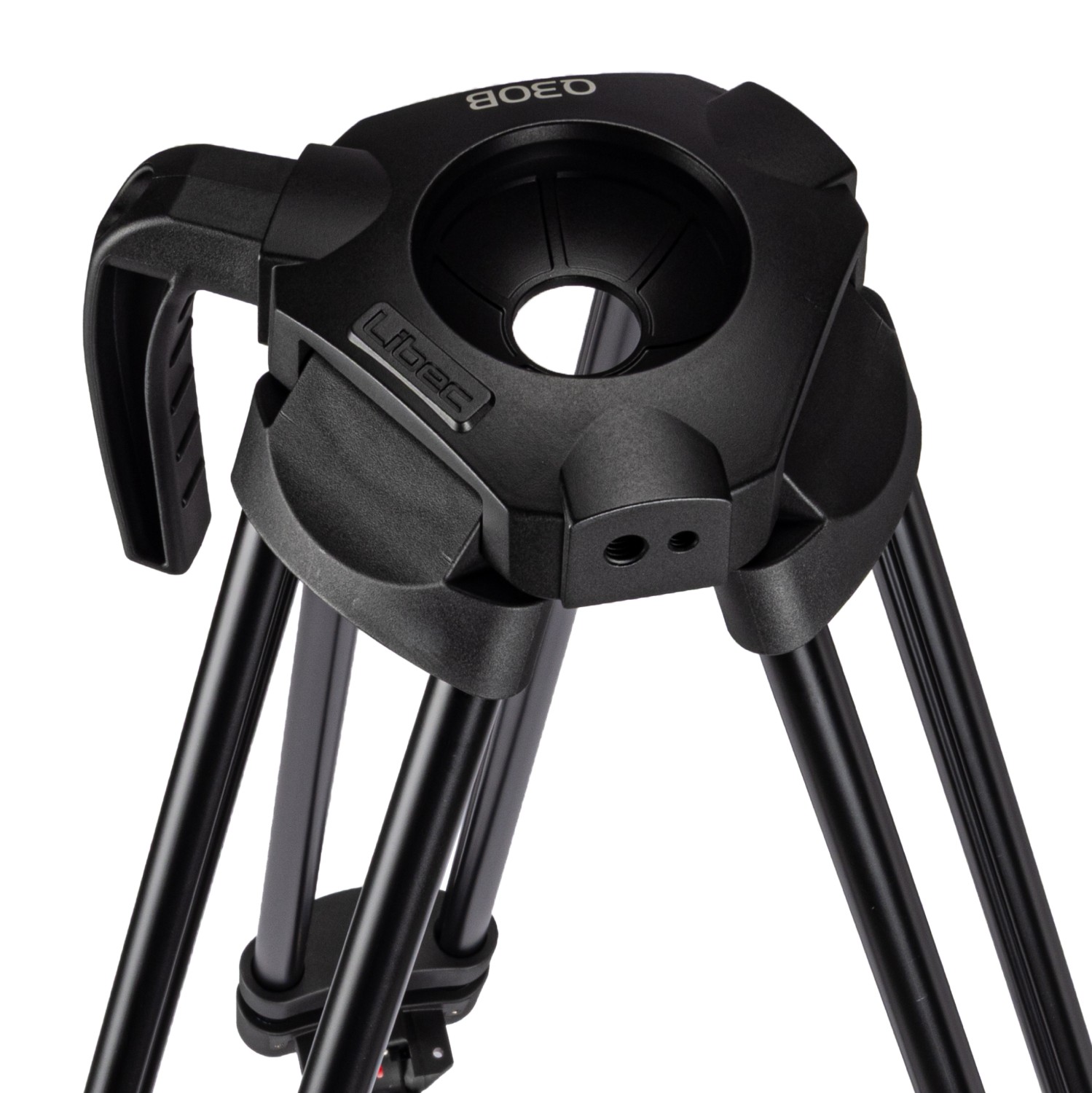

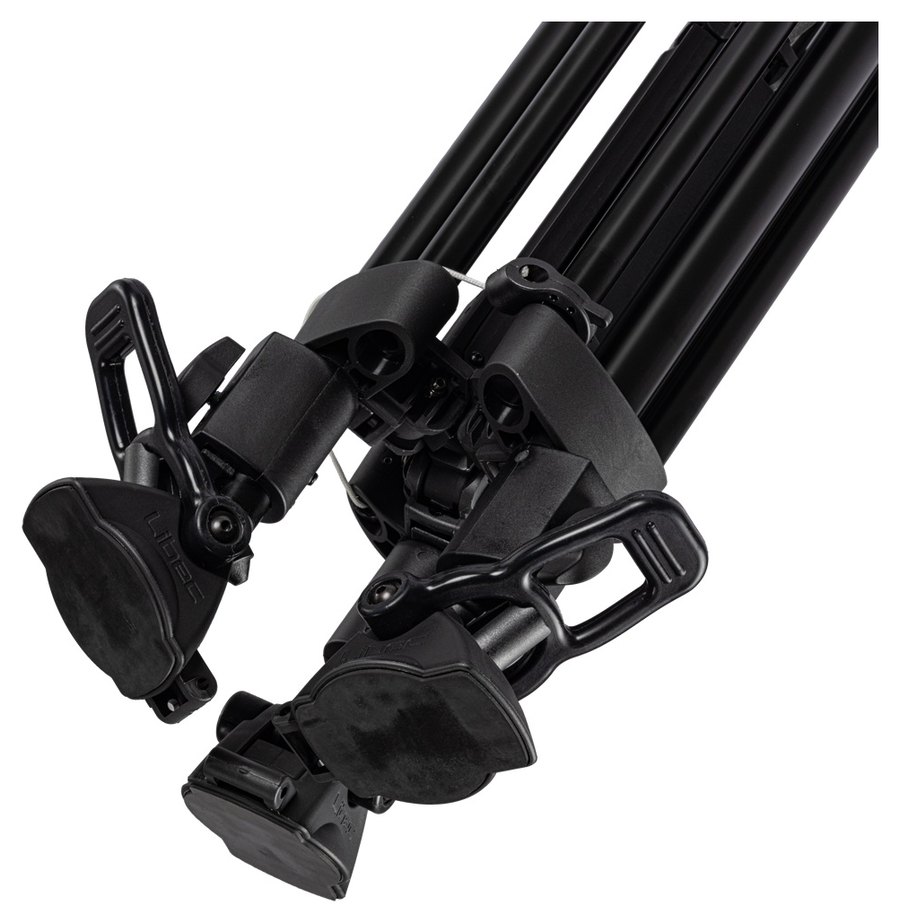

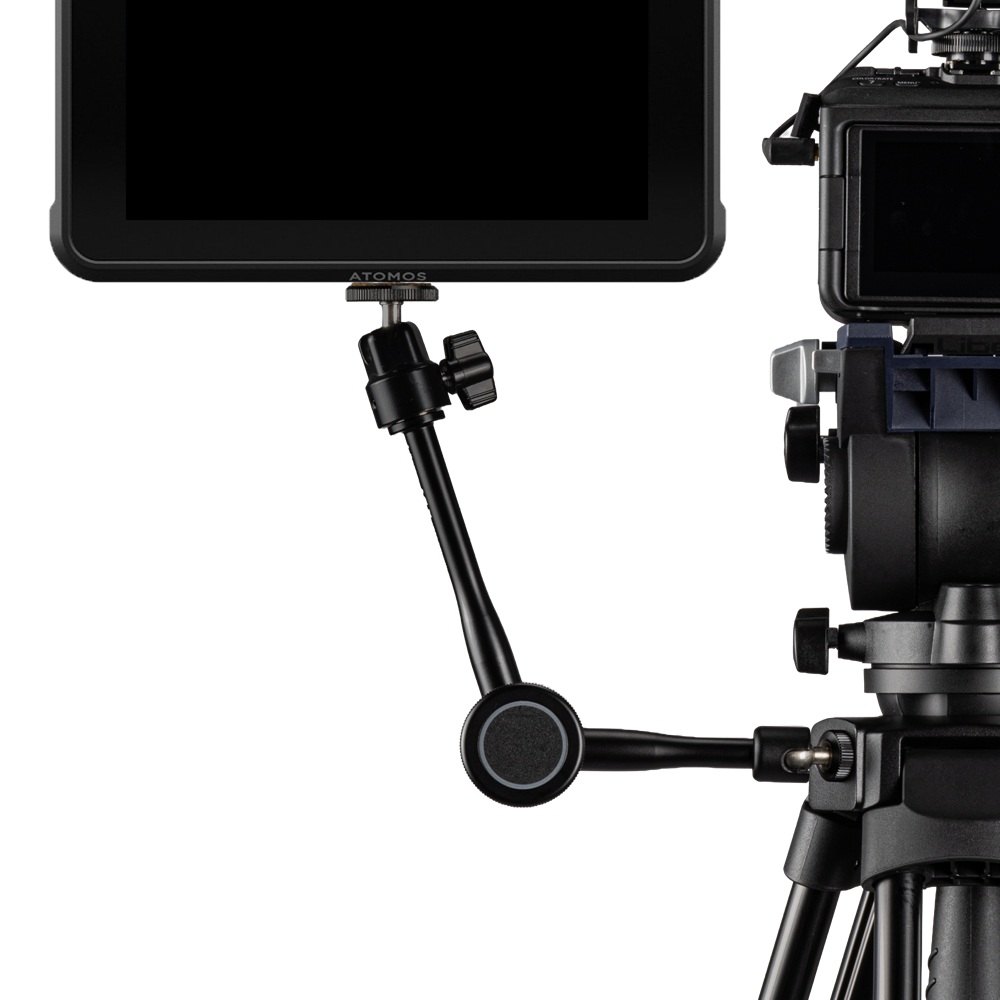

A mid-level spreader and FP-2B rubber feet are included, so nothing else is needed. The carrying handle is standard too — it adjusts in 90° steps and can be removed. The base carries 1/4" and 3/8" threads for a monitor or a light. The 75 mm bowl accepts third-party fluid heads; from the Libec range we recommend the NH40.

Key features

• Quick Deploy system — spreader and upper locks in one move
• payload 45 kg at a weight of 2,9 kg
• height 72–169,5 cm, two-stage legs
• 75 mm bowl for fluid heads
• dust-proof lock design

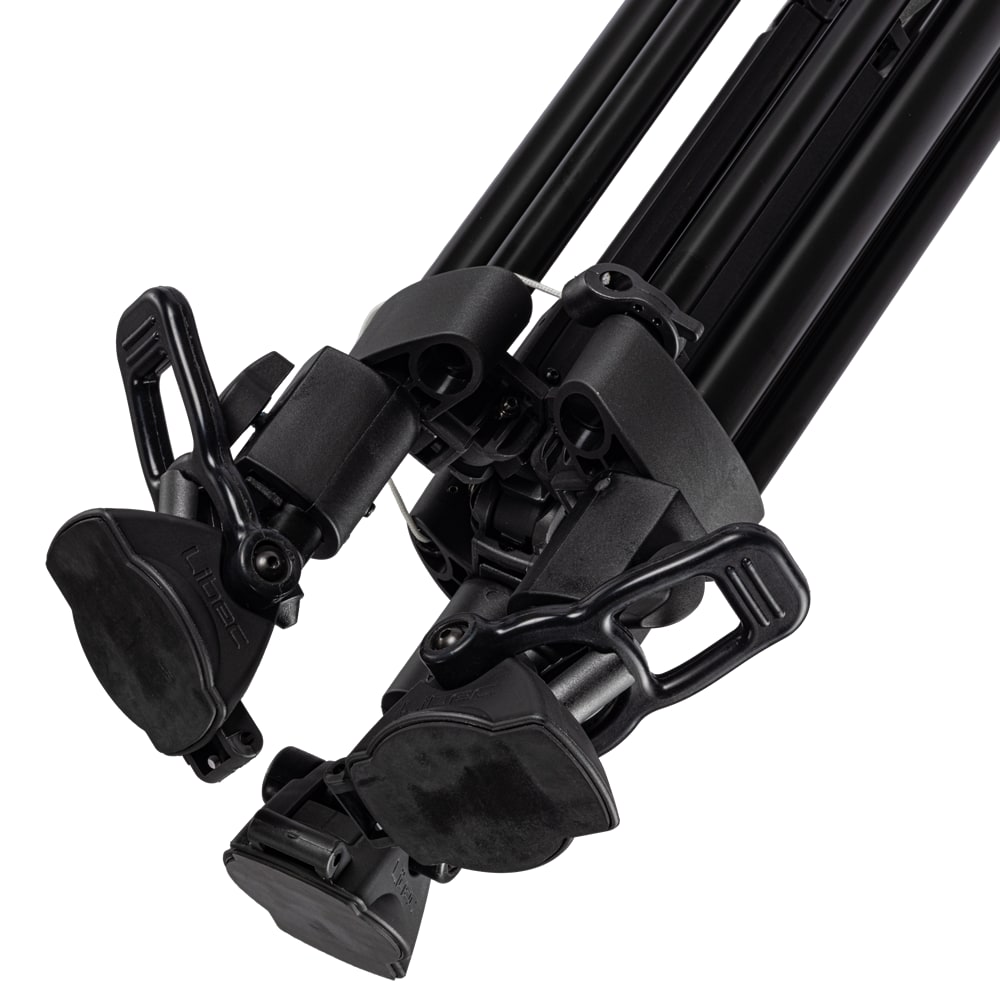

• mid-level spreader and FP-2B feet included

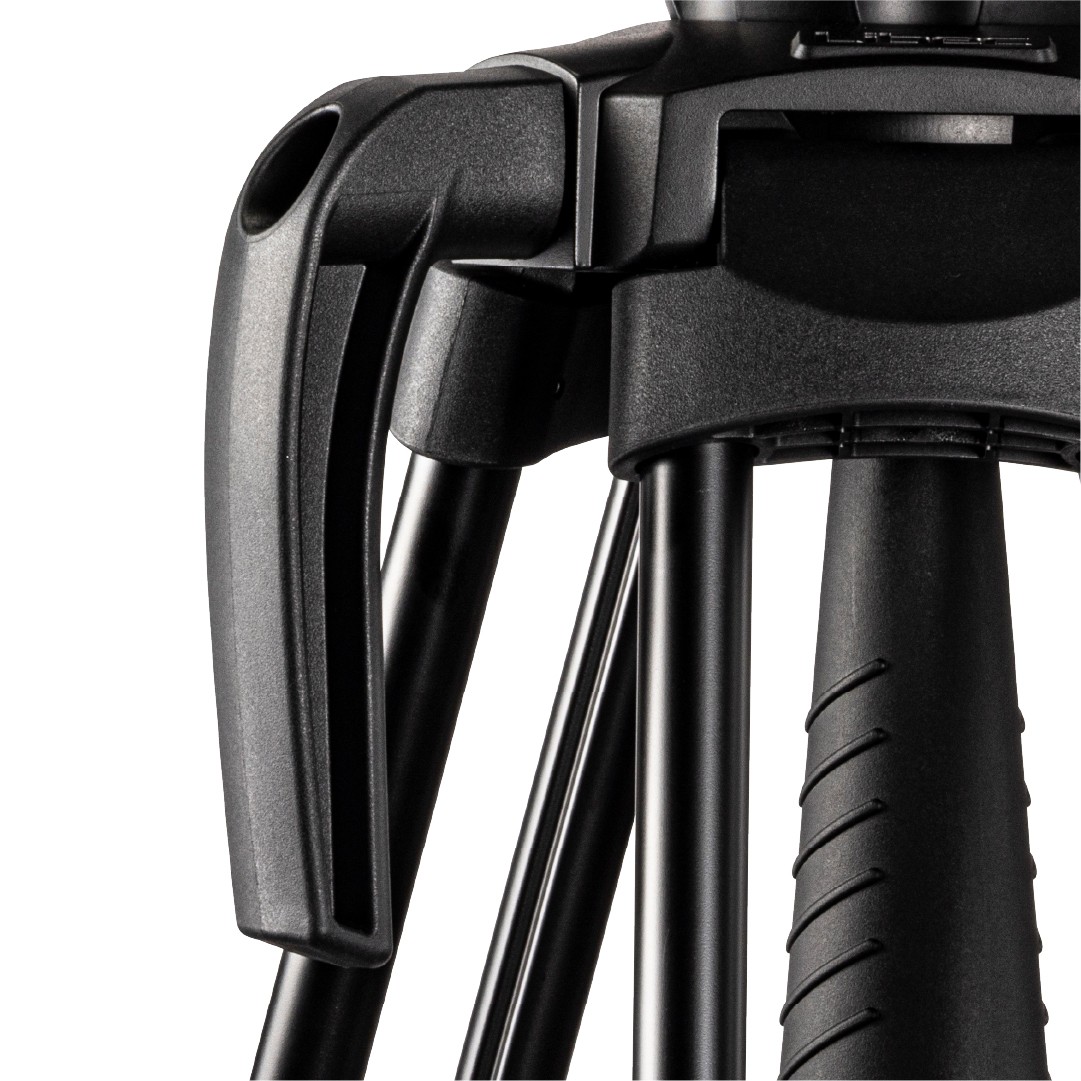

• carrying handle adjustable in 90° steps
• 1/4" and 3/8" threads on the base
• weight hook

This model is not intended for ground spreaders or dollies.
