Libec LX10 Head

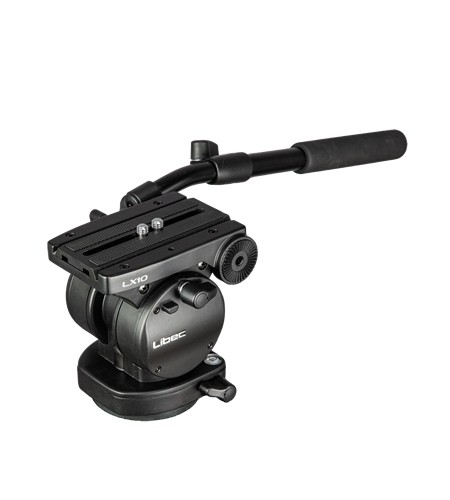

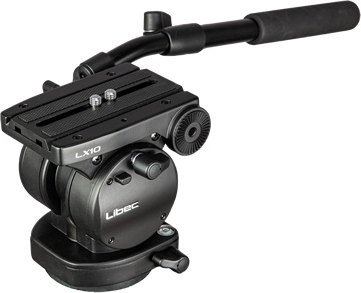

The Libec LX10 Head is a fluid video head with a 100 mm ball and an extendable PH-8B pan handle for cameras up to 16 kg. The fixed-counterbalance head carries up to 16 kg, offers two drag steps and tilts from +85° to −65°. It fits tripods with a 100 mm bowl as well as Libec P110B and P110S pedestals. The ±50 mm sliding plate attaches with two 3/8" screws.

The Libec LX10 Head is a fluid video head with a 100 mm ball for cameras up to 16 kg. It offers fixed counterbalance, two-step drag, a ±50 mm sliding plate and the extendable PH-8B pan handle. The head weighs 3.6 kg and is the heart of the LX10, LX10 M and LX10 Studio systems.

A 100 mm ball head for up to 16 kg

The LX10 fluid head with fixed counterbalance, two-step drag and the extendable PH-8B pan handle.

16 kg payload100 mm ball2-step dragTilt +85°/−65°Sliding ±50 mmWeight 3.6 kg

Drag to suit the camera

Pan and tilt drag switch between two steps to suit the weight of the camera rig. Fixed counterbalance keeps the camera balanced without further adjustment.

100 mm standard

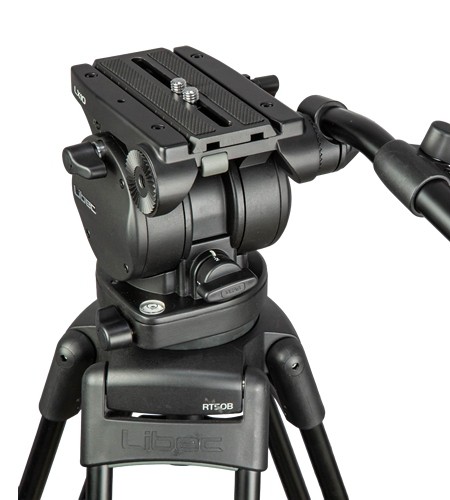

The head fits any tripod with a 100 mm bowl, such as the RT50B from the LX10 systems. It also suits Libec P110B and P110S pedestals.

Two-screw camera plate

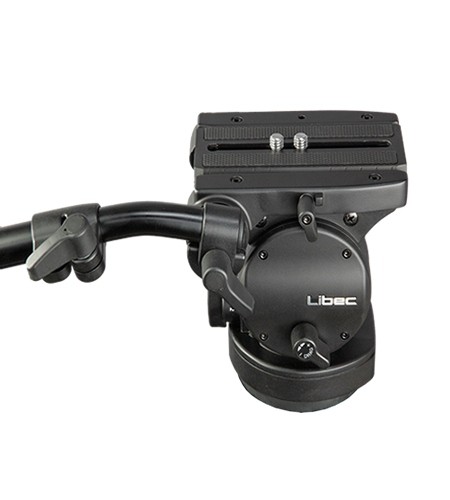

The camera attaches with two 3/8" screws and the plate slides ±50 mm. A spare 3/8" screw is included.

For light studios and OB work

Libec designed the LX10 series for lightweight studios and outside broadcasting. According to Libec, the LX series combines high payload and rigidity with very smooth torque performance at a great price.

Tilt +85° to −65°

The tilt range covers typical shots up and down.

−20 to +60 °C

The head works reliably in winter and summer heat.

Bubble level

A built-in level helps you level the tripod quickly.

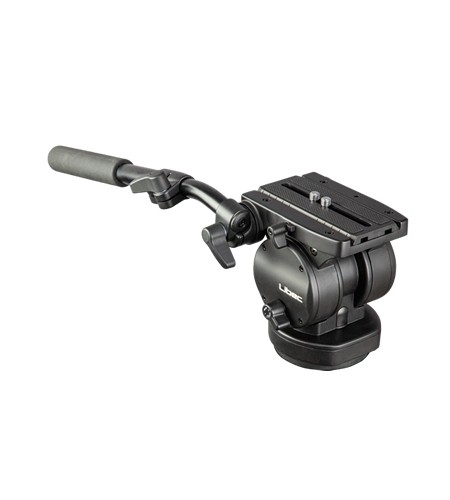

Extendable PH-8B handle

Adjust the handle length to suit your stance behind the camera.

The LX10 head is characterized by its durability and robustness and a high load capacity of 16 kg. Thanks to its 100 mm ball mount, it can be attached to your existing tripod with an industry standard 100 mm mount. It is also an ideal accessory for Libec's P110B and P110S pedal systems.

Robust and durable design. The extremely sturdy construction ensures high reliability even in demanding conditions and requires almost no maintenance.

Preferred resistance control. The resistance during panning and tilting can be adjusted in two levels according to the weight of the camera system, allowing two types of preferred resistance control for the user.

Smooth resistance unit. The multi-layer metal unit in the resistance system ensures easy operability, durability, and reliability. Thanks to the finely applied silicone lubricant, the resistance unit offers smoother starts and stops and significantly improved recoil control and reduction.

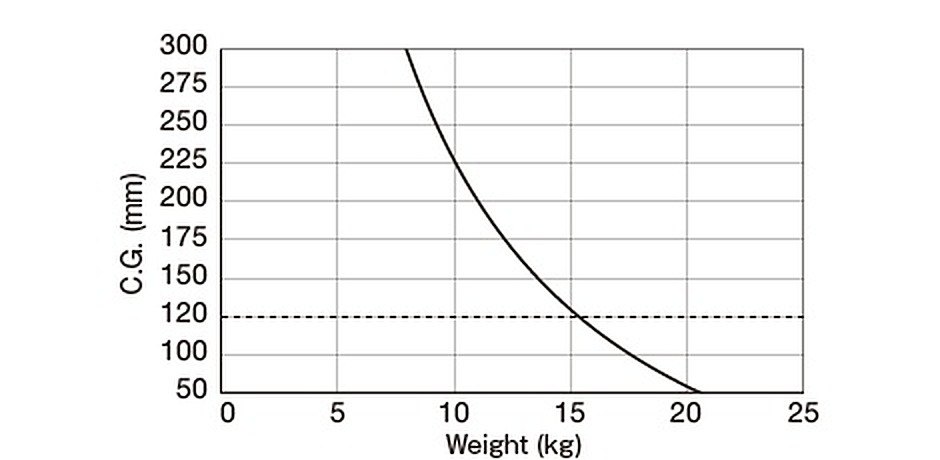

LX10 head counterbalance chart. The vertical axis shows the height of the camera's centre of gravity above the plate, the horizontal axis the total weight of camera and accessories; the dashed line marks a 120 mm centre of gravity.
