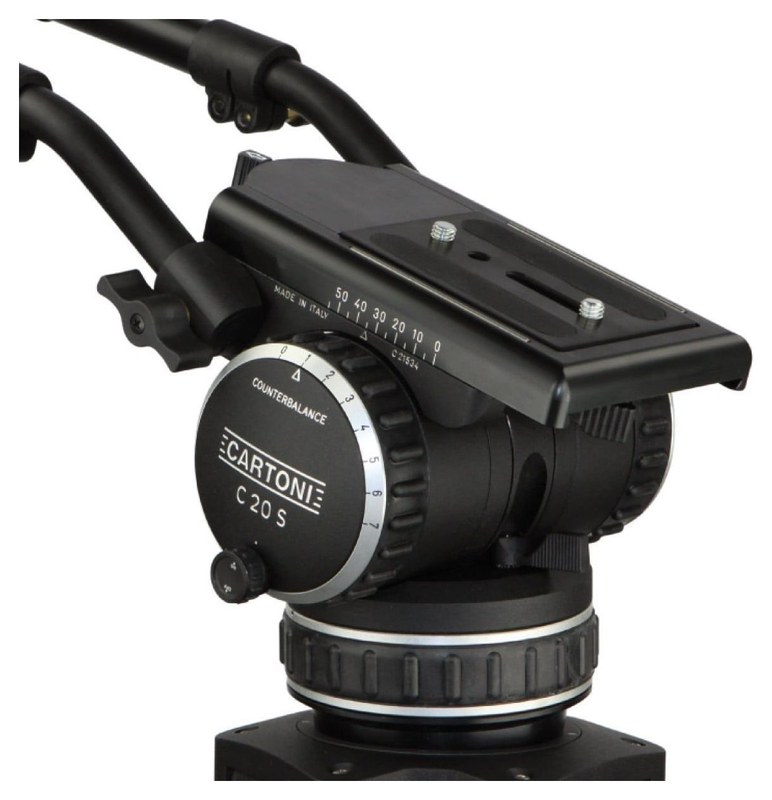

Cartoni C20S 150

The Cartoni C20S 150 is the version of the C20S fluid head with a 150 mm bowl for tripods and pedestals with a 150 mm bowl. It carries cameras from 7 to 35 kg for EFP, studio, broadcast and film, with three fluid modules offering 7 drag steps plus 0, a 7-step counterbalance with zero, ±65° tilt and an illuminated level. 7 kg. Five-year warranty after registration.

The C20S for 150 mm tripods and pedestals

The C20S is designed to provide a particularly stable support for EFP configurations and is ready for a wide range of cameras. Drag and counterbalance selectors are easy to work with gloves on, and every setting can be repeated precisely.

7–35 kg150 mm bowl7-step drag + 0±65° tilt

Three award-winning fluid modules

The C20S has three fluid damping modules that deliver outstanding drag levels and extraordinary smoothness on pan and tilt. Drag is selected in 7 precisely repeatable steps, and position 0 gives free movement.

Counterbalance 7 steps + 0

An easy-grip selector sets the counterbalance in 7 progressive steps, with 0 for free movement.

±65° tilt

A wide tilt range for EFP, studio and film, with 360° pan.

Illuminated spirit level

Level the rig quickly even in low light.

150 mm bowl

The base interfaces directly with all 150 mm tripods and with pedestals via the standard 4-bolt pattern.

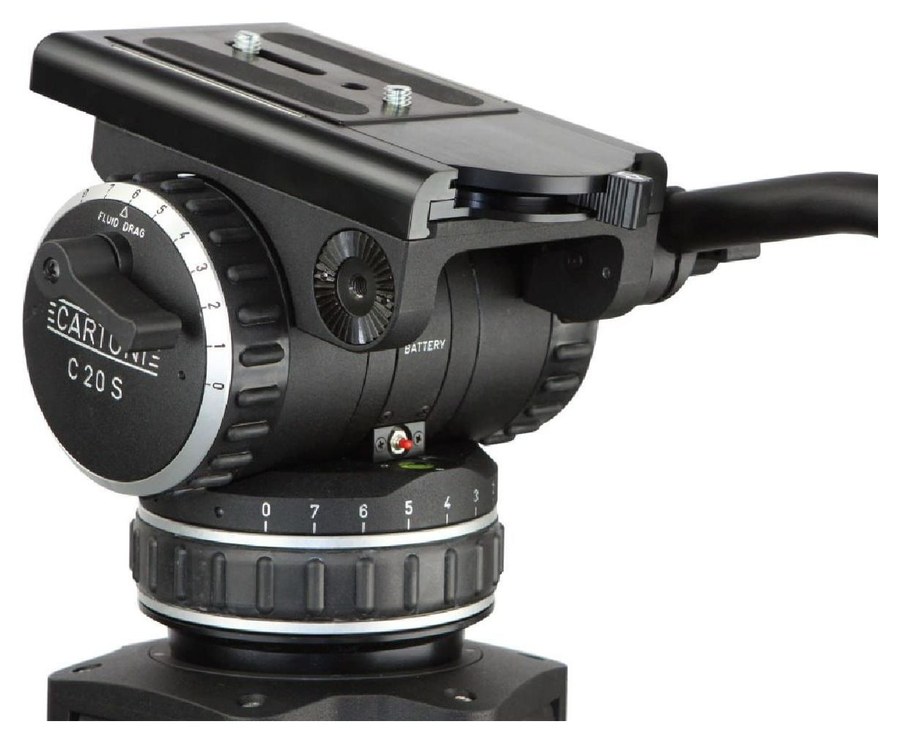

Counterbalance selector

The large counterbalance ring with its 0–7 scale sits on the side of the head, so you can change step in one move, even with gloves.

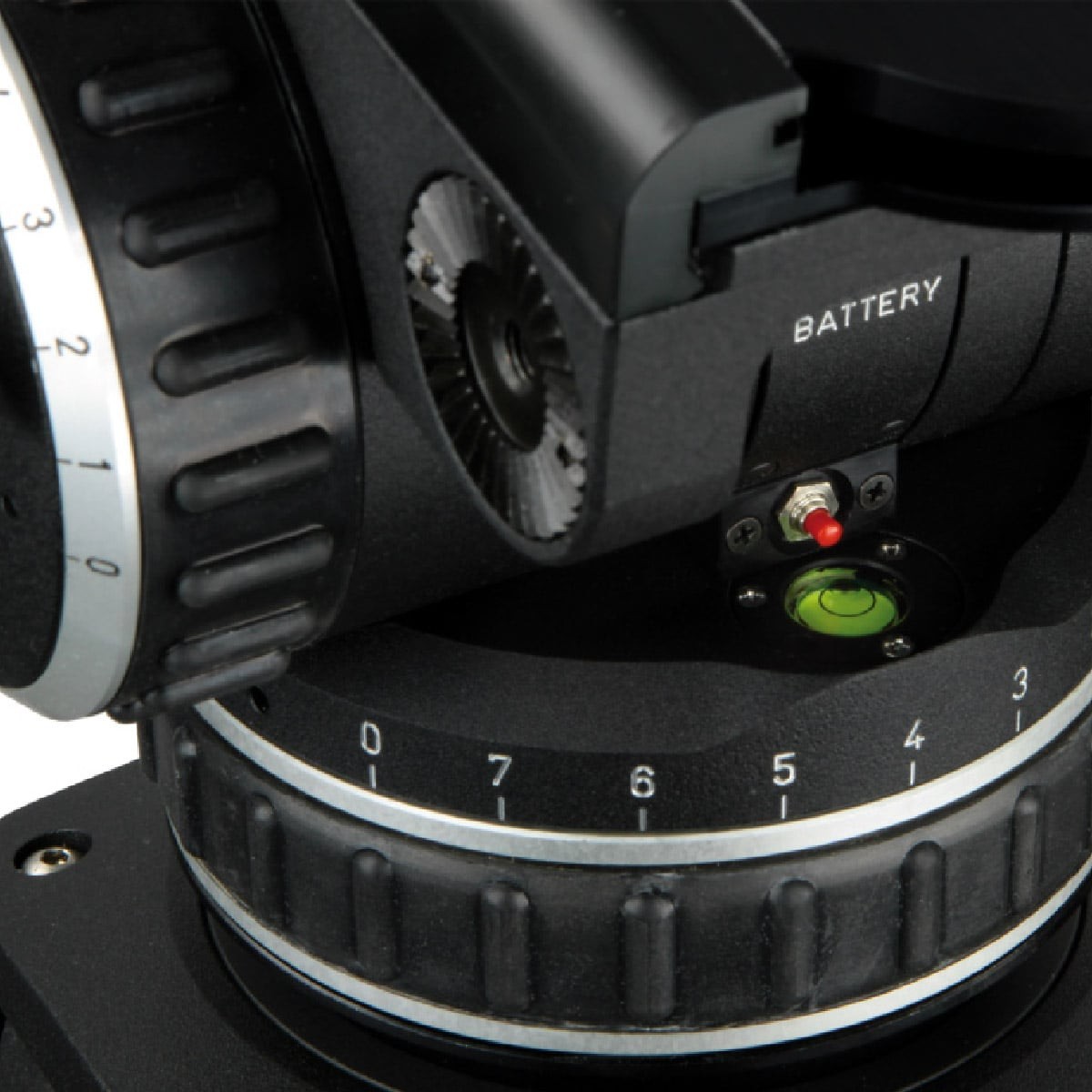

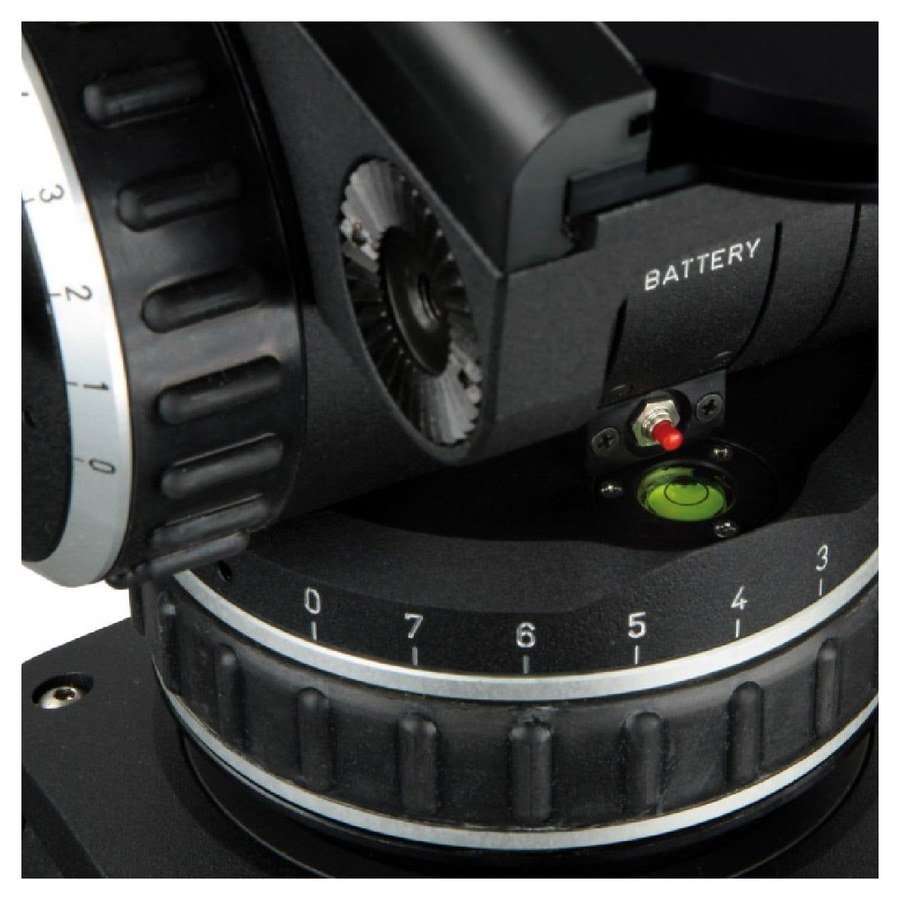

Drag ring and level

The numbered ring below the head selects fluid drag step 0–7, with the illuminated spirit level right above it.

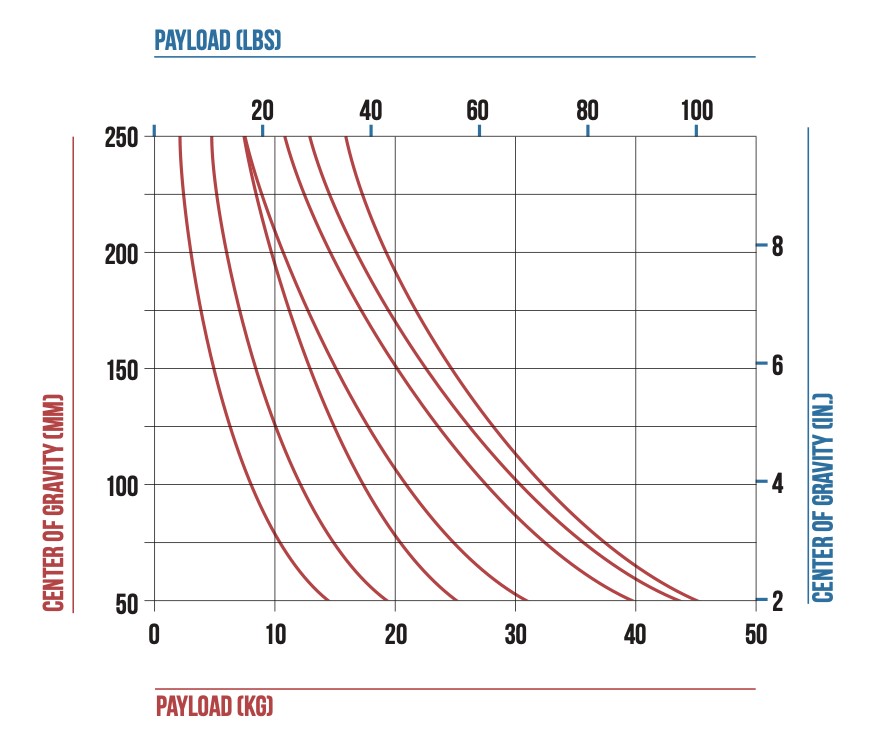

Payload versus centre of gravity

The chart shows how much camera weight the head’s counterbalance can balance depending on how high above the plate the centre of gravity of the rig sits. The higher the centre of gravity, the lower the payload the head can hold in balance.
