Cartoni C20S

The Cartoni C20S is a professional fluid head with a 100 mm bowl for EFP, studio, broadcast and film, ready for cameras weighing 7 to 35 kg. Three award-winning fluid modules give drag in 7 precisely repeatable steps plus 0 for freewheeling, and the counterbalance also has 7 steps and zero. ±65° tilt, illuminated spirit level, 6.5 kg. Five-year warranty after registration.

Stable support for EFP and studio

The C20S is designed to provide a particularly stable support for EFP configurations and is ready for a wide range of cameras. Drag and counterbalance selectors are easy to work with gloves on, and every setting can be repeated precisely.

7–35 kg100 mm bowl7-step drag + 0±65° tilt

Three award-winning fluid modules

The C20S has three fluid damping modules that deliver outstanding drag levels and extraordinary smoothness on pan and tilt. Drag is selected in 7 precisely repeatable steps, and position 0 gives free movement.

Counterbalance 7 steps + 0

An easy-grip selector sets the counterbalance in 7 progressive steps, with 0 for free movement.

±65° tilt

A wide tilt range for EFP, studio and film, with 360° pan.

Illuminated spirit level

Level the rig quickly even in low light.

Tripods and Cartoni pedestals

Fits any 100 mm bowl tripod, the P20 via AH869, the P40, P70+ and P70 Steering via AH863, and 150 mm tripods via the AT854 converter.

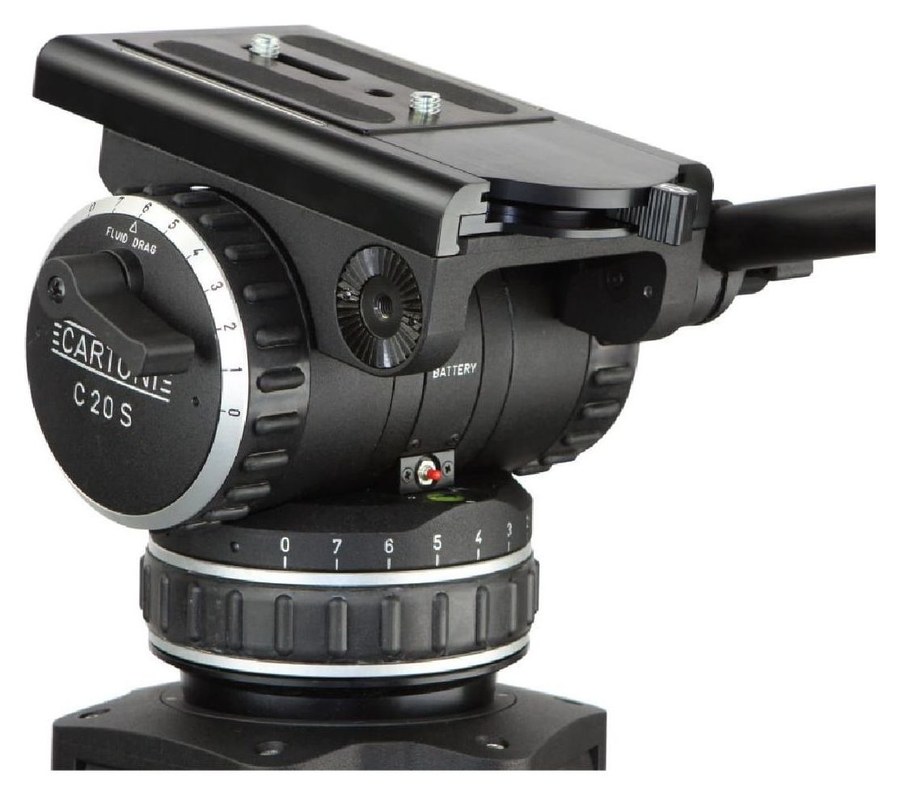

Counterbalance selector

The large counterbalance ring with its 0–7 scale sits on the side of the head, so you can change step in one move, even with gloves.

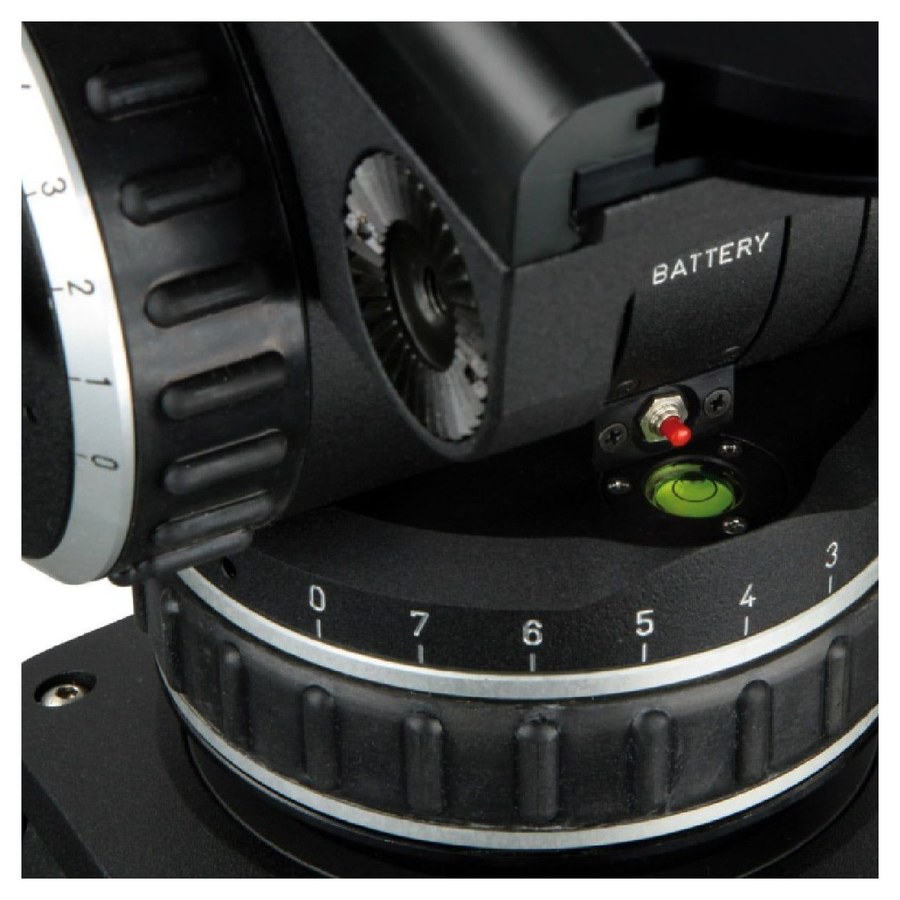

Drag ring and level

The numbered ring below the head selects fluid drag step 0–7, with the illuminated spirit level right above it.

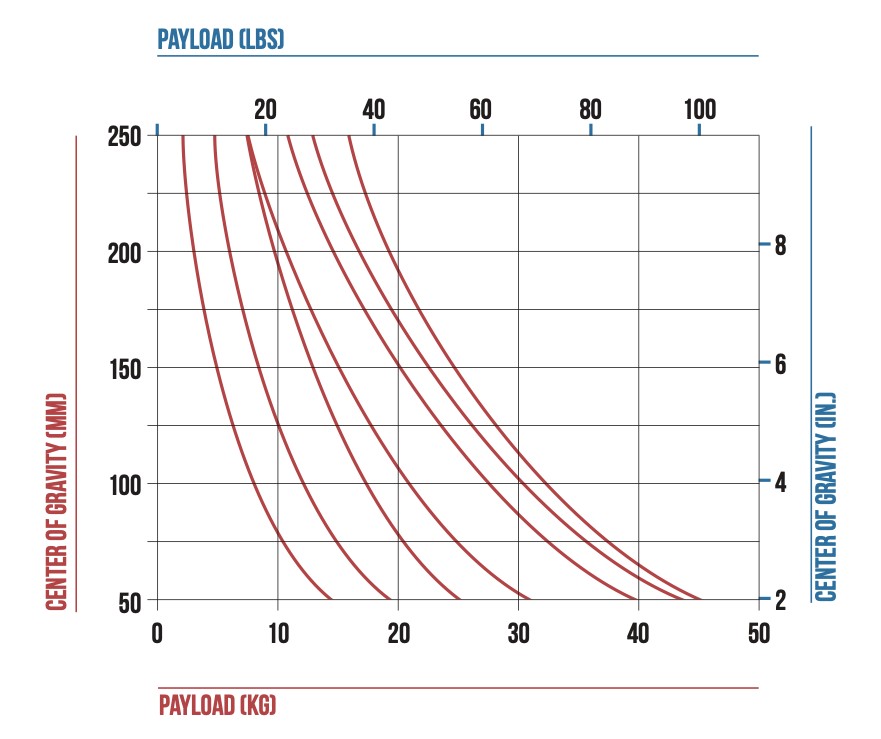

Payload versus centre of gravity

The chart shows how much camera weight the head’s counterbalance can balance depending on how high above the plate the centre of gravity of the rig sits. The higher the centre of gravity, the lower the payload the head can hold in balance.
