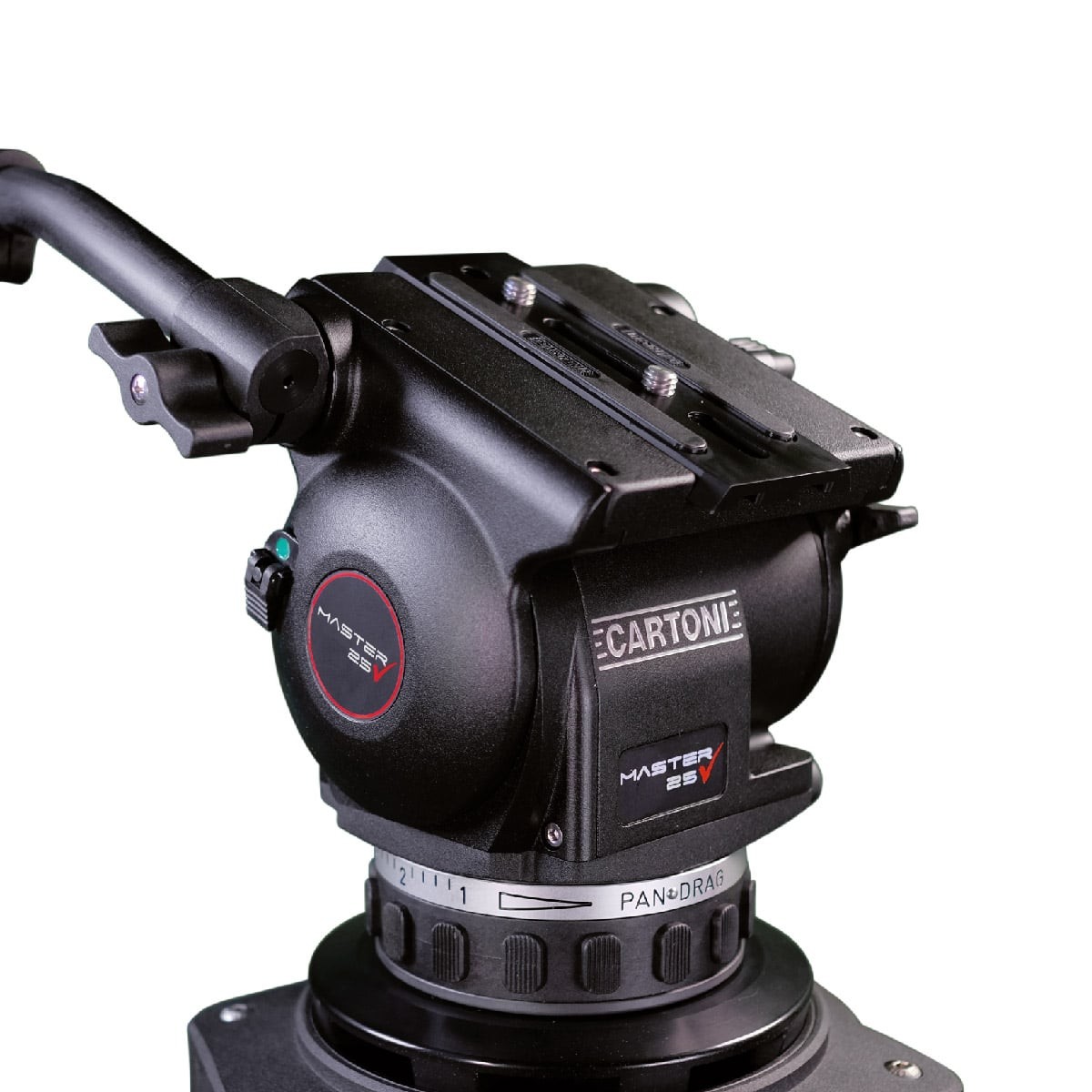

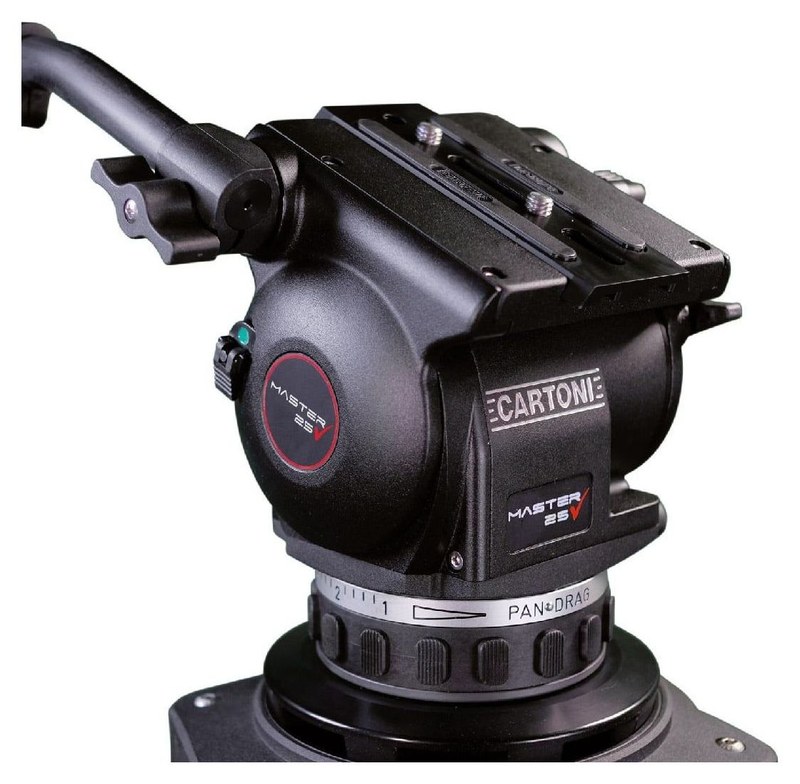

Cartoni Master 25

The Cartoni Master 25 is a nimble, versatile fluid head for OB, ENG and EFP with a payload from 3 to 30 kg. Rugged yet light at only 4.4 kg, it combines perfect balance with a super-smooth patented fluid drag on pan and ±90° tilt, and has a 150 mm bowl plus a flat base for direct mounting on tripods and pedestals. Five-year warranty after registration.

The ultimate do-it-all premium head

The Master 25 suits camera operators looking for a dependable lightweight support at a competitive price. The base interfaces directly with 150 mm tripods and with pedestals via the standard 4-bolt pattern.

3–30 kg150 mm bowl±90° tilt4.4 kg

Continuous drag and perfect balance

The patented, continuously variable fluid drag on pan and tilt, together with a continuous counterbalance, ensures smooth and precise camera movement in every situation.

11 cm sliding platform

The camera platform slides 11 cm and is compatible with the Vinten Vision 250.

Removable tie-down shaft

Remove the shaft to fit the head on a pedestal’s flat base.

Ergonomic controls

Brake levers and operating knobs are within easy reach, and a horizontal lock secures the platform during camera changes.

Illuminated spirit level

Level the head even in low light.

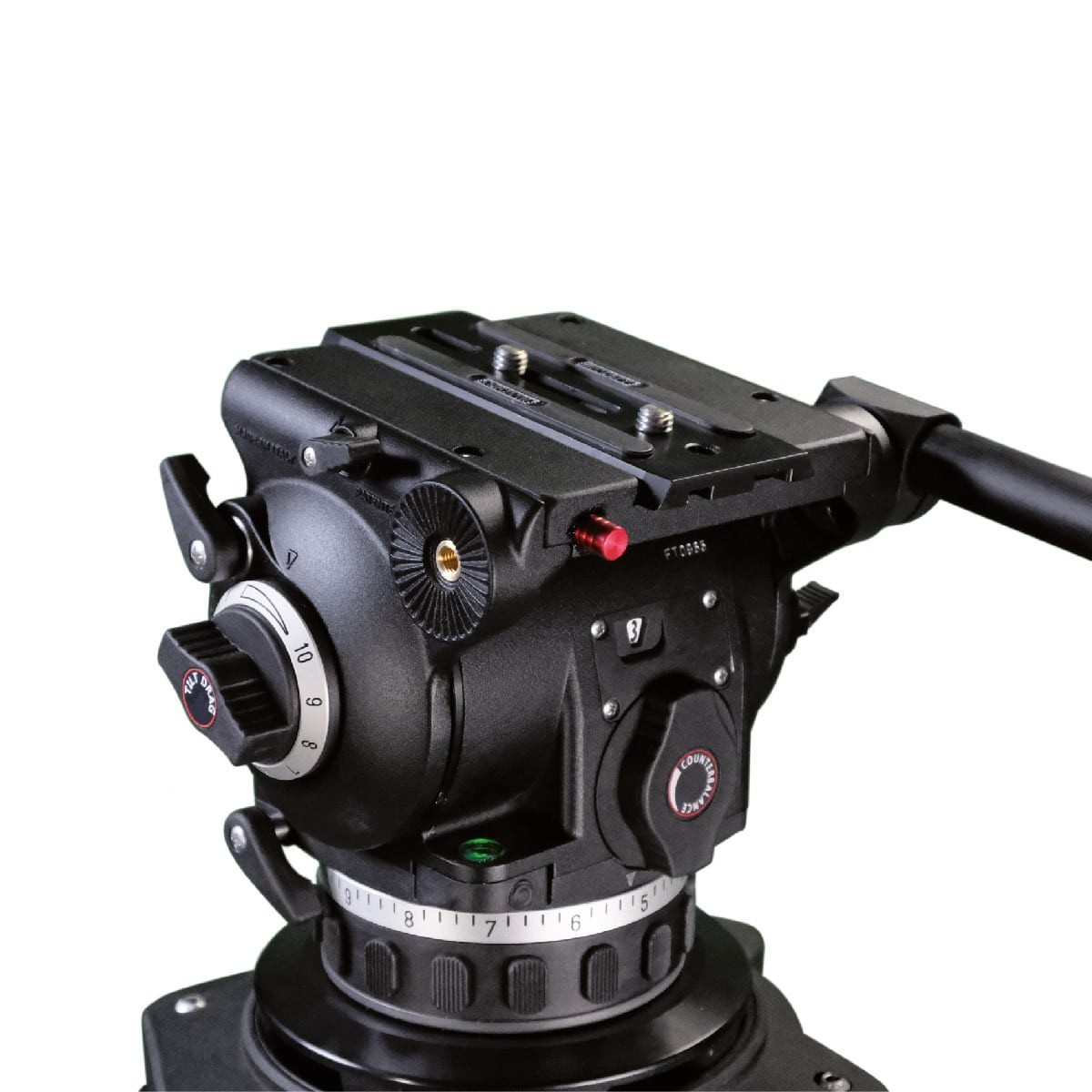

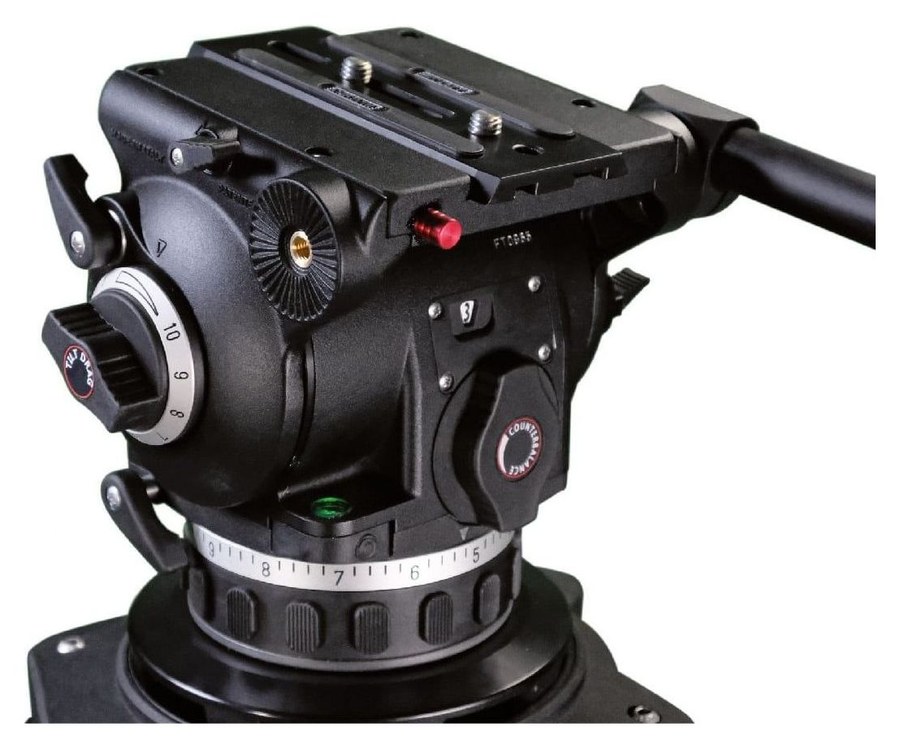

Controls on the sides

The drag and counterbalance knobs and brake levers are laid out so the operator finds them without looking and works them with one hand.

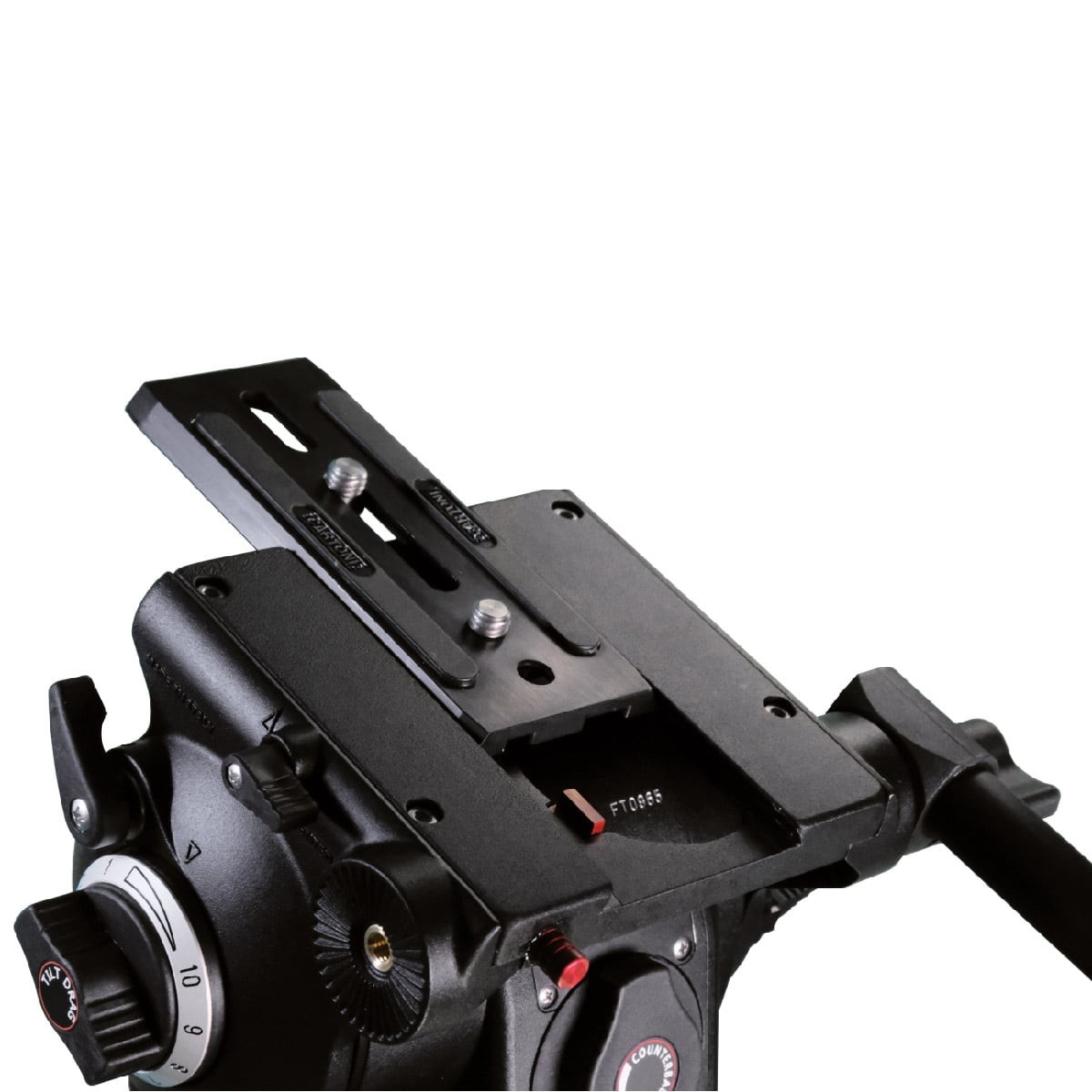

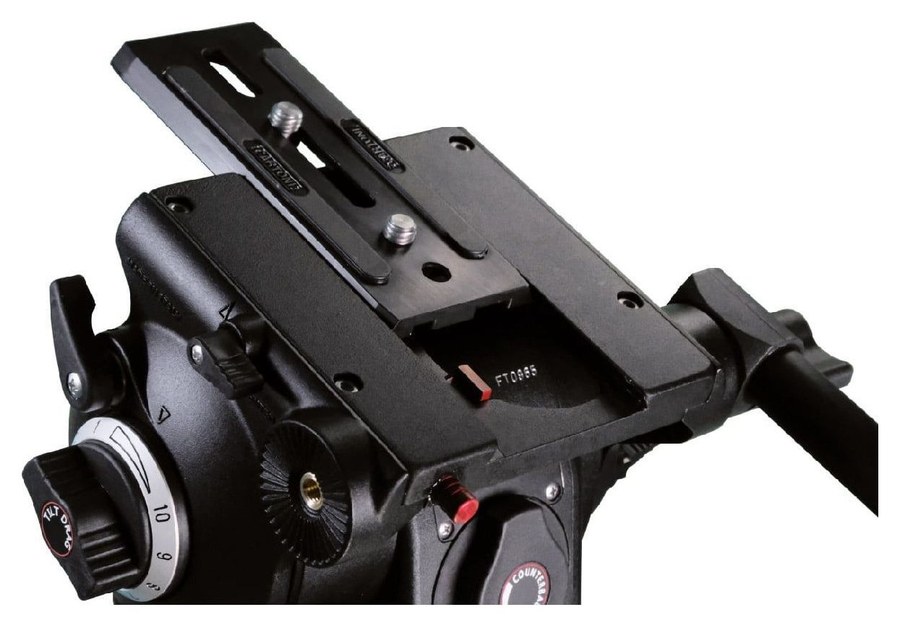

Sliding platform

The wide sliding platform with a scale lets you centre and balance the camera precisely, even with bulky accessories.

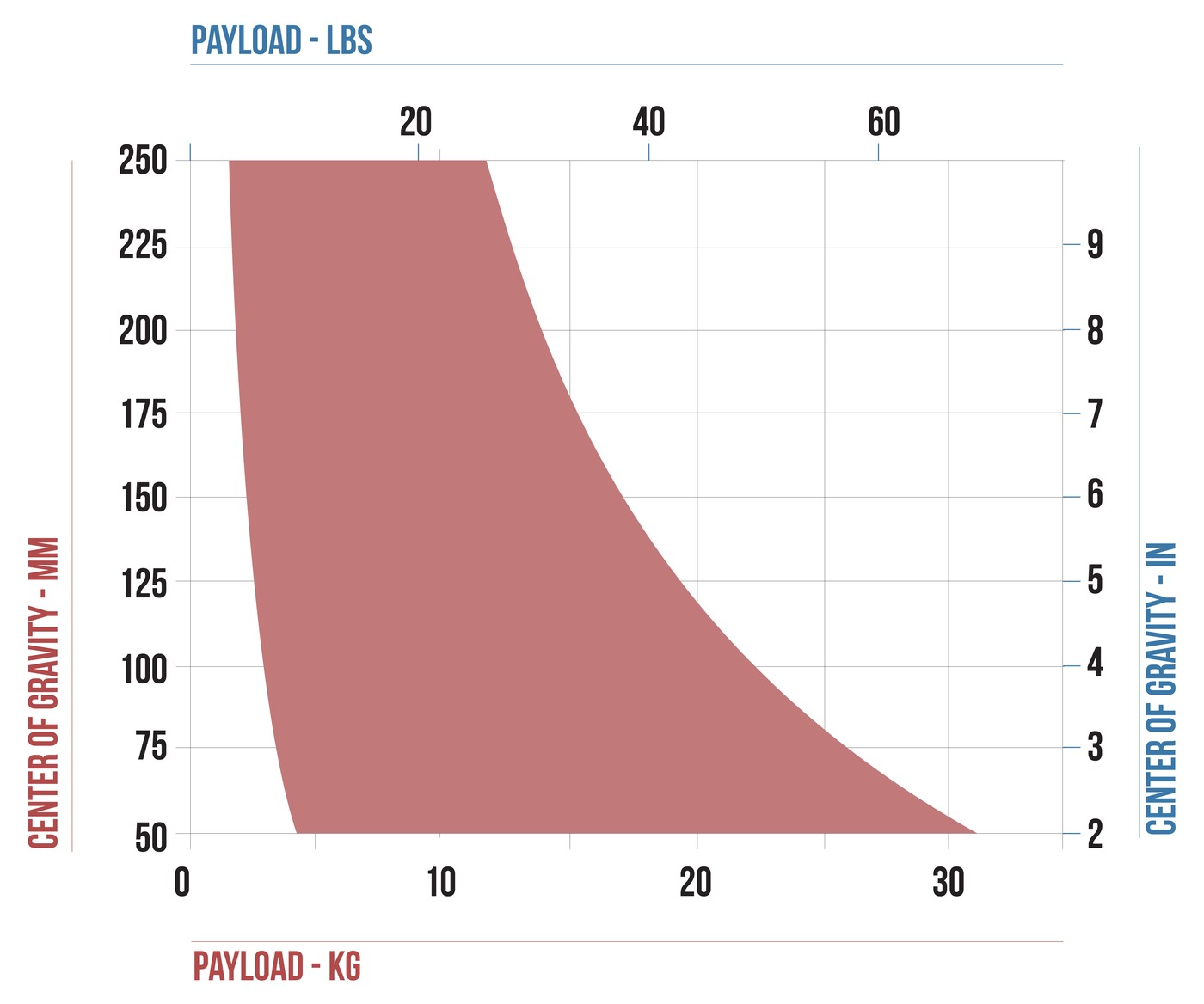

Payload versus centre of gravity

The chart shows how much camera weight the head’s counterbalance can balance depending on how high above the plate the centre of gravity of the rig sits. The higher the centre of gravity, the lower the payload the head can hold in balance.
